J5 Create JVA14 4K Game Capture Station
R2,989.99 incl. VAT
Only 7 left in stock

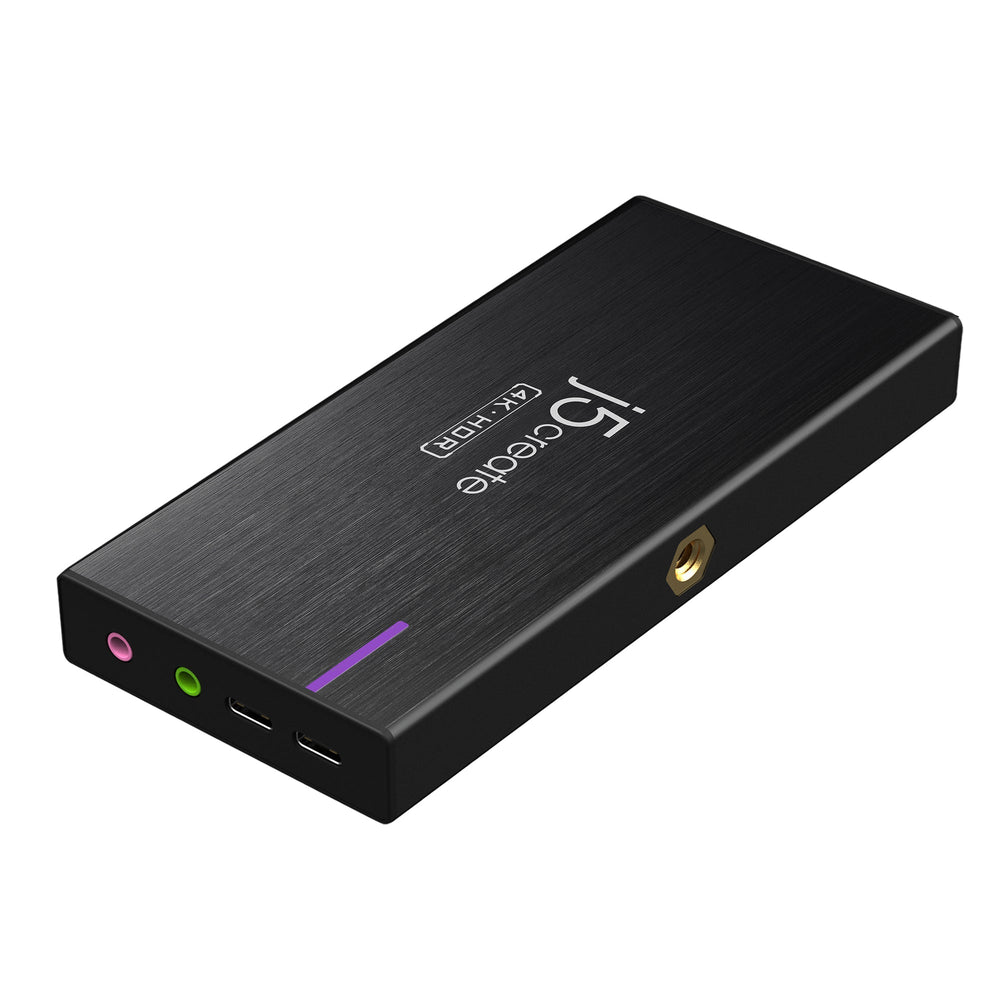

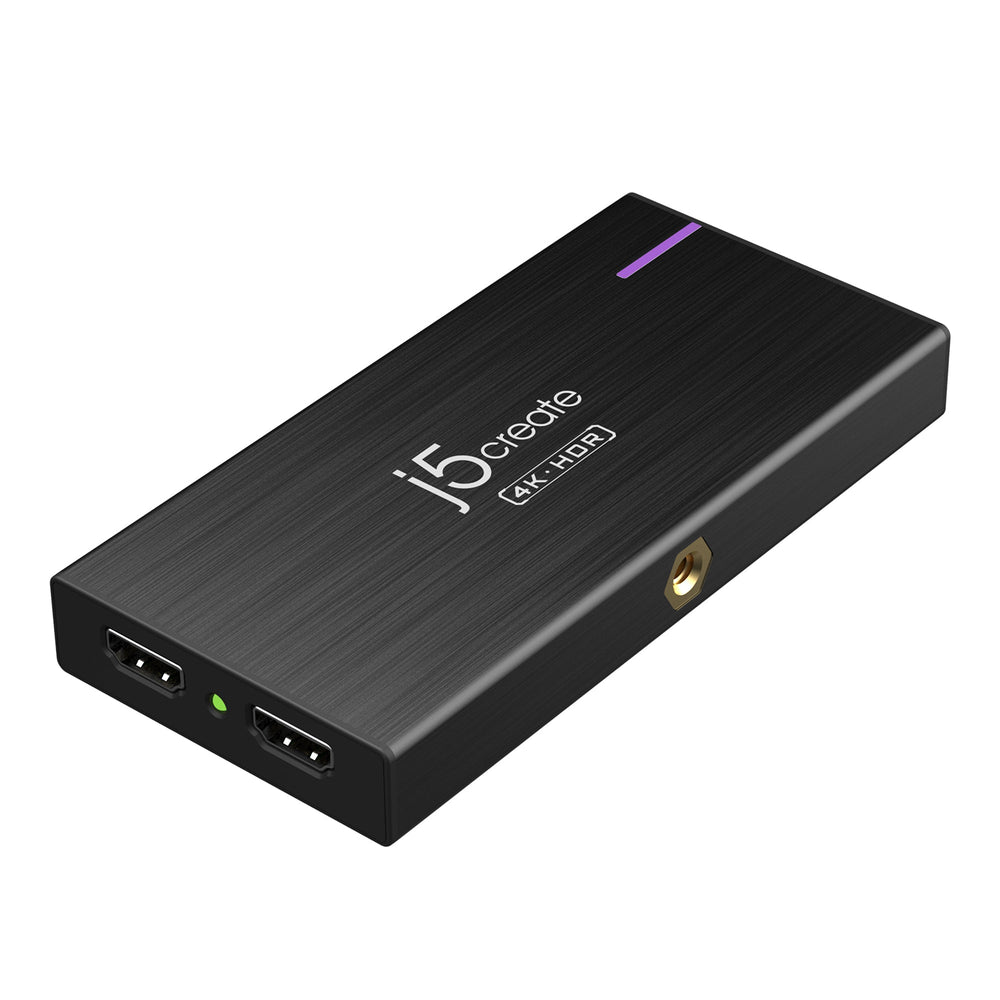

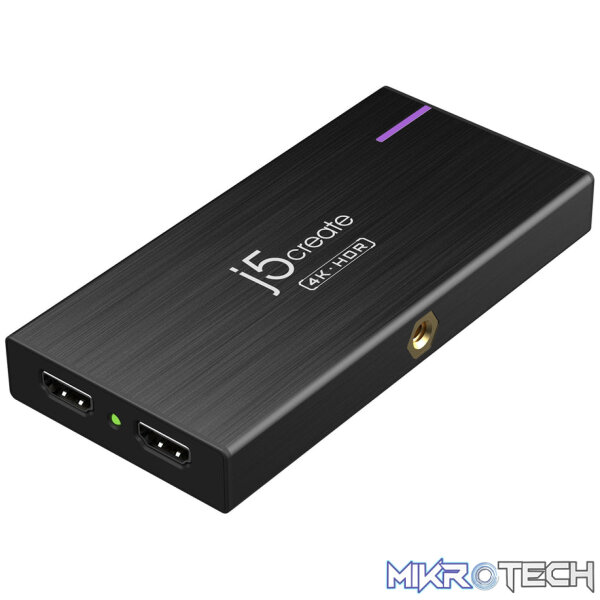

J5 Create JVA14 4K Game Capture Station
The JVA14 4K Game Capture Station is a capture device designed to stream and record your gameplay. It supports 4K @ 30 FPS video capture with 4K @ 60 FPS passthrough for consoles capable of 4K resolution. It has a 3.5 mm Audio In port and Mic In port allowing a headset to be connected for live commentary streaming on PlayStation™ 4 / 5, Xbox™ Series X / S, Xbox™ One X / S. It is fully compatible with OBS™ and other video streaming software, making it perfect for live streaming. The JVA14 is plug-and-play and compatible with macOS® and Windows® laptops and desktops.

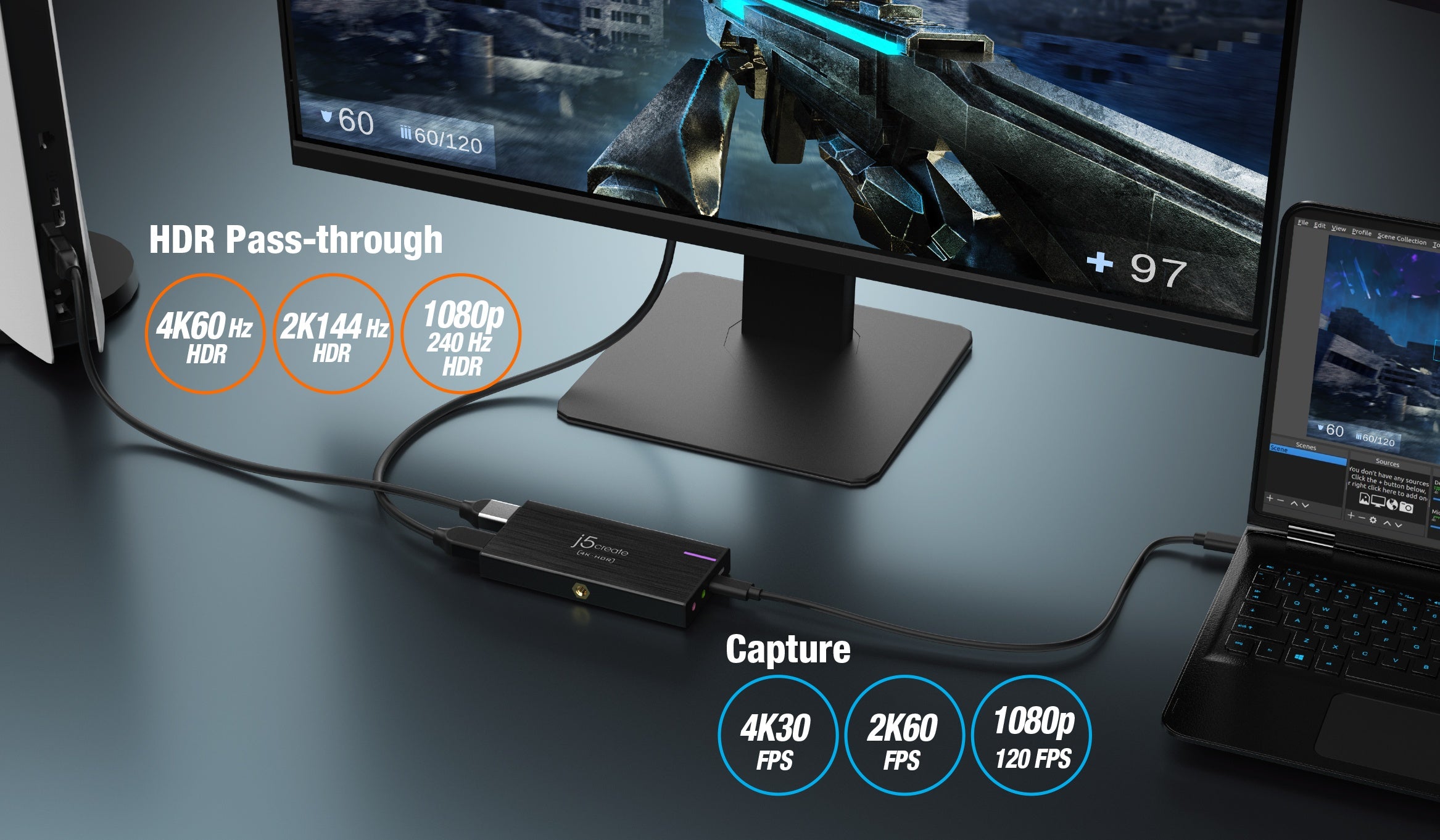

Supports 4K capture and 4K60 HDR pass-through
View your gameplay at high resolutions with the 4K capture and 4K HDR pass-through

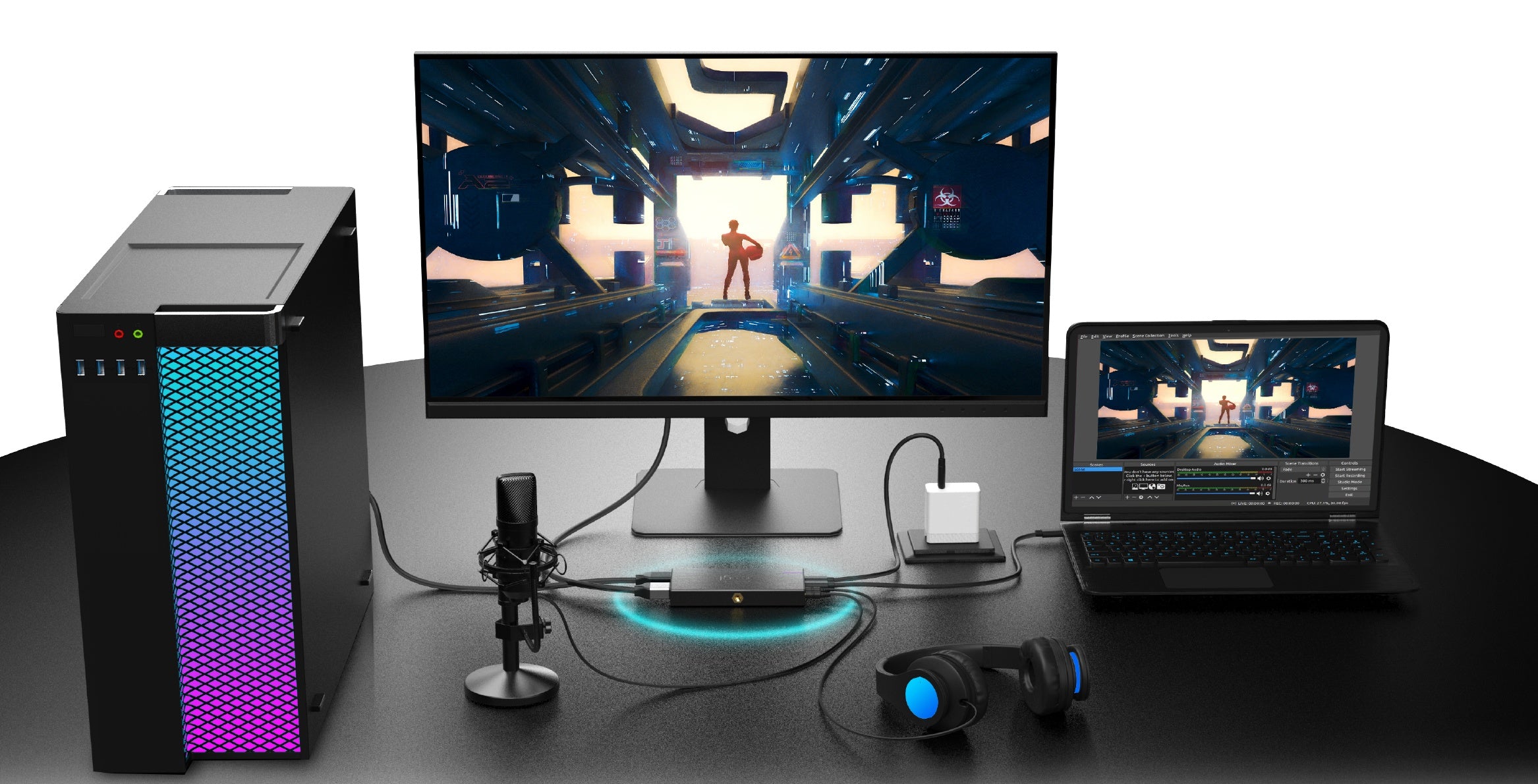

Perfect for live streaming and recording gameplay
Compatible with OBS™, XSplit®, CameraFi™, QuickTime®, and other video streaming software. Suitable for gaming consoles such as PlayStation™ 4/5, Xbox™ Series X/S, Xbox™ One X / S and Switch™
Quality Audio Connectivity

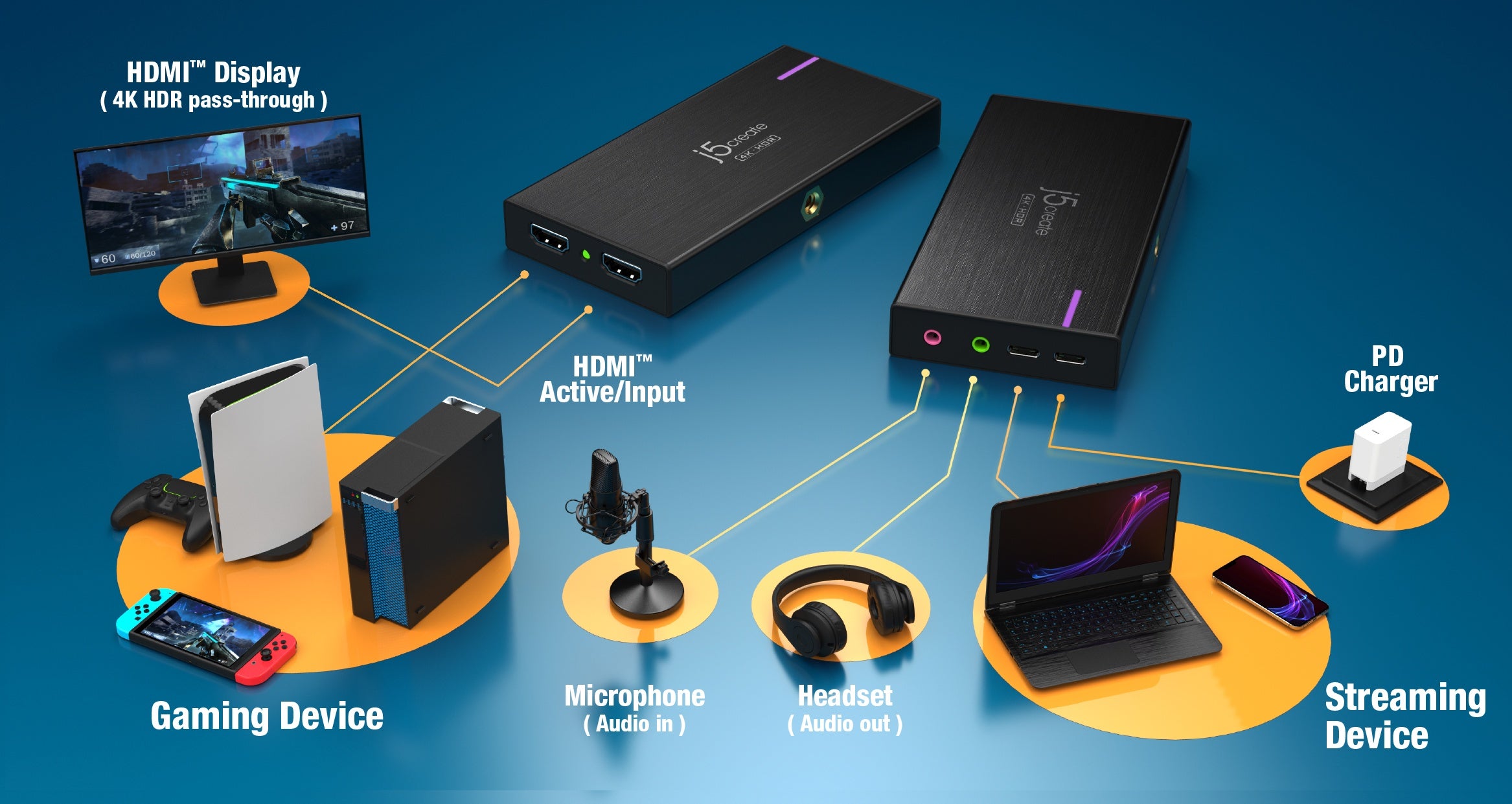

The JVA14 features a flexible audio connection via HDMI™ or analog 3.5 mm ports so you can record audio directly from game consoles, computers, or output to speakers/mixers
Low-latency streaming with a USB™ 3.2 connection
High-speed USB™ connection allows for quick data transfer and high quality streaming

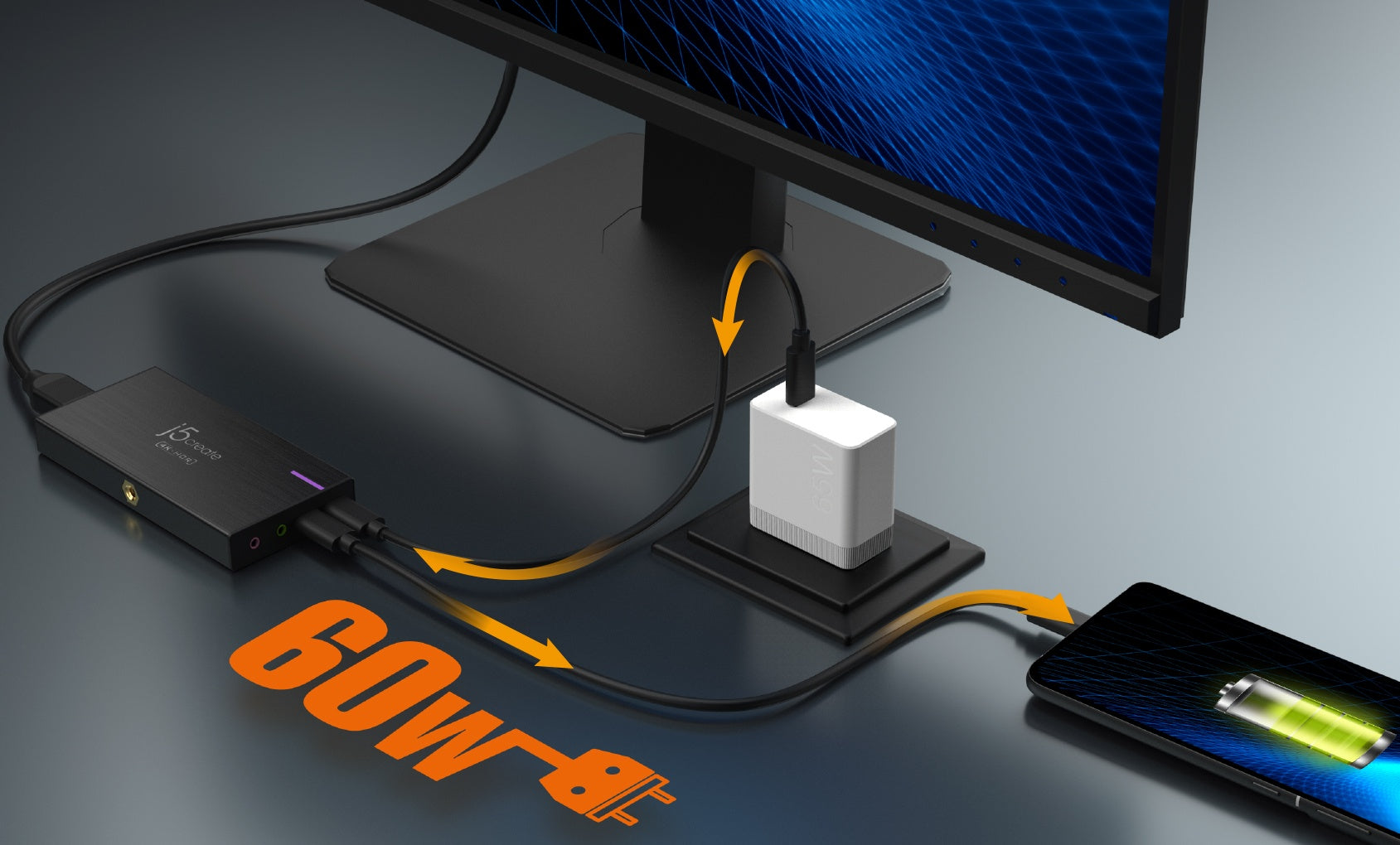

60W Power Delivery 3.0

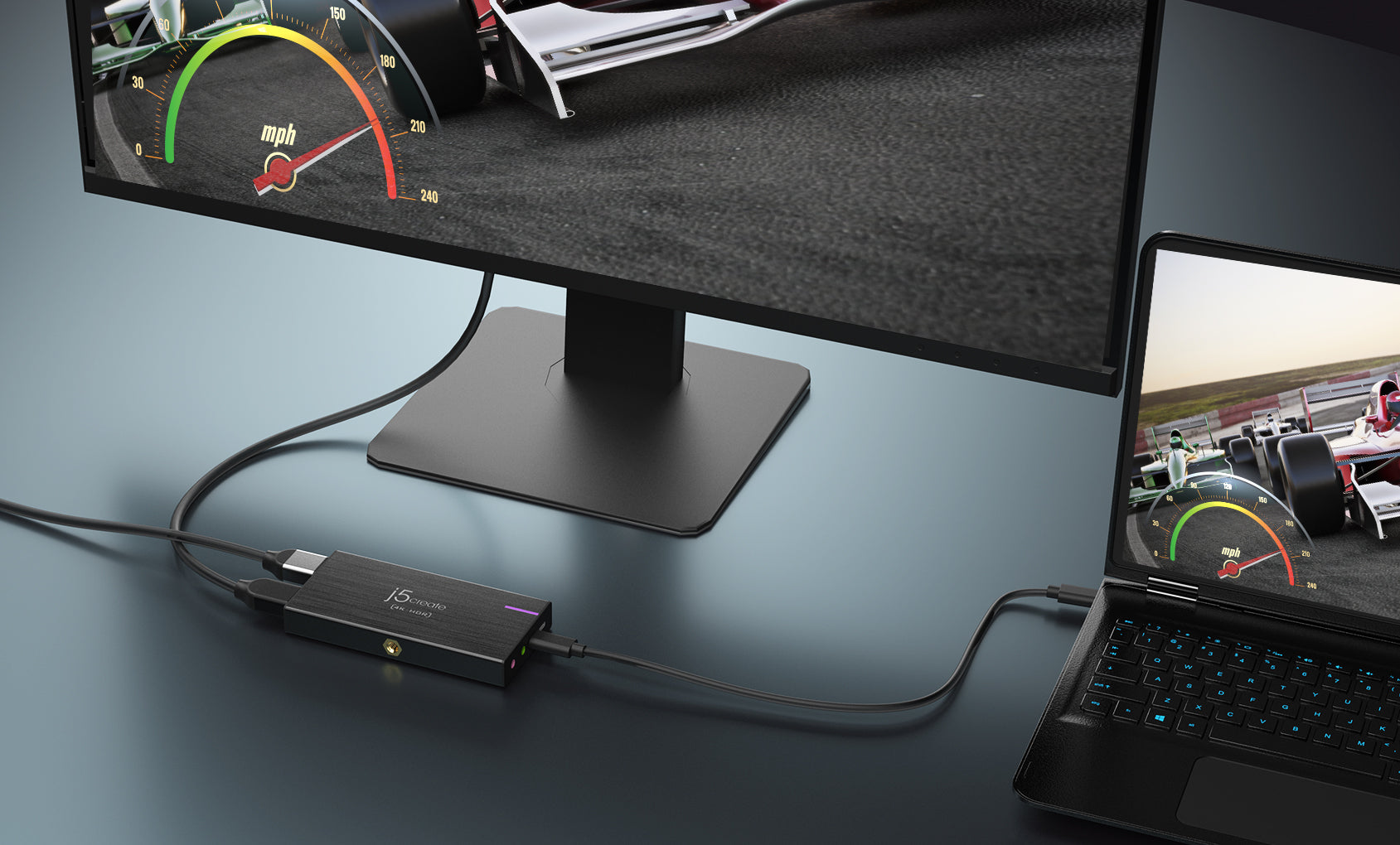

Allows phones and laptops with USB-C® power delivery to stay charged while being used as a streaming device

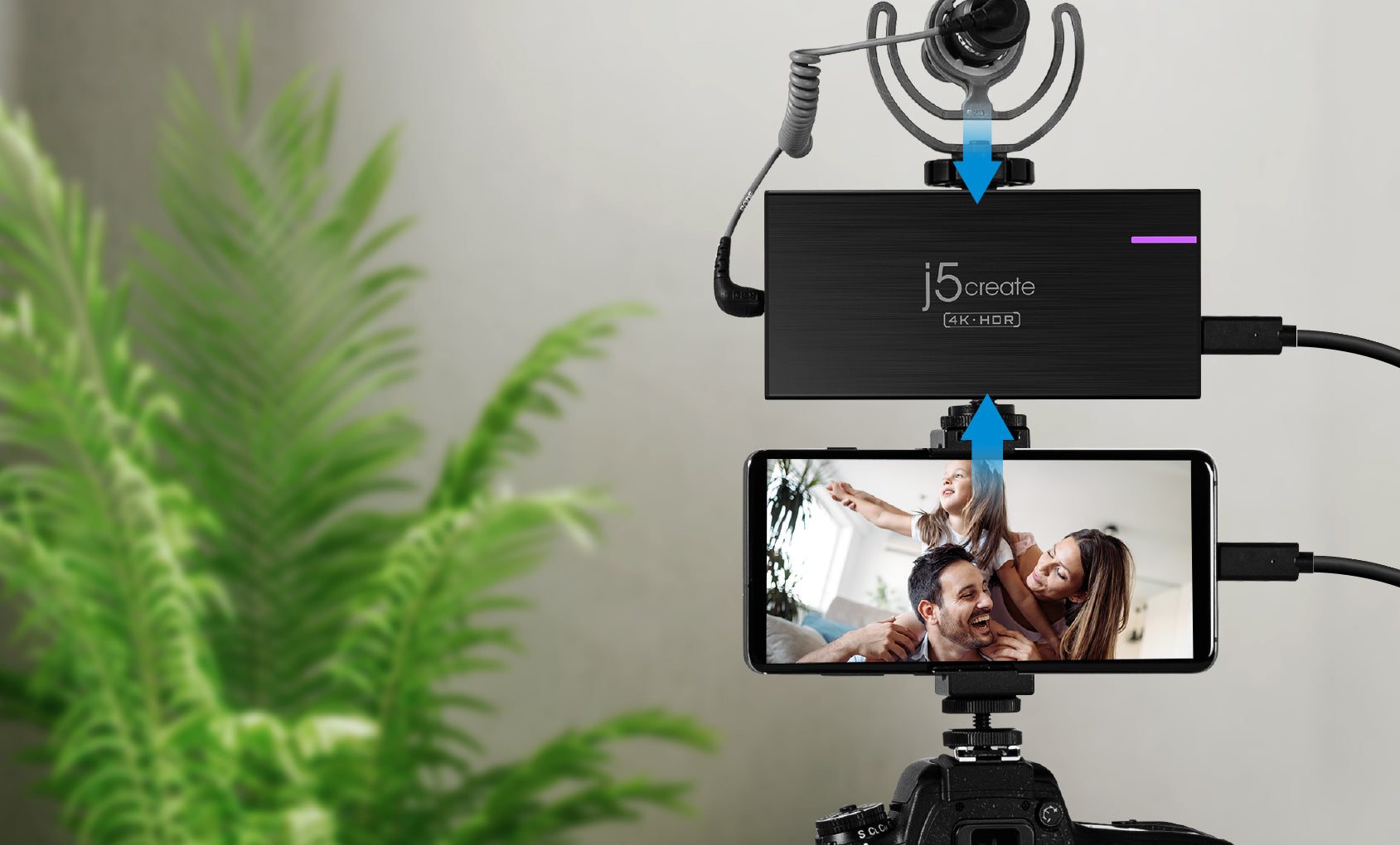

Easy DSLR attachment with 2 cold shoes embedded

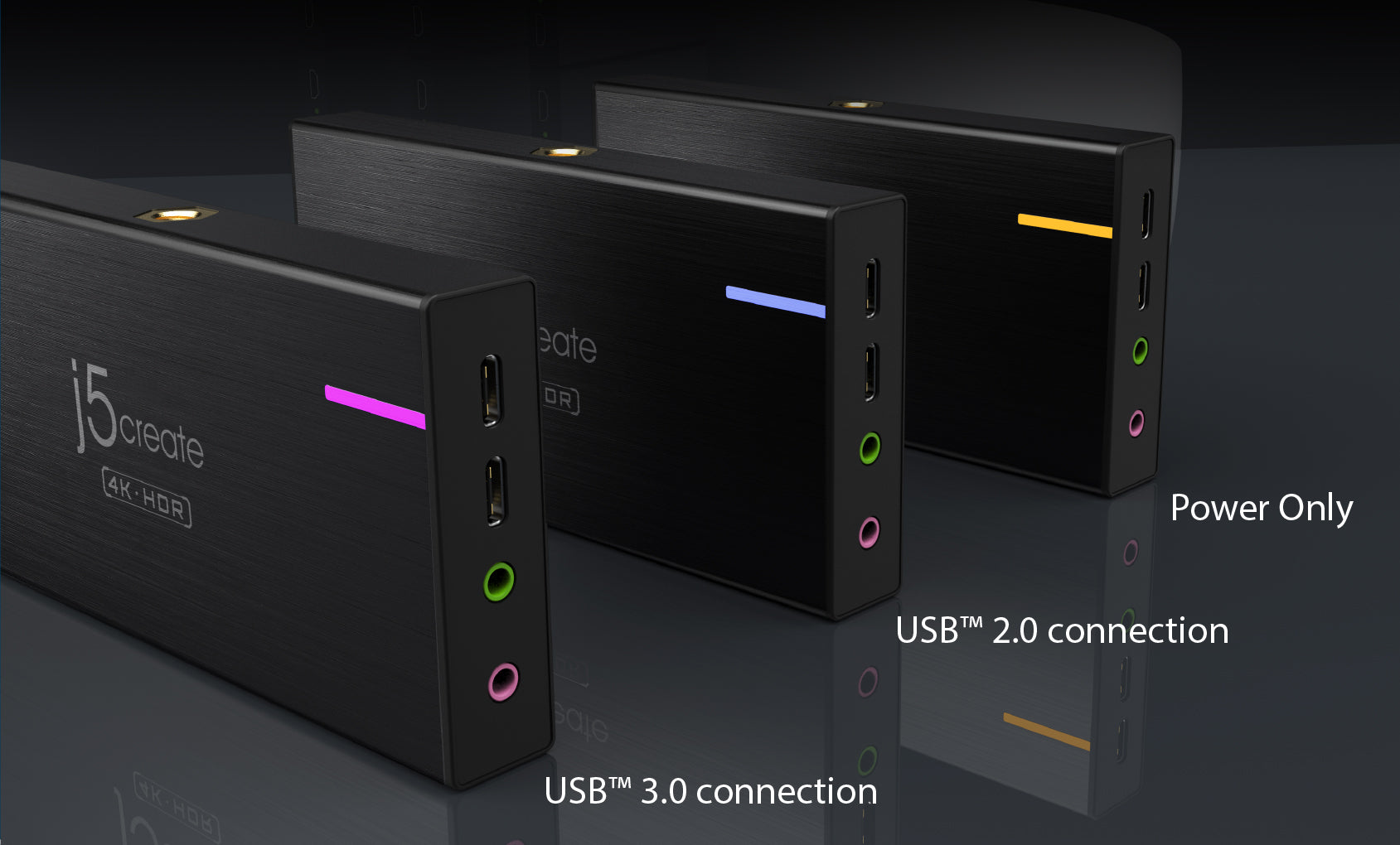

LED indicator to keep track of USB™ speeds and compression rates
– USB™ 3.0 connection: Purple
– USB™ 2.0 connection: Blue
– Power Only: Orange
System Requirements
- • Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended)
- • Windows® 7 or later
• macOS® 10.12 or later
• Android™ 8.1 or later
- • Windows® 7 or later
- • CPU: Intel® Core™ i7 6700HQ & above
- • GPU: NVIDA® GTX 960M & above
- • RAM: 8 GB or higher
| Hardware | |
| Warranty | 2 Year Limited |
| Host Connector | 1 – USB-C® 3.2 Female |
| Video Input | 1 – HDMI™ Female |
| Video Output | 1 – HDMI™ Female |
| Audio Input | 1 – 3.5mm AUX |
| Audio Output | 1 – 3.5mm AUX |
| Video Switcher | N/A |
| Audio Switcher | N/A |
| Power Source | Bus-powered |

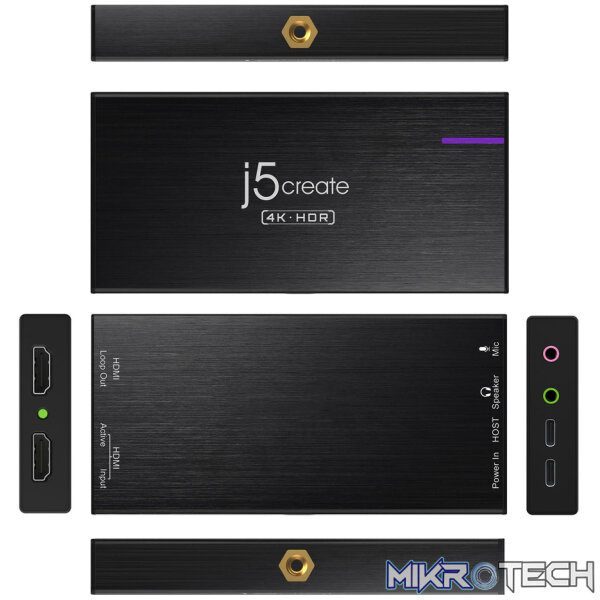

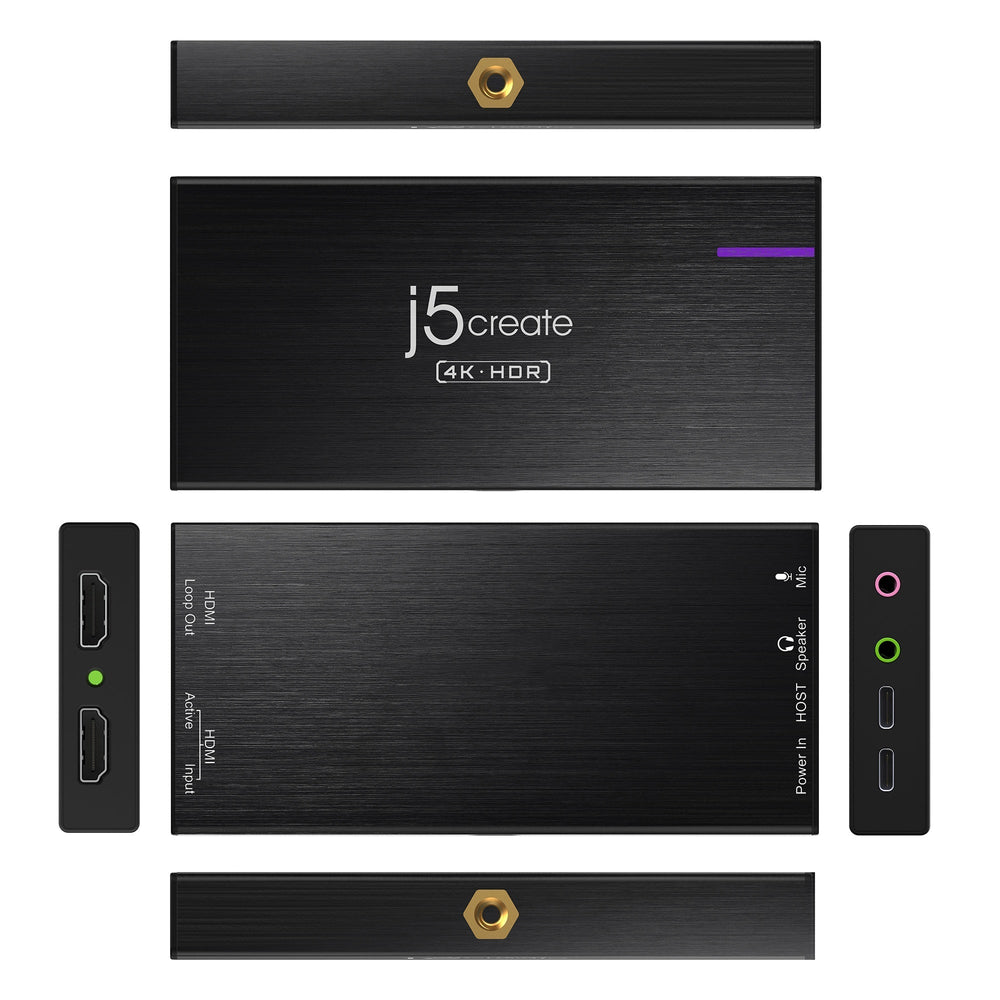

| Ports | 1 – USB-C® 3.2 Gen 1 1 – HDMI™ Input 1 – HDMI™ Output 1 – Audio Out (3.5 mm) 1 – Mic In (3.5 mm) |
| Performance | |
| Maximum Capture Resolution | 3840 x 2160 |
| Maximum Passthrough Resolution | 3840 x 2160 |
| Maximum Capture Refresh Rate | 4K30 FPS, 2K60 FPS, 1080p120 FPS |
| Maximum Passthrough Refresh Rate | 4K60 Hz HDR, 2K144 Hz HDR, 1080p240 Hz HDR |
| Audio Channel | 2.1 via HDMI™ |
| Audio Frequency | 48 kHz |
| Microphone | Stereo microphone supported n24-bit sigma-delta ADC |
| Headset | 2.1 Stereo |
| Format | USB™ 3.0: RGB / YUV4:2:2 / YUV4:2:0 USB™ 2.0: YUV4:2:0 |
| Maximum Capture Capability | USB™ 3.0: 3840 x 2160 @ 30 USB™ 2.0: 1280 x 720 @ 30 |
| HDR Supported | Yes |
| Power | |
| Power Delivery | 60W via USB-C® |
| Power Consumption | ?900 mA |
| Physical Specifications | |
| Color | Black |
| Enclosure Type | Aluminum |
| Cable Length | 3.3 ft (1m) |
| Product Height | 2.5 in. (63.7 mm) |
| Product Width | 5.3 in. (134.6 mm) |
| Product Depth | 0.7 in. (18.4 mm) |
| Product Weight | 5.03 oz (142.5g) |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Storage Humidity | < 85% non-condensing |
| Operation Temperature | 32 to 104°F (0 to 40°C) |
| Operation Humidity | < 80% non-condensing |
Package Contents
- • 1 – JVA14 4K Game Capture Station
- • 1 – USB-C® 3.0 to USB™ Type-A cable 1.96 ft / 60 cm
- • 1 – USB-C® 3.0 to USB-C® cable 1.96 ft / 60 cm
- • 1 – HDMI™ 2.0 cable 3.3 ft / 1m
- • 1 – Quick Installation Guide (QIG)
