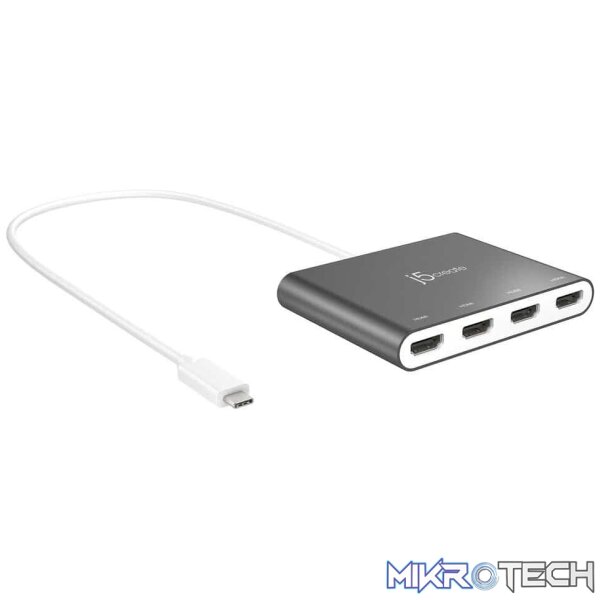

j5create JCA366 USB-C to 4-Port HDMI Multi-Monitor Adapter
R2,339.99 incl. VAT
Only 10 left in stock
Overview:
The JCA366 USB-C™ to 4-port HDMI™ Multi-Monitor Adapter functions as an external video card for your Mac® or PC. It gives you the ability to add four additional monitors/displays through your USB-C™ port. This is the perfect alternative to a costly video card. With the JCA366, you can quickly install the driver with a simple USB-C™ plug-in. Then connect your device to your monitors using HDMI™ cables, and you have just created a new visual environment in seconds.
With this multi-monitor adapter, you can extend your desktop across multiple displays and clone one screen onto another, in addition to having individual applications displayed on each monitor. Enable additional features with the Multi-Monitor Assistant Application for Windows.
Features:
- Supports 4 display modes: Extended, Primary, Mirror, and Rotation Mode. *Functions limited by operating system
- Increase productivity: Multitask with a larger landscape/desktop space. Move and view your large spreadsheets across four screens without overlapping windows. Ideal for viewing multiple windows at the same time to enhance productivity from standard business applications.
- 1080P HDMI™ resolution with stereo audio: 1920 x 1080 @ 60 Hz, with 1080P Video Playback; display rotation: 0°, 90°, 180°, 270°. 4 HDMI™ ports simultaneously support 48 kHz imbedded audio.
- No external power required: USB™ powered with SuperSpeed USB™ 3.0, 5 Gbps
- Multitask effectively: Great for multitasking in a wide variety of applications including phone centers, stock markets, hospitals, graphic design, editing, accounting, etc. Efficient for editing documents on one screen and researching reference materials on the other.
Increase productivity with multiple display modes
Multitask with a larger landscape/desktop space. Move and view your large spreasdsheets accross four screens without overlapping windows. Ideal for viewing multiple windows at the same time to enhance productivity from standard business applications.
1080 HDMI™ RESOLUTION WITH STEREO AUDIO
1920 x 1080 @ 60 Hz, with 1080P Video Playback; Display Rotation: 0°, 90°, 180° & 270°
4 HDMI™ ports simultaneously support 48 kHz imbedded audio.
Supports 4 Display Modes
Mirror mode is used to clone one screen onto another, ideal for presentations. Extended mode allows you to extend your desktop accross multiple displays, great for spreadsheets. Primary mode allows you to have individual applications open on each monitor, vastly improving productivity. Display Rotation allows you to view an image or report vertically, perfect for x-ray film.
FAST INSTALLATION
Simply install the driver and plug in the USB-C™, then it’s ready to go.
System Requirements:
- Microsoft® Windows® 10/ 8.1/ 7 (32-bit or 64-bit) compatible
- macOS® X 10.8 or later
- Available USB-C™ port (USB™ 3.1/3.0 recommended)
- Office applications / Web browsers CPU: Intel® Core™ i3 Dual Core 2.8 GHz
- RAM: 2 GB memory or higher
- CPU: Core™ i5 Quad Core RAM: 4 GB memory or higher, Core™ i7 Quad Core RAM: 8 GB memory or higher recommended
| Host Interface | USB-C 3.1 male connector |
|---|---|
| Video Interface | 4 x HDMI female connector *HDMI Audio output simultaneously |
| Max Resolution | 1920 x 1080 @ 60 Hz |
| Power Mode | Bus-powered |
| Power Consumption | â?? 900 mA |
| Housing Material | Aluminum |
| Dimensions | Main body: 101.5 (W) x 79.5 (H) x 16 (D) mm Cable length: 500 mm |
| Weight | Approximately 158g |
| Storage Temperature | -10 – 65°C |
| Storage Humidity | 85% non-condensing |
| Operation Temperature | 0 – 40°C |
| Operation Humidity | 85% non-condensing |
| Aspect Ratio | Display Resolution |
| 16:9 (Wide Screen) | 1920 x 1080 1600 x 900 1366 x 768 1360 x 768 1280 x 720 |
| 16:10 (Wide Screen) | 1680 x 1050 1440 x 900 1280 x 900 |
| 15:9 (Wide Screen) | 1280 x 768 |
| 4:3 (Standard Display) | 1600 x 1200 1400 x 1050 1280 x 960 1152 x 864 1024 x 768 800 x 600 640 x 480 |
| 5:4 (Standard Display) | 1280 x 1024 |
