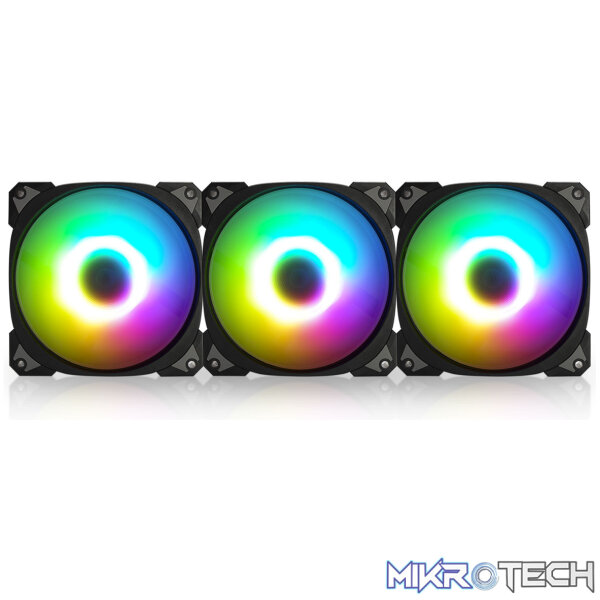

Acoustic Expression: Silence

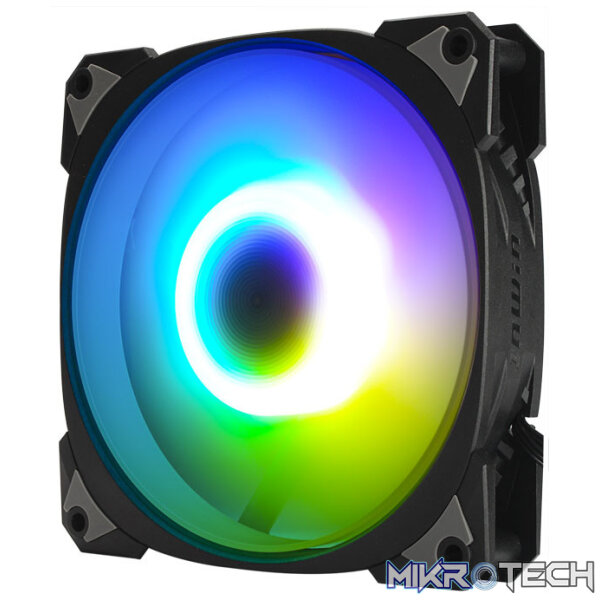

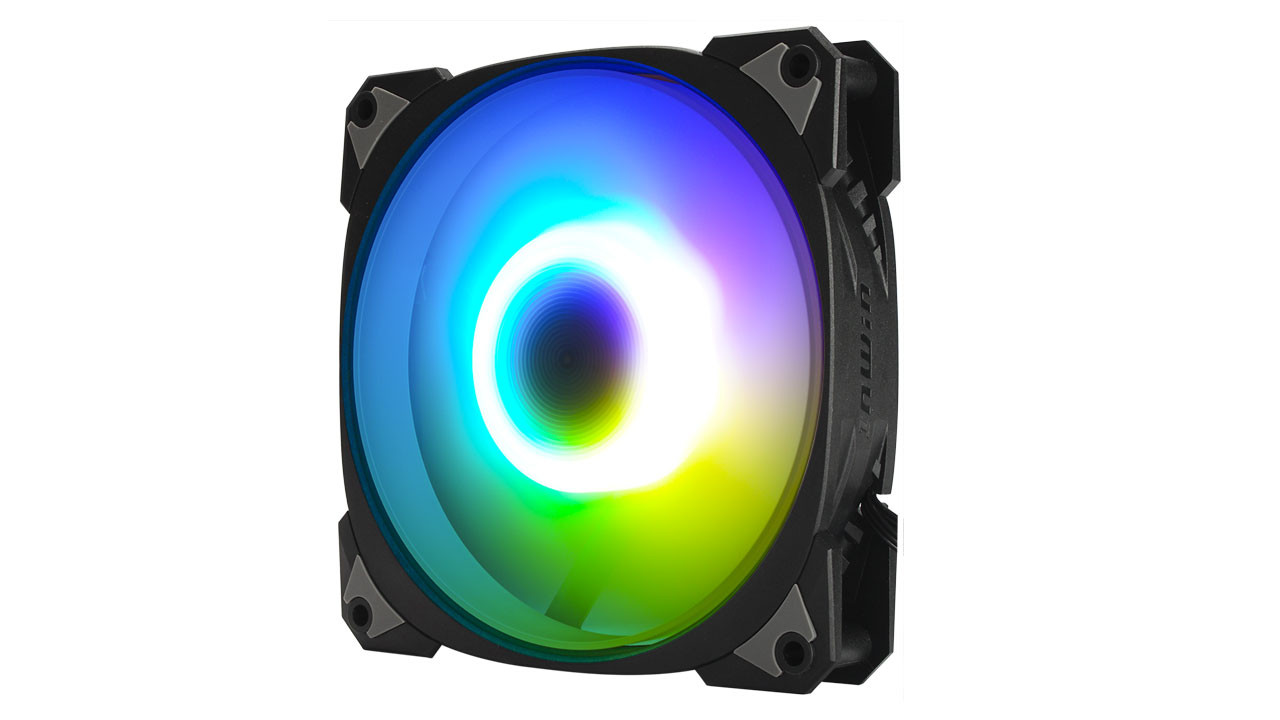

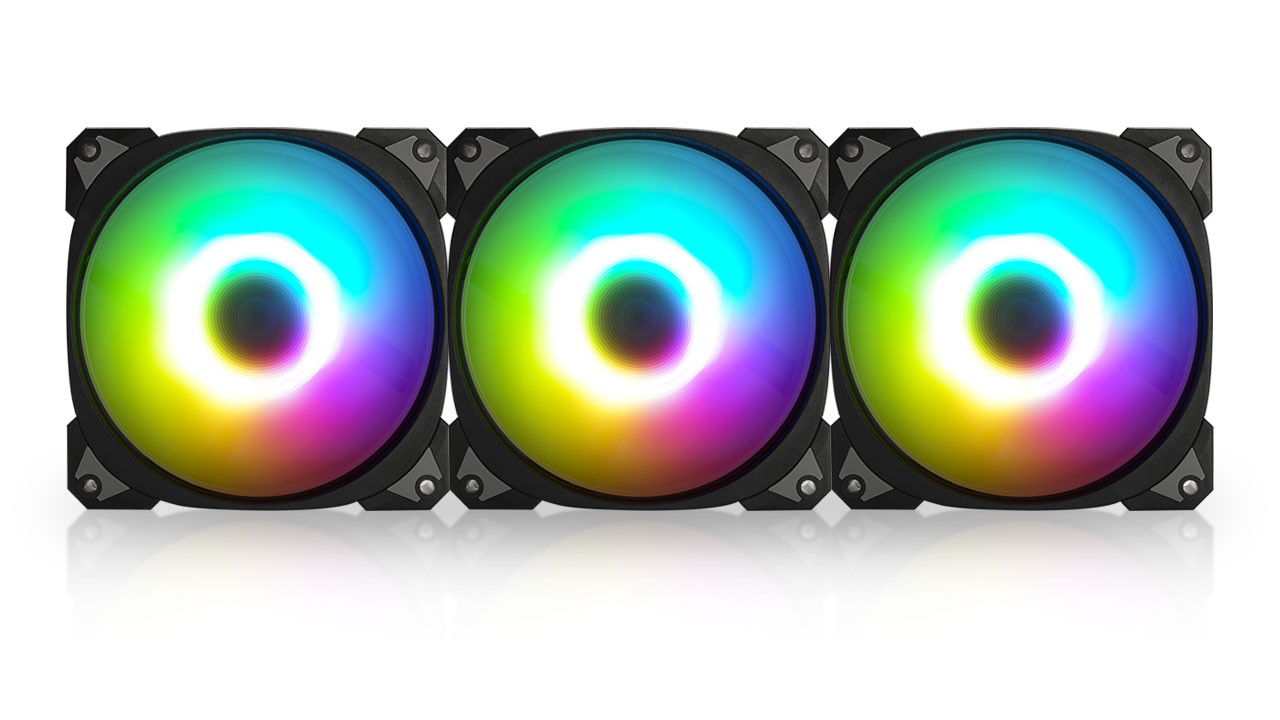

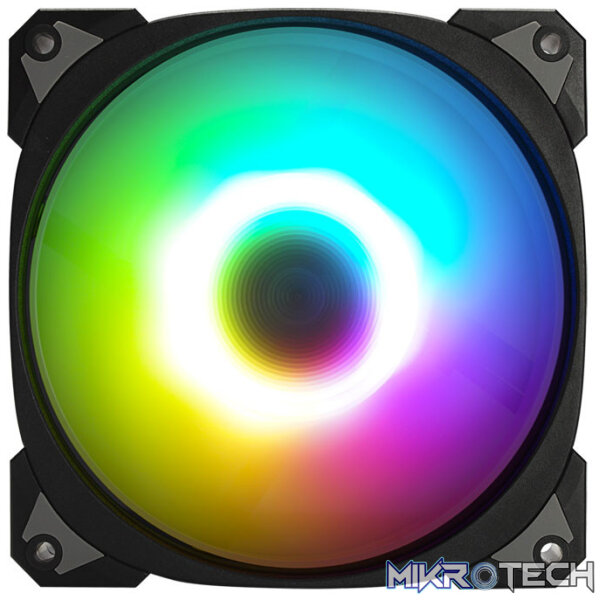

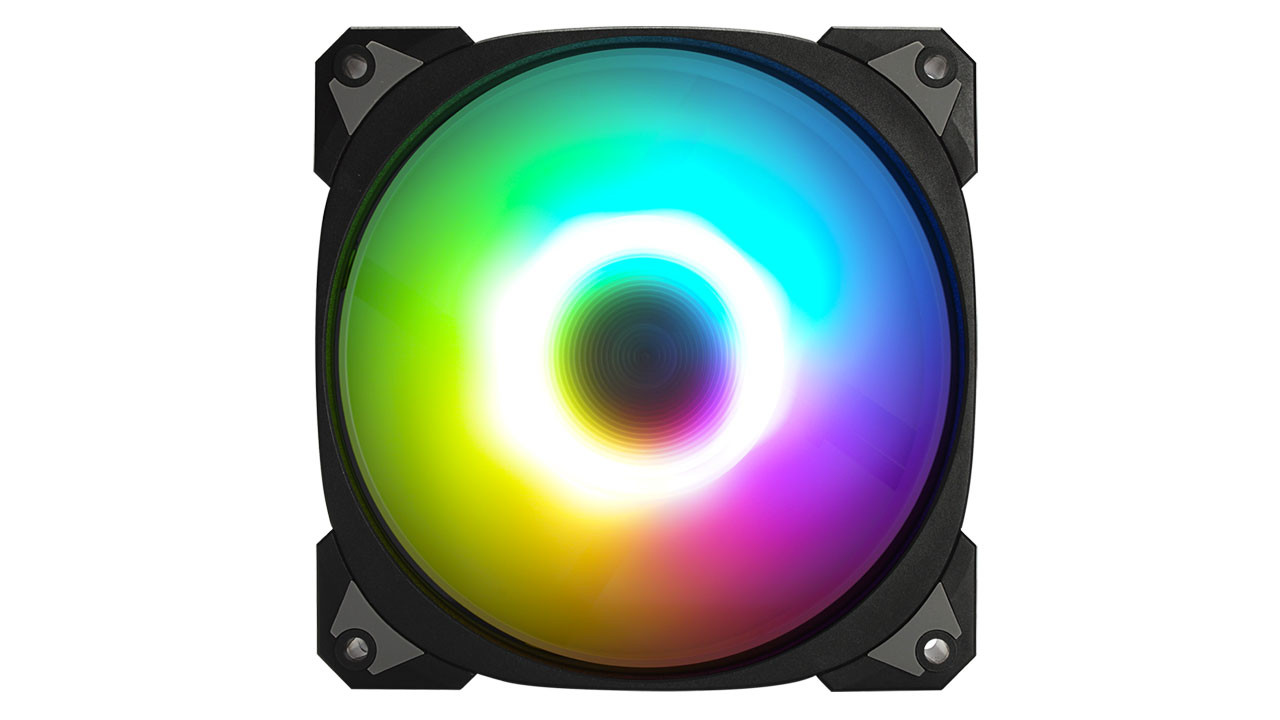

The Neptune AN fans, integrated with innovative aerodynamic blades, maintain efficiency while sustaining a silent, tranquil environment. The 8-individual-ARGB-LEDs enrich the PCÂ’s overall visual aesthetic.
Bested the Tested
The Neptune fans underwent rigorous testing, fortifying a strong pressure-to-airflow P-Q curve. The critical middle section indicates that the Neptune fans possess high static pressure and airflow that outperforms the competition.
True Air Benders
Besides enhancing speed, the Neptune series creates a more balanced performance, which includes reducing noise. Turbulence, resonance, and pitch from air dispersal were all taken into consideration. InWin dissected the fan’s anatomy to produce these silent high static-pressure fans.

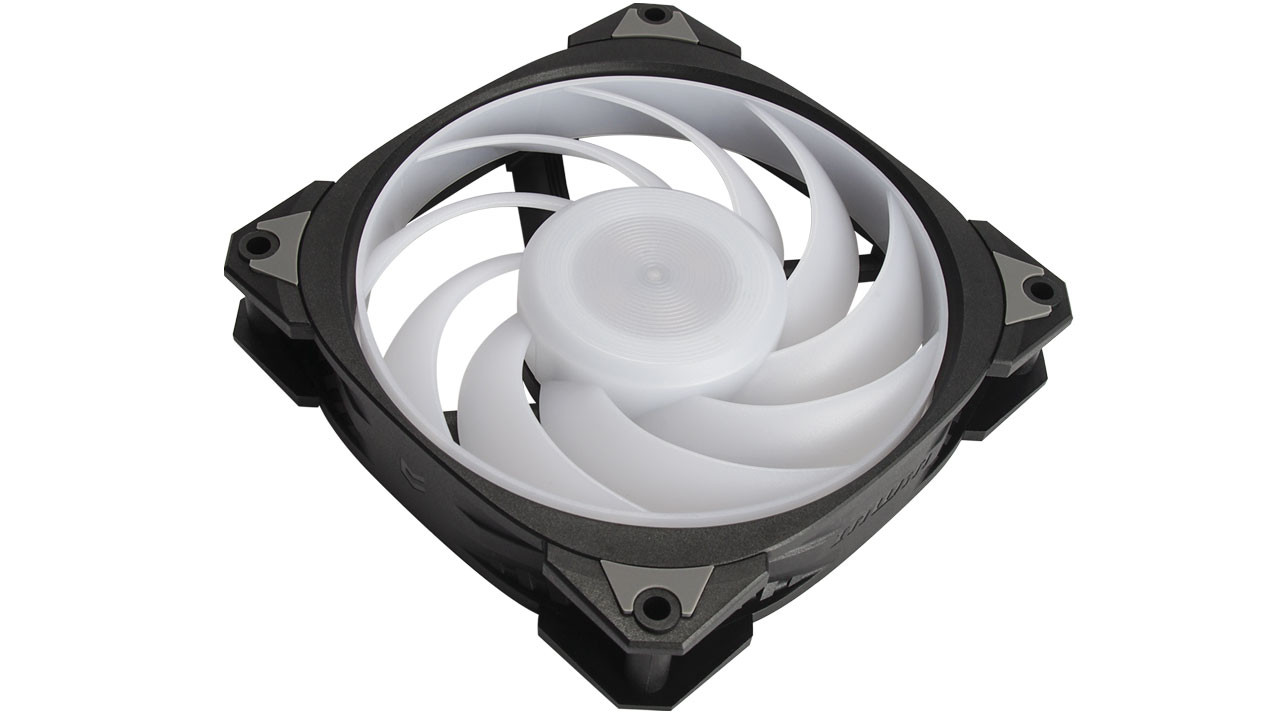

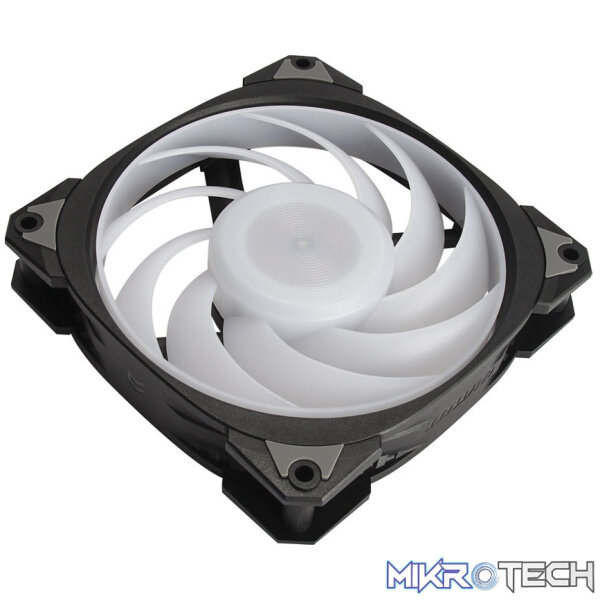

Turbine Blade Design
Experience quiet cooling and efficient airflow with InWinÂ’s signature Turbine Blade design. Molding the fan blades into the frame creates a more concentrated airflow, preventing air leakage and irritating noise pollution.
Ahead of the Curve
NeptuneÂ’s fan blades are angled slightly to ensure the airflow is channeled in a more focused stream. This tactical design allows the static pressure to increase.
BE COOL! BE COOL!
The Neptune case fan series PWM initiates at an immediate 900 RPM. This will provide enough airflow to cool loading PC systems while producing an extremely low noise level at 17.2 dB(A).
Specifications
Fan Size | 120 x 120 x 25 mm |
Materials | PBT, PC |
Rated Voltage | DC 12V |
Rated Power | 1.92W |
Rated Current | 0.17A |
ARGB Rated Voltage | DC 5V |
ARGB Rated Power | 1.4W |
ARGB Rated Current | 0.28A |
Speed Mode | PWM 900 – 2200 RPM +/-10% |
Air Flow | 23.87 – 60.1 CFM |
Air Pressure | 0.36 – 2.27 mm / H2O |
LED | Addressable RGB |
Connector (Fan to Fan) | Non-Modular Cables |
Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) |
Noise Level | 20.5 dB(A) (Normal) |
Bearing Type | Long Lifespan Sleeve Bearing |
MTBF | >36,000 hrs. |
Weight | 541 g |
Warranty | 3 Years |
