Product Description

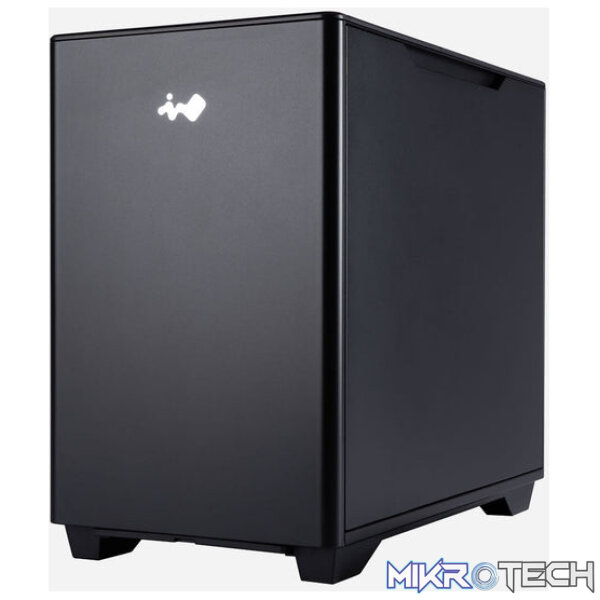

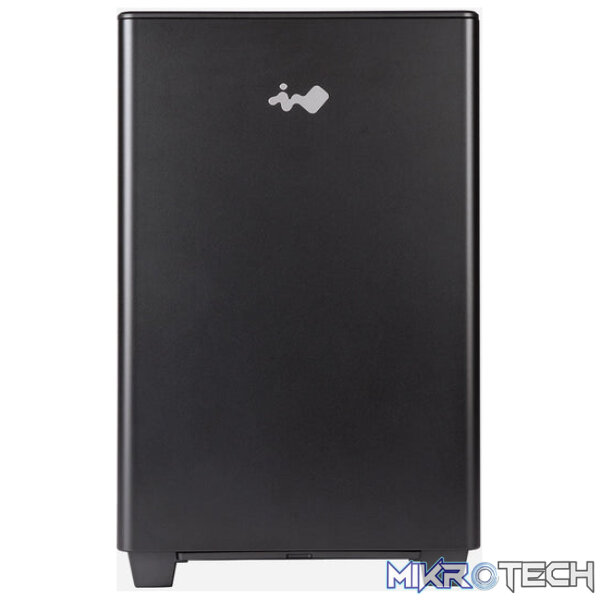

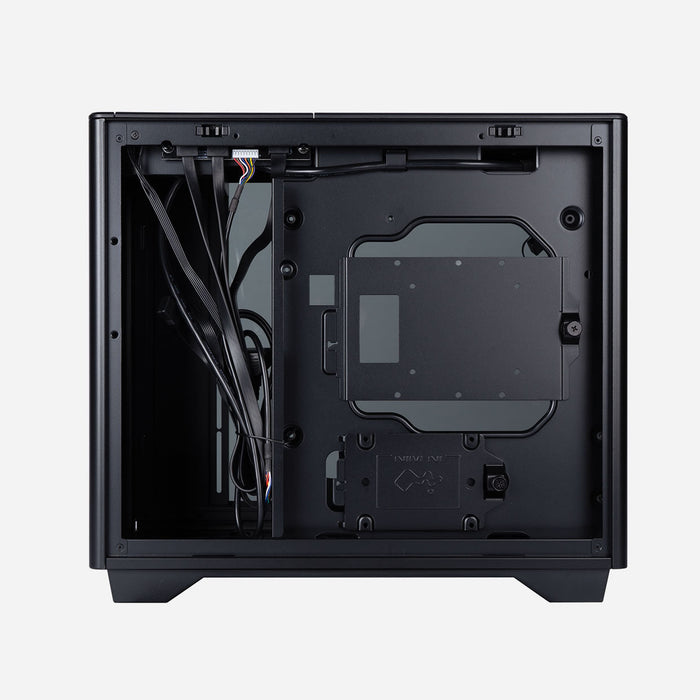

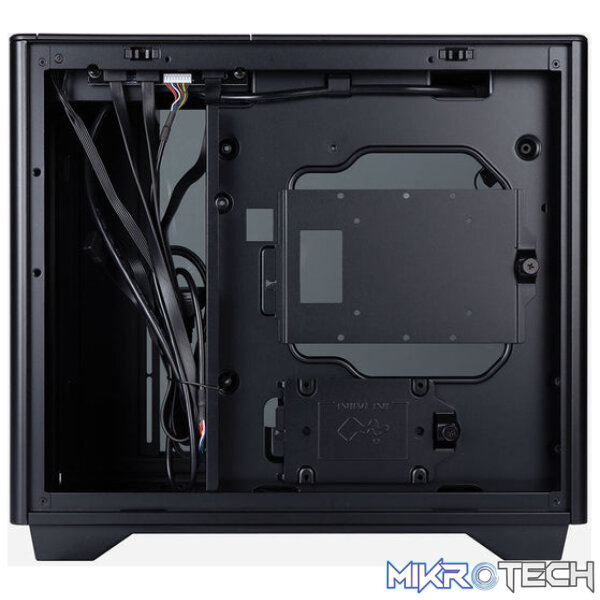

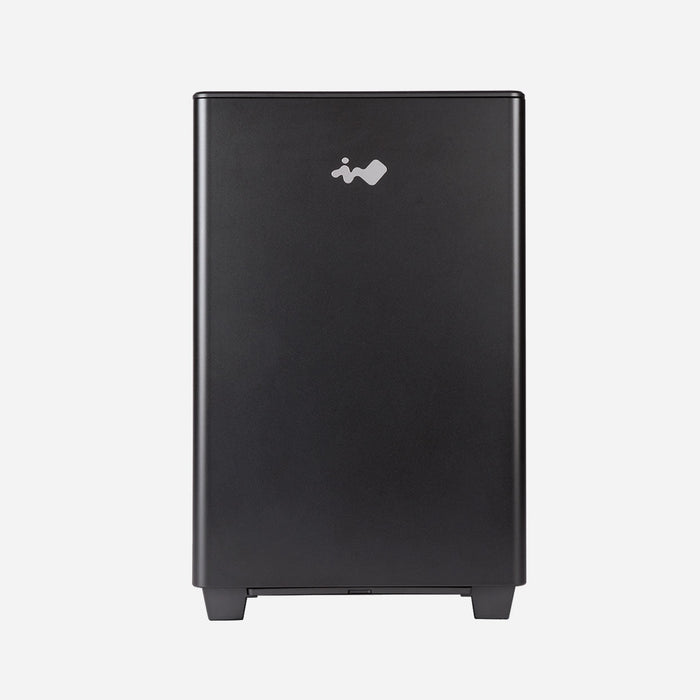

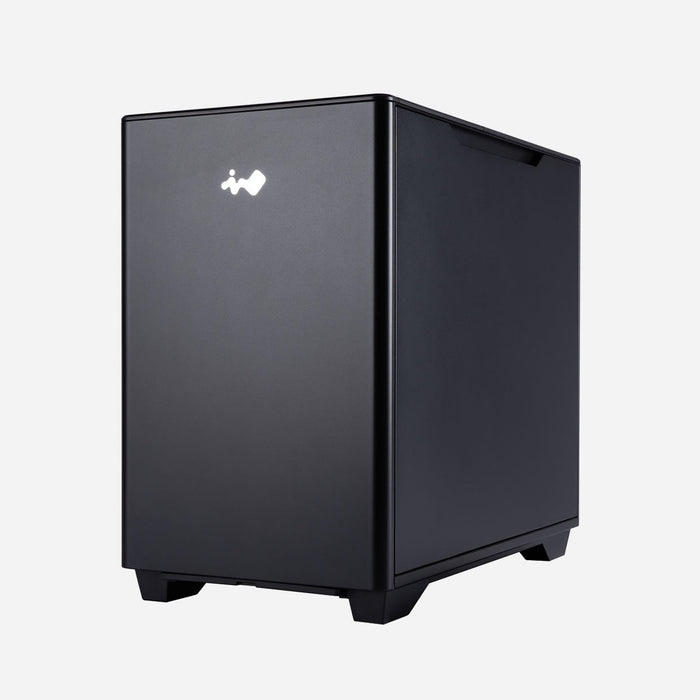

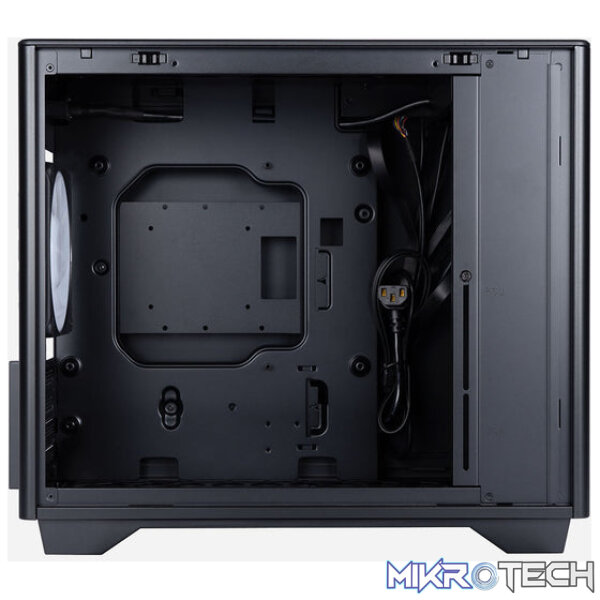

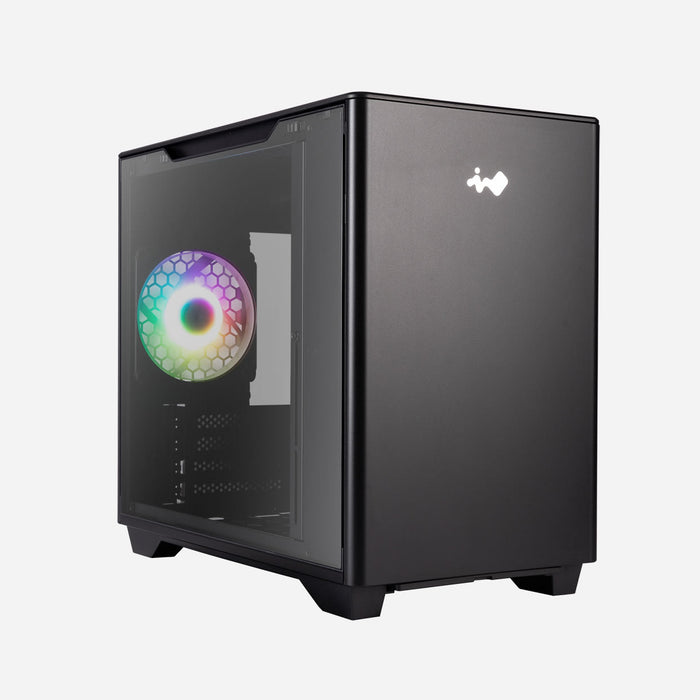

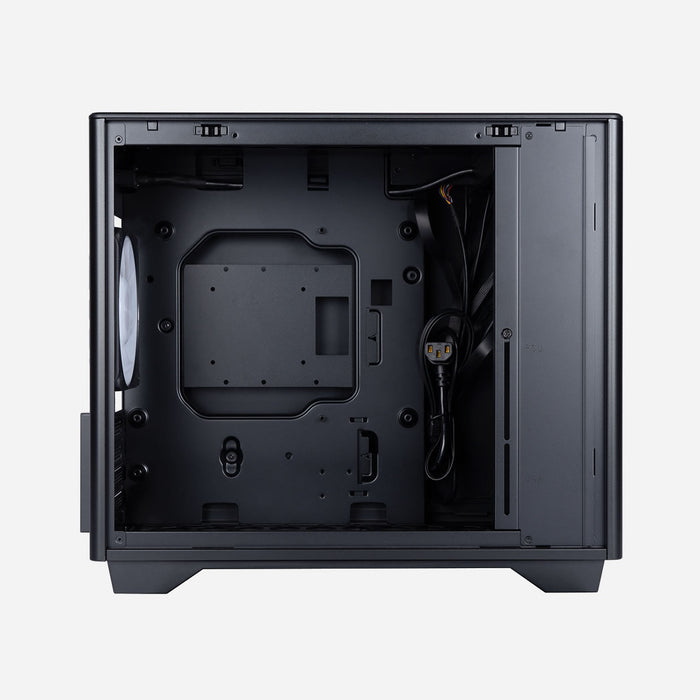

InWin A3 Tempered Glass Mini Tower Micro-ATX Case Black
n
Sleek, Minimalistic Design
n
n
n
n
n
n
Fit for High-end GraphicsCard
n
n
n
n
n
n
Powerful Cooling
n
n
n
n
n
n
Go Screwless!
n
n
n
n
n
n
Outstanding I/O
n
n
n
n
n
n
Slim Silent Fan MercuryAM120S
n
n
n
n
n
n
Specs
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
| Model | A3 | |
|---|---|---|
| Model Number | IW-CS-A3BLK-1AM120S | |
| Colors | Black | |
| Case Type | Micro-ATX Tower | |
| Materials | SECC, Tempered Glass, Aluminium, PC-ABS | |
| M/B Compatibility | Micro-ATX, Mini-ITX | |
| Expansion Slots | 4 x PCI-E | |
| Maximum Compatibility | VGA Card Length: 340 mm nCPU Heatsink Height: 162 mm | |
| I/O Ports | 1 x USB 3.2 Gen 2×2 Type-C n2 x USB 3.2 Gen 1 nHD Audio Combo (CTIA SPK/Mic) | |
| Internal Drive Bays | 2 x 3.5? / 2.5? n1 x 2.5? | |
| Thermal Solution Compatibility | Air Cooling Fans: nTop: 2 x 120 mm nRear: 1 x 120 mm nBottom: 2 x 120 mm n(1 InWin Mercury AM120S Fan Included) n nWater Cooling Radiator: nTop: 1 x 240 mm | |
| Power Supply Compatibility | PSII: ATX12V n- Length between 140 200 mm n(PSUs longer than 170 mm will need to build with GPUs 280 mm or shorter) | |
| Product Dimensions n(L x W x H) | 401 x 215 x 347 mm n15.8 x 8.5 x 13.7? | |
| Package Dimensions n(L x W x H) | 473 x 277 x 422 mm n18.6 x 10.9 x 16.6? | |
| Net Weight | 5.24 kg / 11.55 lbs | |
| Gross Weight | 6.25 kg / 13.78 lbs | |
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
| Model | Mercury AM120S |
|---|---|
| Quantity Included | Single Pack |
| Model Number | IW-FN-AM120S-1PK |
| Colors | Black |
| Fan Size | 120 x 120 x 20 mm |
| Materials | PBT, PC |
| Rated Voltage | DC 12V |
| Rated Power | 1.8W |
| Rated Current | 0.15A |
| ARGB Rated Voltage | DC 5V |
| ARGB Rated Power | 1.4W |
| ARGB Rated Current | 0.28A |
| Speed Mode | PWM 400 2000 +/- 10% RPM |
| Air Flow | 60.71 CFM |
| Air Pressure | 2.72 mm / H2O |
| LED | Addressable RGB |
| Connector (Fan to Fan) | Non-Modular Cables |
| Connector to M/B | 4-Pin (12V, PWM), 3-Pin (5V, ARGB) |
| Noise Level | 17 29 dB(A) |
| Bearing Type | Long Lifespan Sleeve Bearing |
| MTBF | >60,000 hrs. |
| Net Weight | 138 g / 0.3 lbs |
| Gross Weight | 184 g / 0.4 lbs |
| Package Dimension n(L x W x H) | 165 x 125 x 25 mm n6.49 x 4.92 x 0.98? |
| Warranty | 3 Years |
