Product Description

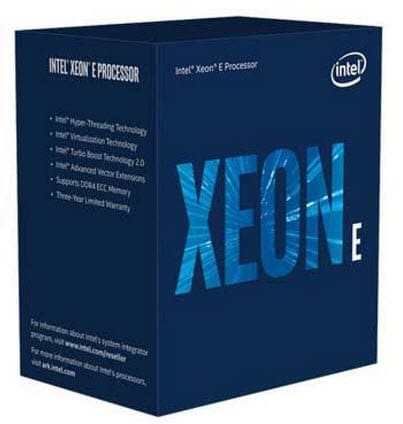

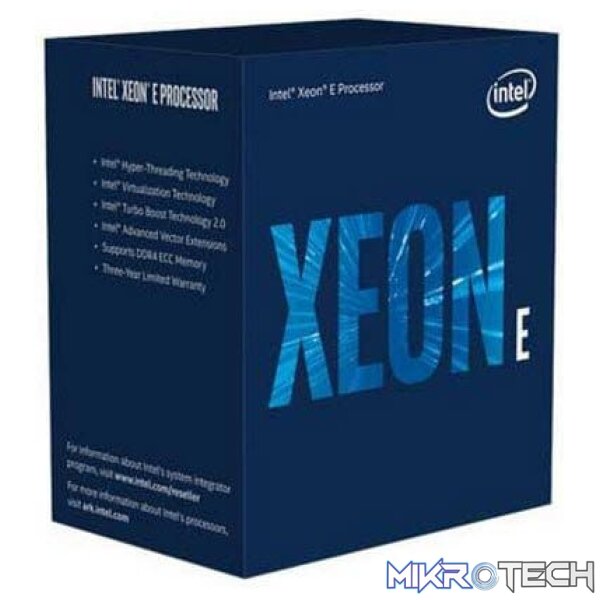

Intel Xeon Coffeelake E-2236 – LGA 1151 – 6 core+Hyper-Threading / 12 threads, 3.3Ghz box cpu / 4.5 Ghz turbo boost; VT-x+ VT-d + AES-N + TXT + AVX, built-in dual channel DDR4-2666 ECC or non-ECC memory controller, no built-in graphics, 12mb L3 cache, 14nm, 80w – Quick Sync Video + InTru 3D + Insider + FDi + Clear Video HD, 41.6GB/sec memory bandwidth, 16 lanes PCI-express – box CPU with fan (Order on Request)
Product Specifications
| Product Collection | Intel Xeon E Processor |
|---|---|
| Vertical Segment | Server |
| Processor Number | E-2236 |
| Lithography | 14 nm |
| # of Cores | 6 |
| # of Threads | 12 |
| Processor Base Frequency | 3.40 GHz |
| Max Turbo Frequency | 4.80 GHz |
| Cache | 12 MB |
| TDP | 80 W |
| Embedded Options Available | No |
| Description | Support for up to 128GB system memory may require a BIOS update. Please contact your hardware provider regarding availability for your system. |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-2666 |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | Yes |
| Processor Graphics | N/A |
| Graphics Output | N/A |
| 4K Support | No |
| Max Resolution (HDMI 1.4) | N/A |
| Max Resolution (eDP - Integrated Flat Panel) | N/A |
| Max Resolution (VGA) | N/A |
| DirectX* Support | N/A |
| OpenGL* Support | N/A |
| Intel Quick Sync Video | No |
| Intel InTru 3D Technology | No |
| Intel Clear Video HD Technology | No |
| Intel Clear Video Technology | No |
| Device ID | N/A |
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configurations | 1×16, 2×8, 1×8+2×4 |
| Max # of PCI Express Lanes | 16 |
| Sockets Supported | FCLGA1151 |
| Max CPU Configuration | 1 |
| TCASE | 73.0°C |
| TJUNCTION | 100 |
| Package Size | 37.5 mm x 37.5 mm |
| Intel Optane Memory Supported | Yes |
| Intel Turbo Boost Technology | 2 |
| Intel vPro Platform Eligibility | Yes |
| Intel Hyper-Threading Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel AES New Instructions | Yes |
| Secure Key | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes with Intel ME |
| Intel Memory Protection Extensions (Intel MPX) | Yes |
| Intel OS Guard | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Boot Guard | Yes |
