Product Description

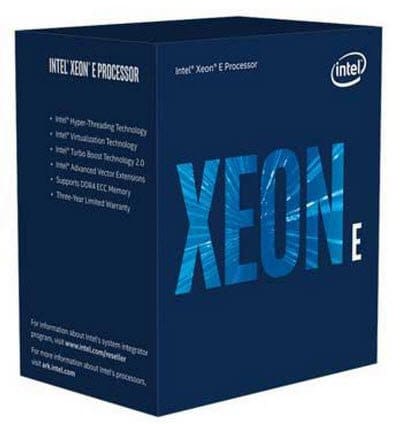

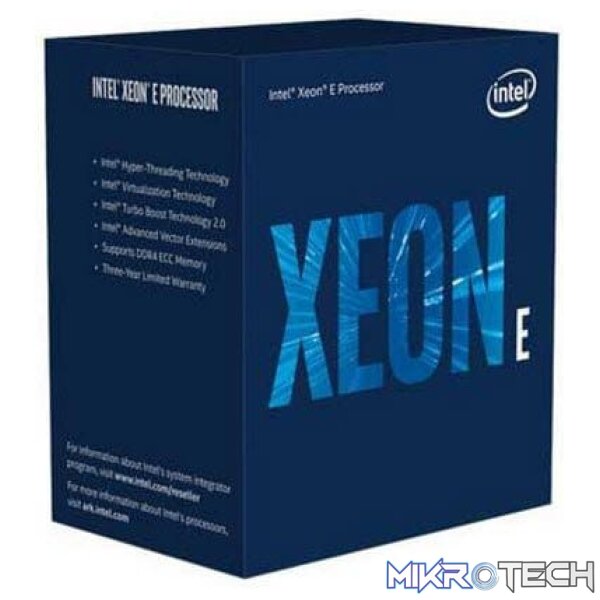

Intel Xeon Coffeelake e-2224G (with Graphics) – LGA 1151 – Quad core / 4 threads, 3.5Ghz box cpu / 4.7Ghz turbo boost; VT-x+ VT-d + AES-N + TXT + AVX, built-in dual channel DDR4-2666 ECC or non-ECC memory controller, built-in P630 graphics (24EU, 350/1200mhz + HDMi), 8mb L3 cache, 14nm, 71w – Quick Sync Video + InTru 3D + Insider + FDi + Clear Video HD, 41.6GB/sec memory bandwidth, 16 lanes pci-express – box CPU with fan
Product Specifications
| Product Collection | Intel Xeon E Processor |
|---|---|
| Vertical Segment | Server |
| Processor Number | E-2224G |
| Lithography | 14 nm |
| # of Cores | 4 |
| # of Threads | 4 |
| Processor Base Frequency | 3.40 GHz |
| Max Turbo Frequency | 4.70 GHz |
| Cache | 8 MB |
| TDP | 71 W |
| Embedded Options Available | No |
| Description | Support for up to 128GB system memory may require a BIOS update. Please contact your hardware provider regarding availability for your system. |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-2666 |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | Yes |
| Processor Graphics | Intel UHD Graphics P630 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.20 GHz |
| Graphics Video Max Memory | 128 GB |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI 1.4) | 4096×2160@24Hz |
| Max Resolution (DP) | 4096×2304@60Hz |
| Max Resolution (eDP - Integrated Flat Panel) | 4096×2304@60Hz |
| Max Resolution (VGA) | N/A |
| DirectX* Support | 12 |
| OpenGL* Support | 4,5 |
| Intel Quick Sync Video | Yes |
| Intel InTru 3D Technology | Yes |
| Intel Clear Video HD Technology | Yes |
| Intel Clear Video Technology | Yes |
| # of Displays Supported | 3 |
| Device ID | 0x3E96 |
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configurations | 1×16, 2×8, 1×8+2×4 |
| Max # of PCI Express Lanes | 16 |
| Sockets Supported | FCLGA1151 |
| Max CPU Configuration | 1 |
| TCASE | 69.3°C |
| TJUNCTION | 100 |
| Package Size | 37.5 mm x 37.5 mm |
| Intel Optane Memory Supported | Yes |
| Intel Turbo Boost Technology | 2 |
| Intel vPro Platform Eligibility | Yes |
| Intel Hyper-Threading Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel AES New Instructions | Yes |
| Secure Key | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes with Intel ME |
| Intel Memory Protection Extensions (Intel MPX) | Yes |
| Intel OS Guard | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Boot Guard | Yes |
