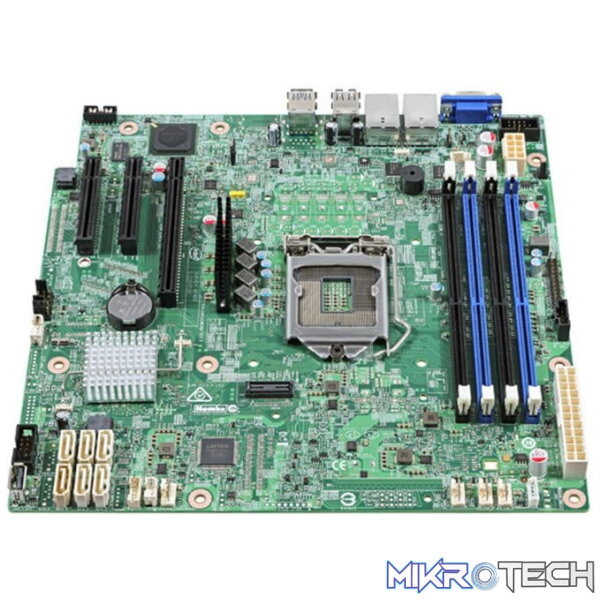

Intel S1200SPSR Silver Pass C232 Express chipset LGA 1151 Server Motherboard
R4,369.99 incl. VAT
Only 5 left in stock
Product Description
Intel S1200SPSR Silver Pass LGA 1151 Motherboard; support LGA1151 Xeon E3-1200V5/V6 series; Intel C232 Express chipset, 4x dual channel DDR4-2133 (must be ECC memory), 6x SATA6G with raid 0/1//0+1/5/10 with RST support, on-board VGA with d-sub out (require CPU with built-in graphics) + dual Intel Gigabit LAN; 1x pci-e(16x), 2x pci-e(8x), 2x USB3.0 + 2x USB2.0, support optional serial port add-on cable – mATX
Product Specifications
| Product Collection | Intel Server Board S1200SP Family |
|---|---|
| Code Name | Products formerly Silver Pass |
| # of QPI Links | |
| Compatible Product Series | Intel Xeon Processor E3-1200 v5 Family |
| Board Form Factor | uATX |
| Chassis Form Factor | Pedestal |
| Socket | 1 |
| Integrated Systems Available | No |
| Integrated BMC with IPMI | IPMI 2.0 |
| TDP | 80 W |
| Included Items | (1) Server Board, (4) SATA Data Cables, (1) I/O Shield, (1) Attention Document; (1) Quick Start User’s Guide; (1) Quick Configuration Label |
| Recommended Customer Price | N/A |
| Board Chipset | Intel C232 Chipset |
| Target Market | Small and Medium Business |
| Embedded Options Available | No |
| Datasheet | View now |
| Description | An entry-level single socket board with Intel C232 chipset supporting one Intel Xeon Processor E3-1200 v5 family, 4 UDIMMs at up to 2133MHz and Dual integrated 1GBaseT Ethernet. |
| Additional Information URL | View now |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4 ECC UDIMM |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 68.256 GB/s |
| Physical Address Extensions | 40-bit |
| Max # of DIMMs | 4 |
| ECC Memory Supported | Yes |
| DIMM Type | UDIMM |
| Integrated Graphics | No |
| Graphics Output | VGA |
| PCI Express Revision | 3 |
| Max # of PCI Express Lanes | 20 |
| PCIe x4 Gen 3 | 1 |
| PCIe x8 Gen 3 | 2 |
| USB Revision | 2.0 & 3.0 |
| # of USB Ports | 7 |
| Total # of SATA Ports | 6 |
| RAID Configuration | Software RAID RST (0,1,10,5) and ESRT2 (0,1,10) |
| # of Serial Ports | 1 |
| # of LAN Ports | 2 |
| Integrated LAN | 2x 1GbE |
| Embedded USB (eUSB) Solid State Drive Option | No |
| Integrated InfiniBand | No |
| Max CPU Configuration | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Node Manager | Yes |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel I/O Acceleration Technology | Yes |
| Intel Trusted Execution Technology | Yes |
