Product Description
Overview:

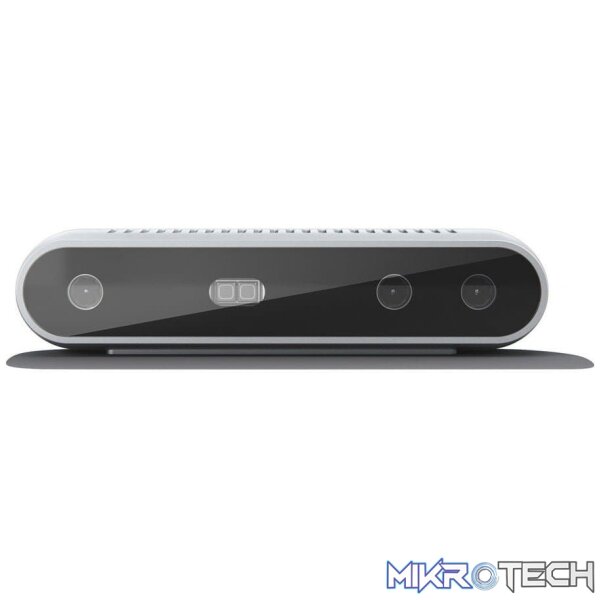

The Intel® RealSense™ Depth Camera D400-Series uses stereo vision to calculate depth. The D415 is a USB-powered depth camera and consists of a pair of depth sensors, RGB sensor, and infrared projector. It is ideal for makers and developers to add depth perception capability to their prototype development.
Features:
- A powerful vision processor that uses 28 nanometer (nm) process technology and supports up to 5 MIPI Camera Serial Interface 2 lanes to compute real-time depth images and accelerate output
- New and advanced stereo depth algorithm for accurate depth perception and long range
- A set of image sensors that enable capturing of disparity between images up to 1280 x 720 resolution
- Support for the new cross-platform and open-source Intel® RealSense™ SDK 2.0
- Dedicated color image signal processor for image adjustments and scaling color data
- Active infrared projector to illuminate objects to enhance the depth data
Product Specifications
| Use Environment | Indoor and Outdoor |
|---|---|
| Depth Technology | Active IR stereo |
| Main Intel RealSense component | Intel RealSense Vision Processor D4 Intel RealSense module D410 |
| Depth Field of View (FOV)-(Horizontal x Vertical x Diagonal) | 69.4° x 42.5° x 77° ( /- 3°) |
| Depth Stream Output Resolution | Up to 1280 x 720 |
| Depth Stream Output Frame Rate | Up to 90 fps |
| Minimum Depth Distance (Min-Z) | 0.3m |
| Maximum Range | Approx. 10 meters; Varies depending on calibration, scene, and lighting condition |
| RGB Sensor Resolution and Frame Rate | 1920 x 1080 at 30 fps |
| RGB Sensor FOV (Horizontal x Vertical x Diagonal) | 69.4° x 42.5° x 77° ( /- 3°) |
| Camera Dimension (Length x Depth x Height) | 99 mm x 20 mm x 23 mm |
| Connectors | USB 3.0 Type – C |
| Mounting Mechanism | One 1/4-20 UNC thread mounting point Two M3 thread mounting points |
