Product Description

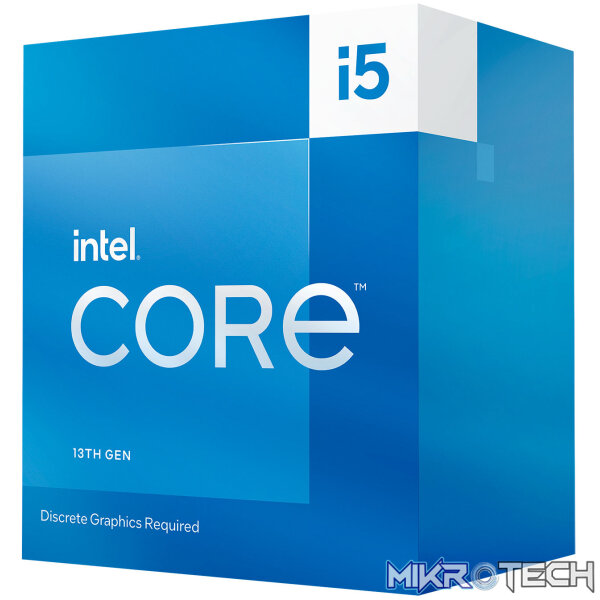

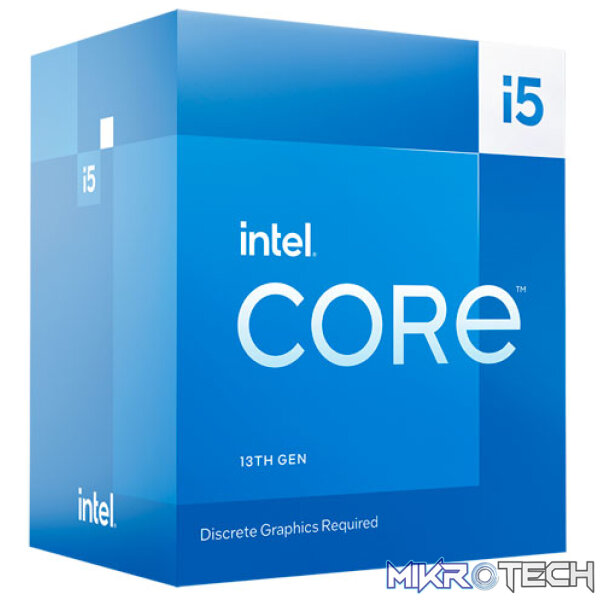

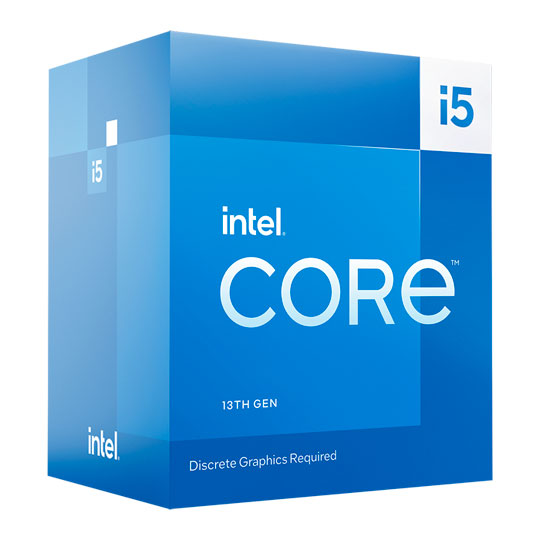

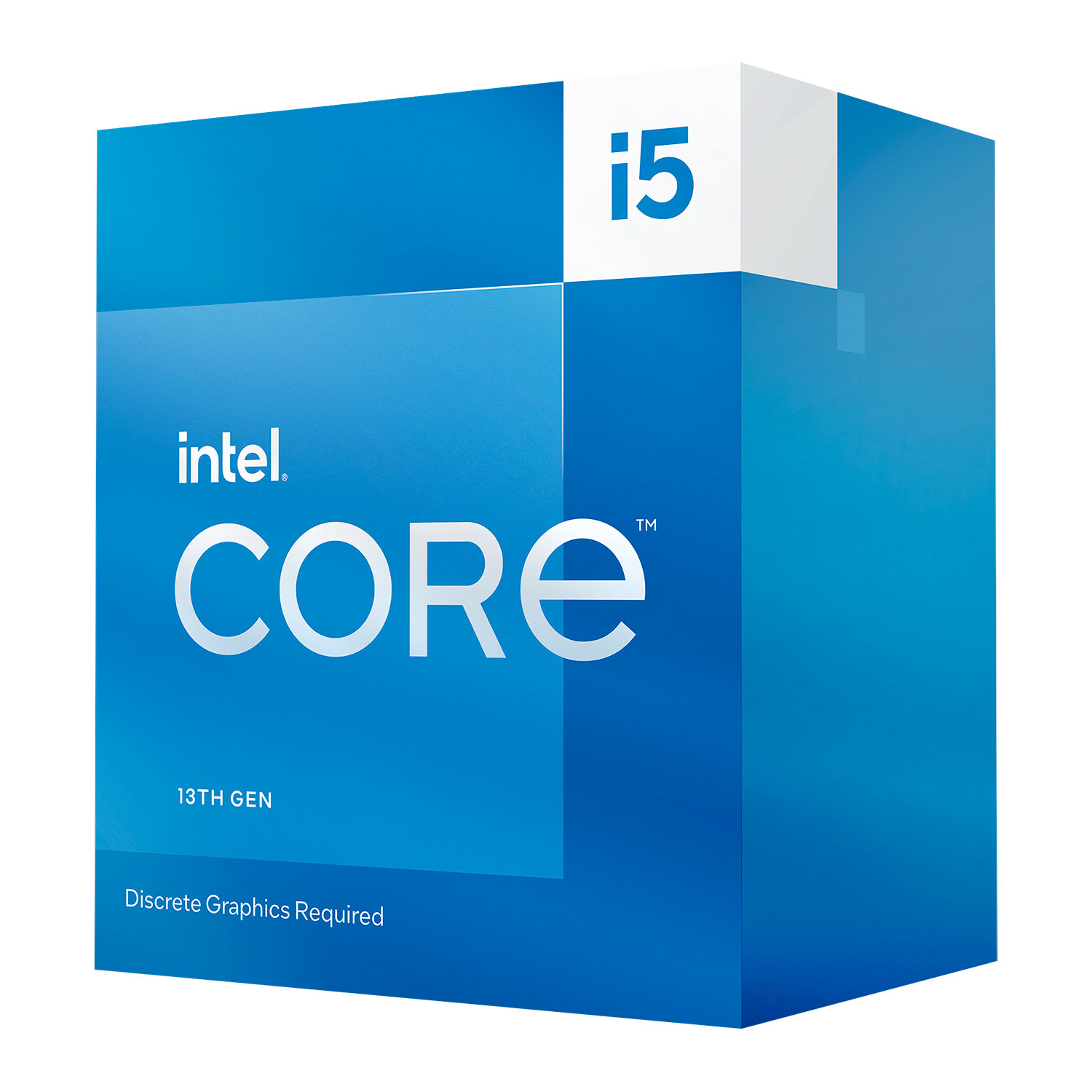

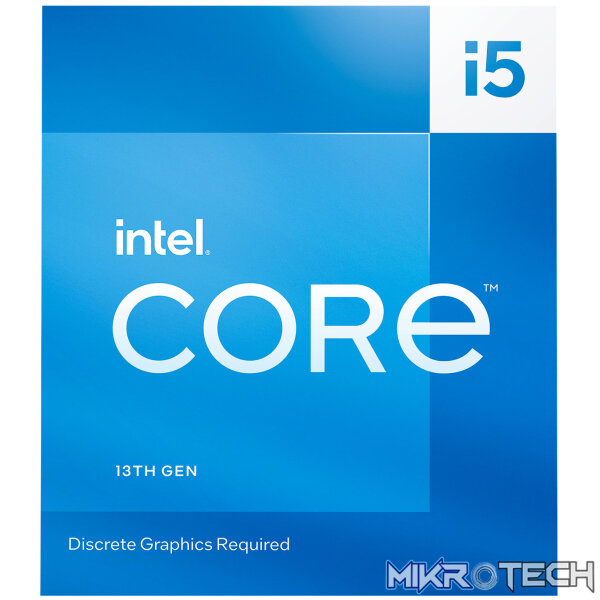

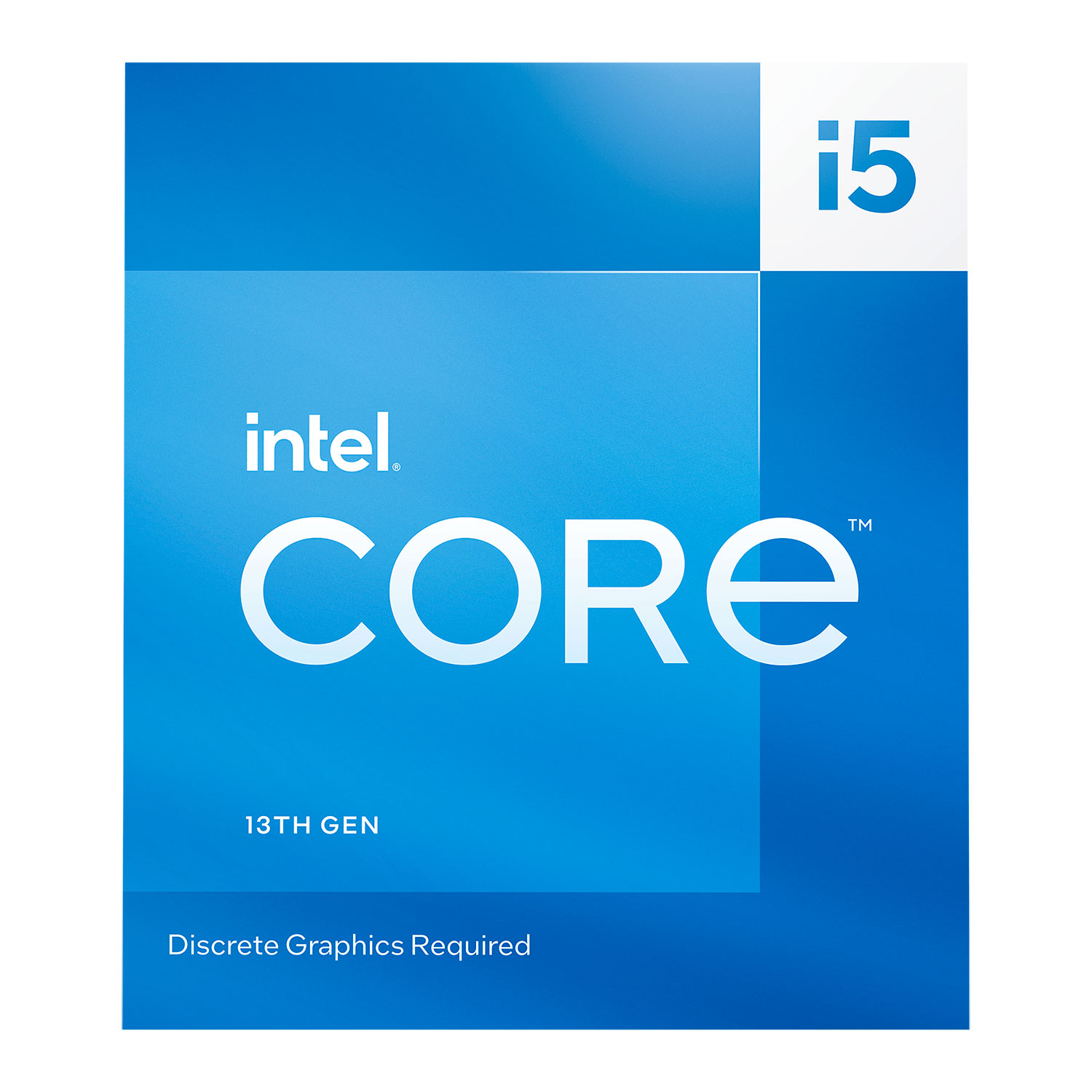

Intel Core i5-13400F 10-Core 4.60GHz Raptor Lake Socket LGA1700 Desktop CPU
BX8071513400F
Features
- Performance-core (P-core)
The highest-performing CPU core ever built by Intel, designed to handle single-threaded, lightly threaded, or burst workloads like 4K gaming and 3D design.
- Performance-core (P-core)
- Efficient-core (E-core)
Designed to handle multi-threaded and background tasks such as minimized browser tabs, IT services, and cloud syncing, leaving P-cores free to deliver incredible performancewithout interruption.
- Efficient-core (E-core)
- Performance Hybrid Architecture²
Integrates two core microarchitectures into a single die, prioritizing and distributing workloads to optimize performance.
- Performance Hybrid Architecture²
- Intel® Thread Director¹
Optimizes workloads by helping the OS scheduler intelligently distribute workloads to the optimal cores.
- Intel® Thread Director¹
- PCIe 5.0 up to 16 Lanes
Offers readiness for up to 32 GT/s for fast access to peripheral devices and networking with up to 16 PCI Express 5.0 lanes.
- PCIe 5.0 up to 16 Lanes
- PCIe 4.0 up to 4 Lanes
Offers up to 16 GT/s for fast access to peripheral devices and networking with up to 4 PCI Express 4.0 lanes.
- PCIe 4.0 up to 4 Lanes
- Up to DDR5 4800 MT/s³
Delivers the latest, industry-leading innovation in memory capabilities for fast speeds, high bandwidth, and enhanced workflow productivity.
- Up to DDR5 4800 MT/s³
- Up to DDR4 3200 MT/s
Continued support of existing memory technology and speeds.
- Up to DDR4 3200 MT/s
- L3 and L2 Cache
Increased shared Intel® Smart Cache (L3) and L2 cache sizes allow users to work faster, with larger datasets.
- L3 and L2 Cache
- Intel® Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
- Intel® Deep Learning Boost
- Gaussian & Neural Accelerator 3.0 (GNA 3.0)
Processes AI speech and audio applications such as neural noise cancellation while simultaneously freeing up CPU resources for overall system performance and responsiveness.
- Gaussian & Neural Accelerator 3.0 (GNA 3.0)
- Intel® Adaptive Boost Technology
Intel® ABT improves performance by opportunistically allowing higher multi-core turbo frequencies, while operating within system power and temperature specifications when current, power, and thermal headroom exists.
- Intel® Adaptive Boost Technology
Specifications
| Processor | Intel® Core™ i5-13400F Processor |
|---|---|
| Number of Cores | 10 (6P + 4E) |
| Number of Threads | 16 |
| Base Clock Speed | P-core: 2.50 GHz E-core: 1.80 GHz |
| Max Turbo Frequency | 4.60 GHz |
| Intel® Thermal Velocity Boost Frequency | N/A |
| Intel® Turbo Boost Max Technology 3.0 Frequency | N/A |
| Performance-core Max Turbo Frequency | 4.60 GHz |
| Efficient-core Max Turbo Frequency | 3.30 GHz |
| Cache | 20 MB Intel® Smart Cache |
| Total L2 Cache | 9.5 MB |
| Unlocked | No |
| Memory | |
| Memory Type | DDR5-4800 DDR4-3200 |
| Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| ECC Memory Support | Yes |
| Graphics | |
| Processor Graphics | None |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 / 4.0 |
| PCI Express Configurations | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 Total (16 PCIe 5.0 + 4 PCIe 4.0) |
| Advanced Technologies | |
| Intel® Gaussian and Neural Accelerator (GNA) | 3.0 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Thermal Velocity Boost | No |
| Intel® Turbo Boost Max Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper-Threading Technology | Yes |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Stable IT Platform Program (SIPP) | No |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) | N/A |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Packaging | |
| Thermal Solution | PCG 2020C |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 148 W |
| Architecture | Intel 7 (10nm Enhanced SuperFin) |
| Socket | Socket LGA 1700 |
