Features:
Patented Integrated Twin Turbines
The patented twin-turbine function pushes both currents toward the copper cold-plate to significantly reduce the temperature.
Rock the Aluminium Block!
The gorgeous water block shell is made of anodized aluminium alloy with laser engraving and is complemented with a diamond-cut outline.
Enhanced AIO Thermal Performance
To provide excellent thermal performance, the cooling surface matters! InWin improved the radiator and the array of microchannel fins to increase the heat conducting efficiency!
Thriving Under Pressure!
The Jupiter Series AJF120 fans are specially designed for liquid-cooling. The fans feature high airflow, high static pressure and possess a high-speed mode that ramp up the RPMs to 2500.
Syncs with Addressable Motherboards
The SR PRO is equipped with a vibrant ARGB logo, and also comes with Jupiter AJF120 ARGB static pressure fans. Control the lighting by using the provided One-Click controller or sync with an ARGB motherboard.
Cautionary LEDs
When the fans or pumps detect an unusual current or excessive heat, the LEDs will flash red and blue to prevent damaging components.
| Model | SR24 PRO |
|---|---|
| Model Number | IW-LC-SR24PRO |
| CPU Socket Support | Intel LGA 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150 AMD AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4 |
| Radiator | Dimensions : 277 x 120 x 27 mm (L x W x H) : 10.9 x 4.7 x 1.1″ Materials : Aluminium Tube Length : 400 mm Tube Material : Rubber with Nylon Braided Sleeve |
| Water Block & Pump | Dimensions : 68 x 68 x 100 mm (L x W x H) : 2.7 x 2.7 x 3.9″ Materials : Aluminium, Copper, Acrylic Pump Speed : 2400 ± 10% RPM |
| Fan | Model : Jupiter Series AJF120 Quantity Included : 2 PCS Dimensions : 120 x 120 x 26 mm (L x W x H) : 4.7 x 4.7 x 1.0″ Speed Mode (PWM) : PWM 500-2500 ± 10% RPM Noise Level : 23 dBA (Normal) Airflow : 101.5 CFM Max. Static Pressure : 4.22 mm / H2O Connectors : 4-Pin (12V, PWM) 3-Pin (5V, ARGB) Bearing Type : Double Ball Bearing |

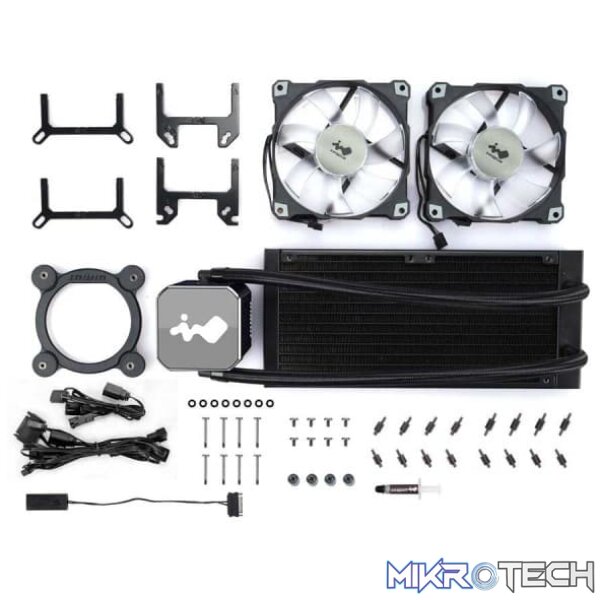

| Package Contents | InWin SR PRO Series 240mm CPU Liquid Cooler x 1 InWin AJF120 Addressable Fan x 2 ARGB One-Click Controller Fan and Radiator Mounting Screws Pack Mounting Kit for CPU Sockets Cable Pack |
| Package Dimension | 331 x 265 x 136 mm |
| (L x W x H) | 13 x 10.4 x 5.4″ |
| Net Weight | 1.8 kg / 4.0 lb |
| Gross Weight | 2.4 kg / 5.3 lb |
| Brand | In-Win |
