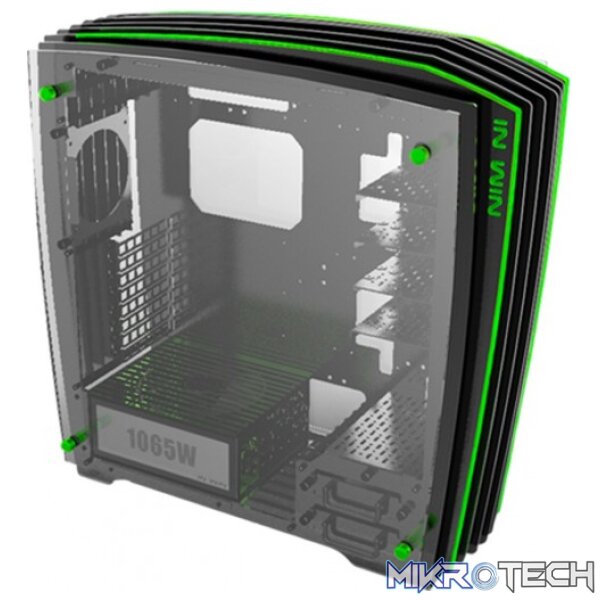

In-Win ca02 H-Frame 2.0 Black & Green E-ATX Open Frame Chassis
R18,199.99 incl. VAT
Only 4 left in stock
Overview:
Introducing the H-Frame 2.0 which has been developed in honor of In WinÂ’s 30th anniversary. Luminous LED lights embellish the edges of the outer aluminium blades. The radiant, innovative layered aluminium structure refines In WinÂ’s signature look.
Features:
Next Level of Craftsmanship

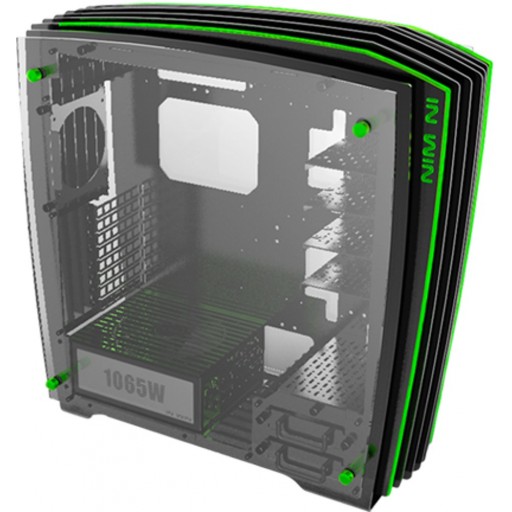

The H-Frame 2.0 is a sleeker, more polished H-Frame with an open-frame concept composed of nine aluminium stacked sheets and tempered glass side panels, creating a vibrant and astounding visual display.
Lucent Lighting Effects
The H-Frame 2.0 possess a six-level lighting effect. The brightness can be adjusted from 0% to 100% for various scenarios. Moreover, the thoughtful lighting system indicates the on/off state by a flickering effect.
USB 3.1 Type-C: Expedited Transmission
Installing the USB 3.1 Type-C interface means no more struggle to find the correct side to connect, both sides work, and provides high-speed transfer rates. The transfer rate can even speed up to 10Gps, which provides users with a more enjoyable experience.
In WinÂ’s 30th Anniversary Limited Edition Bundle

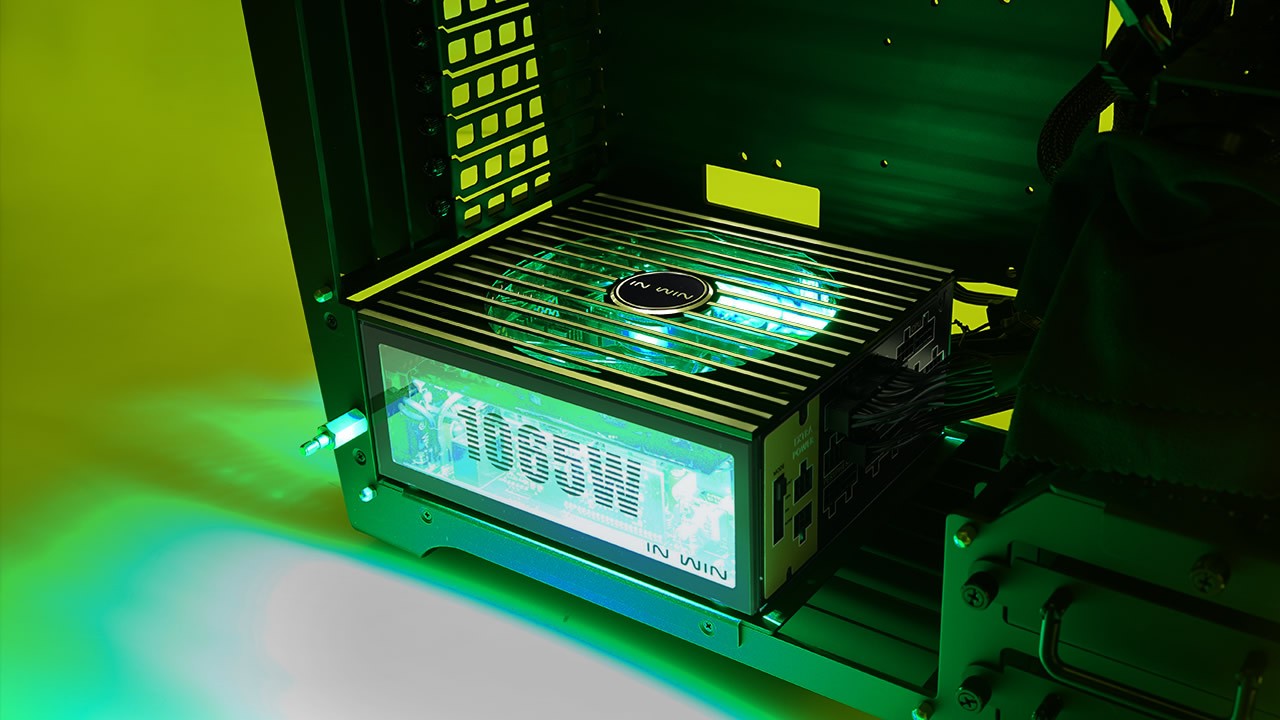

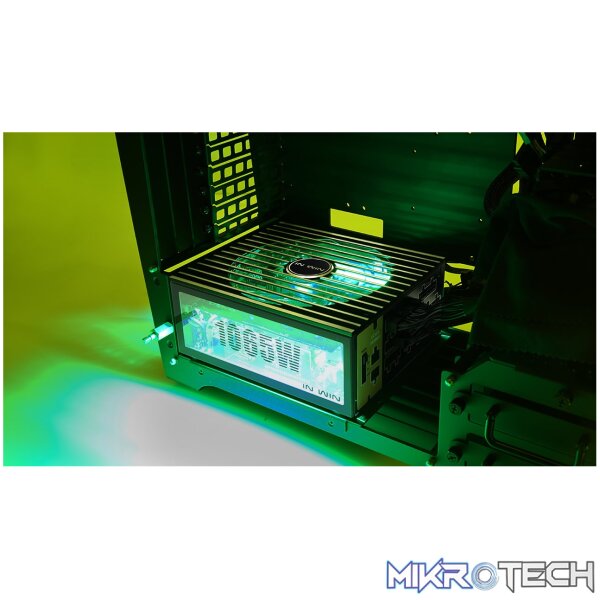

In honor of In WinÂ’s 30th anniversary, In Win introduces their first limited edition Case Power Supply. Each H-Frame 2.0 includes SII-1065W power supply, which is made exclusively for H-Frame 2.0. This perfectly matched hardware grants owners with an In Win exclusive bundle, which is marked with a serial number of its production.
More Flexible Installation

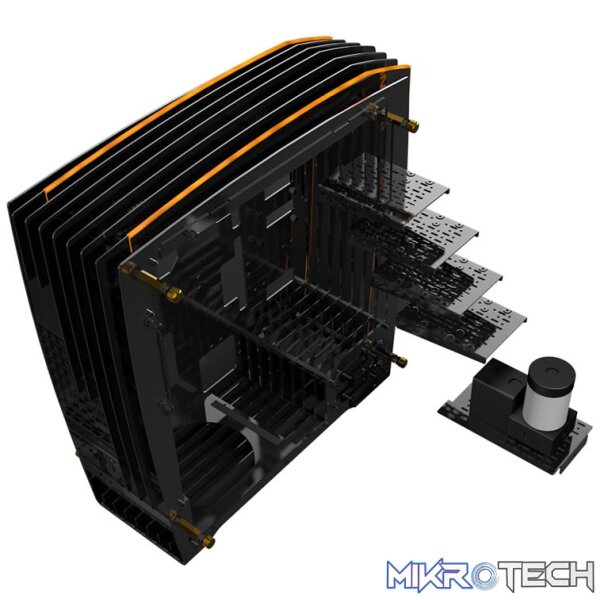

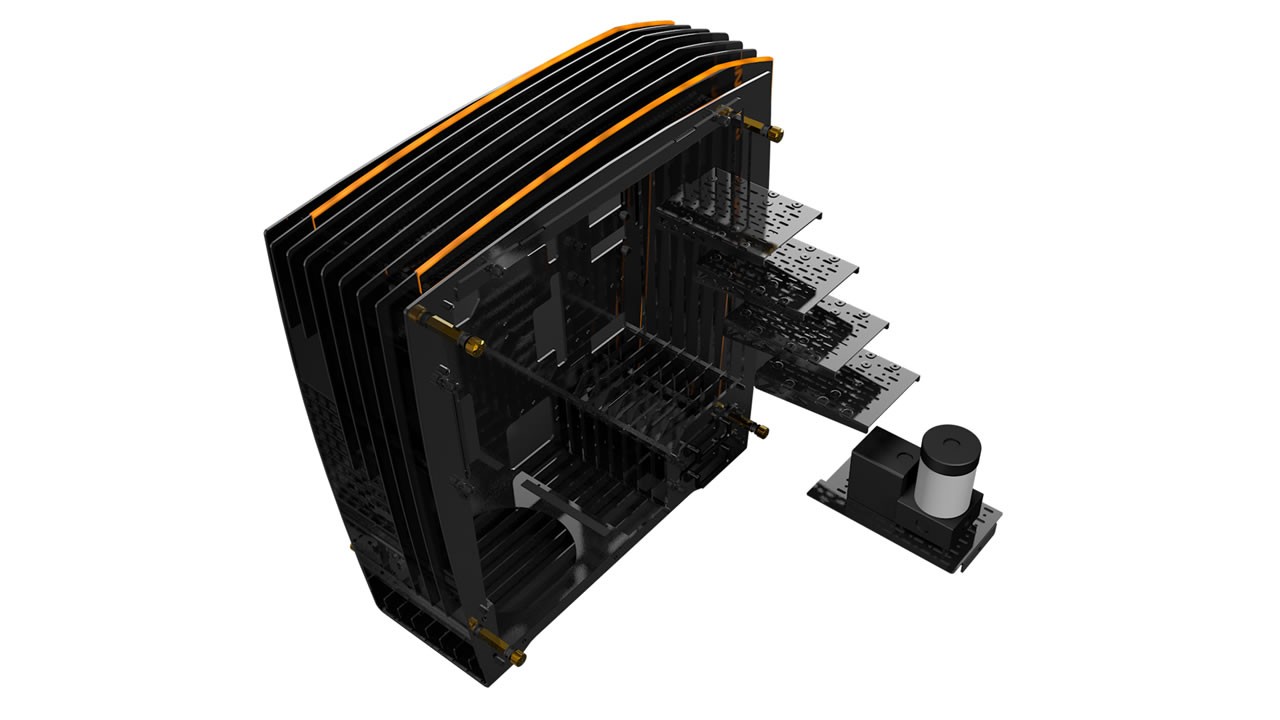

A total of six 3.5”/2.5” multipurpose HDD trays allows convenient installation.Furthermore, the additional water cooling tray can hold different size water cooling pumps or reservoir for extra thermal solution alternatives.
User Friendly Design
3.5”/2.5” SATA HDD EZ-Swap Module with an HDD tray handle for easier installation and removal.
Upgraded Expandability
The H-Frame 2.0 supports high-end graphics cards up to 330mm, and up to an E-ATX motherboard. The spacious interior is able to accommodate a top radiator up to 360mm for excellent airflow.
2.0: Whole New Generation
Limited Edition with Unique In Win 30th Anniversary Commemorative Thumbscrews.
| Model | H-Frame 2.0 |
|---|---|
| Color | Black/Green LED Light |
| Case Type | Full Tower |
| Case Material | Aluminium, Tempered Glass |
| M/B Compatibility | 12″ x 13″ E-ATX, ATX, Micro-ATX |
| Expansion Slots | PCI-E x 8 High-end Graphics Card Compatible – Length: 330mm Maximum (With HDD Tray) 440mm Maximum (Without HDD Tray) |

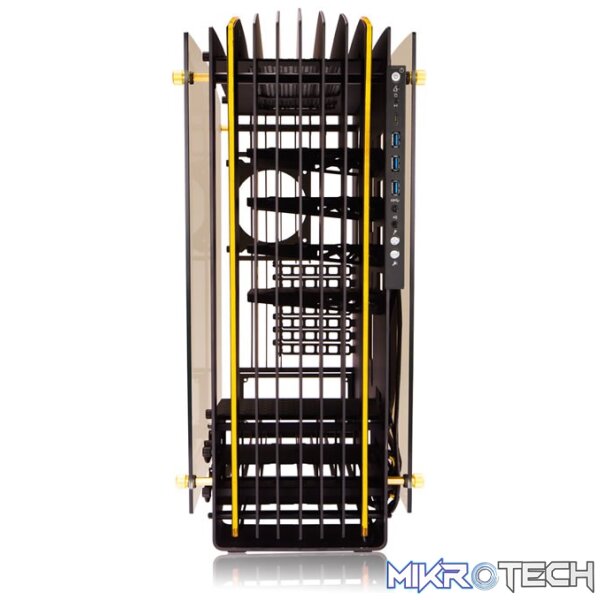

| Front Ports | 3 x USB 3.0 1 x USB 3.1 Type-C HD Audio |
| Internal Drive Bays | 6 x 2.5″/3.5″ – Supports SATA HDD EZ-Swap Module x 2 |
| Thermal Solution Compatibility | 1 x 120mm Rear Fan 3 x 120mm Top Fan 1 x 360mm Top Radiator CPU Heatsink Compatible – CPU die surface to side panel height: 185mm Maximum |
| Power Supply Compatibility | SII-1065W Internal PSU Included PSII: ATX12V and EPS12V – Length: 210mm Maximum |

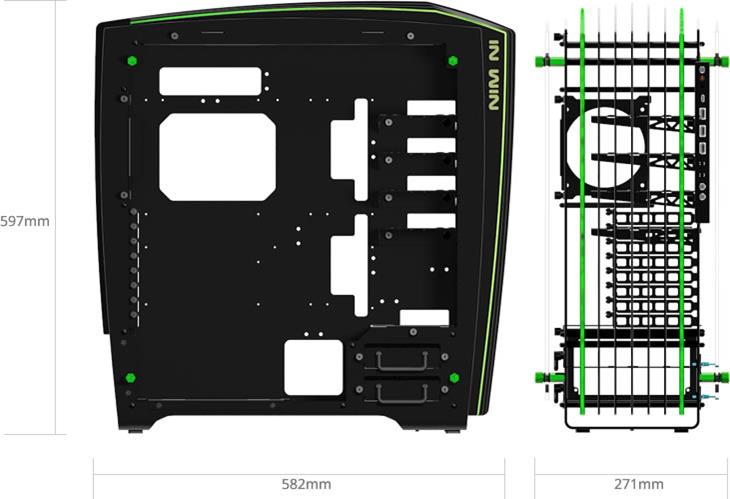

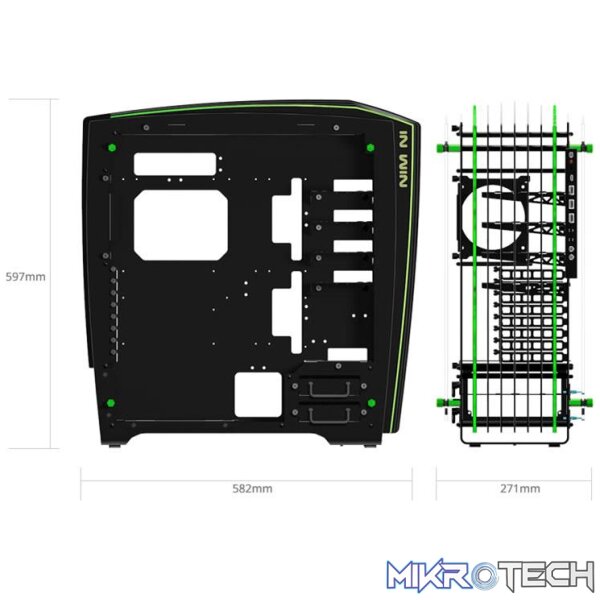

| Product Dimension (H x W x D) | 597mm x 271mm x 582mm 23.5″ x 10.6″ x 22.9″ |
| Product Dimension (H x W x D) with screw height | 597mm x 298mm x 582mm 23.5″ x 11.7″ x 22.9″ |
| Package Dimension (H x W x D) | 365mm x 712mm x 834mm 14.4″ x 28″ x 32.8″ |
| Net Weight | 19.12kg/42lb |
| Gross Weight | 25.52kg/56lb |
