Features:
Cool more than just the CPU!

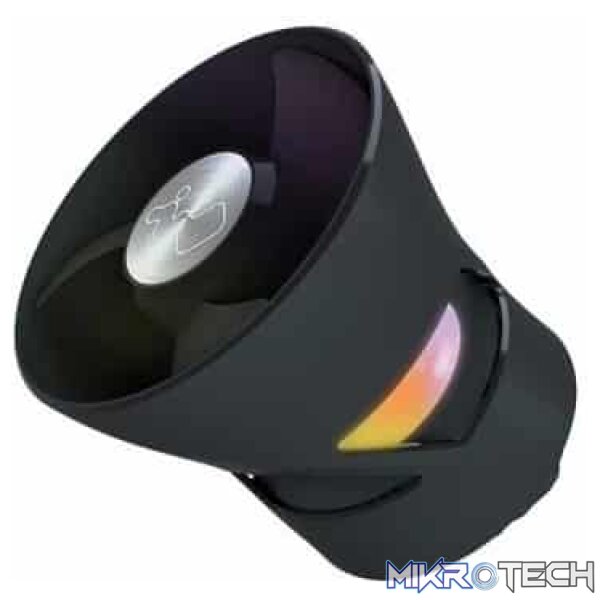

The fan on the water block is designed to efficiently pull in air to create a rapid airflow towards the UMA (Upper Motherboard Area), getting extra thermal performance for VRM, Memory, and M.2 SSDs.
Cooled to the Core
High heat produced by VRM in high loading will have an effect on the performance output of the CPU. The BRÂ’s fan blower can effectively cooldown the VRM, allowing the CPU to release its full potential and optimized overclocking.
Bonus Cooling
High heat produced by VRM in high loading will have an effect on the performance output of the CPU. The BRÂ’s fan blower can effectively cooldown the VRM, allowing the CPU to release its full potential and optimized overclocking.
Mesmerizing Memory
Thanks to the BR Series hardware cooling efficiency, this allows your memory to stay cool even under higher loads and extends the longevity of the modules.
Cool M.2 too!
Continuous high loads will cause M.2 SSDs to overheat and result in unstable performance and irreversible damage. Maintain high performance and lengthen the lifetime by extreme cooling from the BR Series.

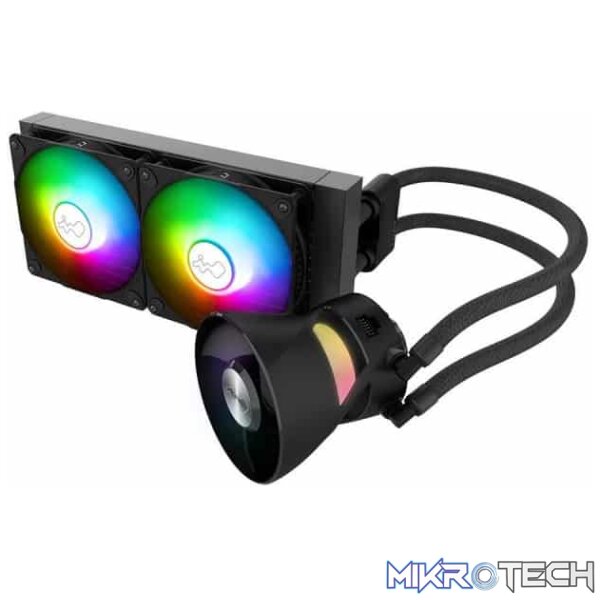

AIO Upgrade
With outstanding AIO performance, the BR Series is tailored for all PC users, especially for those that operate with higher loads, such as gamers and designers.
High Performance LUNA Series Radiator Fans
The Luna Series AL120 fans are specially designed for excellent cooling performance. The fans feature high airflow and high static pressure that cool down your system quicker.
ARGB Lighting Effects
The BR Series AIO features ARGB lighting effects, and also comes with Luna AL120 ARGB fans. Control the lighting by using the provided One-Click controller or sync with an ARGB motherboard.
Max Out the Cooling
High-density microchannel fins and a large heat dispatching area on the radiator dissipate the heat faster and effectively.
Unique Pump Design
The BR Series Pump is specially designed to minimize vibrations and noise. Game in silence!
Easy Installation Tools
The BR Series comes with user-friendly tools. Spend less time on installation, more time on gaming!
| Model | BR24 |
|---|---|
| Model Number | IW-LC-BR24 |
| CPU Socket Support | Intel LGA 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150 AMD AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4 |
| Radiator | Dimensions : 277 x 120 x 27 mm (L x W x H) : 10.9 x 4.7 x 1.1″ Material : Aluminium Tube Length : 400 mm Tube Material : Rubber with Nylon Braided Sleeve |
| Water Block | Dimensions : 100 x 100 x 75 mm (L x W x H) : 3.9 x 3.9 x 2.9″ Materials : Copper, Plastic Fan Speed Mode : PWM 400 – 2500 +/- 10% RPM Fan Airflow : 26.93 CFM (Max.) Fan Air Pressure : 2.28 mm/ H2O Fan Bearing Type : Long Lifespan Sleeve Bearing |
| Pump | Dimensions : 65 x 50 x 31 mm (L x W x H) : 2.6 x 2.0 x 1.2″ Materials : PPS, GF Pump Speed : 5200 RPM +/- 10% |
| Fan | Model : Luna Series AL120 Quantity Included : 2 PCS Dimensions : 120 x 120 x 25 mm (L x W x H) : 4.7 x 4.7 x 1.0″ Speed Mode : PWM 400 – 1800 +/- 10% RPM Noise Level : 35.5 dBA (Max.) Airflow : 82.96 CFM (Max) Air Pressure : 2.31 mm / H2O Connectors : 4-Pin (12V, PWM), 3-Pin (5V, ARGB) Rated Voltage : DC 12V Bearing Type : Long Lifespan Sleeve Bearing |

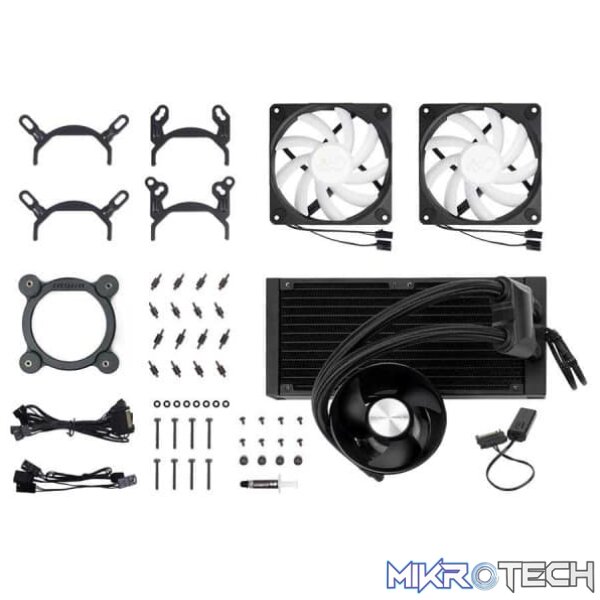

| Package Contents | InWin BR series 240mm CPU Liquid Cooler x 1 InWin AL120 Addressable Fan x 2 ARGB One-Click Controller Fan and Radiator Mounting Screws Pack Mounting Kit for CPU Sockets Cable Pack |
| Package Dimension | 331 x 265 x 136 mm |
| (L x W x H) | 13 x 10.4 x 5.3″ |
| Net Weight | 0.9 kg / 2 lb |
| Gross Weight | 2.1 kg / 4.6 lb |
