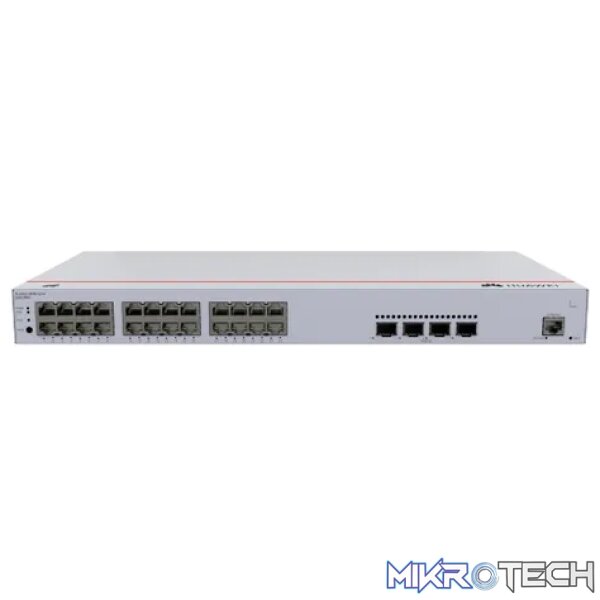

Huawei 24 Port 1GE PoE Cloud Managed Switch with 4 SFP+ 10GE Uplinks

Description

S220-24P4X (24*10/100/1000BASE-T ports(400W PoE+), 4*10GE SFP+ ports, built-in AC power)

Features

Downlink: 24 x 10/100/1000BASE-T ports (400W PoE+)

Uplink: 4 x 10GE SFP+ ports

Dimensions (H x W x D): 43.6 mm x 442.0 mm x 220.0 mm Weight: 2.92 kg

Input Voltage: (AC: 100 V AC to 240 V AC, 50/60 Hz) (DC: 240 V DC)

Maximum Power Consumption: Without PoE: 44.35 W

Maximum Power Consumption: Full PoE Load: 485.91 W

Operating Temp: –5°C to +50°C (23°F to 122°F)

Storage Temp: –40°C to +70°C (–40°F to +158°F)

Operating Humidity: 5% RH to 95% RH (non-condensing)

Working Modes: Standard mode, port isolation, port bonding, flow control disabling

Heat Dissipation Mode: Fanless, natural heat dissipation, intelligent fan speed adjustment

Fan Modules: 2 built-in

Power Supply Mode: AC built-in

Memory: 2 GB RAM

Flash Memory: 1 GB

Console Port: RJ45

Service Port Surge Protection: ±7 kV (common mode)

Power Supply Surge Protection: ±6 kV (differential mode and common mode)

Ingress Protection Level: IP20
