Hikvision Fingerprint & Card Reader

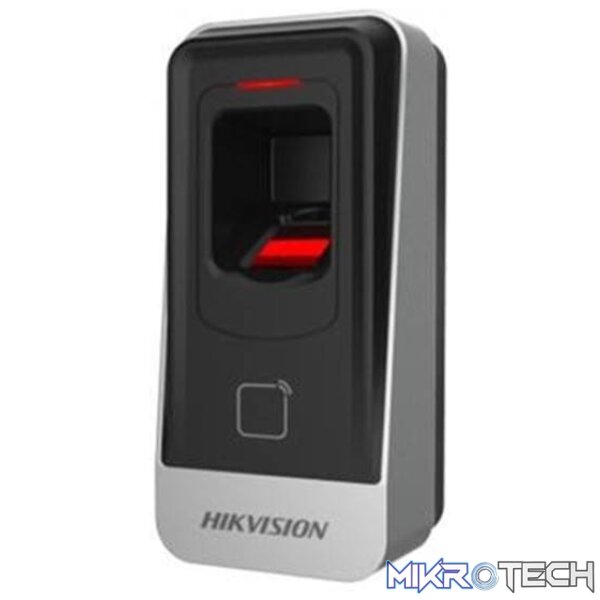

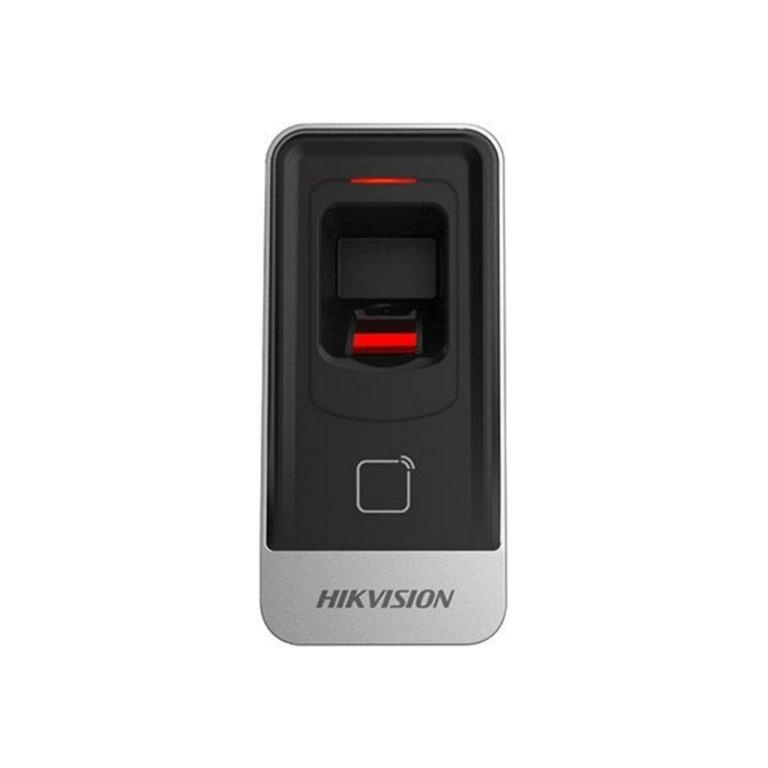

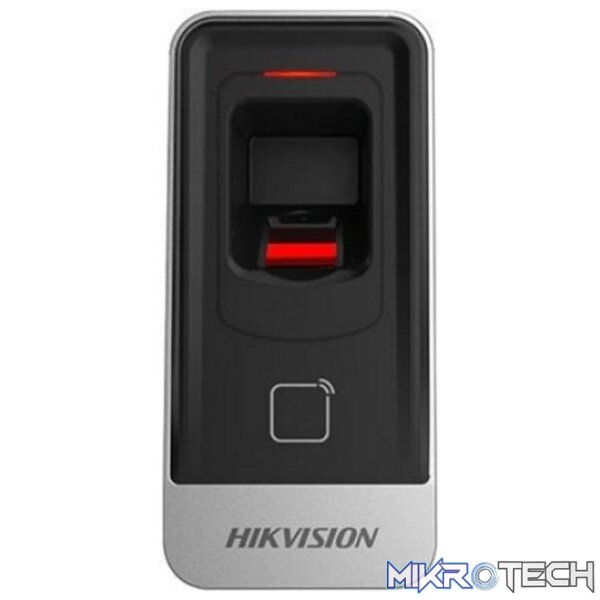

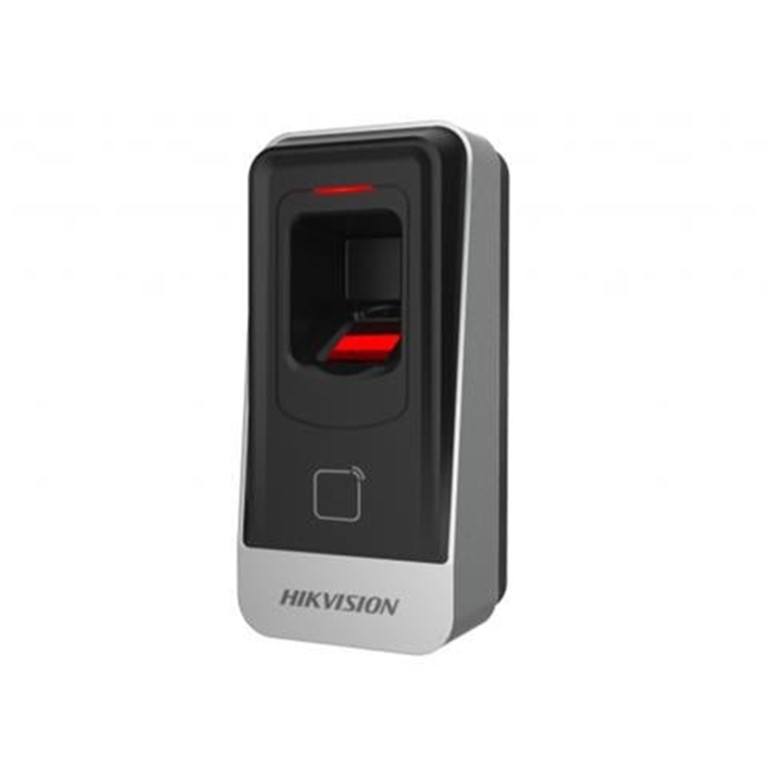

Hikvision Fingerprint Reader DS-K1201AMF

Features

• A group of messy code encrypted data for the security of fingerprint storage

• Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol

• Supports M1 card reading

• Card induction distance is 30 mm to 100 mm

• Supports multiple authentication modes (card, fingerprint, and card + fingerprint)

• Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader

• Max. 5000 fingerprints storage

• Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)

• Fingerprint comparison time: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001%

• Communication circuit is designed with optical coupling isolation and noise suppression function

• Built-in buzzer for status indication

• Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal

• Tamper-proof function

Specification

Interface

• TAMPER: 1

Authentication

• Fingerprint Module: Optical fingerprint module

• Fingerprint Comparing Mode 1:1/1:N

• Card Type: Mifare 1 card

General

• Power Supply: 12 VDC ± 10%

• Working Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Working Humidity: 10% to 90% (No condensing)

• Dimensions: 62 mm × 132 mm × 44 mm (2.44″ × 5.20″ × 1.73″)

• Installation: Surface mounting

• Buzzer: Support
