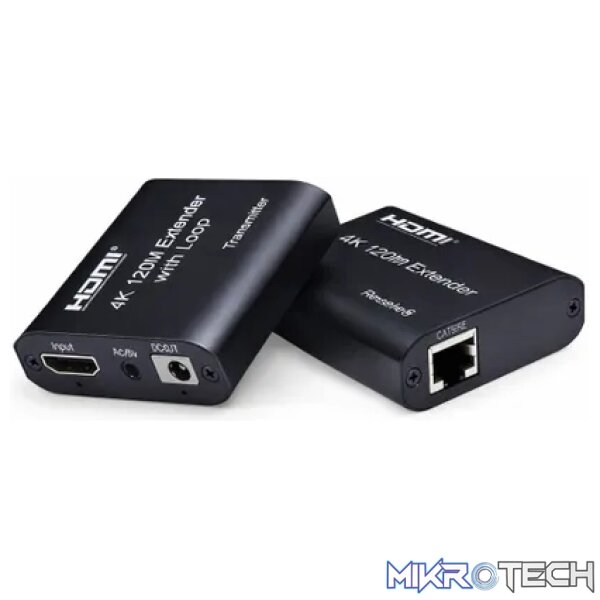

HDMI Extender 4K 120m over CAT5e/6 with Loop – Components

HDMI 120M Extender

The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to transmit high definition signal up to 120 meters. The Extender is designed to supply for long distance transmission of high definition signal

Features:

Support highest video resolution 3840*2160P/30Hz;
120M long distance transmission:
Support local loop-out;
Both the TX and RX support 3.5MM left and right audio output;
Low power consumption, low temperature and high safety.

Specifications:

Length of CAT-6/CAT-5E cable between Rx and TX …………………….… Up to 120 meters
HDMI Input …..…………………………………….. 4k/1080p/1080i/720p/576p/576i/480p/480i
HDMI Output …..…………….…………………….. 4k/1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth ……………………………………………………………………..…… 340MHz
Max baud rate ……………….…….………………….………….…………………… 3×3.4Gbps
Input video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p
Output DDC signal ……………………………………………………..……… 5Volts p-p (TTL)
Input HDMI cable distance ………….…………………… ?10m AWG26 HDMI standard cable
Output HDMI cable distance ………………………………… ?10m AWG26 HDMI standard cable
TX Max working current …………………………………………………….……………. 300mA
RX Max working current ………………………………………………………………..… 300mA
Power adapter format ……………… Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range ……..…………….……………………….……… (-15 to +45?)
Operating Humidity range ………………………….….……. 5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….………………………… 60x56x19 (mm)
TX Weight …..……………………………………………..……………………………..…..… 49g
RX Weight ……………………………………………………………………………………….. 49g
