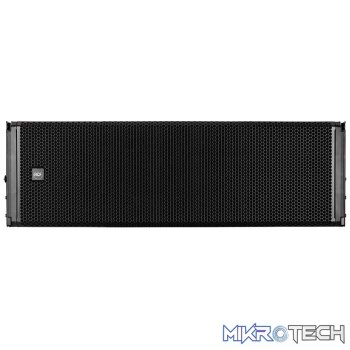

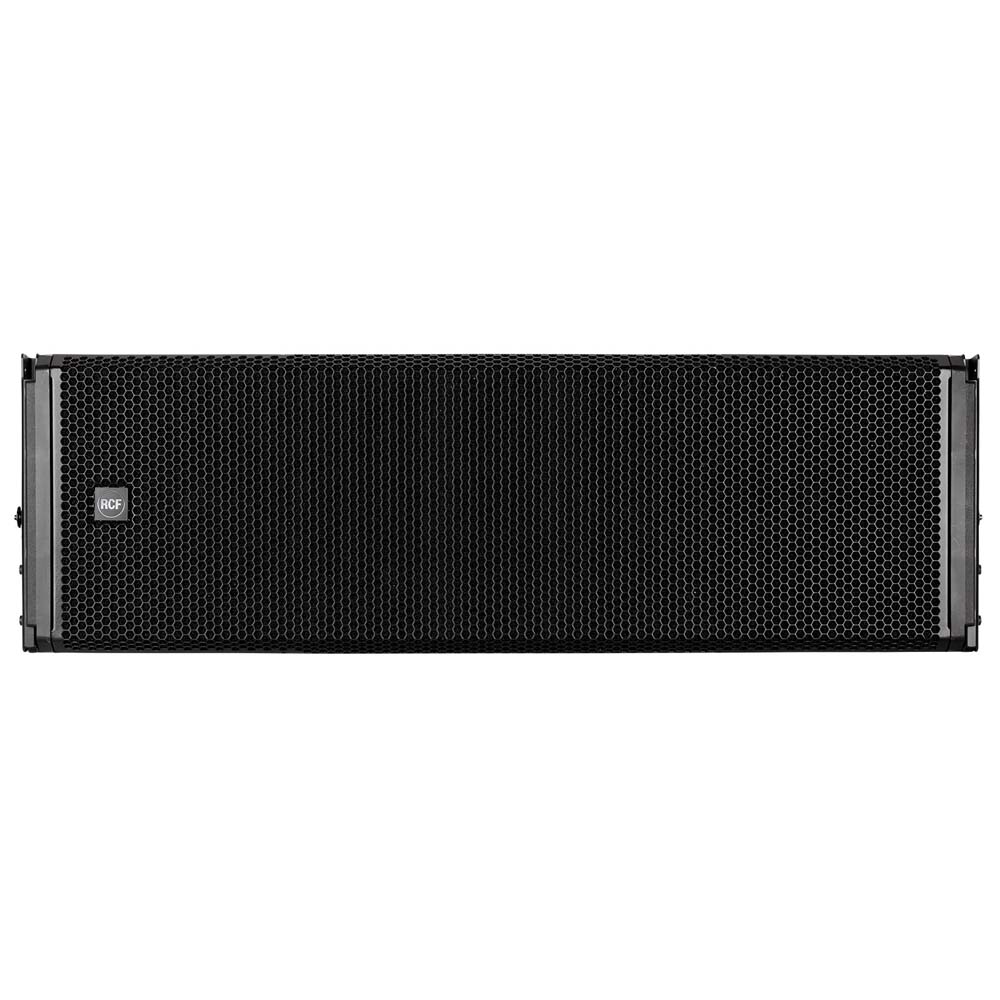

RCF HDL 50-A Active 3-Way Line Array Speaker System
HDL 50-A
ACTIVE THREE-WAY LINE ARRAY MODULE
The HDL 50-A is a true active high power speaker system ready to use touring system for large events, indoors and outdoors. Equipped with 2×12? woofers, 4x symmetrical 6.5? midranges and two 2? drivers, it offers excellent playback quality and high sound pressure levels with a built in 2200W RMS powerful digital amplifier that delivers superior SPL, while reducing energy requirement.
Using advanced neodymium magnets and a groundbreaking new housing constructed from lightweight plywood and polypropylene, it has a remarkably low weight for easy handling and flying.
- ? Large Concerts
- ? Rental
- ? Live Sound
- ? Performance venues
- ? Live Clubs
- 4400 Watt, 3 way amplification
- 140 dB max SPL
- 8 x high power neodymium transducers
- 48 kHz, 32 bit DSP processing
- RDNet on board
- Remote monitoring and control
- Symmetrical design
- Extremely low weight
- Frequency Response -3 dB:40 Hz ? 20000 Hz
- Max SPL:140 dB
- Horizontal coverage angle:90?
- Vertical coverage angle:10?
- Compression Driver:2×1.4? neo, 3.0? v.c.
- Midrange:4×6? neo, 2.0? v.c.
- Woofer:2×12? neo, 3.0? v.c.
- Input signal:bal/unbal
- Input connectors:XRL male, RDNET
- Output connectors:XLR female, RDNET
- Input sensitivity: 4 dBu
- Crossover frequencies:200-800 Hz
- Protections:thermal, rms
- Limiter:soft limiter
- Controls:Cluster size, HF correction, RDNET
- Total power:4400 W PEAK
- ???High frequencies:1100 W PEAK
- ???Mid frequencies:1100 W PEAK
- ???Low frequencies:2200 W PEAK
- Total power:2200 W RMS
- ???High frequencies:550 W RMS
- ???Mid frequencies:550 W RMS
- ???Low frequencies:1100 W RMS
- Cooling:convection
- Connections:Powercon IN-OUT
- Cabinet Material:Baltic birch plywood
- Hardware:Integrated mechanics
- Handles:2 side, 2 rear
- Colour:black
- Height:366/14.42 mm/inch
- Width:1171/46.1 mm/inch
- Depth:502/19.78 mm/inch
- Net Weight:56/123.45 kg/lbs
