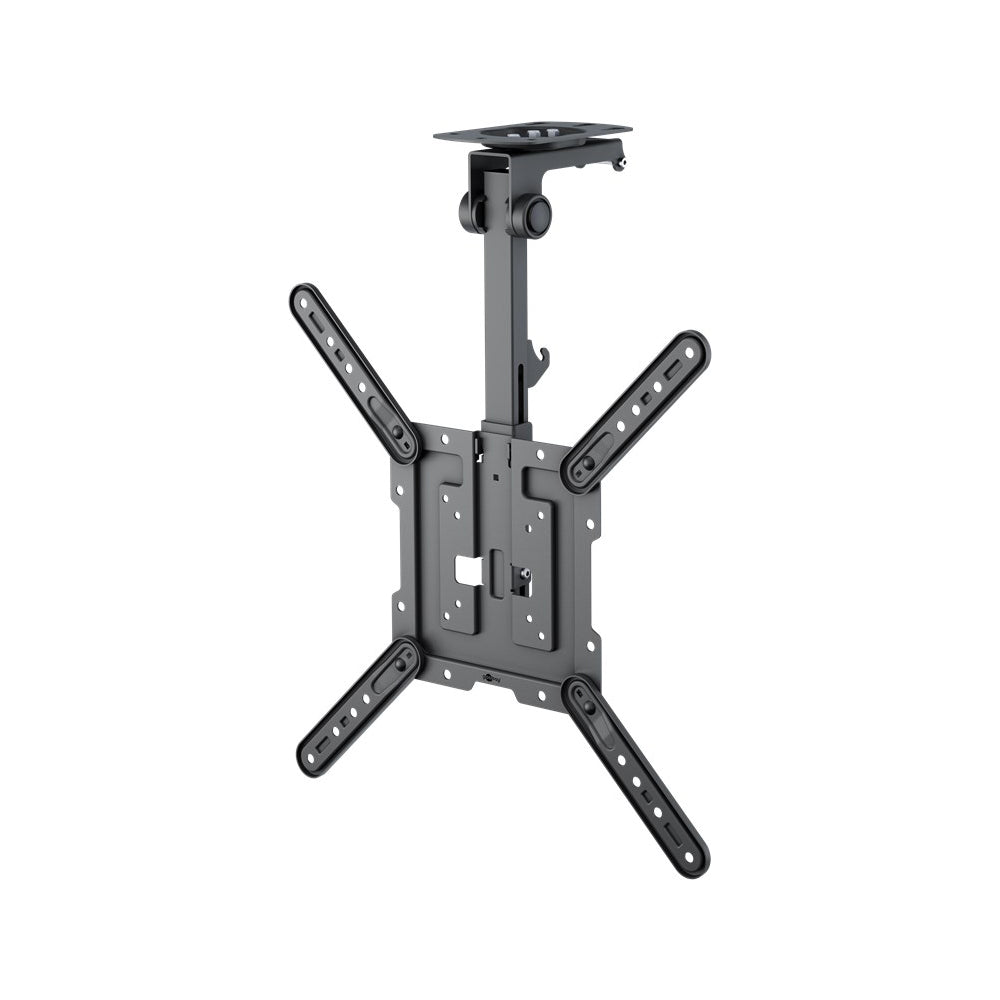

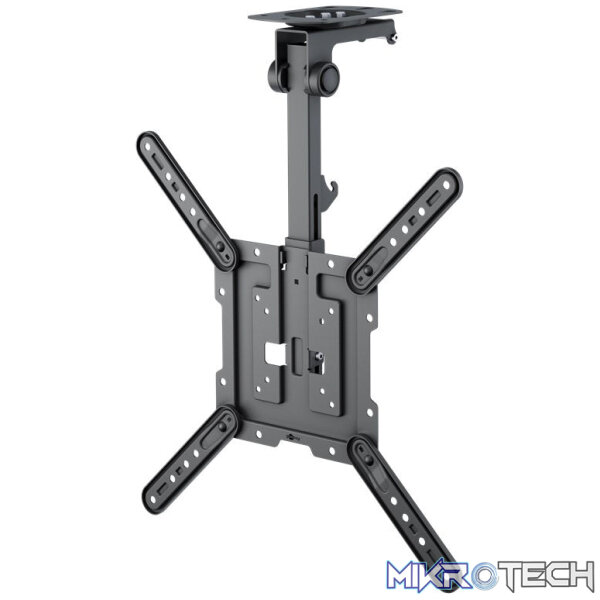

Goobay Ceiling TV Mount Basic TV Mount for TVs from 23″ to 55″

mount for TVs from 23 to 55 inches (58 – 140 cm), max. 20 kg, swivels sideways, ceiling angle variably adjustable, with flip-up and locking function

The mount for exceptional purposes: The ceiling mount comes into play when conventional wall mounts are useless – for installation on sloping ceilings, on the ceiling or in kitchen cupboards. For a clean look or to maximise use of the available space, the bracket can be folded up and securely fixed in place with the locking mechanism.

Features

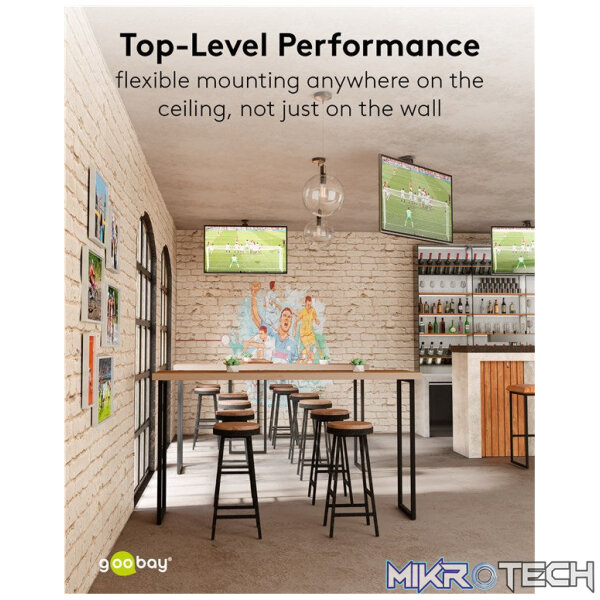

• Practical TV mount for installation on sloping ceilings, in or under cupboards and in various work areas

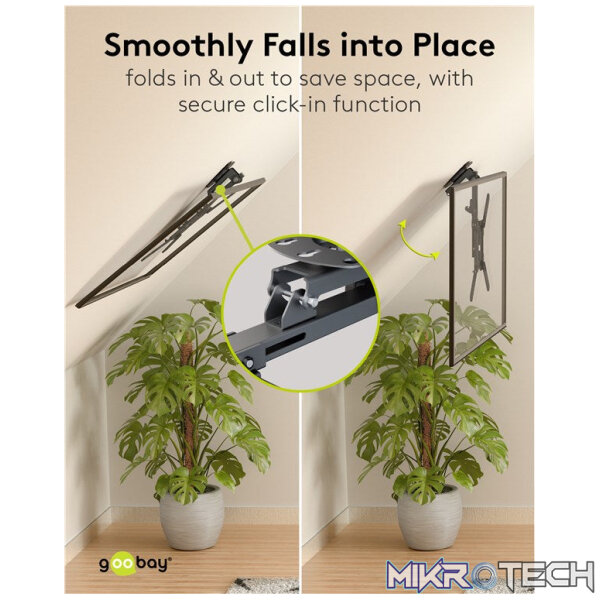

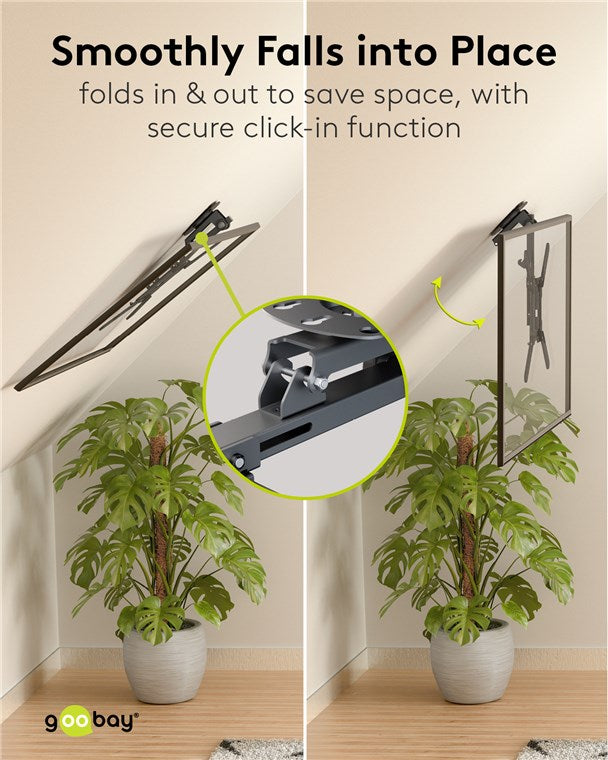

• Perfect for confined spaces: The secure snap-in function folds up the mount when not in use to create more space in the room and in or under cabinets

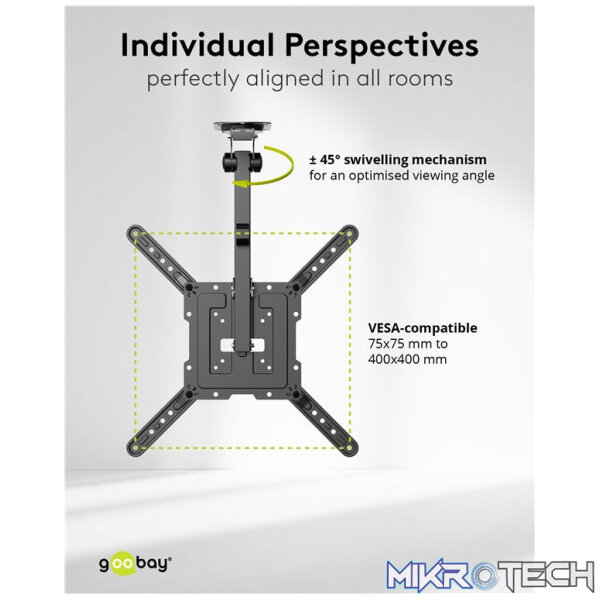

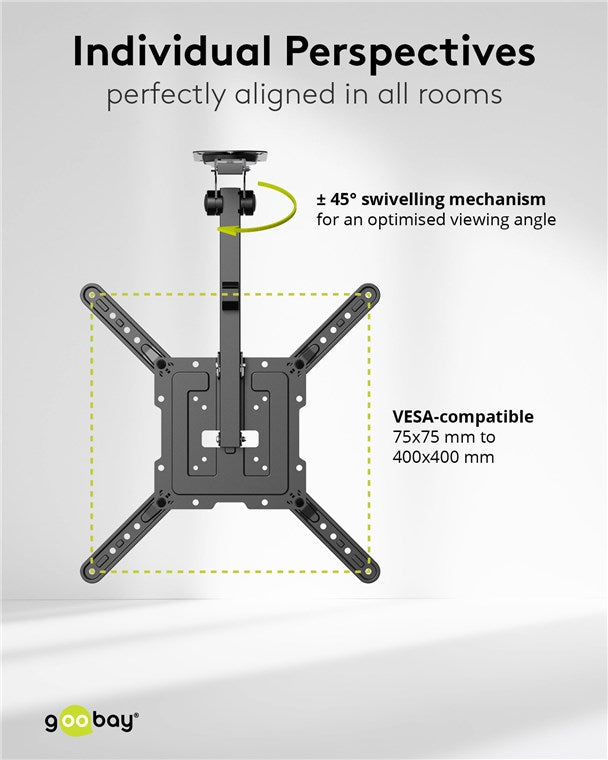

• The swivel mechanism in the ceiling mount allows for swivelling the TV by ±45° to achieve an optimised viewing angle

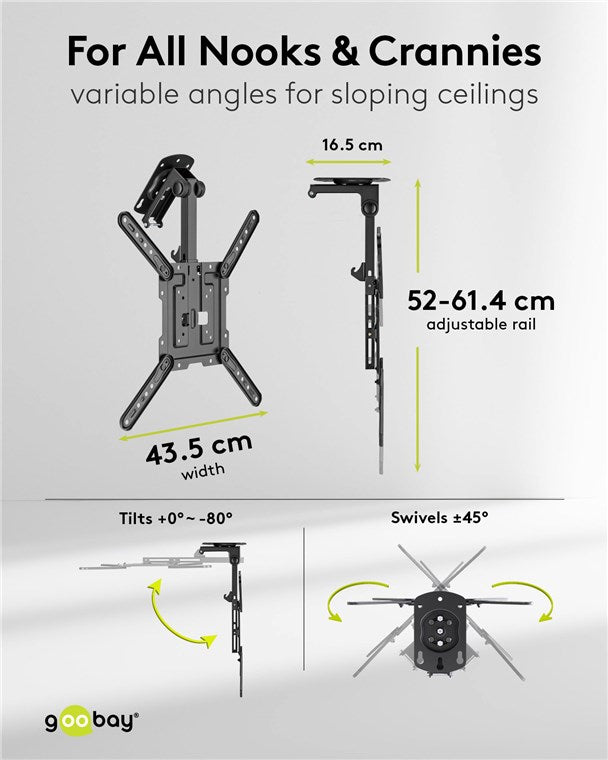

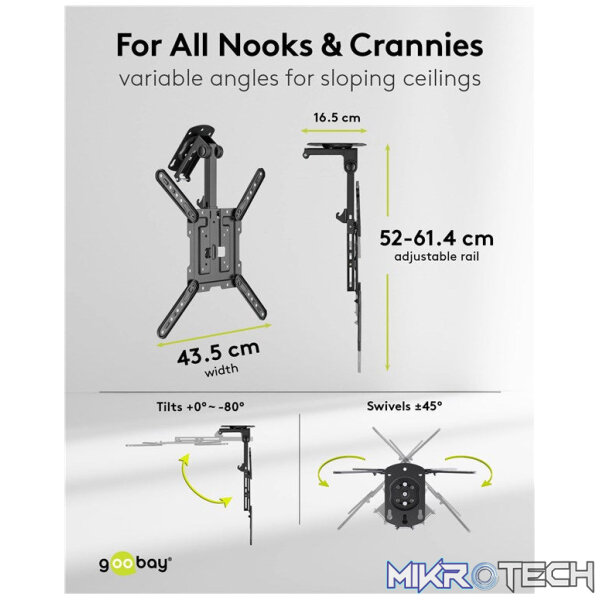

• The height of the TV can be set using the adjustable rail (minimum TV height: 520 mm, maximum height: 614 mm)
• The TV wall bracket is suitable for most curved and flat screen TVs from popular brands, e.g. Samsung (QLED and LED), Sony, Philips and LG as well as many sizes, e.g. 32 inch, 40 inch, 43 inch, 50 inch, 55 inch
• Compatible with VESA® standards 75×75 mm, 100×100 mm, 100×200 mm, 200×100 mm, 200×200 mm, 200×300 mm, 300×200 mm, 200×400 mm, 400×200 mm, 300×300 mm, 300×400 mm, 400×300 mm, 400×400 mm

Technical specifications

Performance

• Bracket type: TV Fullmotion
• screen size: M (59-140 cm / 23-55″”)
• maximum load: 20 kg
• Swivel Range: +45° ~ -45°
• max. Mouting Hole (VESA): 400×400
• VESA (FDMI): 75 x 75 mm, 100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 300 x 200 mm, 200 x 400 mm, 400 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 300 mm, 400 x 400 mm

General

• Color: black
• Material: steel (powder-coated)
• Packaging type: Retail Box

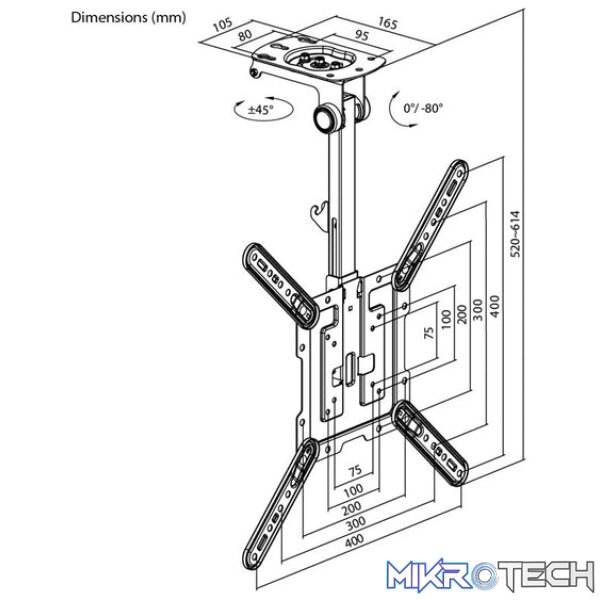

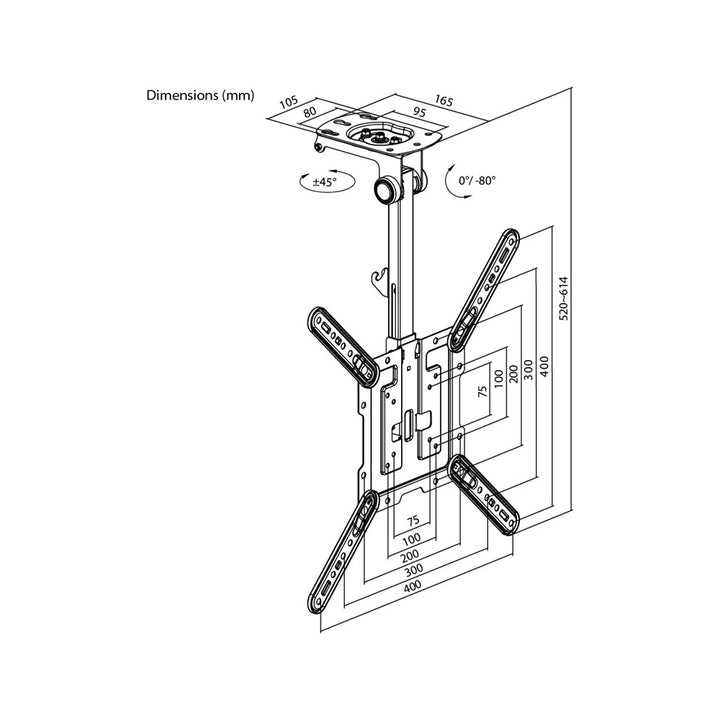

Dimensions / Weight

• Width: 435 mm
• Height: 614 mm
• depth: 165 mm

Scope of delivery
Assembly Material: dowel, screws
