KEY FEATURES:
– Micro-ATX Form Factor
– Intel Z890 Chipset, Socket LGA 1851
– Supports Intel Core Ultra Series 2 Processors
– 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
– Supports up to DDR5-9200 (OC)
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 1x PCIe 4.0 x4 Slot (x16 Physical)
– 1x M.2 2580/2280 PCIe 5.0 x4 NVMe/SATA SSD Slot
– 1x M.2 2580/2280 PCIe 4.0 x4 NVMe/SATA SSD Slot
– 1x M.2 22110 PCIe 4.0 x4 NVMe SSD Slots
– 4x SATA 3.0 Ports
– Supports Front-Panel USB Type-C Chassis Port
– 1x USB 40Gbps Type-C Port with DisplayPort 2.1
– 1x USB 10Gbps Type-A Port
– 4x USB 5Gbps Type-A Ports
– 4x USB 2.0 Type-A Ports
– 1x DisplayPort 2.1 Port
– 2x SMA Wireless Connectors
– 2x 3.5mm Audio Jacks, 1x S/PDIF Optical Out
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
– WiFi 7 Tri-Band Adapter, Bluetooth 5.4
– Realtek High-Definition Audio Codec
– 12+1+1 Phase Twin Hybrid Digital VRM Solution
– Supports Windows 11 64-bit
– 3 Year Warranty
Description

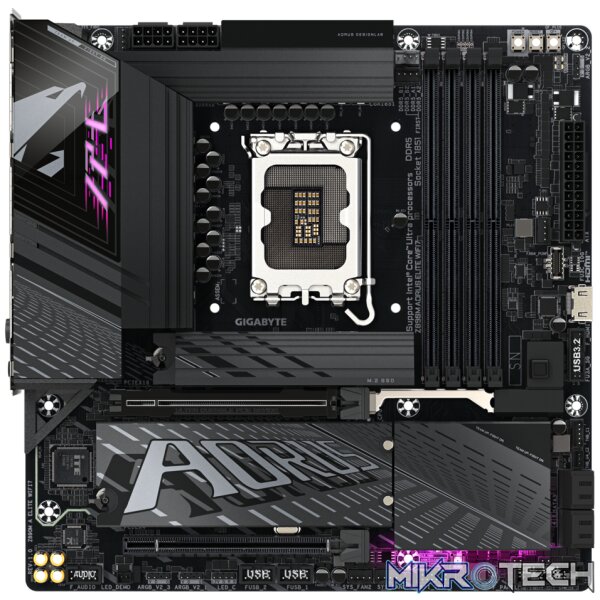

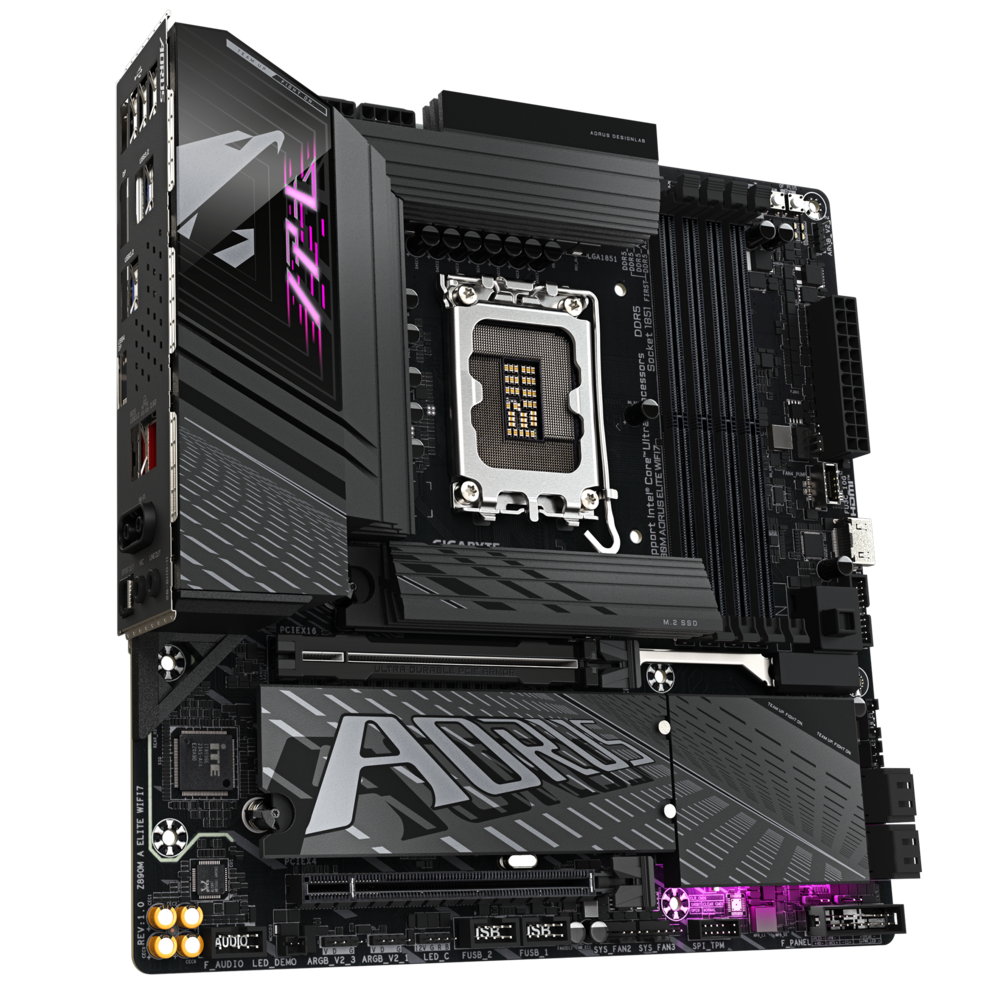

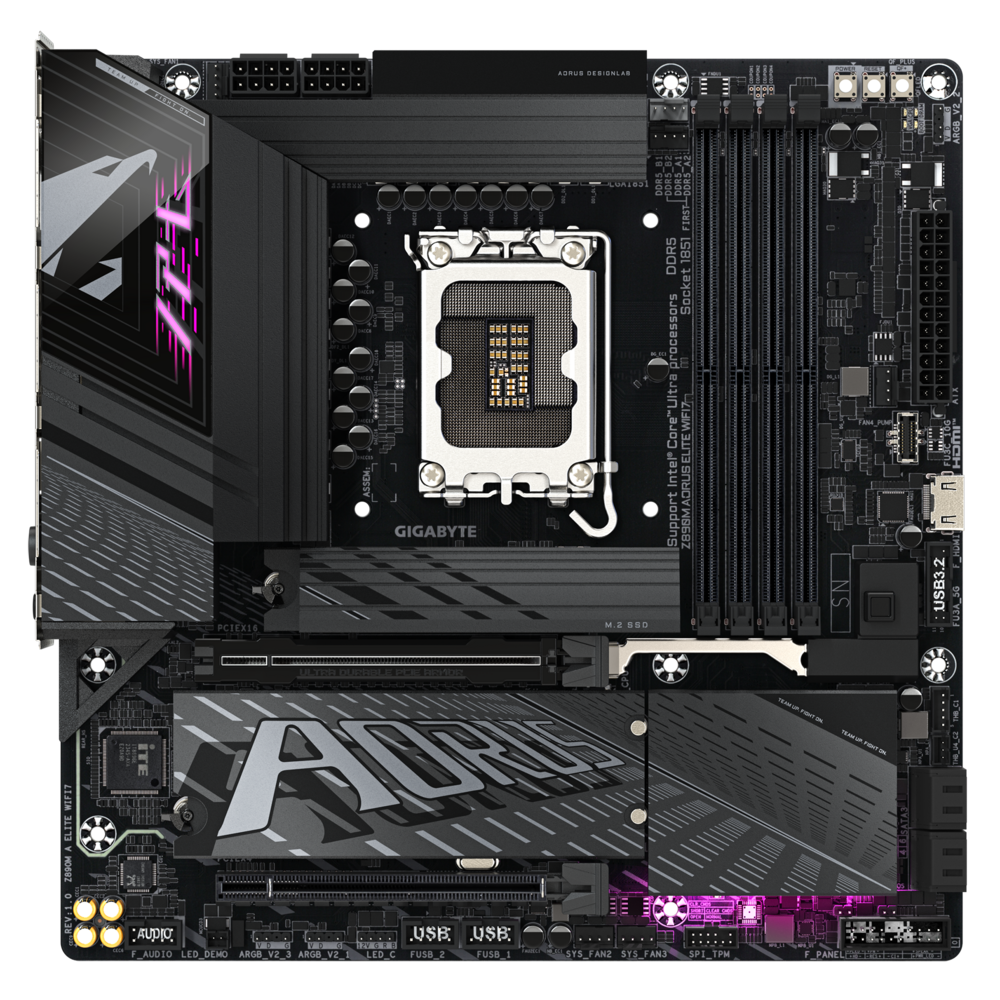

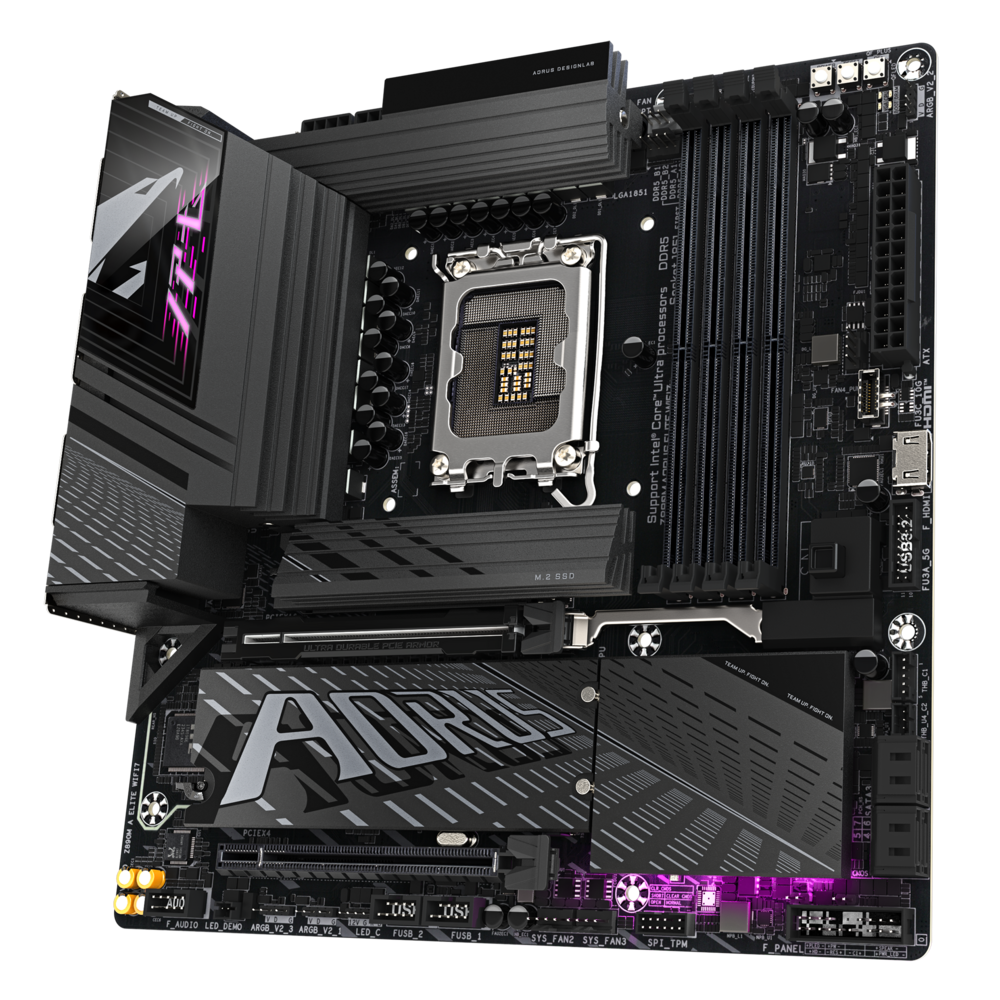

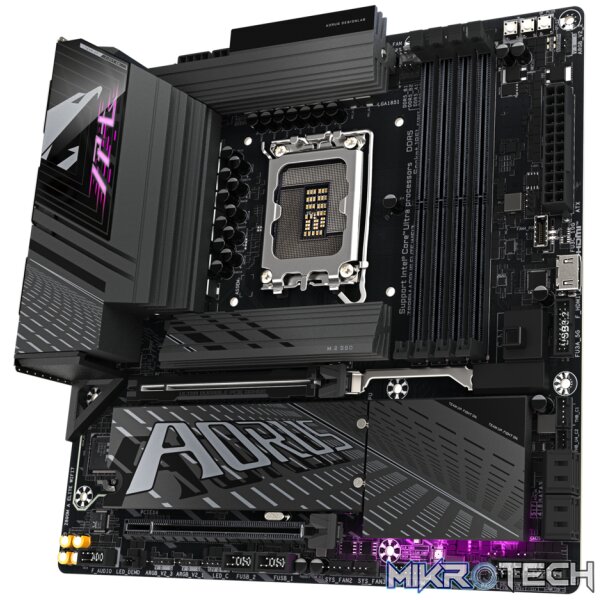

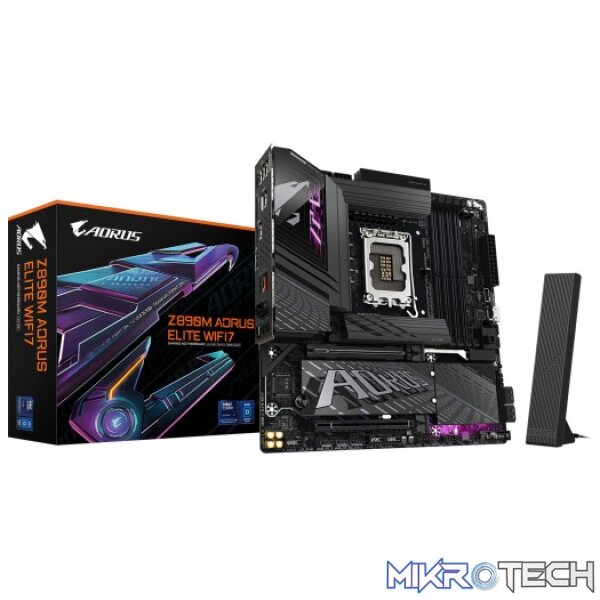

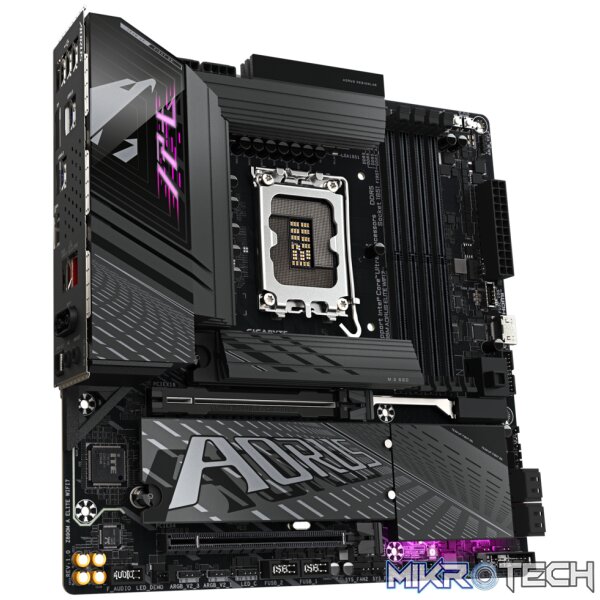

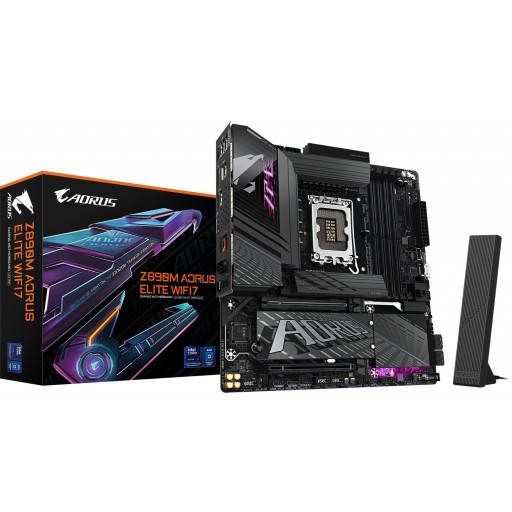

Gigabyte Z890M AORUS ELITE WIFI7 Intel LGA 1851 Micro-ATX Motherboard
GA-Z890M-AORUS-ELITE-WIFI7
The Gigabyte Z890M AORUS ELITE WIFI7 delivers next-generation performance in a compact Micro-ATX form factor, built for gamers, creators, and professionals who demand cutting-edge technology in a smaller footprint. Powered by the latest Intel LGA1851 socket and Intel Z890 chipset, this motherboard supports 14th Gen and future Intel Core processors, ensuring exceptional speed, stability, and overclocking potential.
Featuring DDR5 memory support up to 8266 MT/s, PCIe 5.0 graphics and storage interfaces, and blazing-fast Wi-Fi 7 + 2.5GbE LAN connectivity, the Z890M AORUS ELITE WIFI7 provides the ultimate platform for high-performance builds. With advanced thermal design, high-quality audio, and a premium power delivery system, it offers uncompromised performance for gaming, streaming, and content creation.
Why ItÂ’s a Great Choice
Perfect for high-end Micro-ATX gaming PCs, the Z890M AORUS ELITE WIFI7 combines next-gen speed, superior connectivity, and excellent cooling in a compact, future-ready design. Ideal for users wanting flagship performance without the bulk of a full ATX board.
SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AORUS ELITE Series |
| Model | Z890M AORUS ELITE WIFI7 (GA-Z890M-AORUS-ELITE-WIFI7) |
| CPU Support | Supports Intel Core Ultra Series 2 Processors |
| Chipset | Intel Z890 Express |
| Memory Support | |
| Intel Core Ultra Series 2 Processors | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Support CUDIMM memory module | |
| Video | |
| HDMI | 1x HDMI 1.4 Internal port, supporting a maximum resolution of 1920×1080@30 Hz (for internal or chassis displays) |
| DisplayPort | 1x DisplayPort 2.1 port, supporting a maximum resolution of 3840×2160@144 Hz, Support for HDCP, VRR & HDR |
| USB-C | 1x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical slot |
| Intel Z890 Chipset | 1x PCIe 4.0 x16 Physical, x4 Electrical slot |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) |
| 1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Intel Z890 Chipset | 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) |
| 4x SATA 6Gb/s connectors | |
| Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Intel Rapid Storage Technology supports NVMe RAID 0/1/5/10 | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps |
| WiFi | WiFi 7 2×2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.4 |
| Audio | |
| Codec | Realtek High Definition Audio CODEC |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Support for S/PDIF Out | |
| Connectivity | |

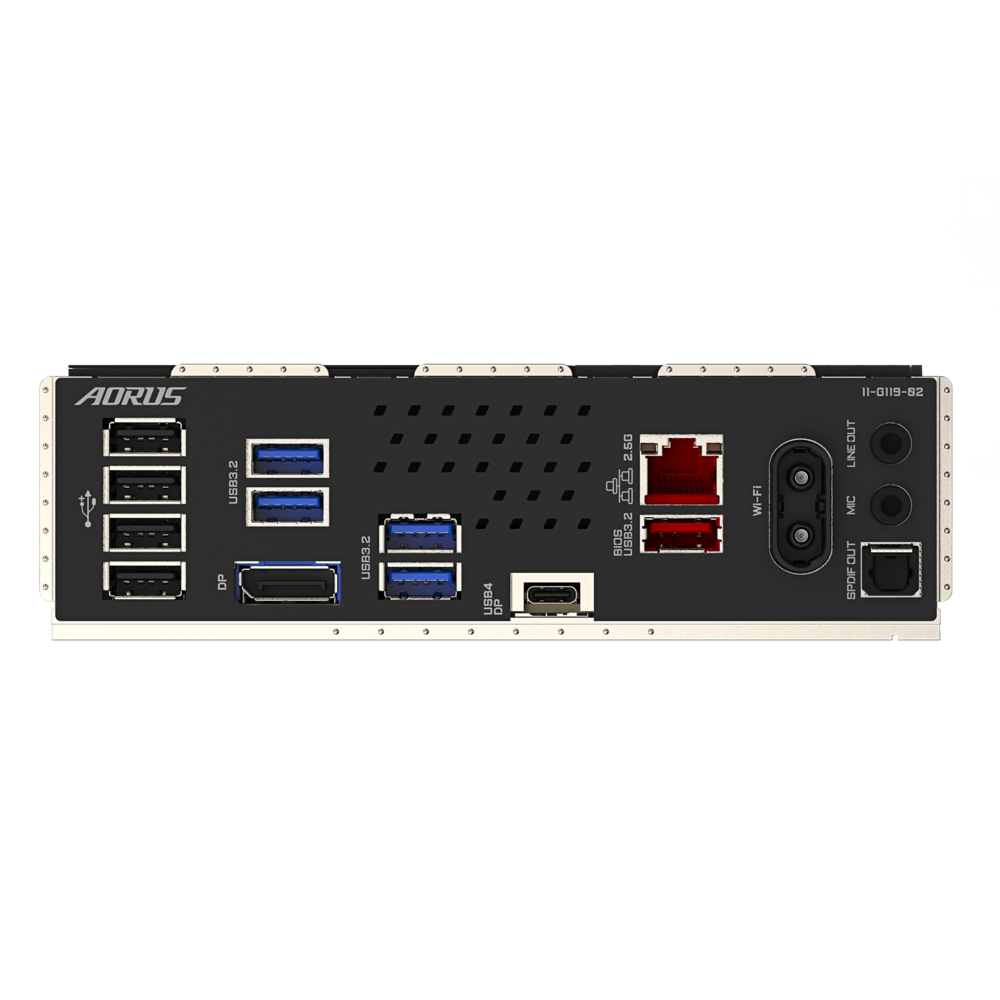

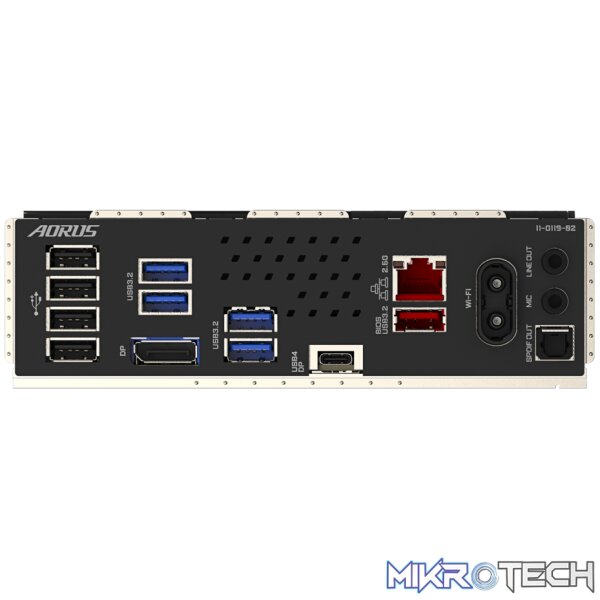

| Ports | 1x USB 40Gbps Type-C Port with DisplayPort 2.1 |
| 1x USB 10Gbps Type-A Port | |
| 4x USB 5Gbps Type-A Ports | |
| 4x USB 2.0 Type-A Ports | |
| 1x DisplayPort 2.1 Port | |
| 2x SMA Wireless Connectors | |
| 2x 3.5mm Audio Jacks | |
| 1x S/PDIF Optical Out | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port | |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 2x 8-pin ATX 12V power connectors | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 3x system fan headers | |
| 1x system fan/water cooling pump header | |
| 3x addressable RGB Gen2 LED strip headers | |
| 1x RGB LED strip header | |
| 3x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 2x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only) | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1x HDMI port(Note) | |
| 1x power button | |
| 1x reset button | |
| 1x Q-Flash Plus button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| I/O Controller | iTE I/O Controller Chip |
| Buttons | 1x Q-Flash Plus button, 1x Power Button, 1x Reset Button |
| LED Displays | Q-LED Debug LEDs (CPU, VGA, MEM, BOOT) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Micro-ATX Form Factor, 244 x 244mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Warranty Information | |
| Warranty | 3 Year Warranty |
