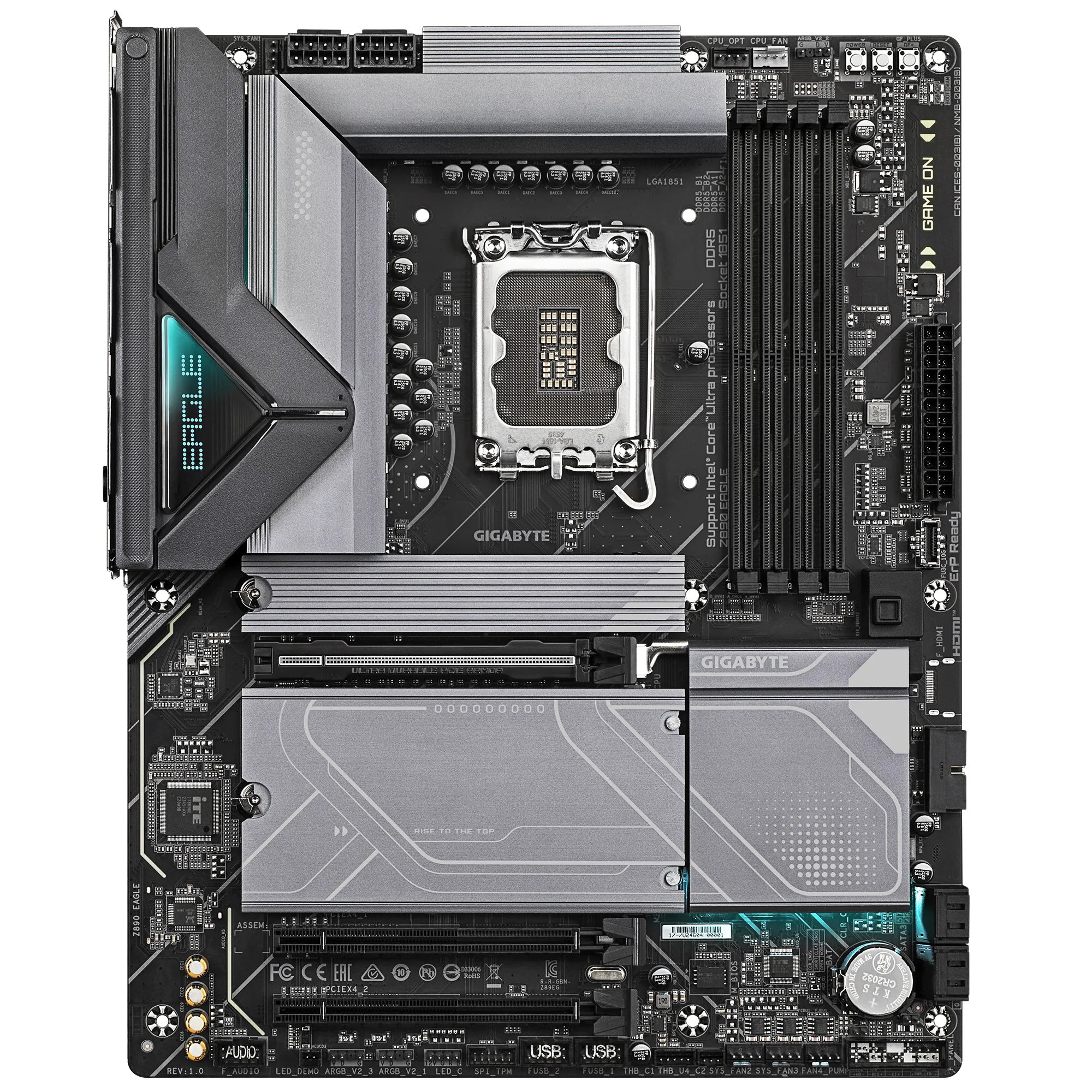

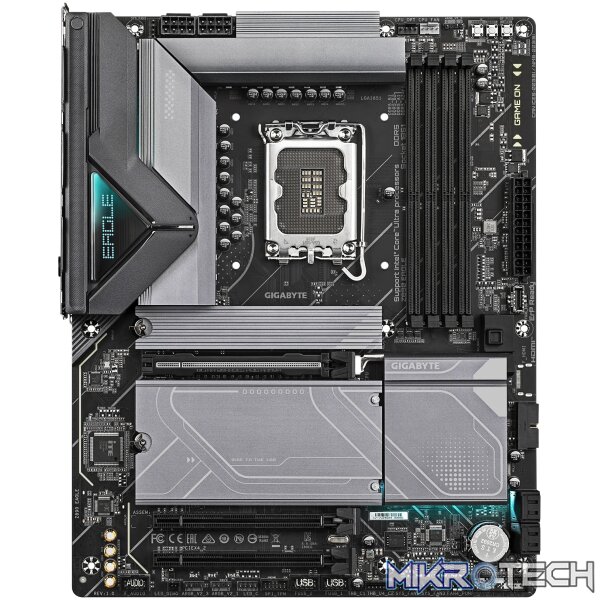

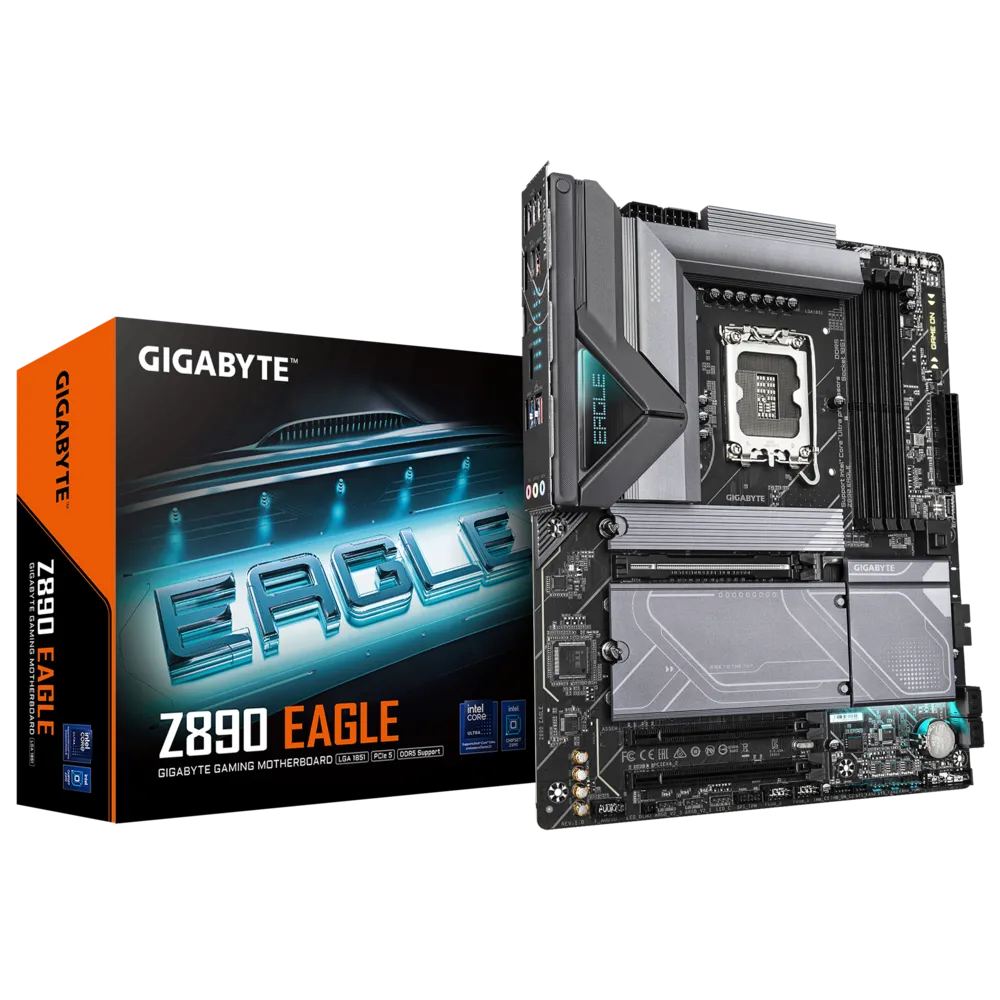

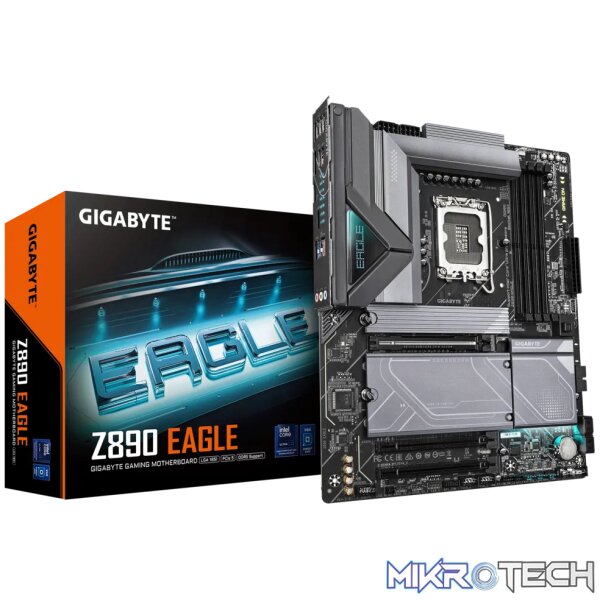

Gigabyte Z890 Eagle Motherboard

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital twin 14+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• Premium Compatibility : 4*DDR5 with XMP Memory Module Support
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in  HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN
• Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort

Specifications

• CPU
  • LGA1851 socket: Support for Intel® Core™ Ultra Processors
  • L3 cache varies with CPU
  • * Please refer to CPU Support List for more information.
• Chipset:  Intel® Z890 Express Chipset
• Memory
  • Support upto DDR5 8800(O.C) / 6400MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to Memory Support List for more information.)
• Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
    • 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz (Support for DisplayPort 2.1 version)
    • 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz (Support for DisplayPort 2.1 version)
    • (Graphics specifications may vary depending on CPU support.)
• Audio:  Realtek® Audio CODEC
• LAN:  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Expansion Slots
  • CPU
    • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
      • * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset
    • 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
• Storage Interface
  • CPU
    • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
    • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
  • Chipset
    • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    • 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB
  • CPU

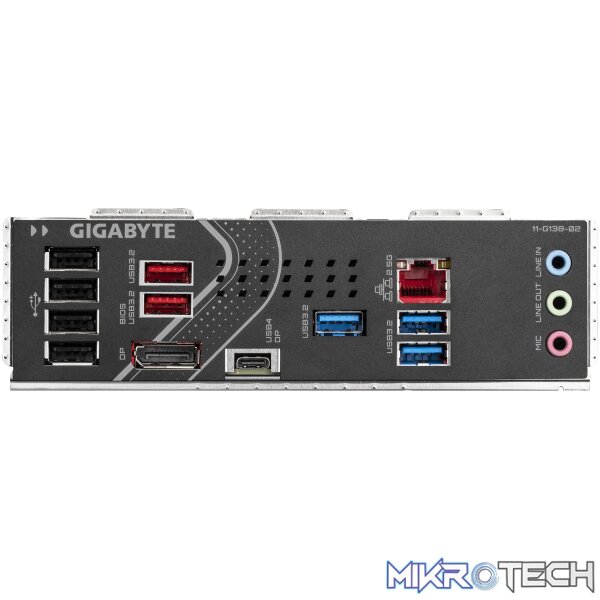

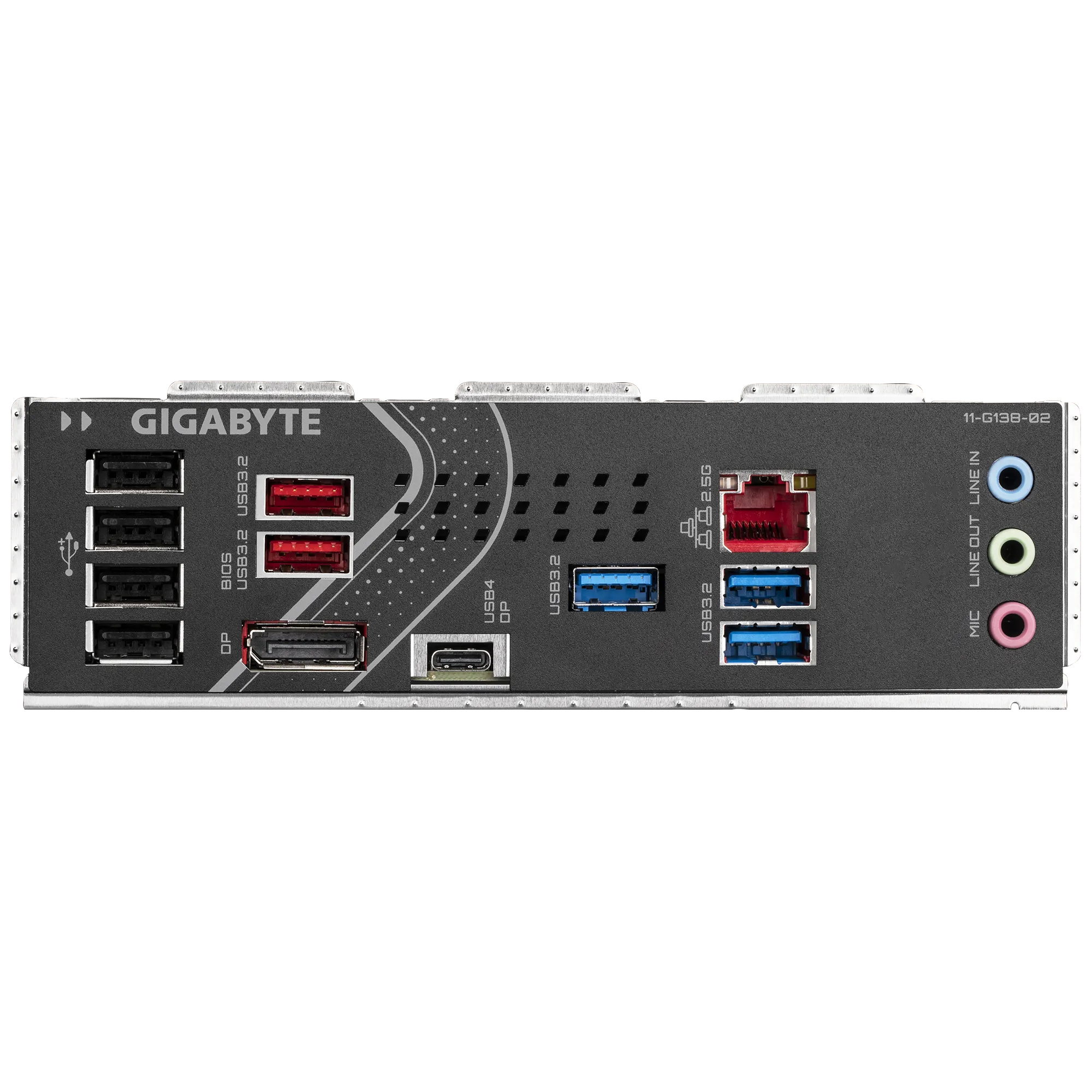

    • 1 x USB4® USB Type-C® port on the back panel
  • Chipset + Hubs
    • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Form Factor: ATX (30.5 x 24.4 cm)
• Warranty: 3 years
