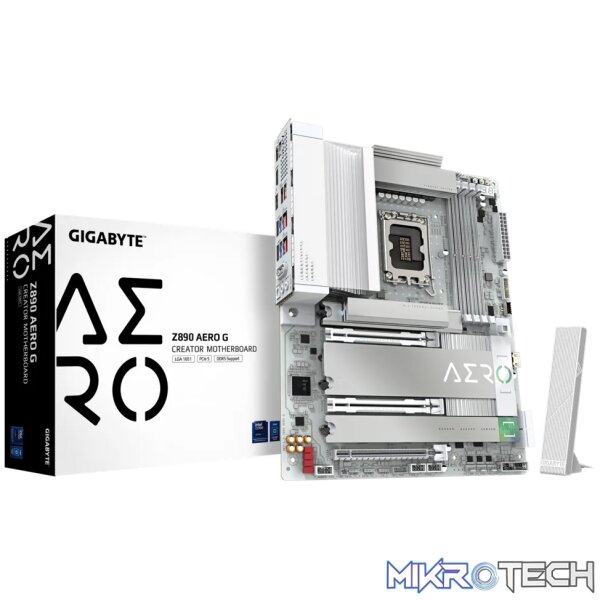

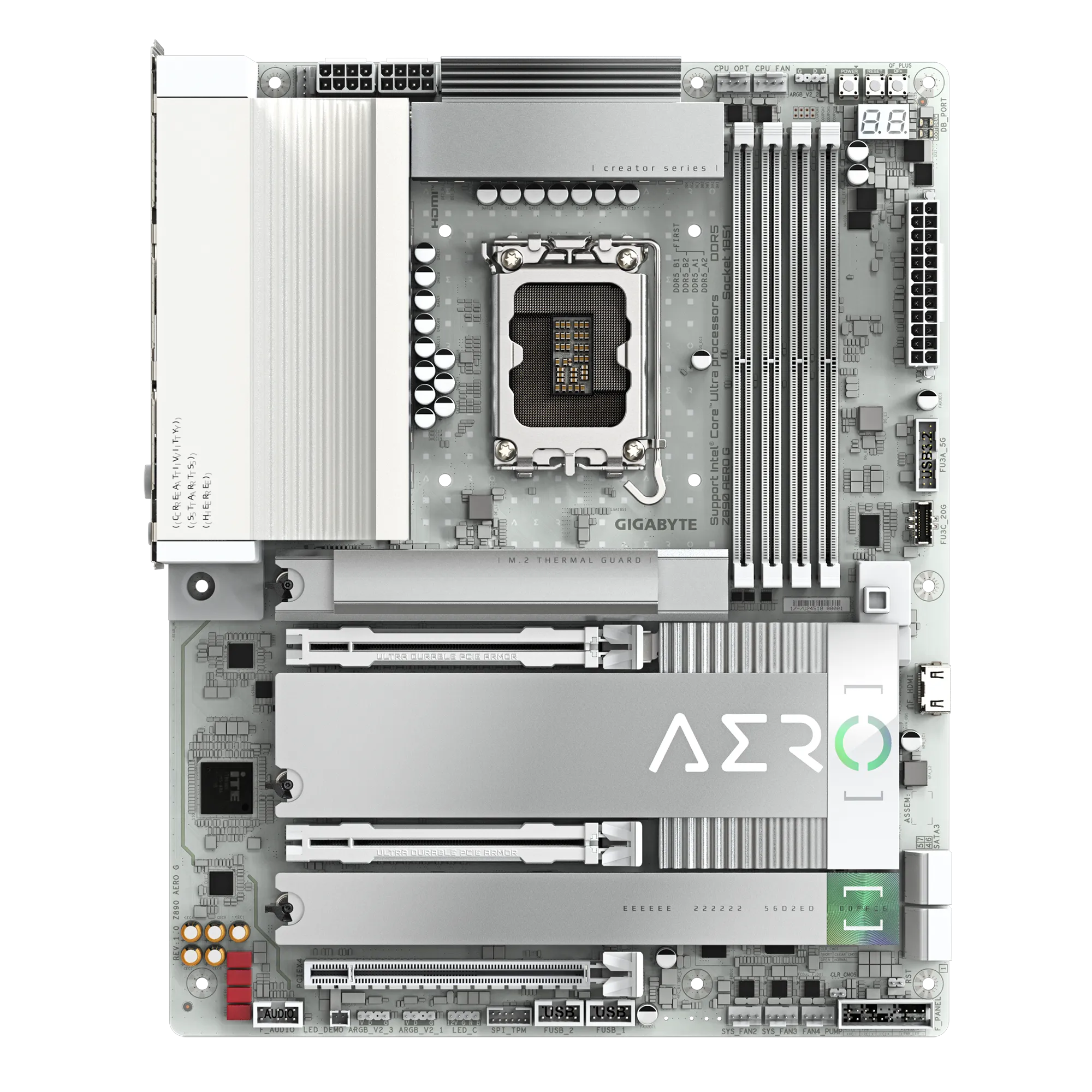

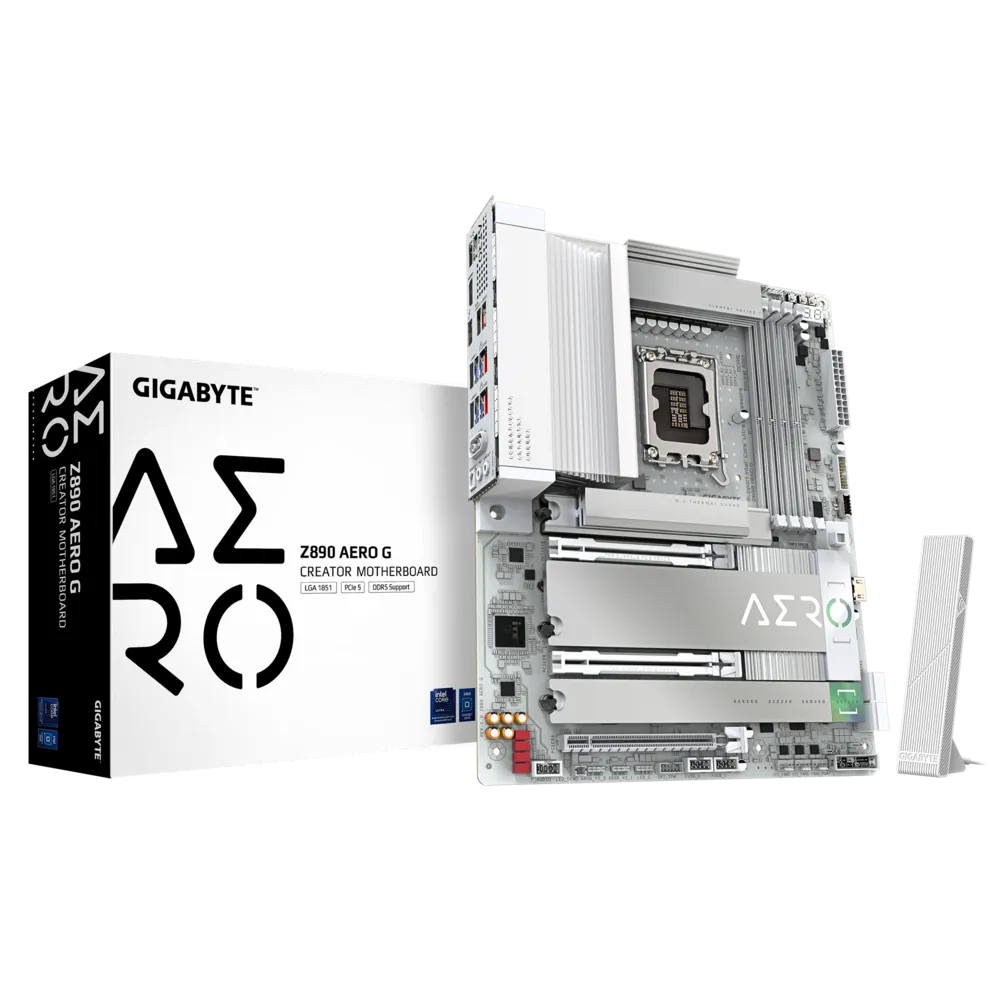

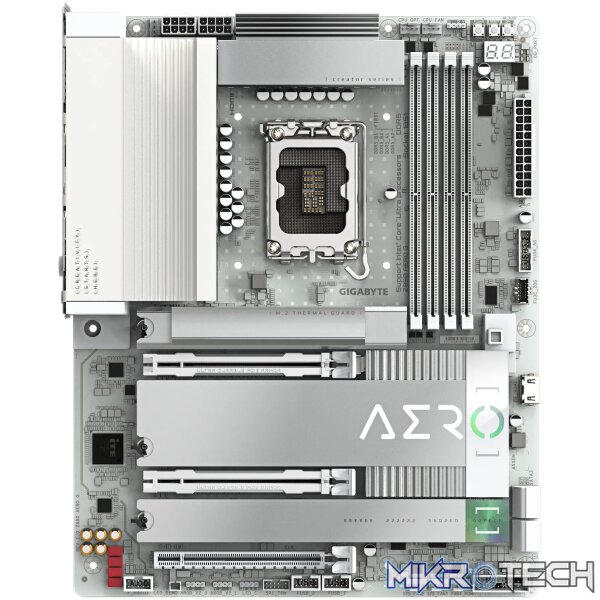

Gigabyte Z890 Aero G WiFi7 Motherboard

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)
• VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging
• Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU
• Extended Connectivity : THUNDERBOLT™ 4 Type-C®with DP-Alt, HDMI
• Ultra-Fast Storage : 5*M.2 slots, including 1* PCIe 5.0 x4
• Blazing Fast Networks : Daul 2.5 GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna
• Digital twin 16+1+2 phases VRM solution
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• Premium Compatibility : 4*DDR5 with XMP Memory Module Support
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L
• High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability

Specifications

• CPU
  • LGA1851 socket: Support for Intel® Core™ Ultra Processors
  • L3 cache varies with CPU
  • * Please refer to CPU Support List for more information.
• Chipset:  Intel® Z890 Express Chipset
• Memory
  • Support upto DDR5 9200(O.C) / 6400MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to Memory Support List for more information.)
• Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
    • 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs {When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output).}
    • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3.)
    • 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz (Support for HDMI 1.4 version.)
    • (Graphics specifications may vary depending on CPU support.)
    • Support for up to triple-display at the same time
• Audio:  Realtek® ALC1220 CODEC
• LAN:  2x Intel 2.5GbE LAN chips (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
  • Wi-Fi 7
  • BLUETOOTH 5.4
• Expansion Slots
  • CPU
    • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)
      • * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
      • * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset
    • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• Storage Interface
  • CPU
    • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
    • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
  • Chipset
    • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    • 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    • 4 x SATA 6Gb/s connectors
    • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

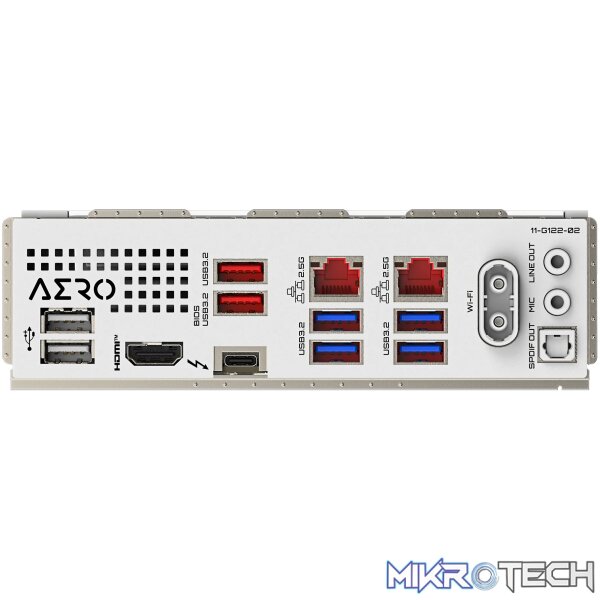

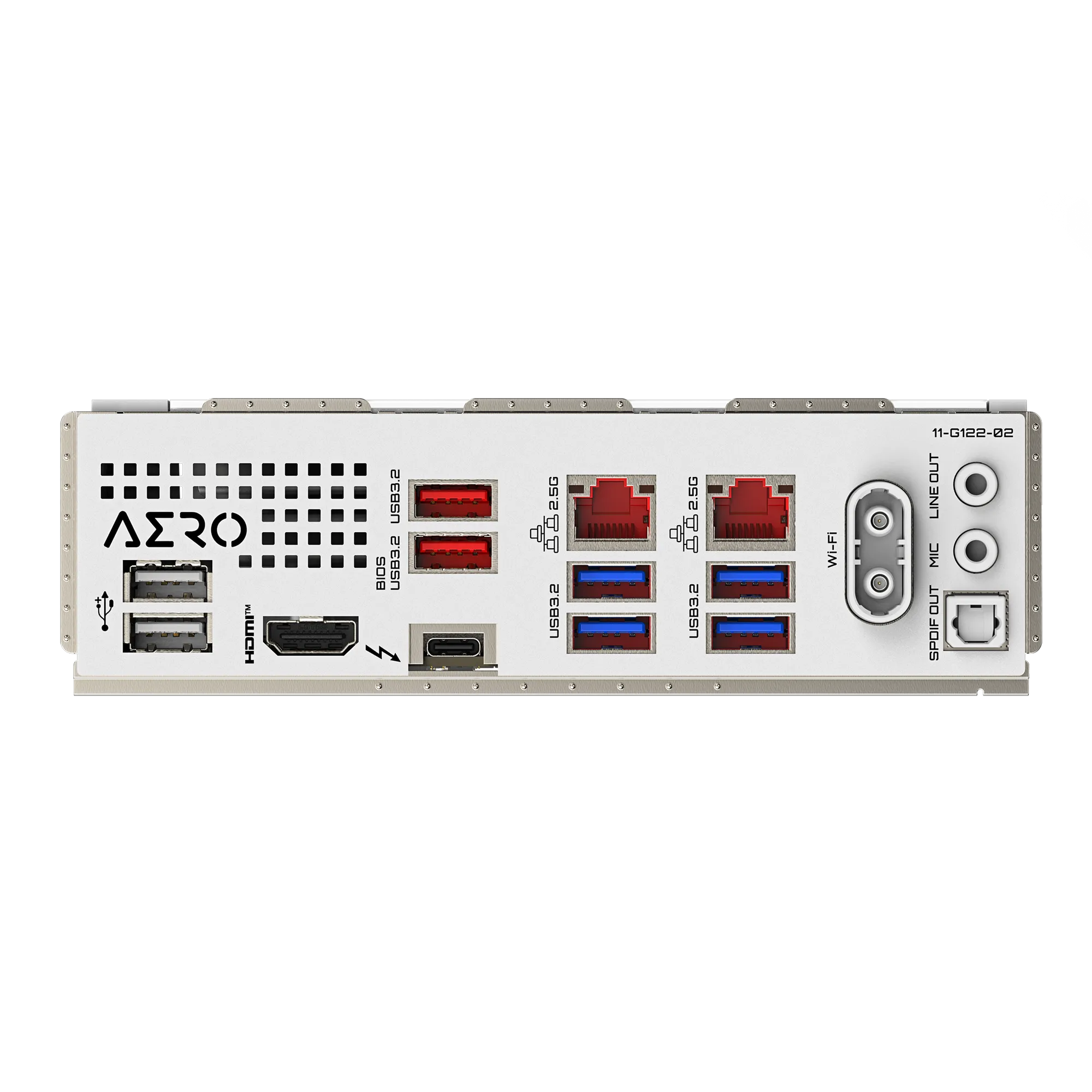

• USB
  • CPU
    • 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel (Support up to 40Gbps with Thunderbolt devices. Support up to 20Gbps with USB4 devices. Support up to 10Gbps with USB 3.2 devices)
  • Chipset + Hubs
    • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
    • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Form Factor: ATX (30.5 x 24.4 cm)
• Warranty: 3 years
