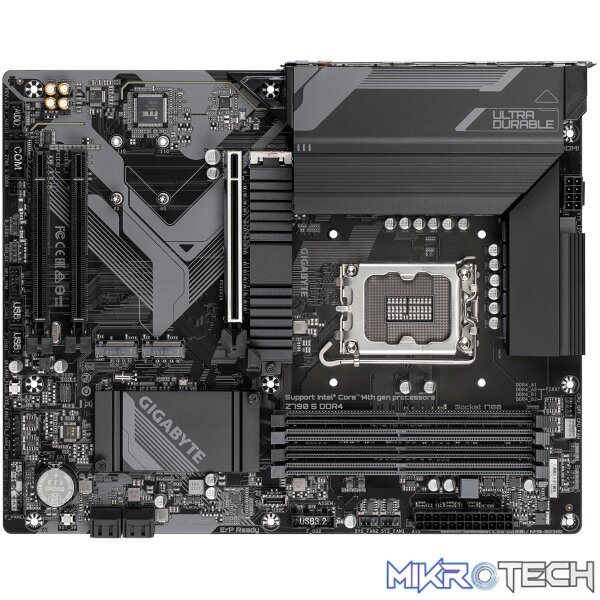

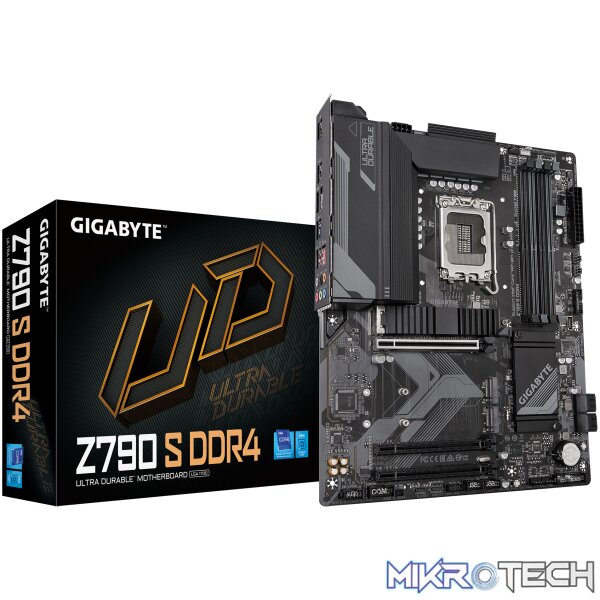

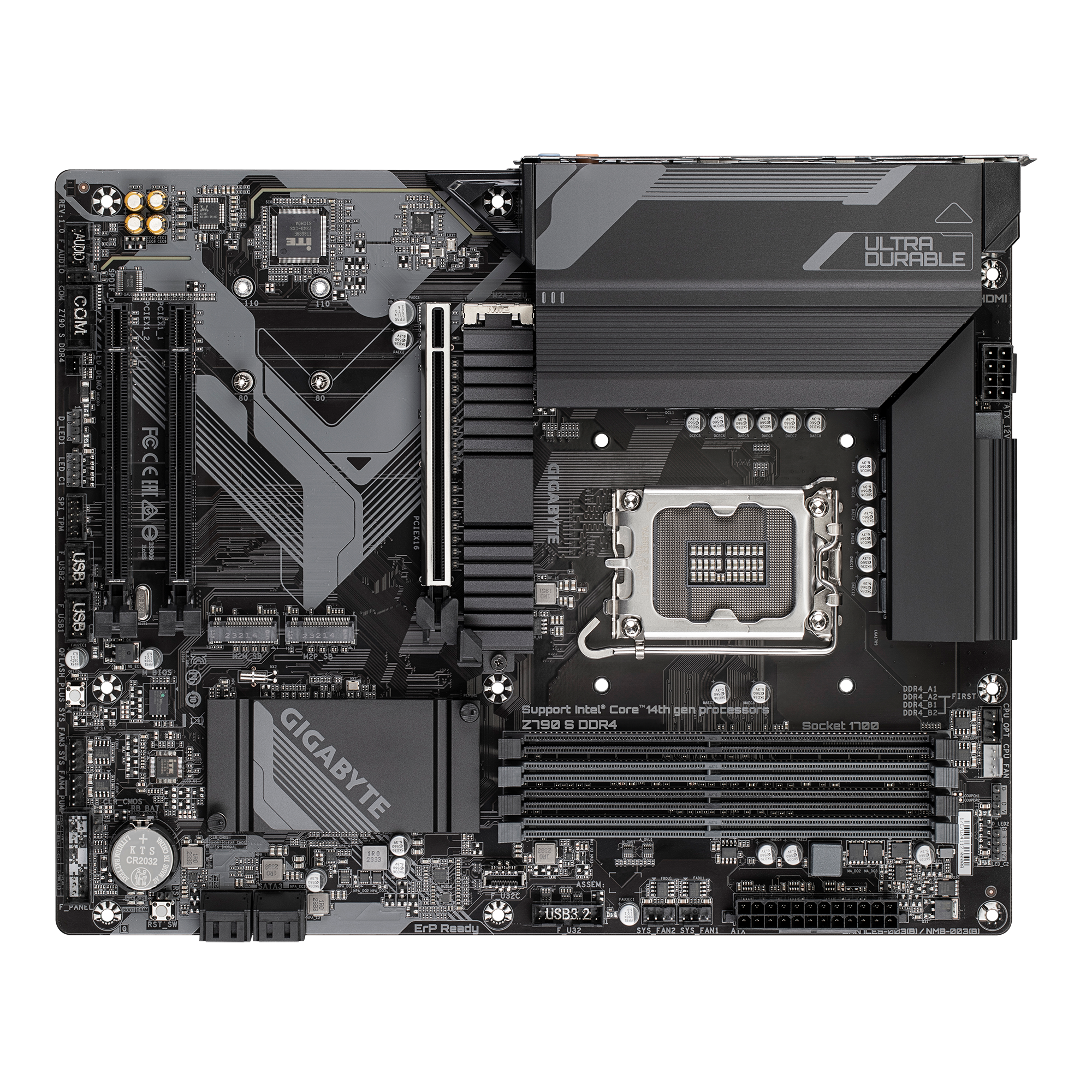

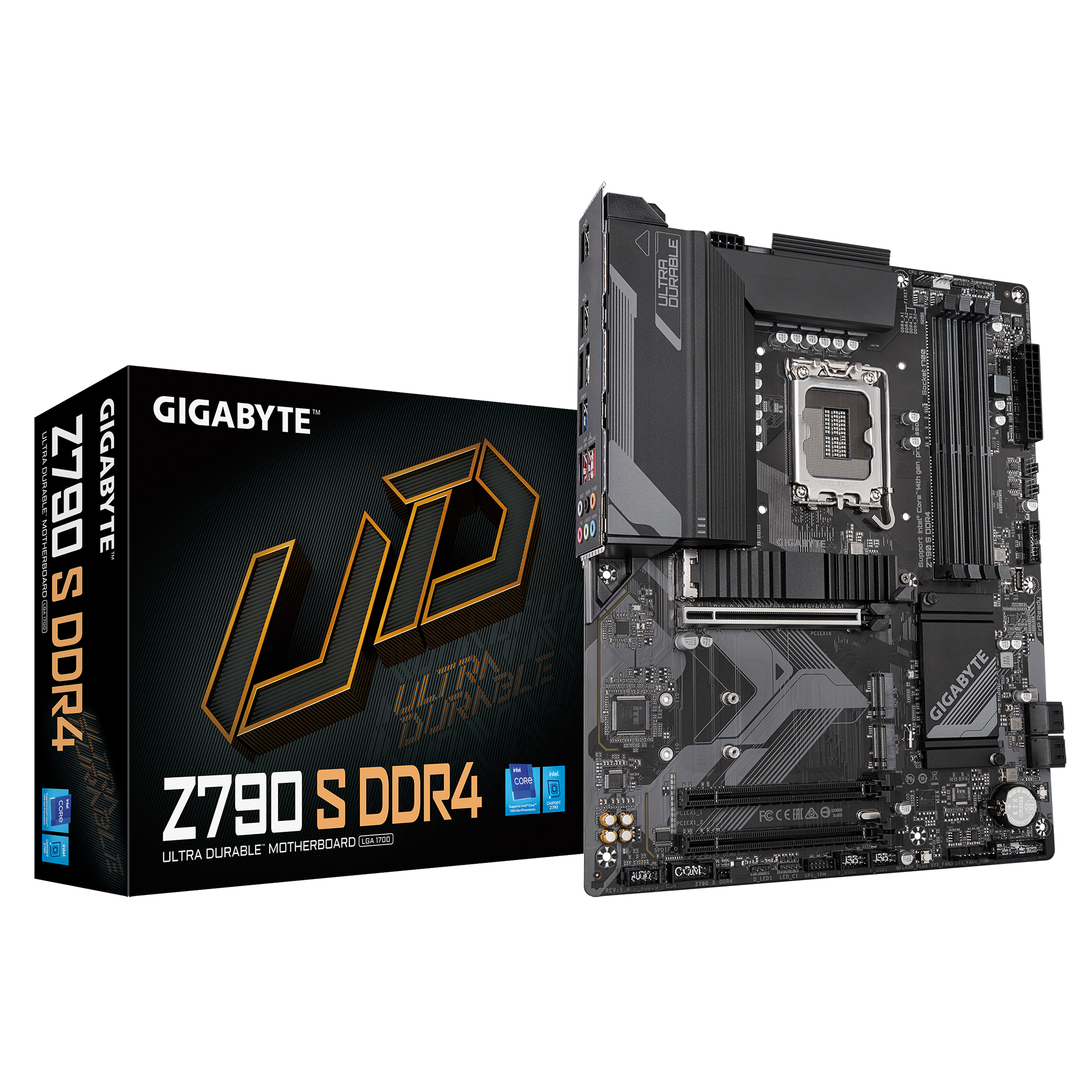

Gigabyte Z790 S DDR4 Gaming Motherboard

FEATURES

• Supports Intel® Core™ 14th/ 13th /12th processors
• Unparalleled Performance: Hybrid 8+1+1 Phases Digital VRM Solution
• Dual Channel DDR4: 4*DIMMs XMP Memory Module Support
• Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch: PCIe 4.0×16 Slot with Quick Release Design
• Fast Networks: 2.5GbE LAN & Wi-Fi 802.11ac
• Extended Connectivity: Front USB-C® 10Gb/s, DP, HDMI
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

SPECIFICATIONS

• CPU
  • LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  • Click here for the latest CPU support list.
  • L3 cache varies with CPU
• Chipset:  Intel® Z790 Express Chipset
• Memory
  • Support up to DDR4 5333 MT/s (O.C.) / 3200 MT/s memory modules
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to GIGABYTE’s website for more information.)
• Onboard Graphics – Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz (Support for DisplayPort 1.2 version and HDCP 2.3)
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.)
  • (Graphics specifications may vary depending on CPU support.)
• Audio:  Realtek® High Definition Audio CODEC
• LAN:  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Expansion Slots
  • CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
  • Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
• Storage Interface
  • CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  • Chipset:
    • 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
    • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB
  • Chipset:
    • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    • 1 x USB 2.0/1.1 port on the back panel
  • Chipset + 2 USB 2.0 Hubs:
    • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Form Factor: ATX (30.5 x 24.4cm)
• Warranty: 3 Years
