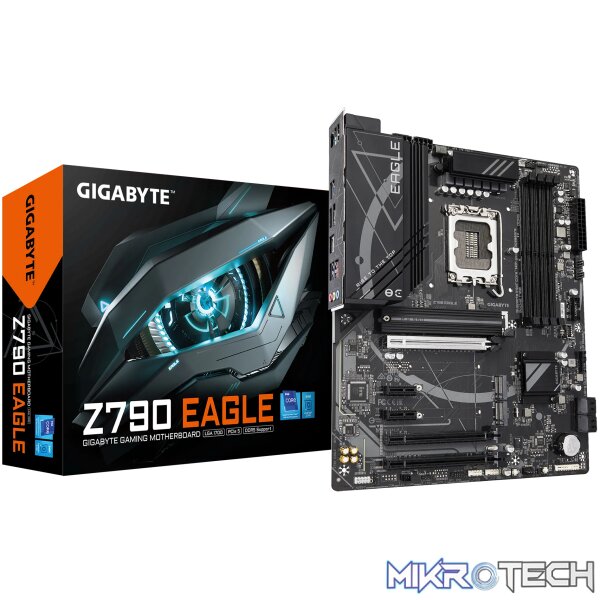

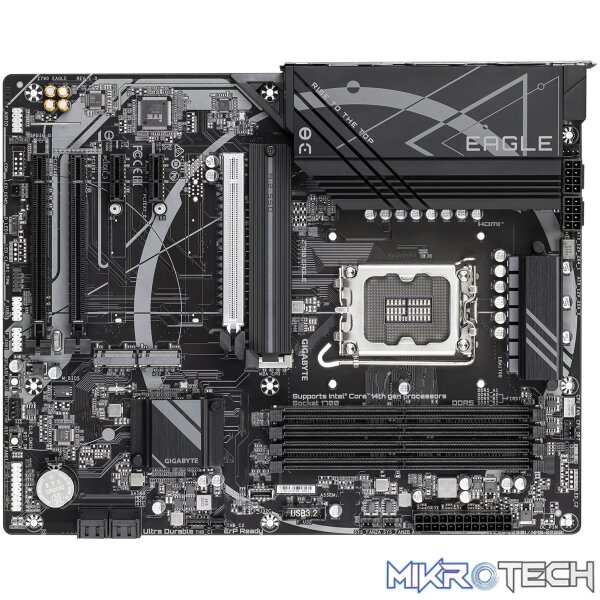

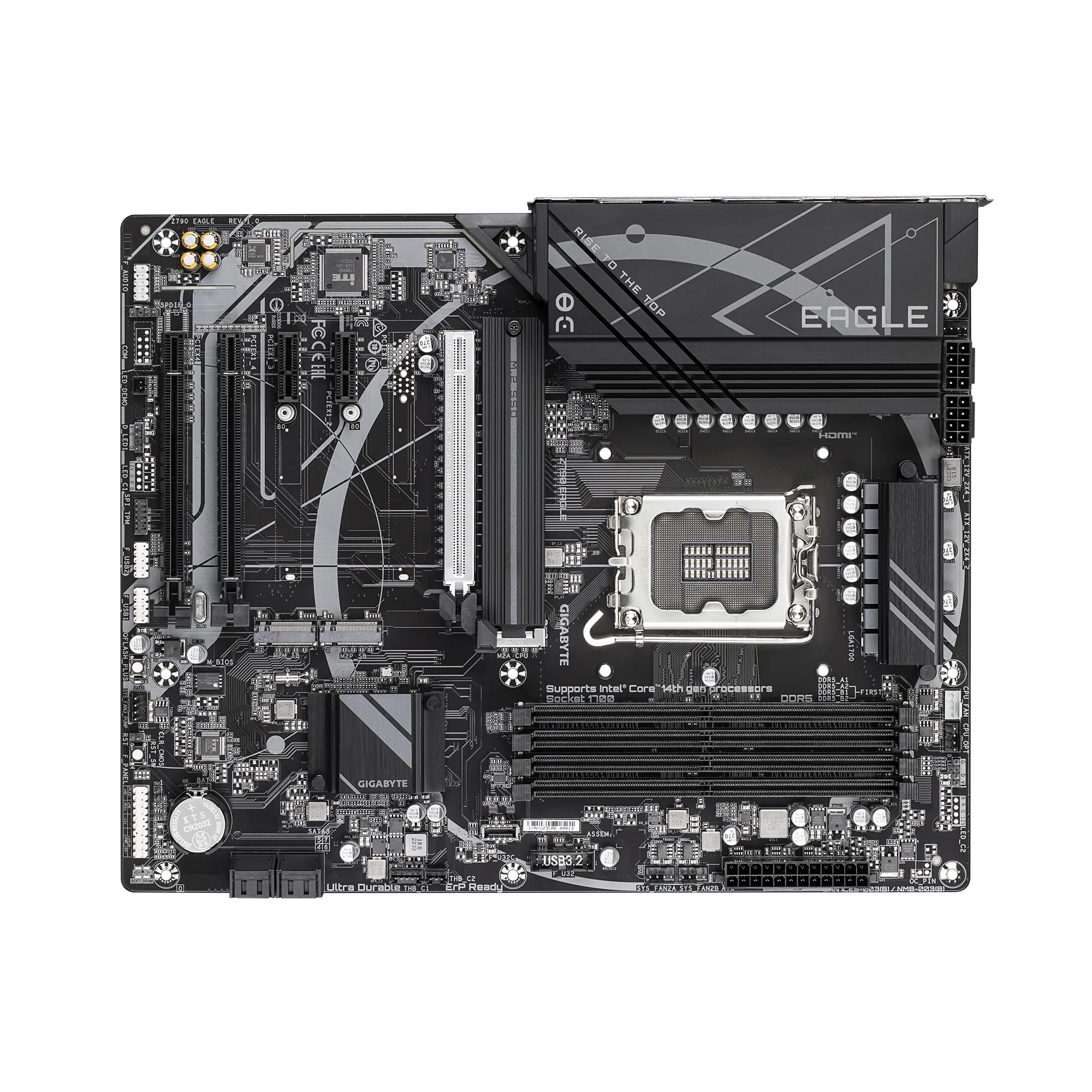

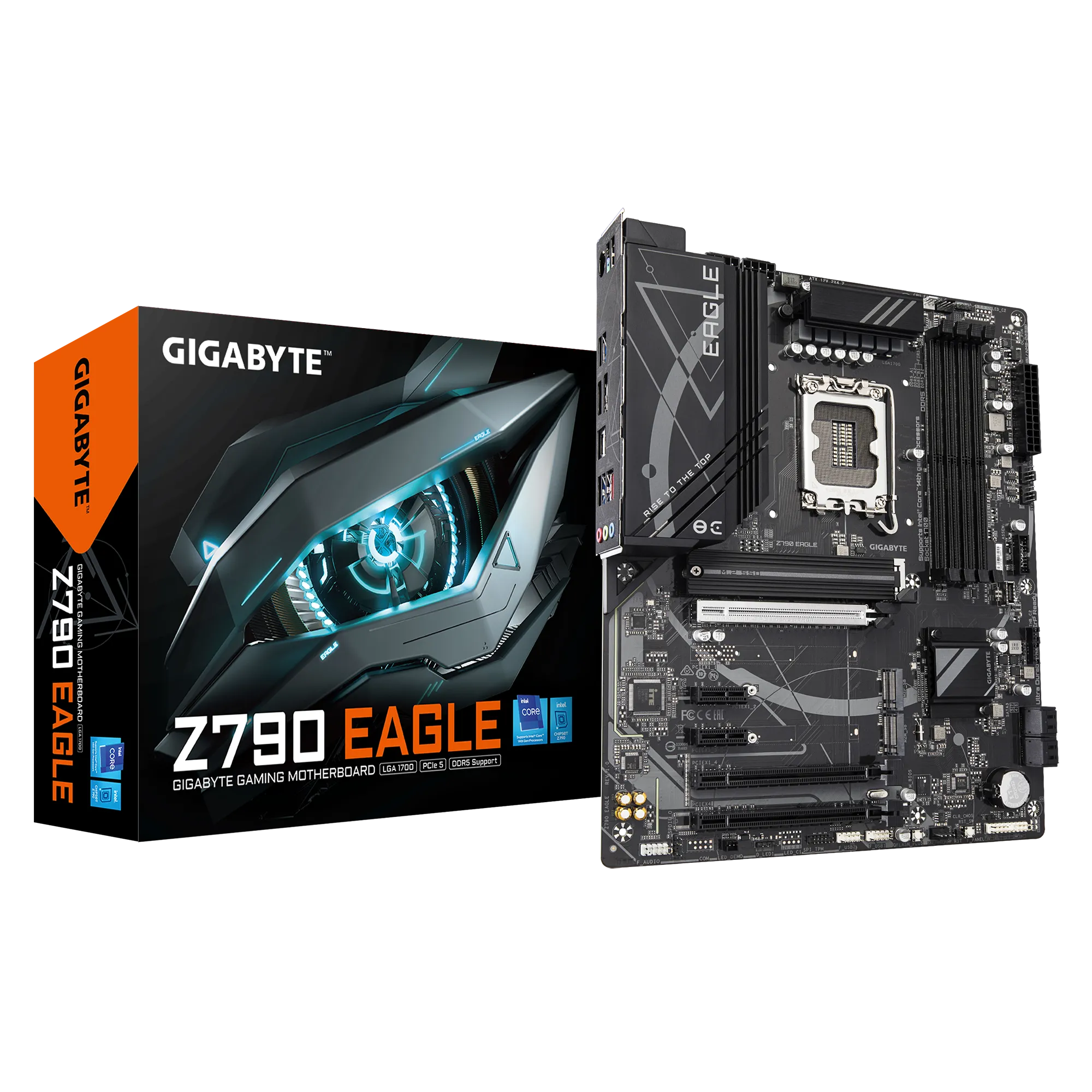

Gigabyte Z790 Eagle DDR5 Motherboard

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Features

• Supports Intel® Core™ 14th / 13th / 12th processors
• Unparalleled Performance: Twin 12+1+? Phases Digital VRM Solution (6+6 phases parallel power design)
• Dual Channel DDR5: 4x DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage: 3x PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch: PCIe 5.0×16 Slot with Quick Release Design
• Fast Networks: 2.5GbE LAN

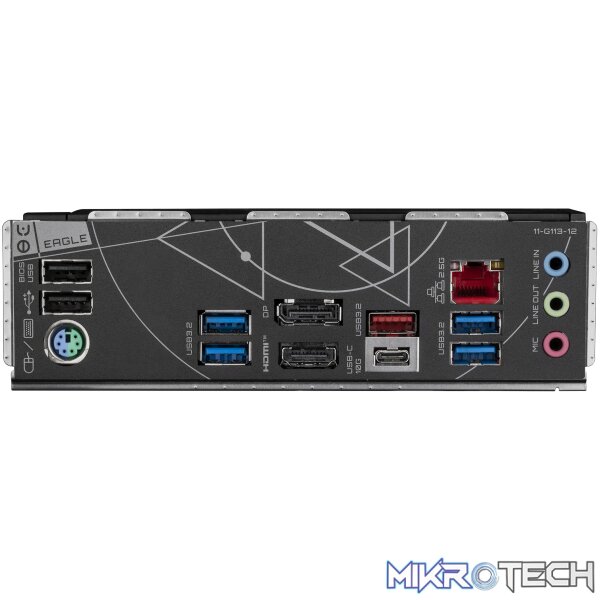

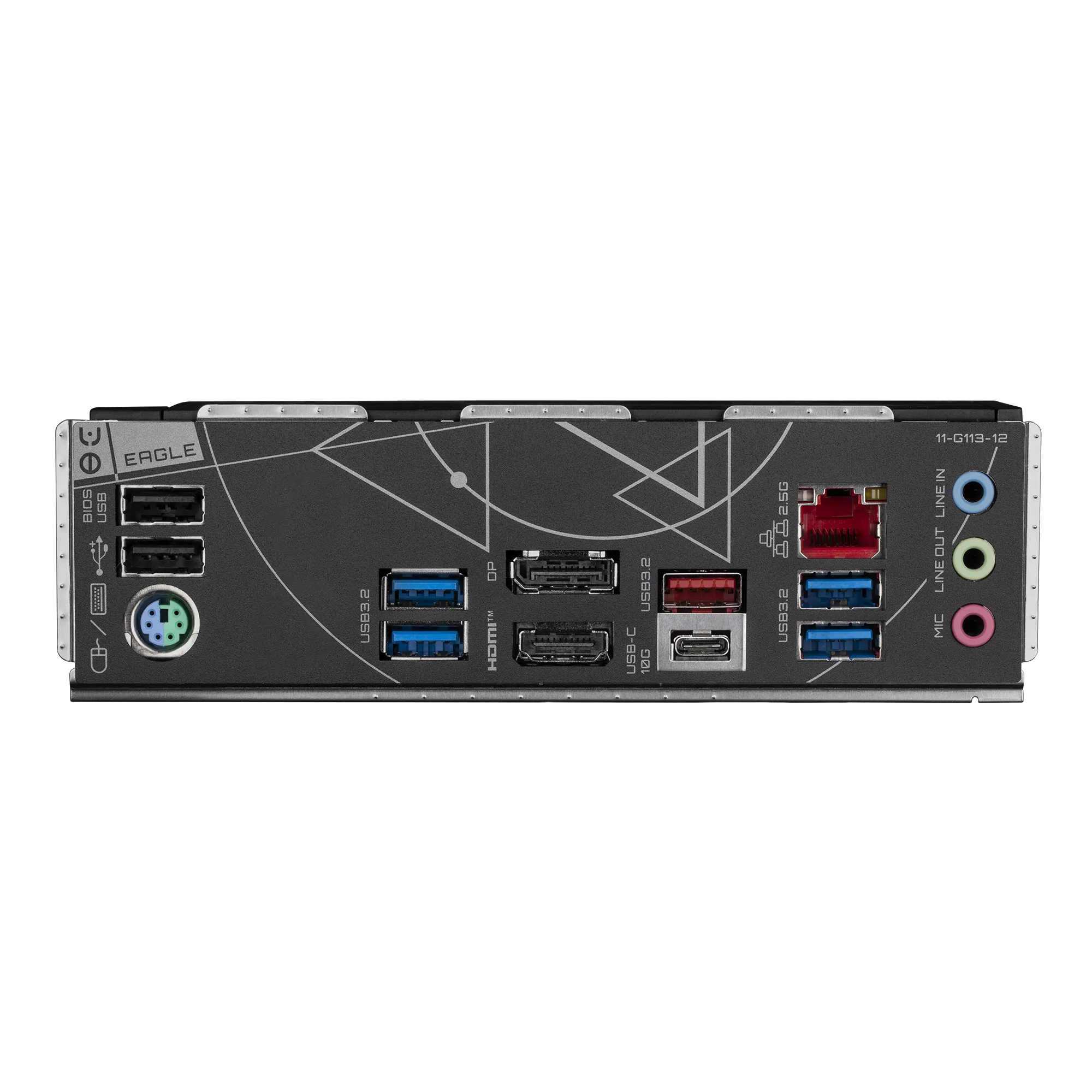

• Extended Connectivity: DP, HDMI, Rear USB-C® 10Gb/s
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications

• CPU
  • LGA1700 socket
  • Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  • L3 cache varies with CPU
  • (Please refer to the CPU Support List for more information.)
• Chipset:  Intel® Z790 Express Chipset
• Memory
  • 14th and 13th Generation Intel® Core™ i9/i7 Pocessors
    • Support for DDR5 7600(O.C.) – 4400 MT/s memory modules
  • 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    • Support for DDR5 4800/4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets
  • Up to 192 GB
  • Dual channel memory architecture
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to the Memory Support List.)
• Onboard Graphics
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
• Audio: Realtek® Audio CODEC
• LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Expansion Slots
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
  • 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
• Storage Interface
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  • 4 x SATA 6Gb/s connectors
• USB
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • 2 x USB 2.0/1.1 ports on the back panel
  • 4 x USB 2.0/1.1 ports, available through the internal USB headers
• Form Factor
  • ATX Form Factor
  • 30.5 x 24.4 cm
• Warranty: 3 Years
