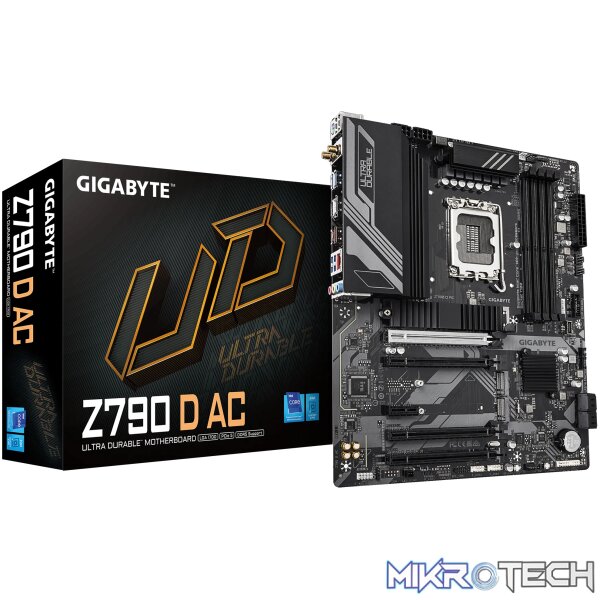

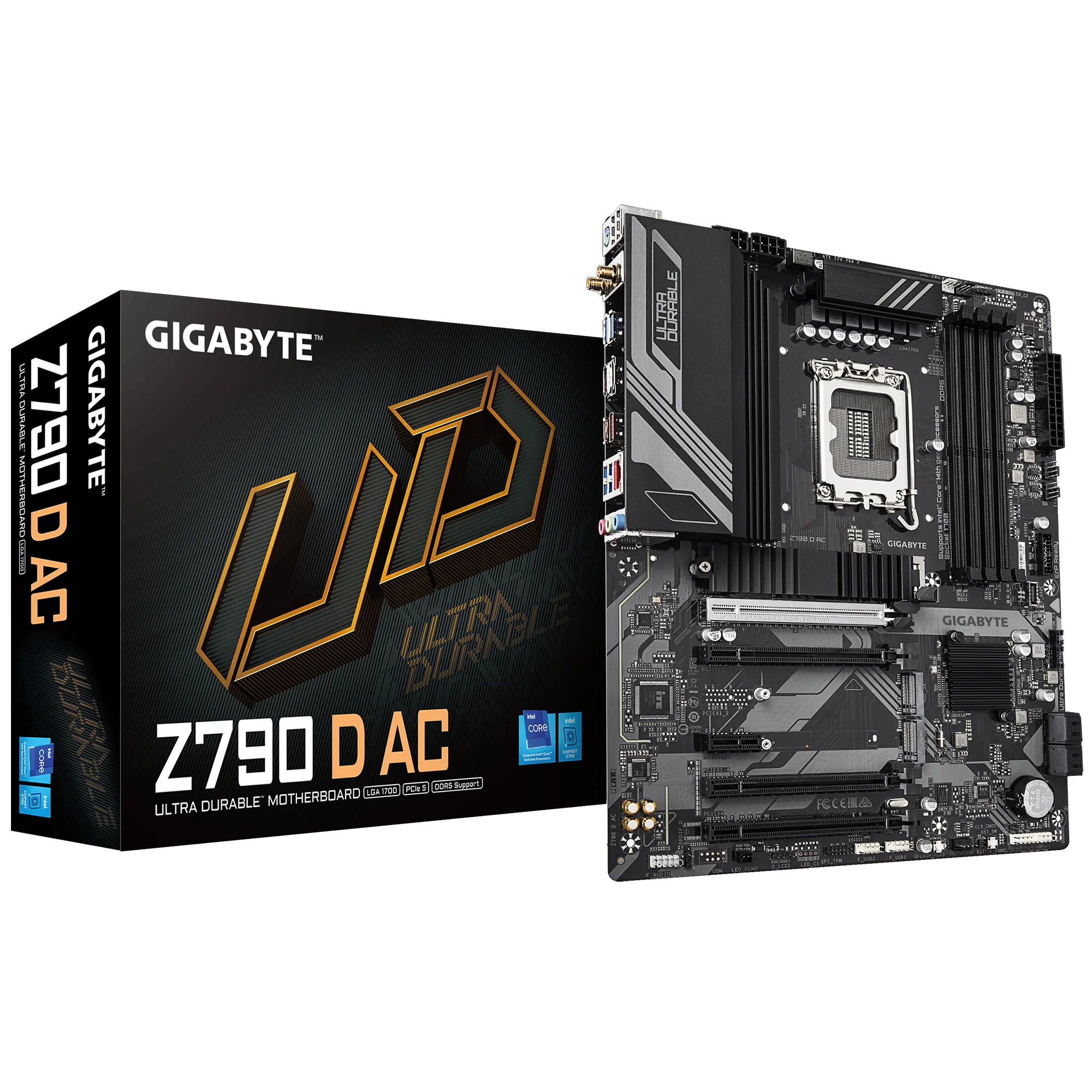

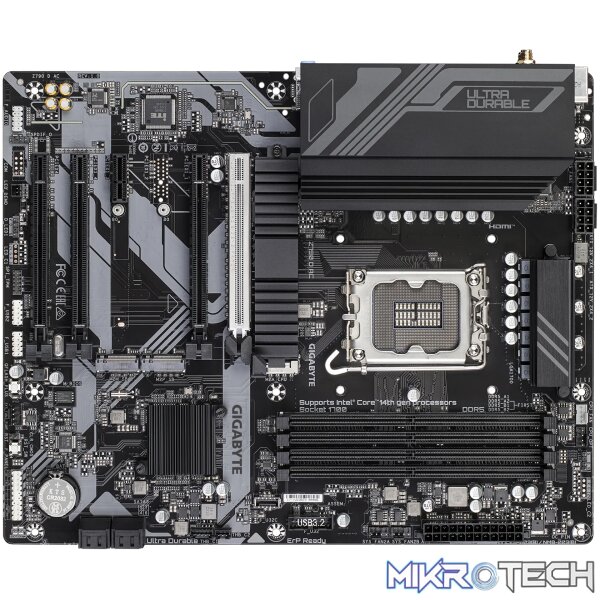

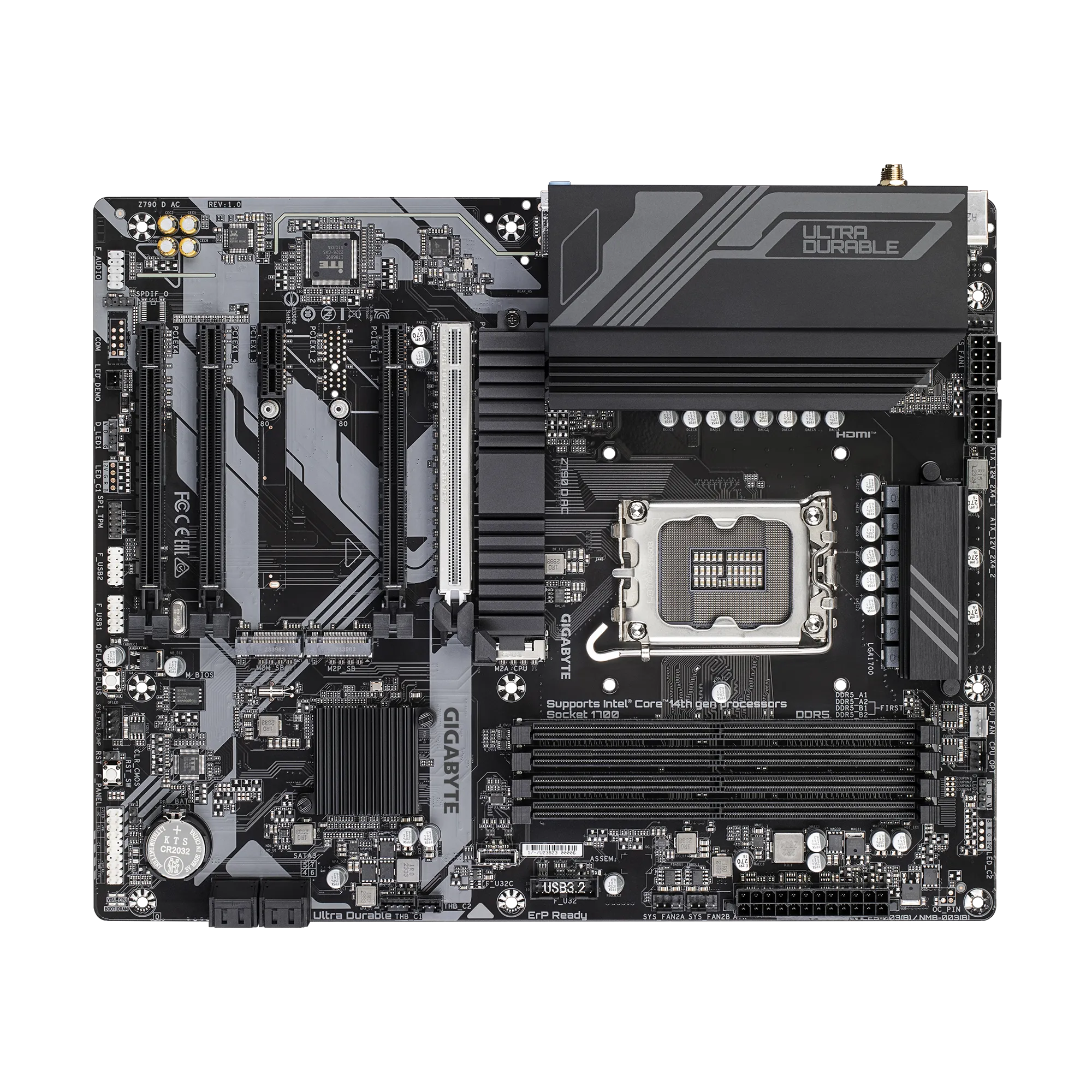

Gigabyte Z790 D AC DDR5 Gaming Motherboard

Features

• Supports Intel® Core™ 14th/ 13th /12th processors
• Unparalleled Performance?Twin 12*+1+? Phases Digital VRM
• Dual Channel DDR5?4*DIMMs with XMP 3.0 Memory Module
• Next Generation Storage?3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch?PCIe 4.0×16 Slot with Quick Release Design
• Fast Networks?2.5GbE LAN & Wi-Fi 802.11ac

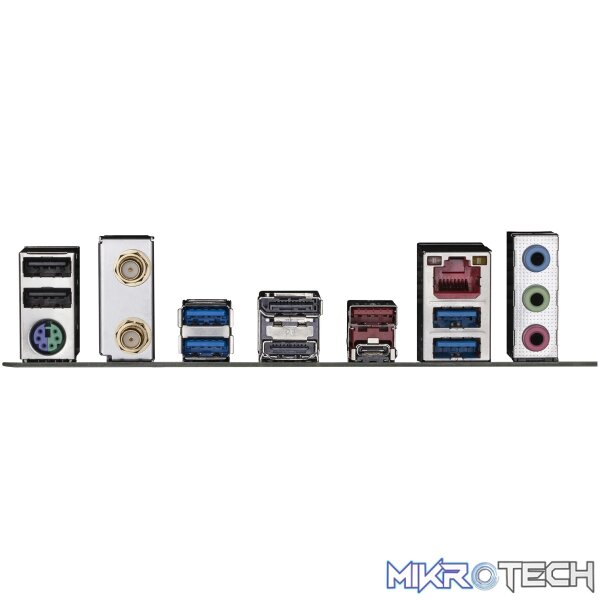

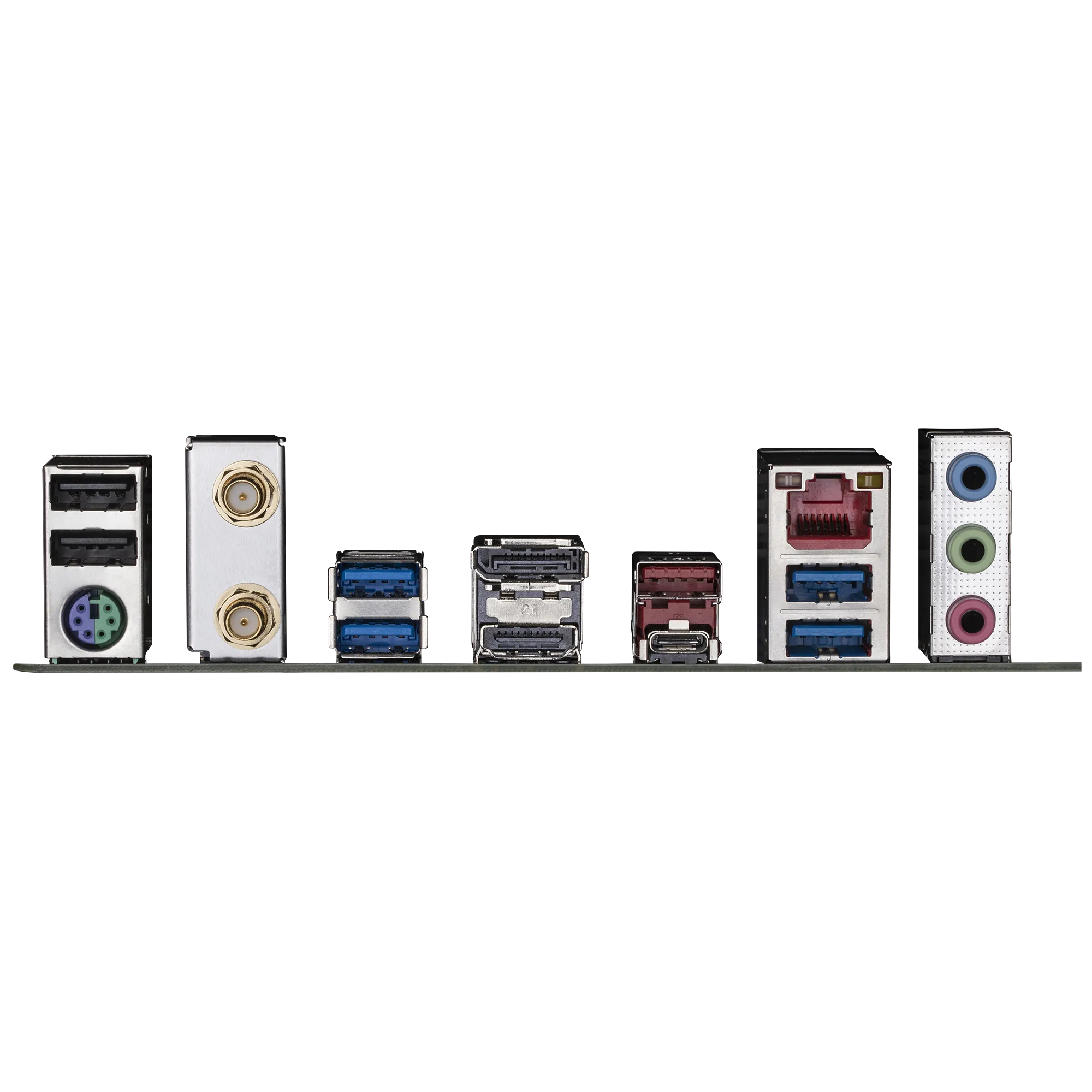

• Extended Connectivity?DP, HDMI, Rear USB-C® 10Gb/s
• Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications

• CPU Support: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Refer to the CPU support list.)
• CPU Socket: LGA 1700
• Chipset: Intel Z790
• Graphics
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  • (Graphics specifications may vary depending on CPU support.)
• Memory
  • 4x DDR5 DIMM Slots
  • Speed: 4400 to 7600MT/s (OC)
  • Maximum Memory Capacity: 192GB
  • Supports Dual channel memory architecture
• Expansion Slots
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4
  • 2 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1
  • 1 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
• Storage
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4
  • 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4
  • 4 x SATA 6Gb/s connectors
• USB ports
  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
  • 1 x USB Type-C port with USB 3.2 Gen 1
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 6 x USB 3.2 Gen 1 ports
  • 6 x USB 2.0/1.1 ports
• LAN: Realtek 2.5GbE LAN chip
• Wireless Communication module
  • 802.11ac Wireless
  • Bluetooth 5.1
• Audio
  • Realtek Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
• Form factor: ATX; 30.5cm x 24.4cm
• Warranty: 36 Months

Note

Please refer to full motherboard specifications on the Manufacturer’s product page.
