Gigabyte Z790 Aorus Elite DDR4 Motherboard

UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

Specifications

• CPU Support: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron
• CPU Socket: LGA 1700
• Chipset: Intel Z790
• Graphics
  • 1 x HDMI supporting a maximum resolution of 4096×2160@60 Hz
  • (Graphics specifications may vary depending on CPU support.)
• Memory
  • 4x DDR4 UDIMM
  • 2133Hz – 5333(OC)
  • Maximum Memory Capacity 128GB
  • Supports Dual channel memory architecture
• Expansion Slots
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
  • 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4
• Storage
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
  • 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support)
  • 4 x SATA 6Gb/s connectors

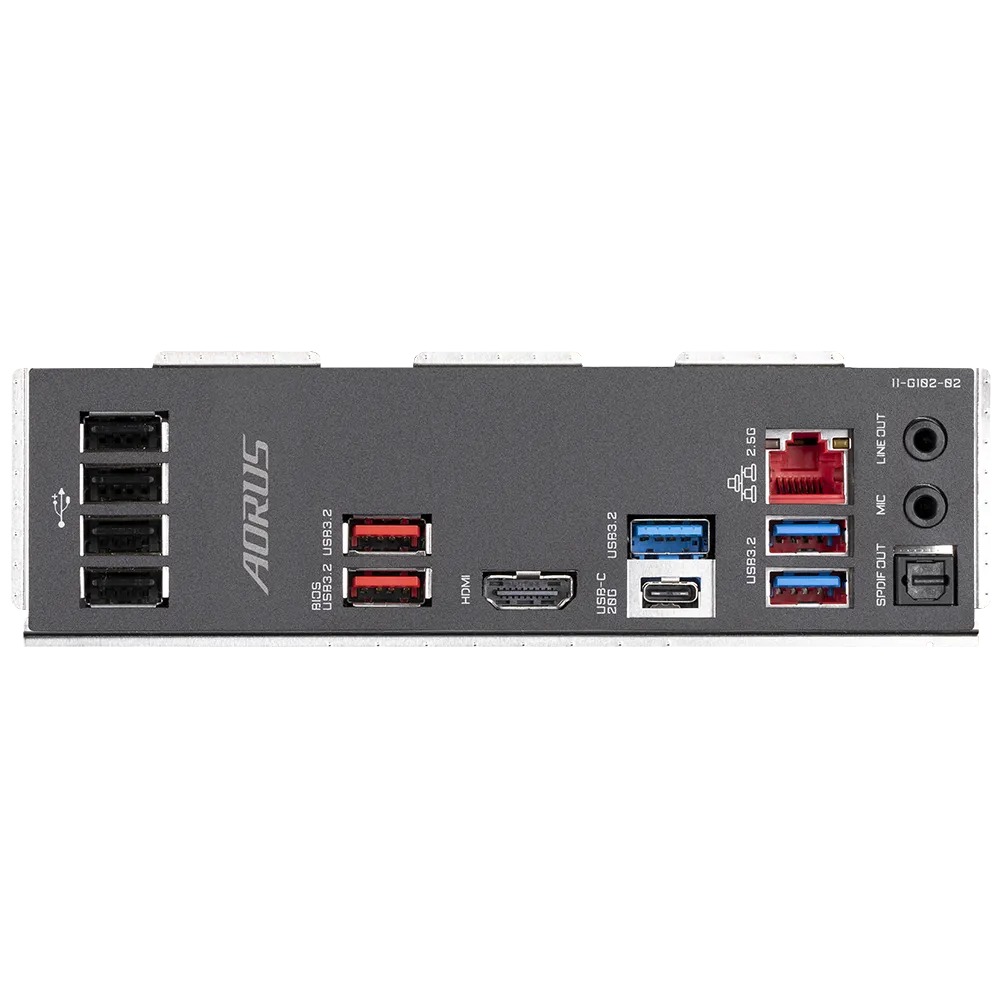

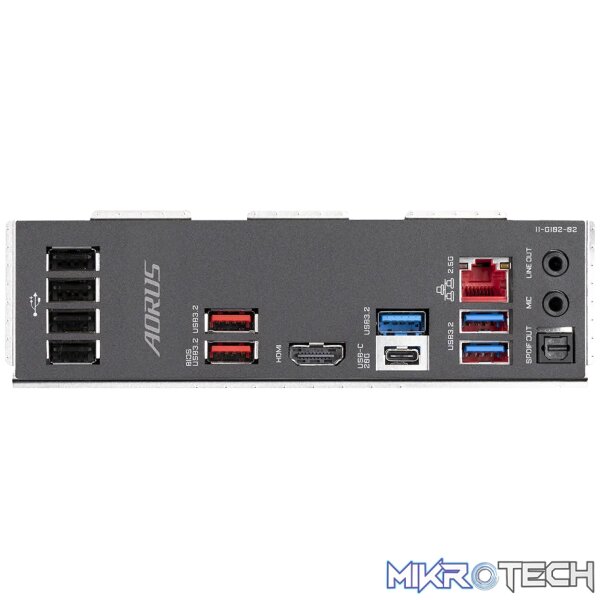

• USB ports
  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support
  • 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Lan: Realtek 2.5GbE LAN chip
• Audio
  • Realtek Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
• Form factor: ATX; 30.5cm x 24.4cm
• Warranty: 36 Months

Note

Please refer to full motherboard specifications on the Manufacturer link.
