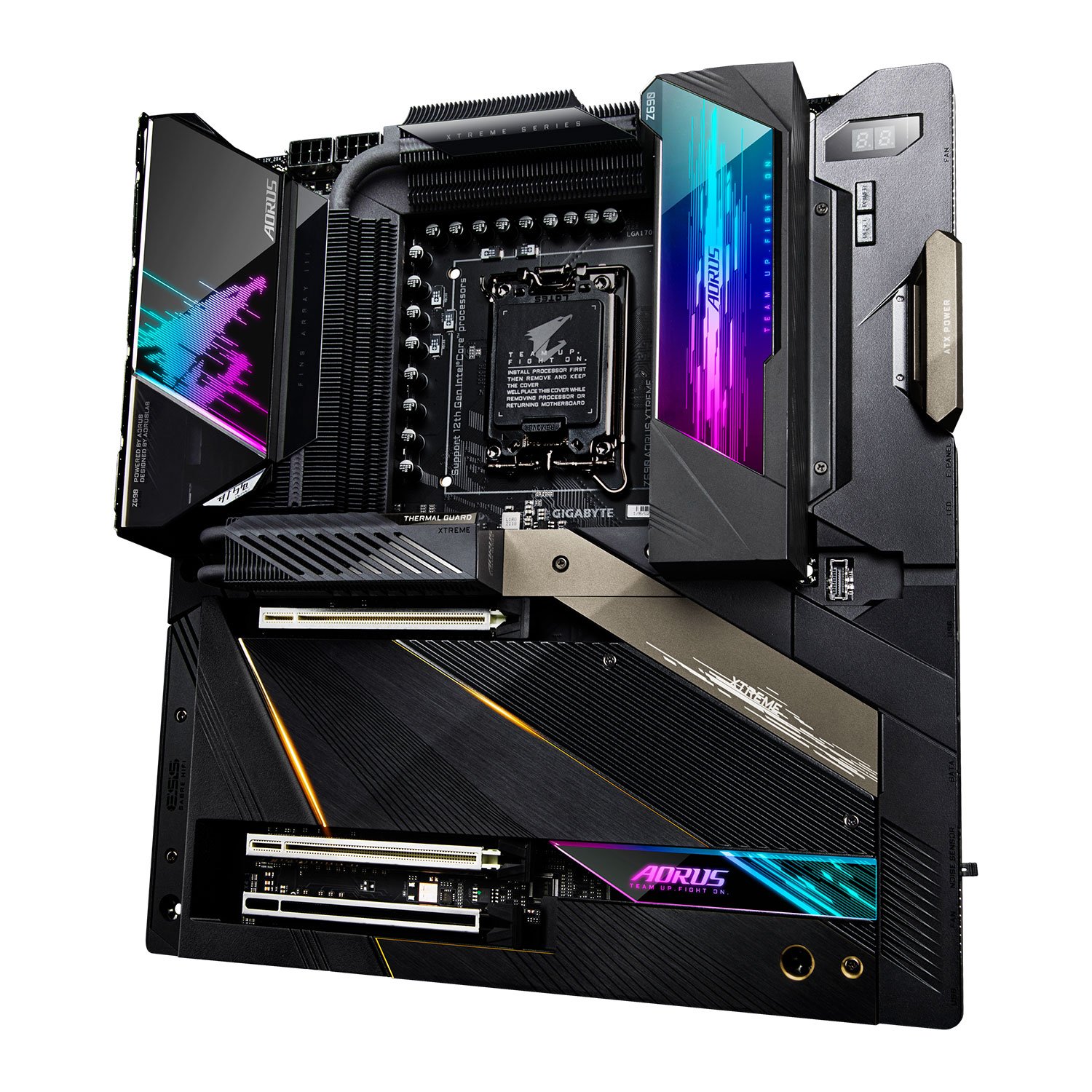

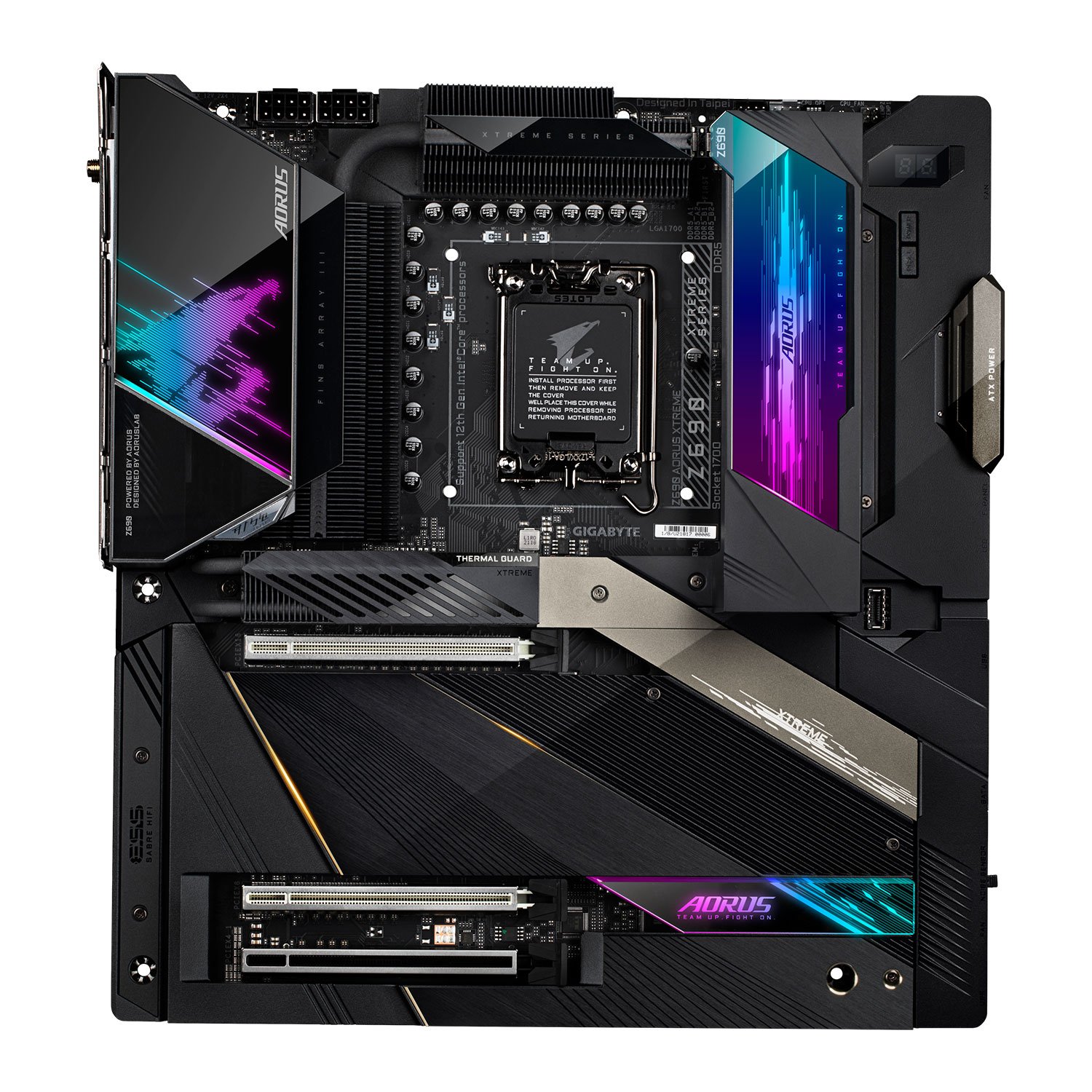

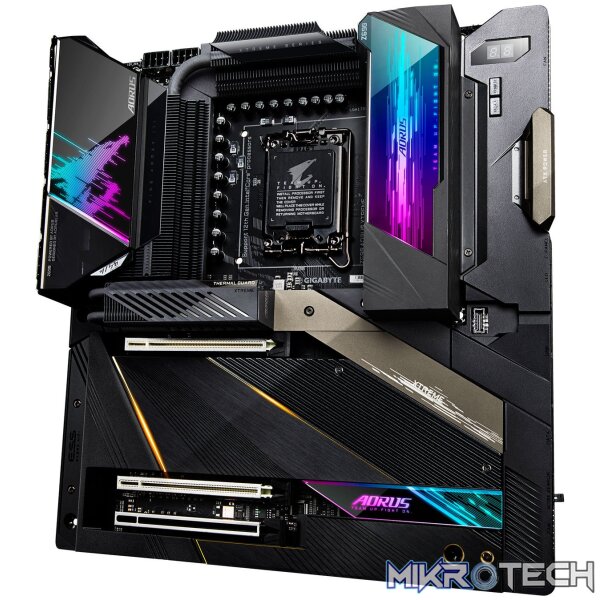

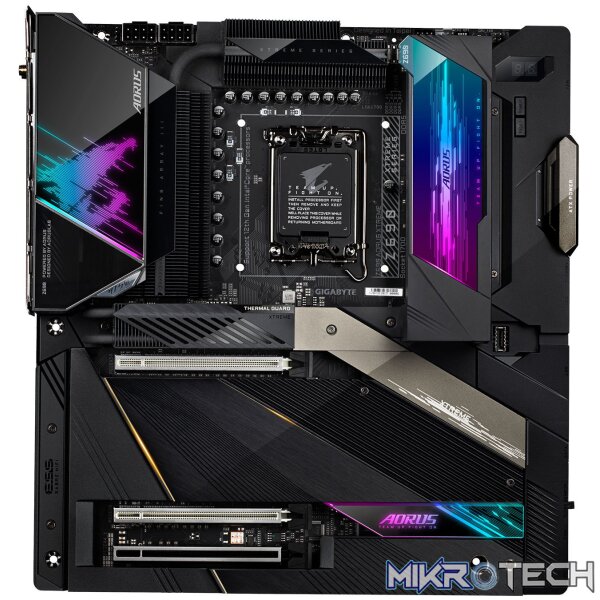

Gigabyte Z690 AORUS XTREME Intel Z690 Alder Lake LGA1700 E-ATX DDR5 Motherboard
GA-Z690-AORUS-XTREME
THE BEST FOR THE PRO
Rule supreme with the Z690 AORUS gaming motherboards. The new king of gaming platforms continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lakes performance in all its gaming glory. With technology moving so fast, GIGABYTE still keep up with the latest trends and provide customers with advanced features and the latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solutions, the latest storage standards and outstanding connectivity to enable optimized performance for gaming.?
Rule supreme with the Z690 AORUS gaming motherboards. The new king of gaming platforms continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lakes performance in all its gaming glory. With technology moving so fast, GIGABYTE still keep up with the latest trends and provide customers with advanced features and the latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solutions, the latest storage standards and outstanding connectivity to enable optimized performance for gaming.?
Intel® Z690 Chipset
LGA 1700 CPU Socket
12th Gen Intel® Compatible Processors
E-ATX Form Factor
The Latest Memory Technology
XTREME MEMORY
GIGABYTE Z690 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability. ?
GIGABYTE Z690 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability. ?
Superior Thermal Design
1. Direct Touch Heatpipe II
2. Fins-Array III with NanoCarbon Coating
3. Aluminum Cover
4. M.2 Thermal Guard XTREME
5. 9 W/mK Thermal Pad
6. NanoCarbon Baseplate
7. Right Angled Connectors
Versatile Connectivity Options
FOR EVERY CONNECTION
GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity. ?
GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity. ?
2X FASTER THAN EVER
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
INTEL 802.11AX WIFI 6
Wireless solution 802.11ax WIFI 6 with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Audio you can be Truly Immersed In
HI-RES AUDIO
Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.
Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.
REALTEK HIGH-END HD AUDIO CODEC
Supports audio format up to 32-bit/384KHz and output SNR up to Rear/Front 120dB 110dB.
Automatically detects impedance of audio device, preventing low volume and distortion.
Stream voice with up to 110dB(A) SNR via microphone.
Make it Your Own
IMPRESSIVE PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality. ?
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AORUS XTREME |
| Model | Z690 AORUS XTREME (rev. 1.0) |
| CPU | LGA1700 Socket: Support for 12th Generation Intel Core i9 Processors/Intel Core i7 Processors/Intel Core i5 Processors |
| L3 Cache Varies with CPU | |
| Chipset | Intel Z690 Express Chipset |
| Memory | Support for DDR5 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz Memory Modules |
| 4x DDR5 DIMM Sockets Supporting Up to 128 GB (32 GB Single DIMM Capacity) of System Memory | |
| Dual Channel Memory Architecture | |
| Support for ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate in Non-ECC Mode) | |
| Support for Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
| Support for Extreme Memory Profile (XMP) Memory Modules | |
| Onboard Graphics | Integrated Graphics Processor+Intel Thunderbolt 4 Controller: |
| 2x Intel Thunderbolt 4 Connectors (USB Type-C Ports), Supporting DisplayPort and Thunderbolt Video Outputs and a Maximum Resolution of 5120×2880@60 Hz with 24 bpp (via Single Display Output) *1, *2 | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | 1 ESS ES9280AC DAC Chip + 2 ESS ES9080 Chips |
| DTS Sound Unbound | |
| High Definition Audio | |
| 2-Channel | |
| Support for S/PDIF Out *3 | |
| LAN | Marvell AQtion AQC113C 10GbE LAN Chip |
| (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) | |
| Intel 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2) | |
| Wireless Communication Module | Intel Wi-Fi 6E AX210 |
| WIFI a, b, g, n, ac, ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands | |
| BLUETOOTH 5.2 | |
| Support for 11ax 160MHz Wireless Standard and Up to 2.4 Gbps Data Rate *4 | |
| Expansion Slots | 1x PCI Express x16 Slot, Running at x16 (PCIEX16) *5 |
| 1x PCI Express x16 Slot, Running at x8 (PCIEX8) *6 | |
| (The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.) | |
| 1x PCI Express x16 Slot, Running at x4 (PCIEX4_1) | |
| (The PCIEX4_1 slot conforms to PCI Express 3.0 standard.) | |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire Technologies |
| Storage Interface | CPU: |
| 1x M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 PCIe 4.0 x4/x2 SSD Support) (M2A_CPU) | |
| Chipset: | |
| 2x M.2 Connectors (Socket 3, M Key, Type 2260/2280/22110 PCIe 4.0 x4/x2 SSD Support) (M2P_SB, M2Q_SB) | |
| 1x M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD Support) (M2M_SB) | |
| 4x SATA 6Gb/s Connectors | |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Intel Optane Memory Ready *7 | |
| USB | Chipset+Intel Thunderbolt 4 Controller: |
| 2x USB Type-C Ports on the Back Panel, with USB 3.2 Gen 2 Support | |
| Chipset: | |
| 1x USB Type-C Port with USB 3.2 Gen 2×2 Support, Available Through the Internal USB Header | |
| 6x USB 3.2 Gen 2 Type-A Ports (Red) on the Back Panel | |
| Chipset+USB 3.2 Gen 2 Hub: | |
| 4x USB 3.2 Gen 2 Type-A Ports (Red) on the Back Panel | |
| Chipset+USB 3.2 Gen 1 Hub: | |
| 4x USB 3.2 Gen 1 Ports Available Through the Internal USB Headers | |
| Chipset+USB 2.0 Hub: | |
| 4x USB 2.0/1.1 Ports Available Through the Internal USB Header (with the Included Front USB Header Extension Cable) | |
| Internal I/O Connectors | 1x 24-pin ATX Main Power Connector |
| 2x 8-pin ATX 12V Power Connectors | |
| 1x CPU Fan Header | |
| 1x Water Cooling CPU Fan Header | |
| 4x System Fan Headers | |
| 4x System Fan/Water Cooling Pump Headers | |
| 1x Noise Detection Header | |
| 1x AORUS RGB Memory Armor Power Header | |
| 2x Addressable LED Strip + RGB LED Strip Combo Extension Cable Headers | |
| 4x SATA 6Gb/s Connectors | |
| 4x M.2 Socket 3 Connectors | |
| 1x Front Panel Header | |
| 1x USB Type-C Header, with USB 3.2 Gen 2×2 Support | |
| 2x USB 3.2 Gen 1 Headers | |
| 1x USB 2.0/1.1 Header | |
| 2x Temperature Sensor Headers | |
| 1x Power Button | |
| 1x Reset Button | |

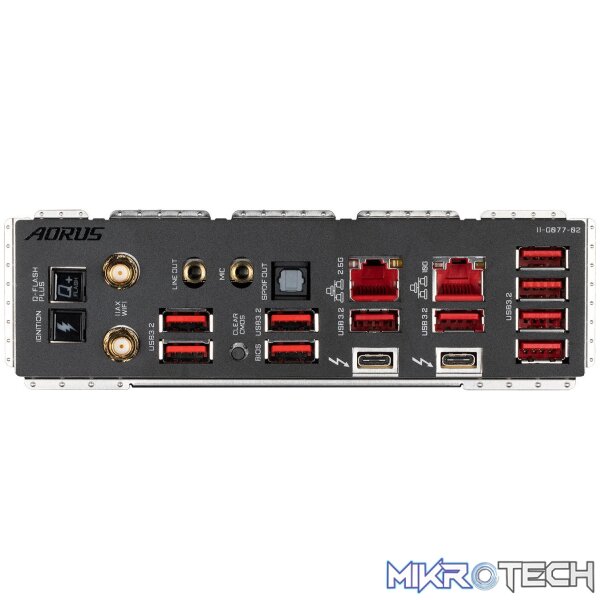

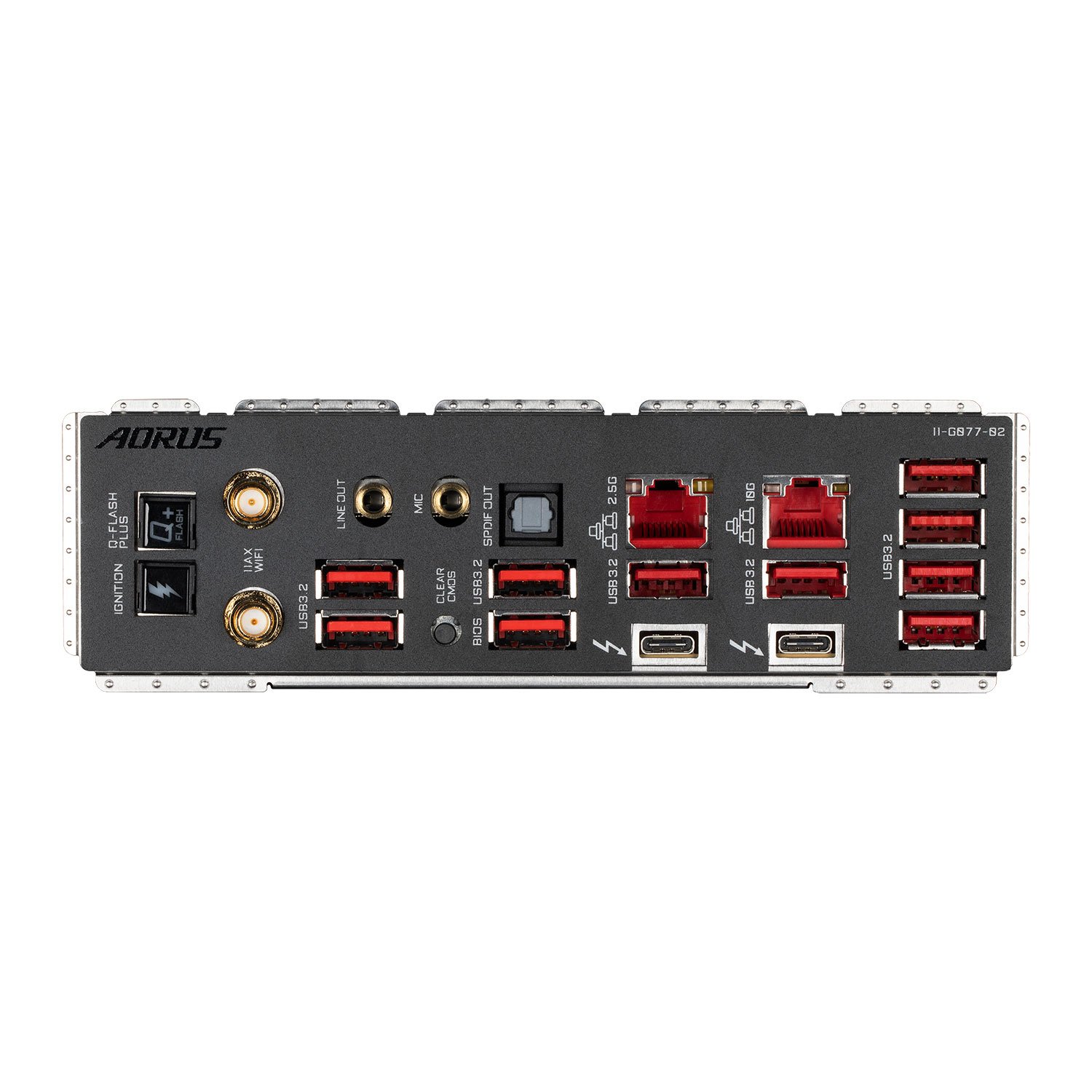

| Back Panel Connectors | 1x Q-Flash Plus Button |
| 1x OC Ignition Button | |
| 1x Clear CMOS Button | |
| 2x SMA Antenna Connectors (2T2R) | |
| 2x Thunderbolt 4 Connectors (USB Type-C Port, with USB 3.2 Gen 2 Support) | |
| 10x USB 3.2 Gen 2 Type-A Ports (Red) | |
| 2x RJ-45 Ports | |
| 1x Optical S/PDIF Out Connector | |
| 2x Audio Jacks *8 | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage Detection |
| Temperature Detection | |
| Fan Speed Detection | |
| Water Cooling Flow Rate Detection | |
| Fan Fail Warning | |
| Fan Speed Control *9 | |
| Noise Detection | |
| BIOS | 1x 256 Mbit Flash |
| Use of Licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Operating System Support | Windows 10 64-bit |
| Form Factor | E-ATX Form Factor; 30.5cm x 28.5cm |
| Notes | *1 Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-7, Back Panel Connectors, for more information.) |
| *2 Support for DisplayPort 1.4 version and HDCP 2.3 | |
| *3 The line out jack and the optical S/PDIF out connector can only be used one at a time. | |
| *4 Actual data rate may vary depending on environment and equipment. | |
| *5 For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| *6 The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. | |
| *7 System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. | |
| *8 The mic in jack supports only mono microphone input. | |
| *9 Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
