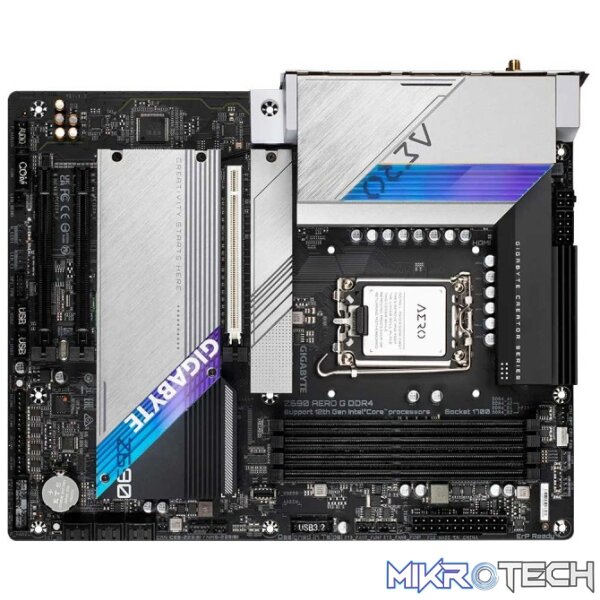

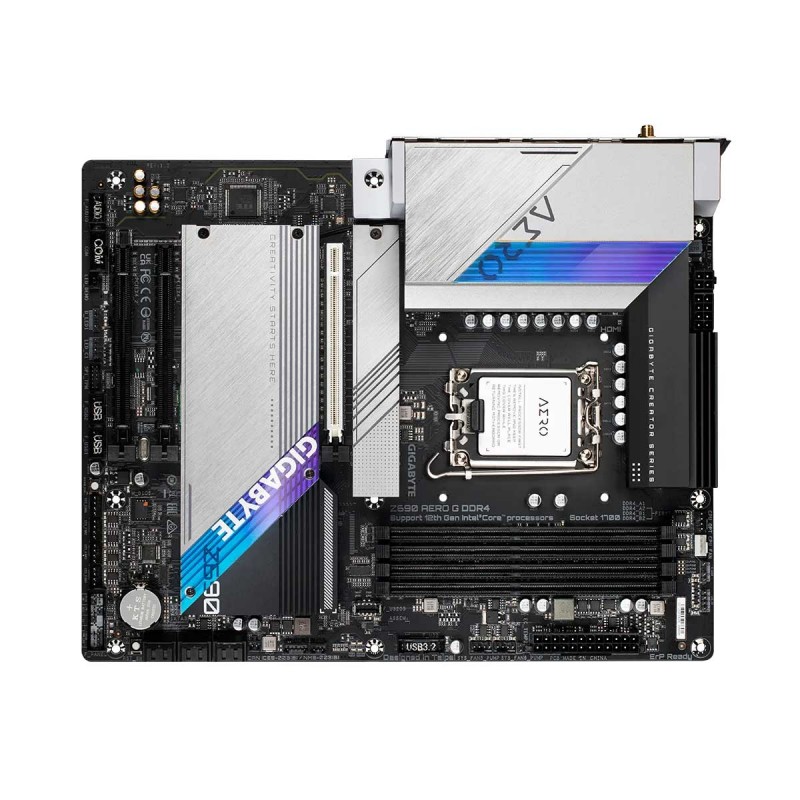

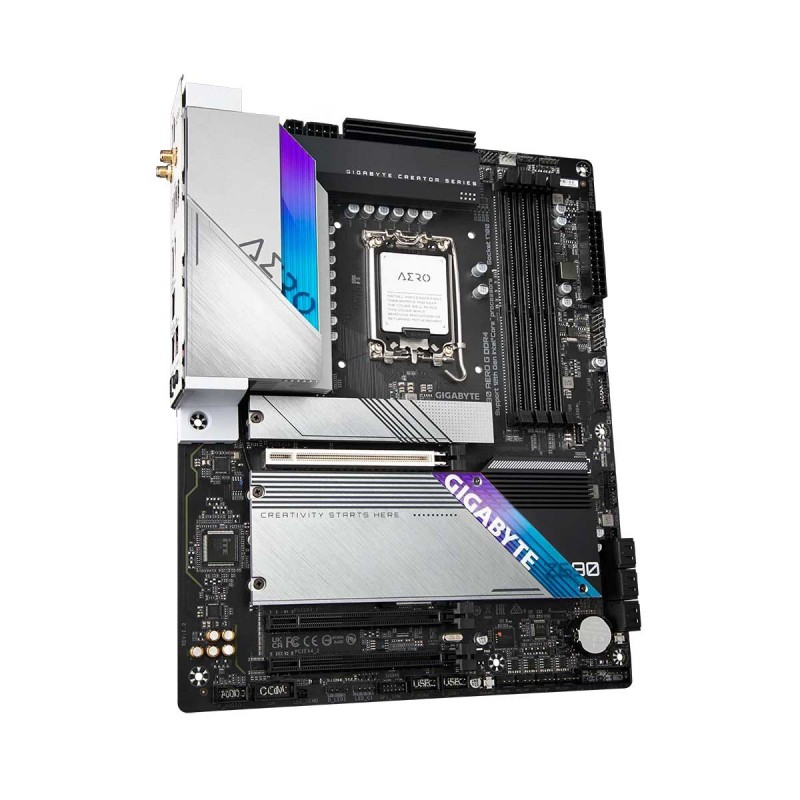

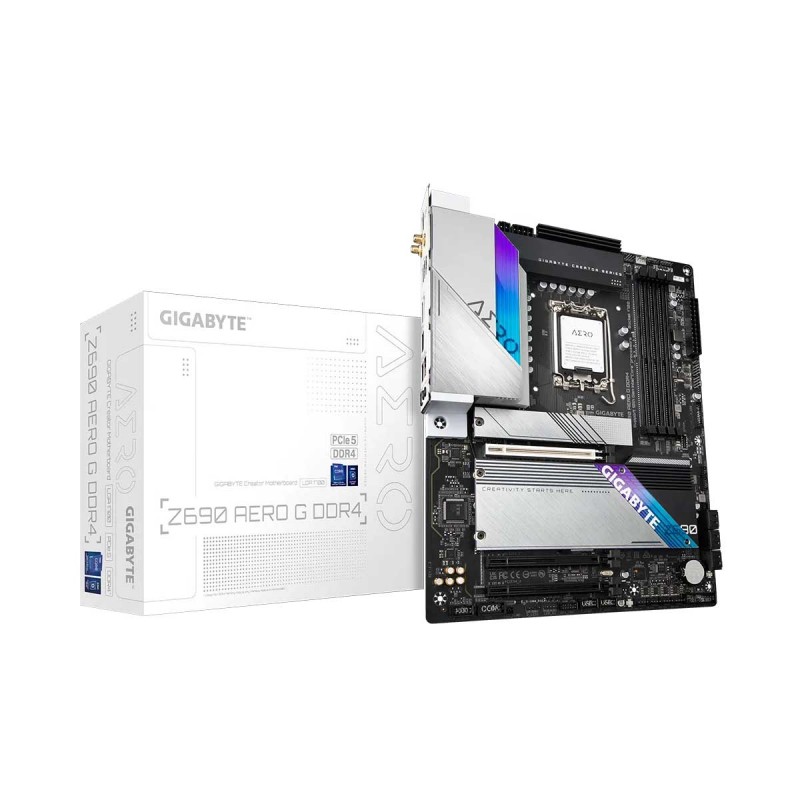

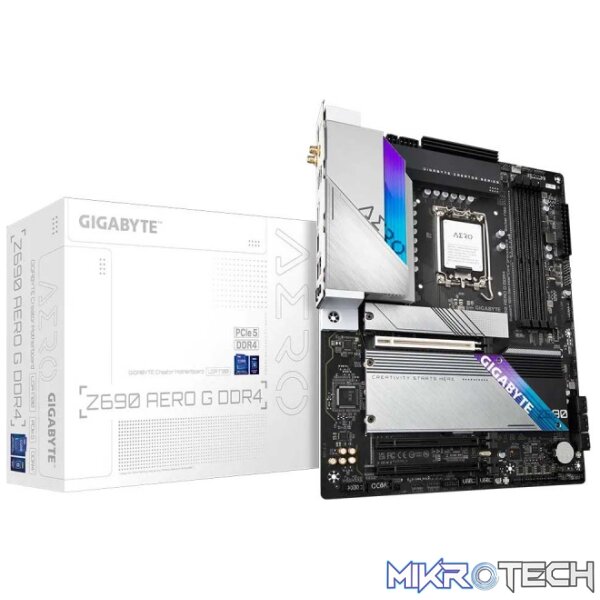

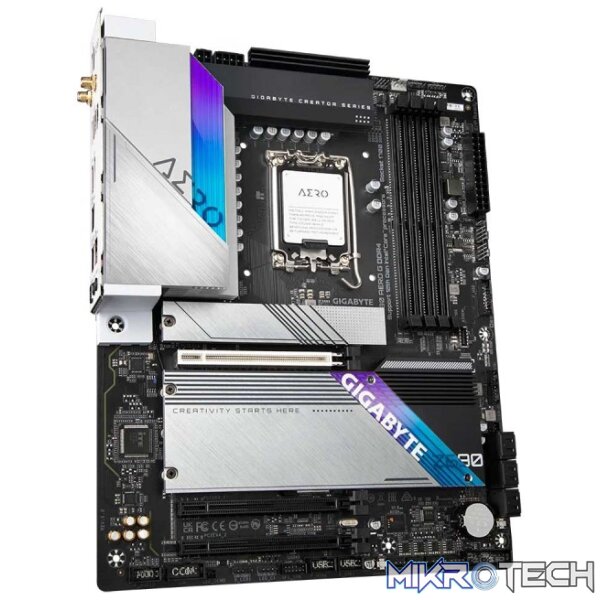

Gigabyte Z690 AERO G DDR4 Intel Z690 Alder Lake LGA1700 ATX Motherboard
R8,429.99 incl. VAT
Only 1 left in stock
Product Description
Gigabyte Z690 AERO G DDR4 Intel Z690 Alder Lake LGA1700 ATX Motherboard
GA-Z690-AERO-G-DDR4
Features
Intel® Z690 Creator Motherboard with unique VisionLINK I/O design, WIFI6 802.11ax and Intel® 2.5GbE LAN, PCIe 5.0 x16 slot, 4 x NVMe PCIe 4.0 x4 M.2 Connectors, USB 3.2 Gen 2×2 Type-C®
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- PCle 5.0 x16 slot design can be ready for PCle 5.0 GPU or NVMe storage
- Go further without more cables by VisionLINK I/O design
- Brings a speed network experience with Intel® 2.5GbE LAN
- WIFI6 2×2 802.11ax 2T2R & BT5 with new antenna for better signal
- No Hassle Connection with front USB 3.2 Gen 2×2 Type-C®
- 4 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 connectors with enlarged thermal guards
- Advanced thermal architecture design for the better thermal dissipation
- Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
- Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
Additional Information:
Specifications
| Make and Model | Gigabyte Z690 AERO G DDR4 Motherboard |
|---|---|
| Part Number | Z690 AERO G DDR4 |
| Color | White |
| CPU | 1. LGA1700 socket: Support for 12th Generation Intel®Core™ i9 processors/Intel®Core™ i7 processors/Intel®Core™ i5 processors 2. L3 cache varies with CPU (Please refer to “CPU Support List” for more information.) |
| Chipset | Intel® Z690 Express Chipset |
| Memory | 1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel®HD Graphics support: 1. 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096×2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.2 version and HDCP 2.3 2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU or graphics card support.) (Graphics specifications may vary depending on CPU support.) |
| Audio | 1. Realtek®ALC4080 CODEC 2. High Definition Audio 3. 2-channel analog output 4. Support for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel®Wi-Fi 6 AX201 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band 2. BLUETOOTH 5.2 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Storage Interface | CPU: 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 3. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to “2-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| USB | Chipset: 1. 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header) 2. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4. 2 x USB 3.2 Gen 1 ports available through the internal USB header 5. 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 1. 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: 1. 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector 2. 1 x 8-pin ATX 12V power connector 3. 1 x 4-pin ATX 12V power connector 4. 1 x CPU fan header 5. 1 x water cooling CPU fan header 6. 4 x system fan headers 7. 2 x system fan/water cooling pump headers 8. 2 x addressable LED strip headers 9. 2 x RGB LED strip headers 10. 4 x M.2 Socket 3 connectors 11. 6 x SATA 6Gb/s connectors 12. 1 x front panel header 13. 1 x front panel audio header 14. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 15. 1 x USB 3.2 Gen 1 header 16. 2 x USB 2.0/1.1 headers 17. 1 x noise detection header 18. 2 x Thunderbolt™ add-in card connectors 19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 20. 1 x serial port header 21. 1 x Q-Flash Plus button 22. 1 x reset button 23. 1 x reset jumper 24. 2 x temperature sensor headers 25. 1 x Clear CMOS jumper |

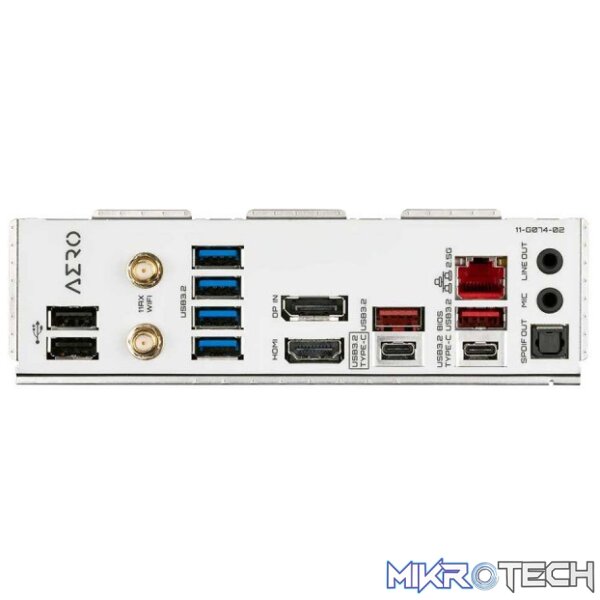

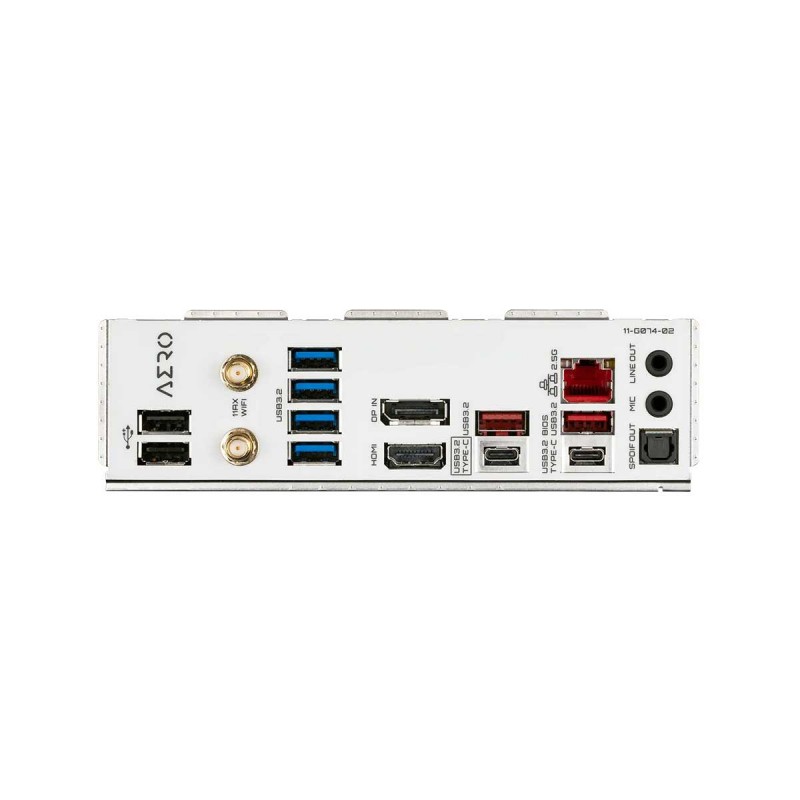

| Back Panel Connectors | 1. 2 x USB 2.0/1.1 ports 2. 2 x SMA antenna connectors (2T2R) 3. 4 x USB 3.2 Gen 1 ports 4. 1 x DisplayPort In port 5. 1 x HDMI port 6. 2 x USB 3.2 Gen 2 Type-A ports (red) 7. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 8. 1 x USB Type-C® port, with USB 3.2 Gen 1 support 9. 1 x RJ-45 port 10. 1 x optical S/PDIF Out connector 11. 2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection 2. Temperature detection 3. Fan speed detection 4. Water cooling flow rate detection 5. Fan fail warning 6. Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. 7. Noise detection |
| BIOS | 1. 1 x 256 Mbit flash 2. Use of licensed AMI UEFI BIOS 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | 1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer 2. Support for Q-Flash Plus 3. Support for Q-Flash 4. Support for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version) cFosSpeed |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor |
| Dimensions | 0.5cm x 24.4cm |
| Weight | N/A |
