KEY FEATURES:
– Game Clock: Up to 2520 MHz
– Boost Clock: Up to 3060 MHz
– Stream Processors: 4096
– AMD RDNA 4 Architecture
– 3rd Gen Radeon Raytracing Accelerators
– 2nd Gen Radeon AI Accelerators
– AMD HYPR-RX with Fluid Motion Frames
– AMD Fidelity FX Super Resolution 4.0 Upscaling Technology
– AV1 Decode / Encode Engines
– Video Memory: 16GB GDDR6
– Infinity Cache: 64MB
– Memory Bus Width: 256-bit
– 3x DisplayPort 2.1, 1x HDMI 2.1 Ports
– Multi-Display Capability: 4x Displays
– WINDFORCE Cooling System Design with 90mm Hawk Fans
– Server-Grade Thermal Conductive Gels
– Gigabyte RGB Fusion Integration
– Gigabyte Dual BIOS
– 3 Year Warranty
Description

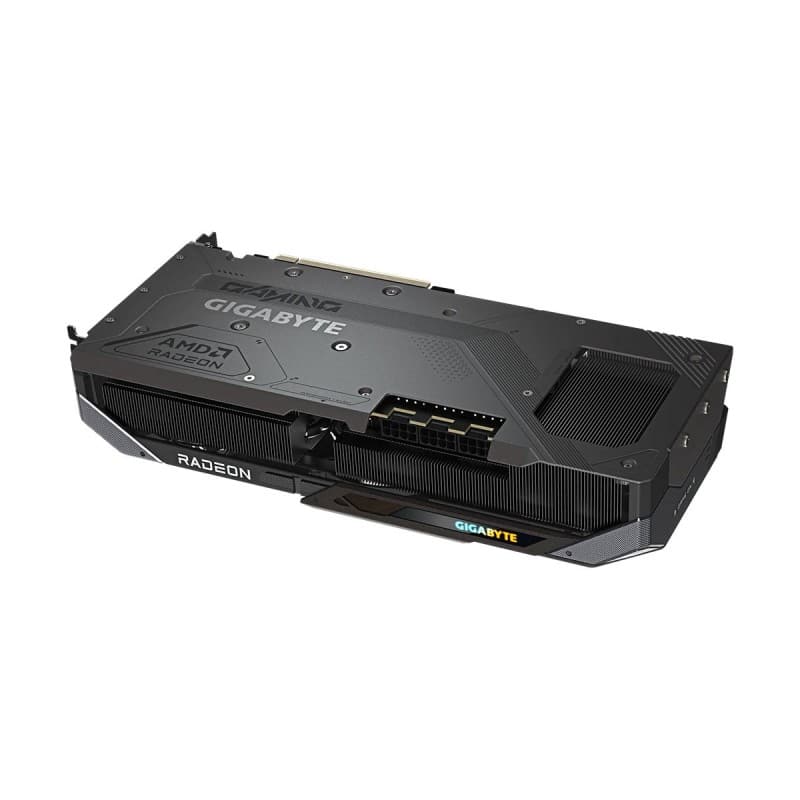

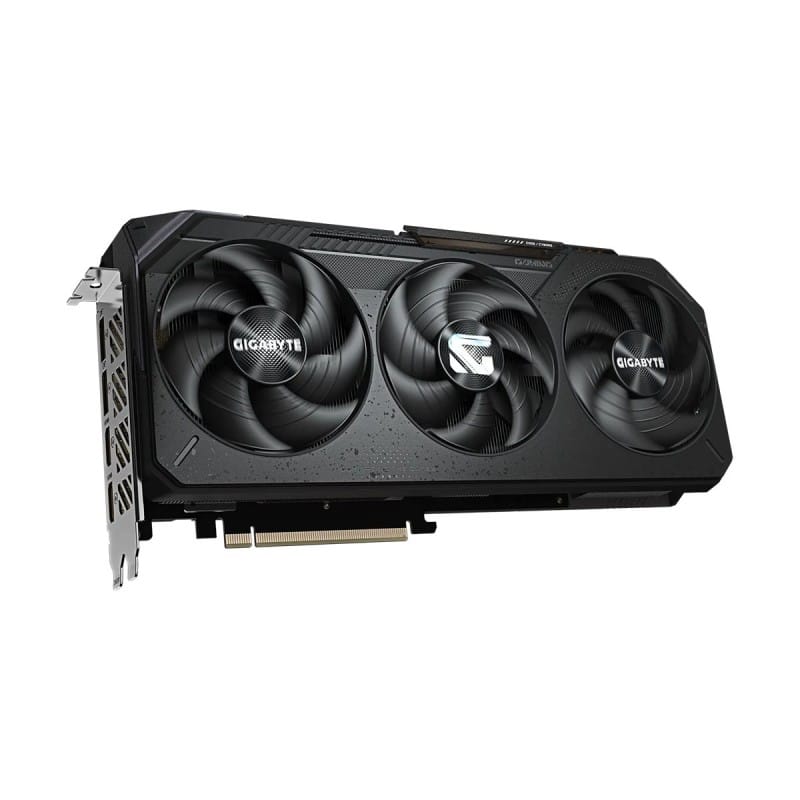

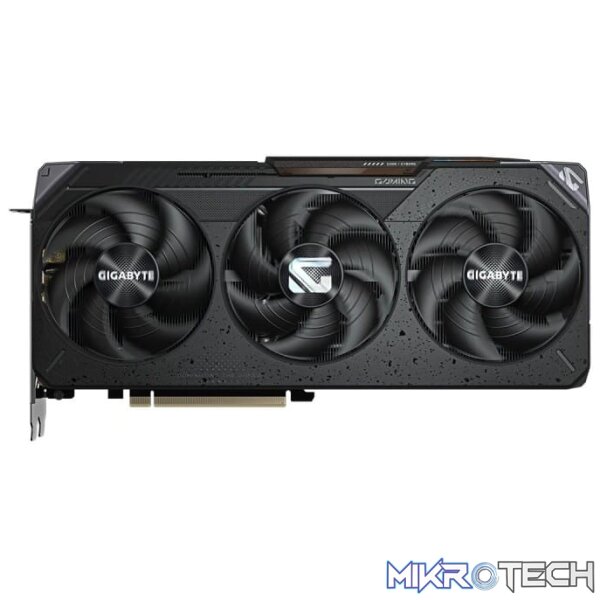

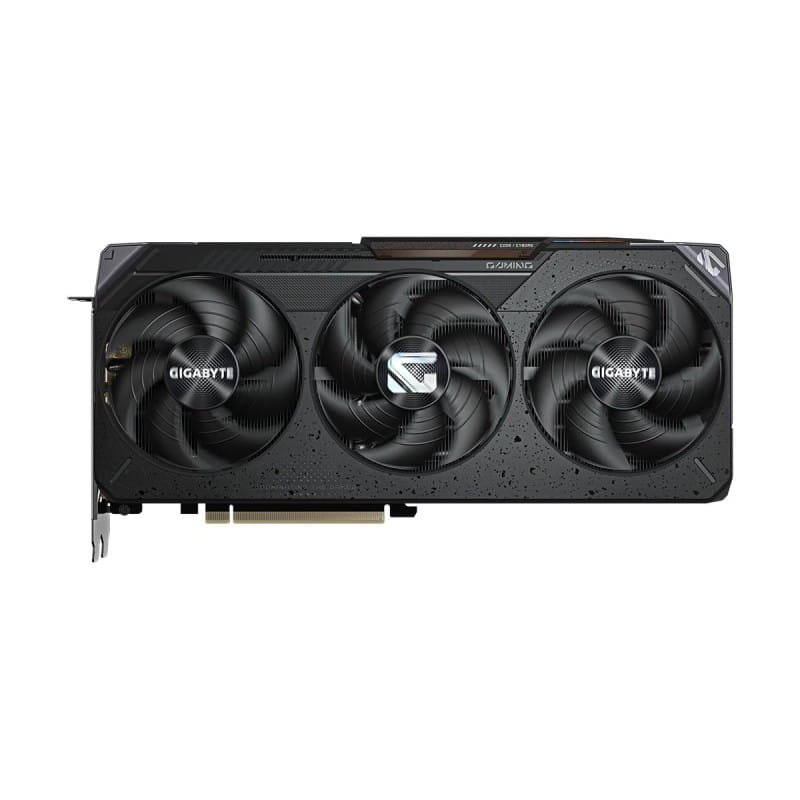

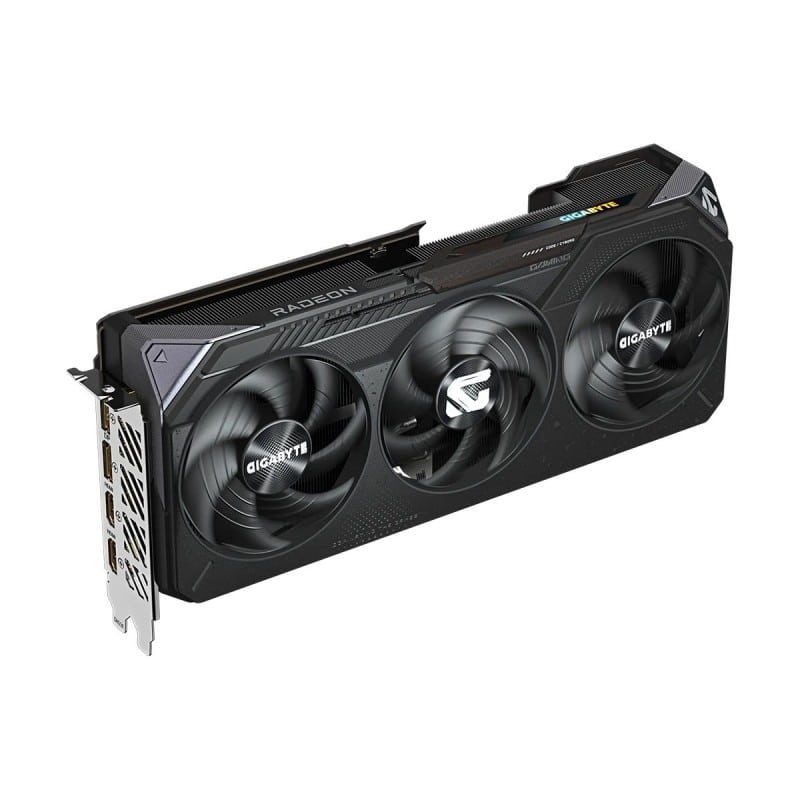

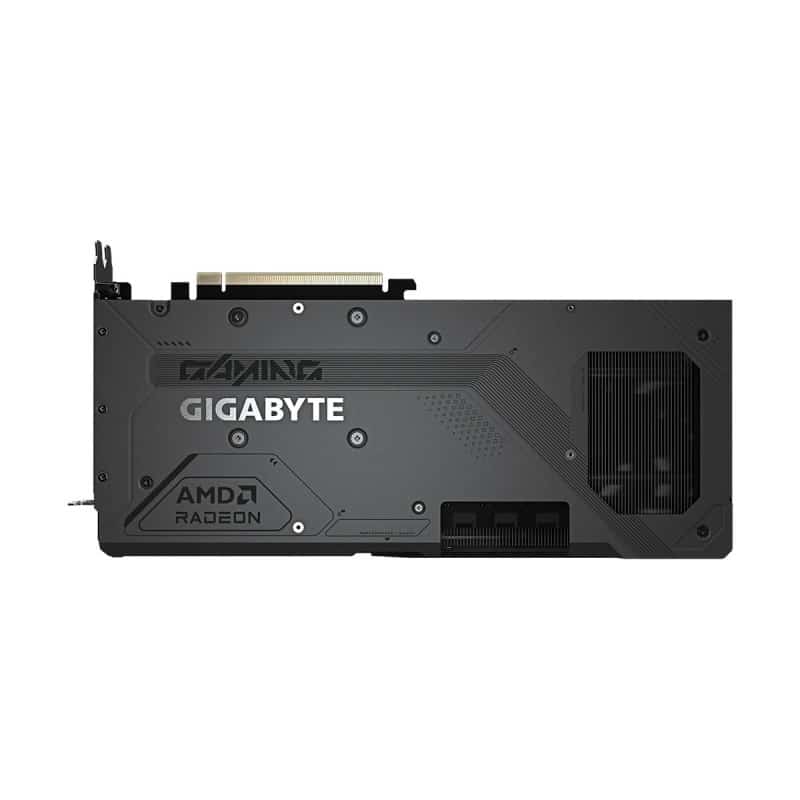

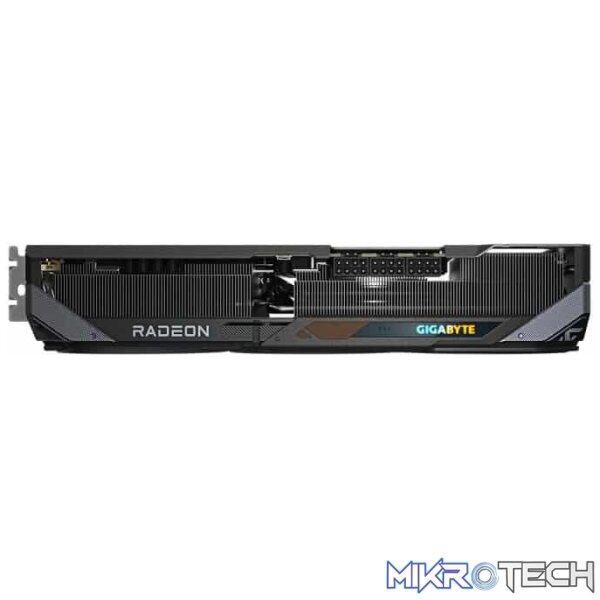

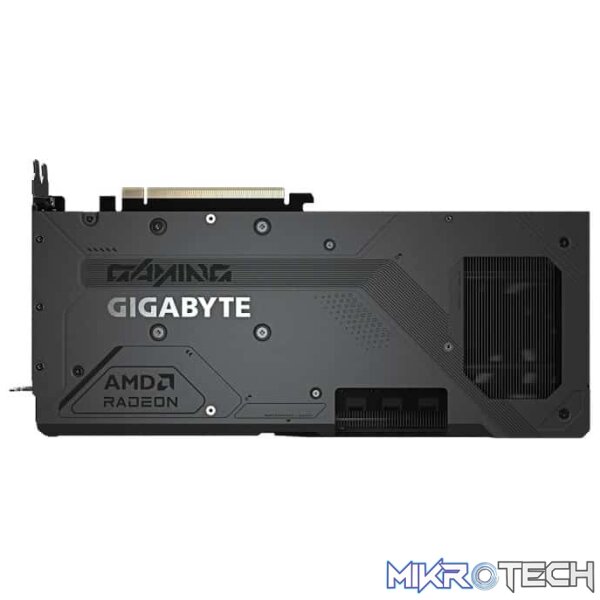

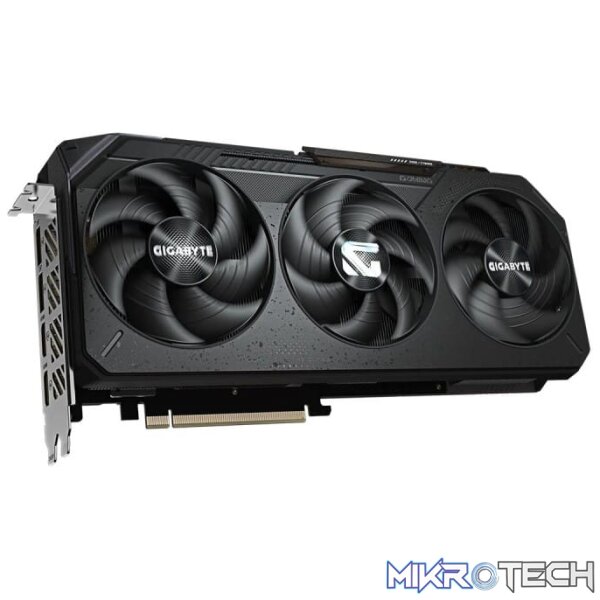

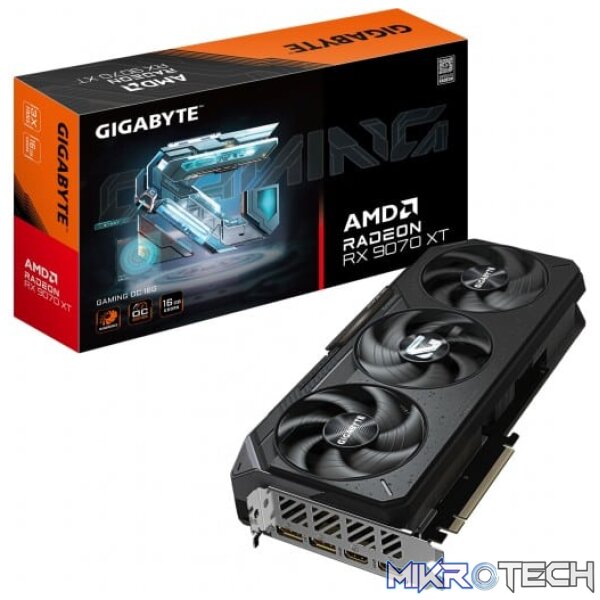

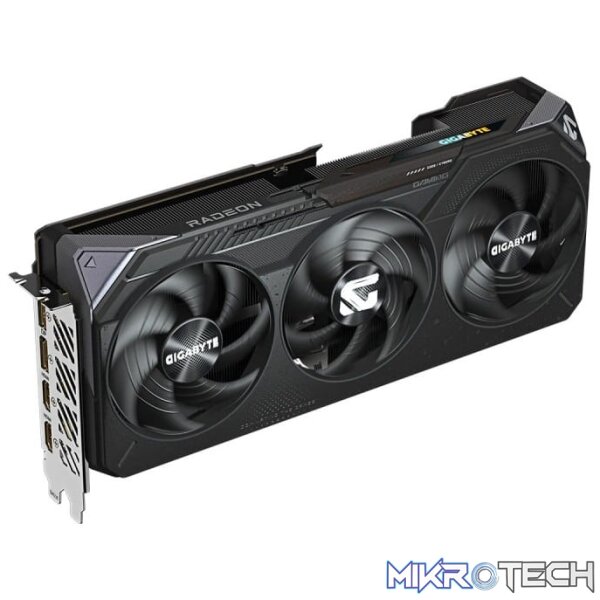

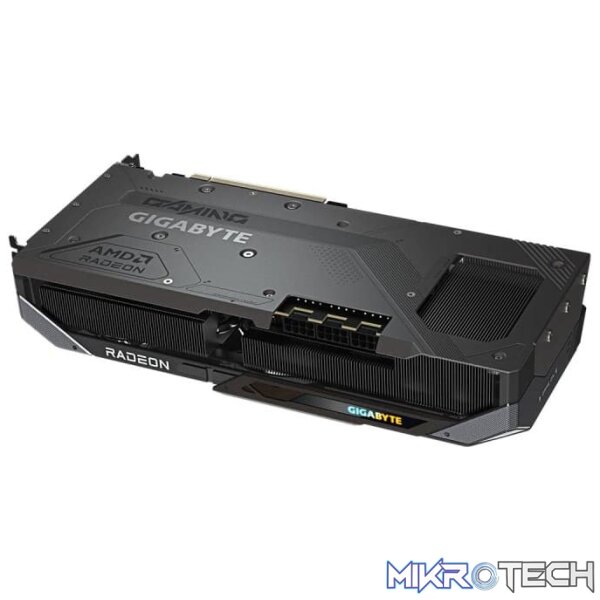

Gigabyte Radeon RX 9070 XT GAMING OC 16GB GDDR6 256-Bit PCIe 5.0 Graphics Card
GV-R9070XTGAMING OC-16GD
SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | GAMING Series |
| Model | Radeon RX 9070 XT GAMING OC (GV-R79XTXGAMING OC-24GD) |
| Chipset | |
| GPU | Radeon RX 9070 XT |
| Chipset Manufacturer | AMD |
| Interface | PCIe 5.0 x16 |
| Compute Units | 64 Compute Units |
| Ray Accelerators | 64 units, gen 3 |
| Stream Processors | 4096 Unified |
| Base Clock | TBD |
| Game Clock | Up to 2520 MHz |
| Boost Clock | Up to 3060 MHz |
| GPU Architecture | AMD RDNA 4 Architecture |
| GPU Design | TSMC 4nm Monolithic Die |
| Memory | |
| Infinity Cache | 64MB |
| Effective Memory Clock | TBD |
| Memory Size | 16GB |
| Memory Interface | 256-bit |
| Memory Type | GDDR6 |
| 3D API Support | |
| DirectX | Direct3D 12_2 Ultimate |
| OpenGL | OpenGL 4.6 |
| OpenCL | OpenCL 2.2 |
| Vulkan | Vulkan 1.3 |
| Shader Model | Shader Model 6.7 |
| Connectivity | |
| Ports | 3x DisplayPort 2.1 with HDCP 2.3 (UHBR20) |
| 1x HDMI 2.1 with HDCP 2.3 (FRL 48Gbps) | |
| HDMI 4K Support | Yes, Up to UltraHD 4K 120Hz |
| VR Ready | Yes, Radeon VR Ready Premium |
| General | |
| Features | WINDFORCE Cooling System Design with 90mm Hawk fans |
| Gigabyte RGB Fusion Integration | |
| Gigabyte Dual BIOS | |
| Copper Vapor Chamber with Screen Cooling | |
| PCI Express 5.0 Support | |
| AMD FreeSync Technology | |
| DisplayPort 2.1 | |
| HDMI 2.1 VRR | |
| HDMI 4K Support | |
| DisplayPort 2.1 8K Support | |
| Simultaneous AV1 & HEVC Encode and Decode. | |
| 8K60 AV1 / H265 / HEVC Decode | |
| 8K60 AV1 / H265 / HEVC Encode | |
| Video Streaming up to 8K | |
| AMD HYPR-RX Game Optimisation | |
| AMD Radeon FreeSync Premium | |
| AMD Radeon Pro Drivers | |
| AMD Radeon VR Ready Premium | |
| AMD FidelityFX Super Resolution | |
| AMD Radeon Image Sharpening | |
| AMD Radeon Anti-Lag | |
| AMD Radeon Chill | |
| AMD Radeon Software | |
| Hardware-Accelerated Ray Tracing | |
| Power Requirements | |
| Total Graphics Power (TGP) | 340W |
| Minimum Recommended Power Supply | 850W |
| Power Connector | 3x 8-Pin PCI PEG connectors |
| General | |
| Form Factor | ATX |
| Slot Width | 2.5 Slot |
| Dimensions | 288 x 132 x 56mm (L x H x W) |
| Operating System Support | Windows 11 64-bit |
| Ubuntu x86 64-Bit | |
| Linux x86_64 | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
