Images & Specifications Are For Illustrative Purposes Only & May Differ From The Actual Product. E&OE

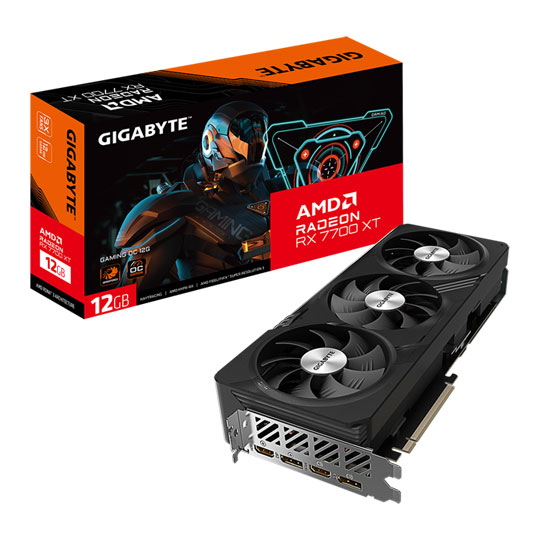

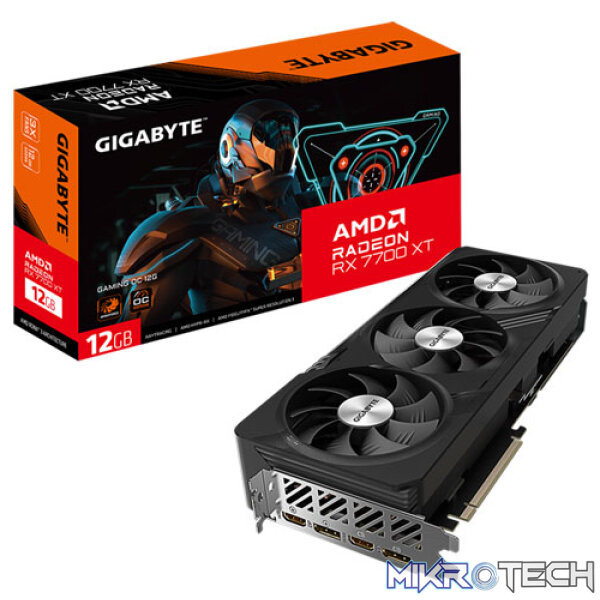

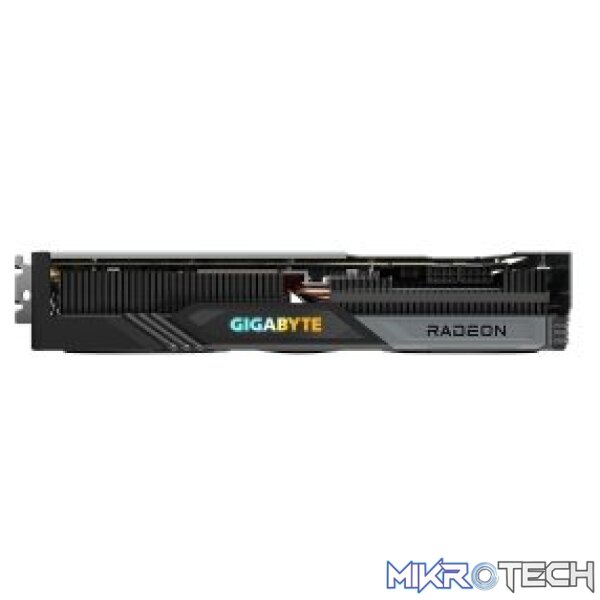

Gigabyte Radeon RX 7700 XT GAMING OC 12GB GDDR6 192-Bit PCIe 4.0 Graphics Card
R11,309.99 incl. VAT
Base Clock:1785 MHz
Game Clock:Up to 2276 MHz
Boost Clock:Up to 2599 MHz
Stream Processors:3456
AMD RDNA 3 Architecture
Microsoft DirectX Ray Tracing Technology
AMD Radeon AI Accelerators
AMD HYPR-RX Game Optimisation
AMD Fidelity FX Super Resolution Upscaling Technology
AMD Radeon FreeSync Premium VRR Technology
AV1 Decode / Encode Engines
Video Memory:12GB GDDR6
Infinity Cache:48MB
Memory Clock:18Gbps
Memory Bus Width:192-bit
3x DisplayPort 2.1, 1x HDMI 2.1 Ports
Multi-Display Capability:4x Displays
Maximum Digital Resolution:Up to 7680×4320
WINDFORCE Cooling System Design
Gigabyte RGB Fusion Integration
Gigabyte Dual BIOS
100mm Alternate-Spinning Fan Layout
AMD Radeon Software Adrenaline Utility
3 Year Warranty
Out of stock
Gigabyte Radeon RX 7700 XT GAMING 12GB GDDR6 192-Bit PCIe 4.0 Graphics Card
GV-R77XTGAMING-OC-12GD
Gigabyte Radeon RX 7700 XT GAMING OC Edition
GAME. STREAM. ADVANCE.
Experience incredible performance, visuals, and efficiency when gaming and streaming with the AMD Radeon RX 7700 XT and 7800 XT graphics cards, powered by the AMD RDNA 3 architecture.
Immerse yourself in next-generation desktop experiences on some of the most advanced high refresh rate displays with up to 16GB of GDDR6 memory, new frame generation technologies, advanced raytracing, AI accelerators, AV1 encoding4, and support for the latest DisplayPort 2.1 technology.
The Radeon RX 7700 XT and 7800 XT delivers an incredible high refresh 1440p gaming & streaming experience, with enough VRAM to step into 4K.
- Boost Clock:TBD*
- Game Clock:TBA*
- Powered by Radeon RX 7700 XT
- AMD Stream Processors: 3,456
- Integrated with 12GB GDDR6 192-bit memory interface
- WINDFORCE Cooling System
- RGB Fusion
- Dual BIOS
- Protection metal back plate
GAME.
AMD Radeon RX 7700 XT & 7800 XT graphics cards set a new level of performance! With up to 16GB of GDDR6 VRAM, unified AMD RDNA 3 compute units, next-gen features to enable ultra-fast, ultra-smooth gaming performance at 1440p, and the flexibility to do ultra-detailed graphics at 4K. Immerse yourself with the AMD Radiance Display Tech and DP 2.1 to experience up to 68 billion colors for video playback up to 8K.
STREAM.
Get ready for next-generation, high-fidelity streaming using your favorite software, OBS Studio, with the new hardware AV1 encoders4. With improved encoding performance and enhanced streaming visual quality, the Radeon RX 7700 XT and 7800 XT graphics cards are the ultimate plug-and-play solution. Enable AMD Noise Suppression6featuring AI to eliminate ambient noise and communicate clearly with your audience or teammates.
ADVANCE.
Combine AMD Radeon RX 7700 XT and 7800 XT graphics cards with AMD Ryzen Processors to activate AMD smart technologies3. Unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon RX 7000 Series cards with the AMD Software: Adrenalin Edition app, featuring bulletproof drivers, for the best PC gaming experiences.
Features
UPSIZE PERFORMANCE. MAXIMIZE FIDELITY.
AMD FidelityFX Super Resolution technology1takes upscaling technology to the next level by providing incredible image quality while boosting framerates in supported games. AMD Radeon Super Resolution2(RSR) leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of new and existing games.

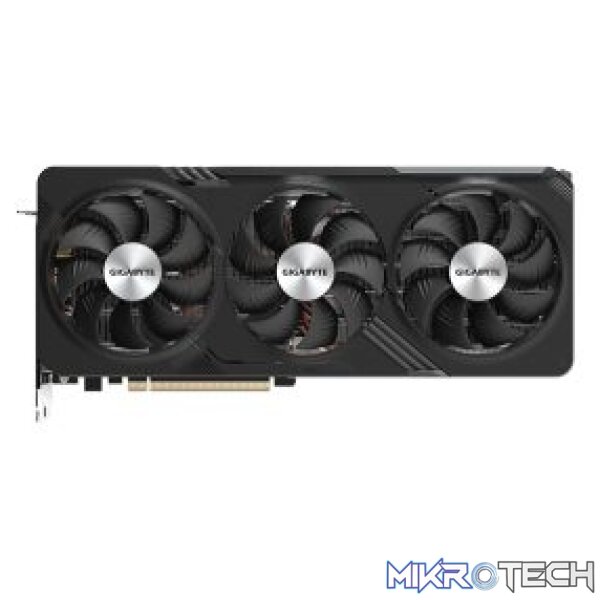

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING FANS
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan 2.1x, close to the life of double ball bearing, while running quieter too.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any RGB LED lighting effect or synchronize with other RGB LED Devices in the GIGABYTE CONTROL CENTER.

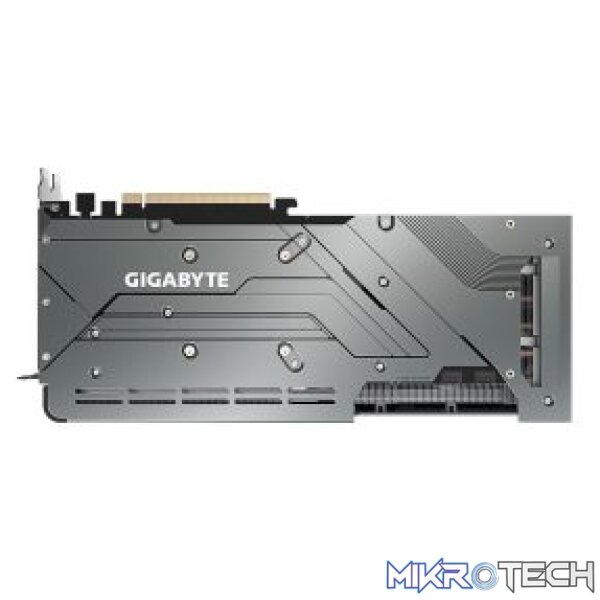

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER (GCC)
GCC is a unified software app for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
- AMD Radeon Super Resolution
n-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games
- AMD Radeon Super Resolution
- AMD Radeon Anti-Lag
Minimizes input lag so you can game like a champion
- AMD Radeon Anti-Lag
- AMD Radeon Boost
Delivers extra performance and responsiveness
- AMD Noise Suppression
Reduces background audio noise from your surrounding environment for clearer communication
- AMD Noise Suppression
- AMD Radeon Image Sharpening
Sharpens in-game visuals with little performance impact
- AMD Radeon Image Sharpening
- AMD Link
Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world
Additional Information:
Visit the Manufacturer Product Web Page for Full Details
Download the Manufacturer Product Manual
- Supported Operating Systems: Windows® 11 / 10 64-bit
- 700W Power Supply with 2x 8-pin PCIe power connectors
- PCI Express® 4.0 / 3.0 x16 Slot available on the motherboard
- System Memory: 8GB Minimum, 16GB Recommended
Specifications
| Make and Model | Gigabyte Radeon RX 7700 XT GAMING OC 12G Graphics Card |
|---|---|
| Part Number | GV-R77XTGAMING OC-12GD |
| Color | Black |
| Operating System Support | Windows 11 / 10, 64-bit |
| GPU | Radeon RX 7700 XT |
| Stream Processors | 3,456 |
| Engine Clock | Boost Clock: TBA Game Clock: TBA |
| Memory | 12GB GDDR6 VRAM |
| Memory Clock | 18Gbps |
| Memory Bandwidth | 192bit |
| Compatible PCIe Bus | PCI Express v4.0 x16 PCI Express v3.0 x16 (Compatible with PCIe v3.0 x16 Motherboards at reduced performance levels) |
| Crossfire Support | No |
| Cooling | 3x 90mm Cooling Fans |
| Resolution & Refresh Rate | HDMI v2.1: 7,680 × 4,320 DisplayPort v2.1: 7,680 × 4,320 |
| Maximum Displays | 4 |
| I/O Ports | 2x HDMI v2.1 ports 2x DisplayPort v2.1 ports |
| Slot Width | Requires 3 Empty Slots |
| Control Software | GIGABYTE CONTROL CENTER (GCC) GCC is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time. |
| Power Supply | 850+ Watts Recommended |
| Power Connectors | 2x 8-pin PCIe Power Connectors |
| Dimensions | 302 x 130 x 56mm |
| Weight | N/A |
