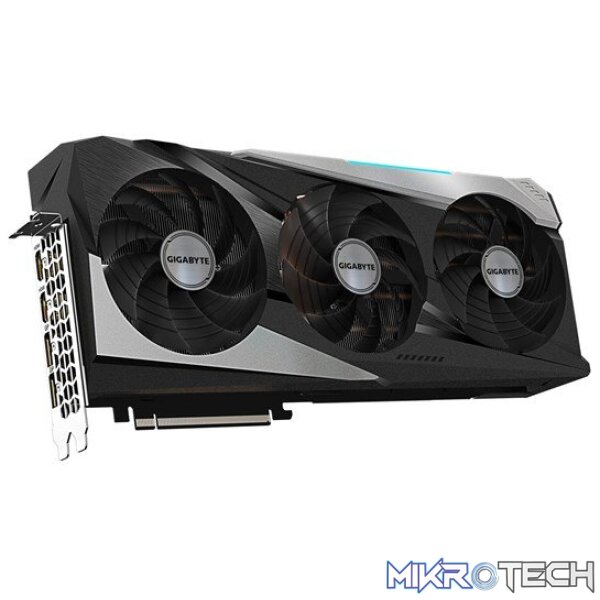

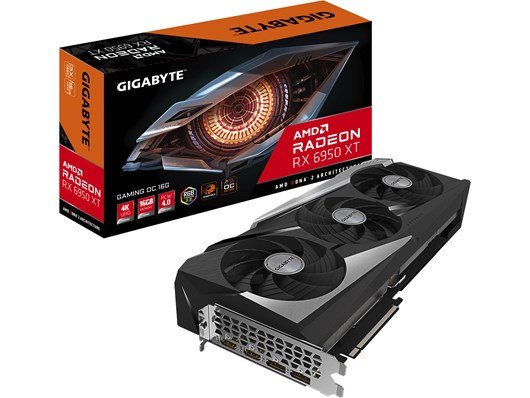

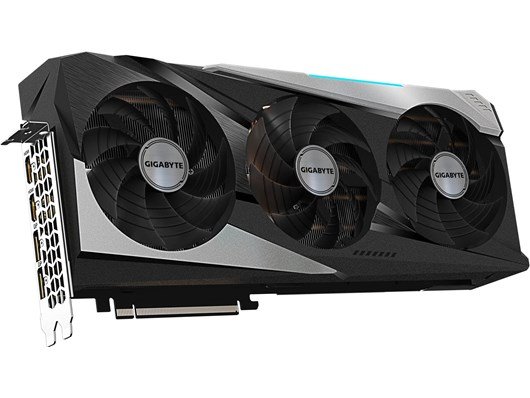

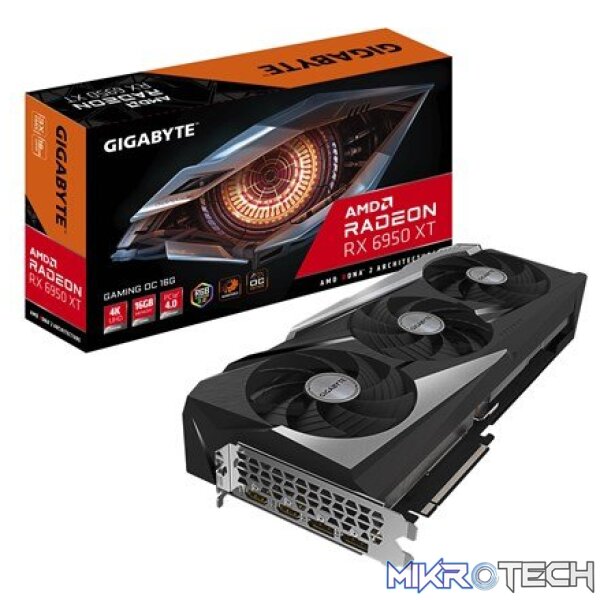

Gigabyte Radeon RX 6950 XT Gaming OC 16GB GDDR6 256-bit PCIe 4.0 Graphics Card
GV-R695XTGAMING-OC-16GD
Gigabyte Radeon™ RX 6950 XT GAMING OC 16GB
- Boost Clock : up to 2,324MHz
- Game Clock: up to 2,116MHz
- Powered by RDNA2 Radeon™ RX 6950 XT GPU
- Integrated with 16GB GDDR6 256-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- Graphene nano lubricant
- RGB Fusion 2.0
- Dual BIOS
- Protection metal back plate
RGB FUSION 2.0 Lighting
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
DUAL BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
Features

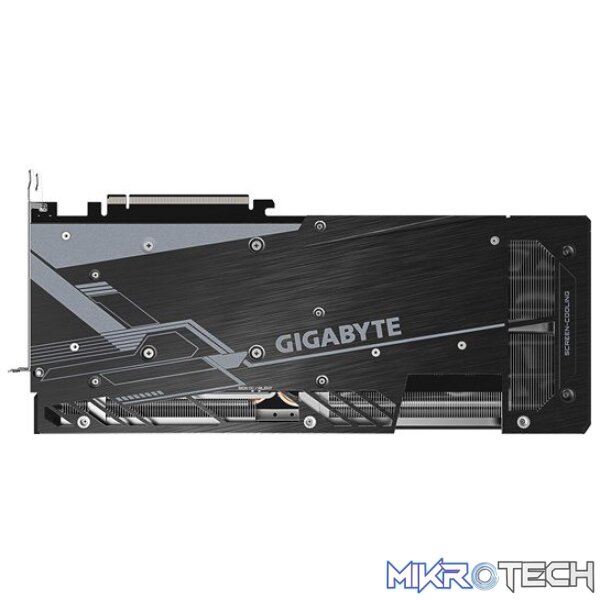

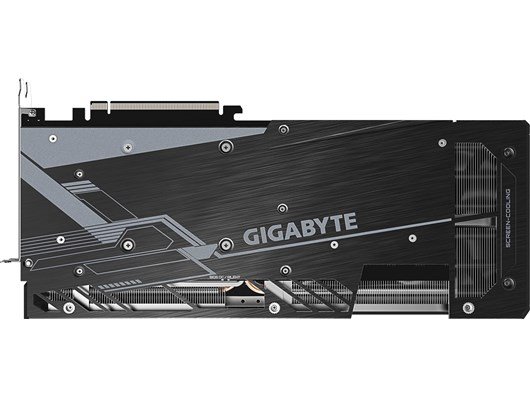

Pretection Metal Back Plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
SUPERIOR COOLING

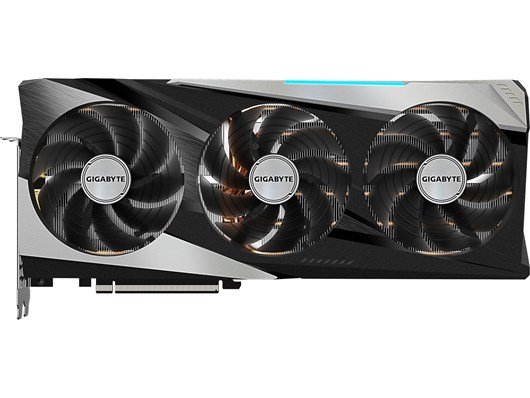

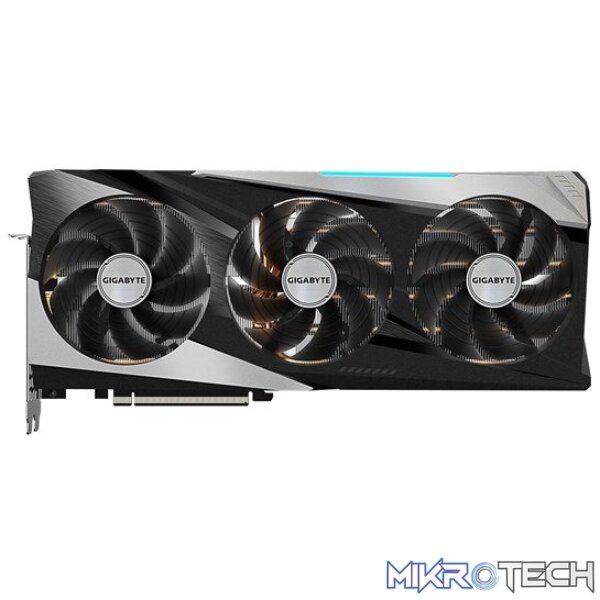

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, large vapor chamber directly touches the GPU and 3D active fan, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE VAPOR CHAMBER & HEAT-PIPE
With direct contact to the GPU and VRAM, the large vapor chamber combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
System Requirements
- Supported OS: Windows 11 / 10 64-bit, Linux x86 64-bit
- 850W Power Supply with 3x 8-pin PCI-E power connectors
- PCI Express® 4.0 / 3.0 x16 Slot available on the motherboard
- Minimum 8GB of System Memory, 16GB Recommended.
Specifications
| Make and Model | Gigabyte Radeon™ RX 6950 XT GAMING OC 16GB Graphics Card |
|---|---|
| Part Number | GV-R695XTGAMING OC-16GD |
| Color | Black / Grey |
| GPU | Radeon™ RX 6950 XT Graphics |
| Stream Processors | 5,120 |
| Engine Clock | Boost Clock: Up to 2,324 MHz Game Clock: Up to 2,116 MHz |
| Memory | 16GB GDDR6 |
| Memory Clock | 16 Gbps Effective |
| Memory Bandwidth | 256bit / 576GB per second |
| Bus Interface | PCI Express v4.0 x16 (Compatible with PCIe v3.0 x16 Motherboards at reduced performance levels) |
| Crossfire Support | Yes for DirectX® 12 and Vulkan® |
| Lighting Software | Gigabyte RGB FUSION 2.0 Lighting Software |
| Control Software | AORUS Engine App |
| Cooling | 3x Cooling Fans |
| Resolution & Refresh Rate | HDMI v2.1: 7,680 × 4,320 DisplayPort v1.4a: 7,680 × 4,320 |
| Max. Display Support | 4 |

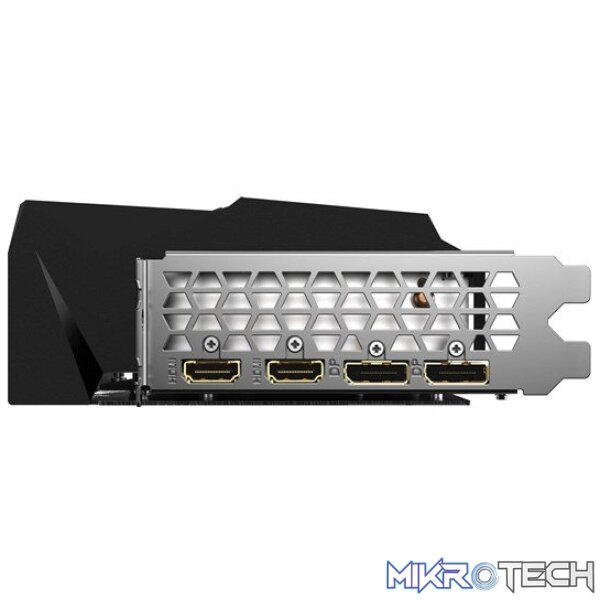

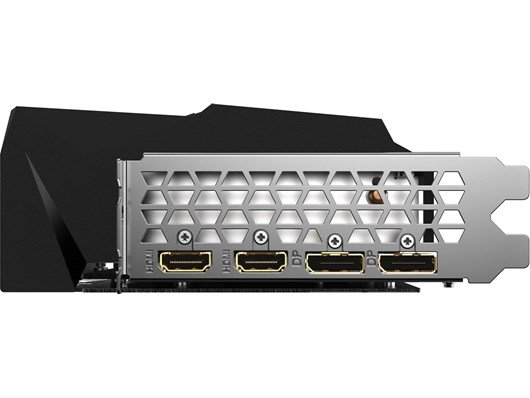

| I/O Ports | |
| HDMI | 2x HDMI v2.1 ports |
| DisplayPort | 2x DisplayPort v1.4a ports |
| BIOS Support | UEFI |
| Recommended Power Supply | 850 Watts or more |
| Power Connectors | 3x 8-pin PCIe Connectors |
| AMD Features | 7nm GPU AMD FidelityFX AMD FreeSync™ Technology DirectX® 12 Ultimate DisplayPort™ 1.4 with DSC Game Driver Optimizations GDDR6 Memory Hardware Raytracing HDMI™ 2.1 VRR PCI® Express 4.0 Support Radeon™ Anti-Lag Radeon™ Image Sharpening Radeon™ Software Radeon™ VR Ready Premium Video Streaming up to 8K |
| Operating System Support | Windows 11 / 10, 64-bit Linux OPerating System |
| Dimensions | 332 x 143 x 57mm |
| Weight | N/A |
