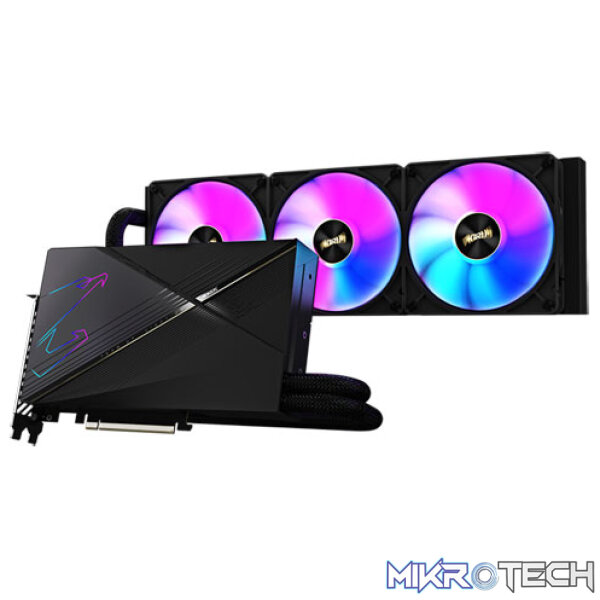

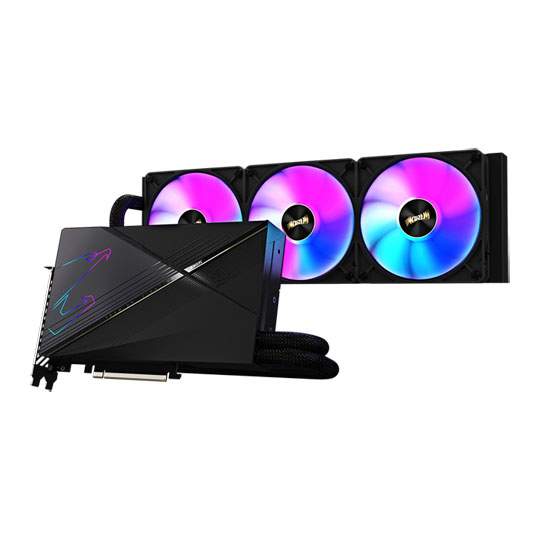

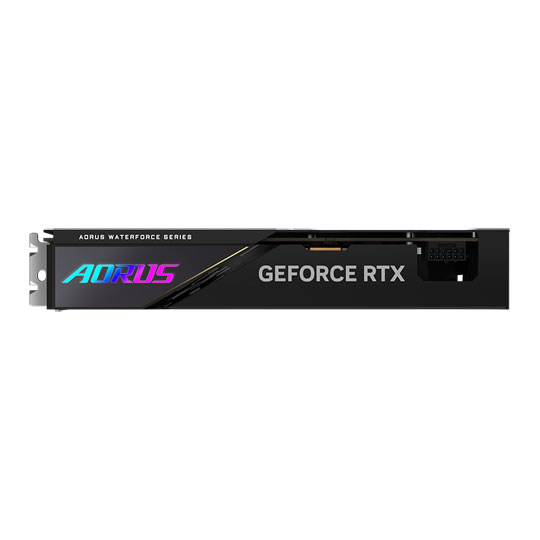

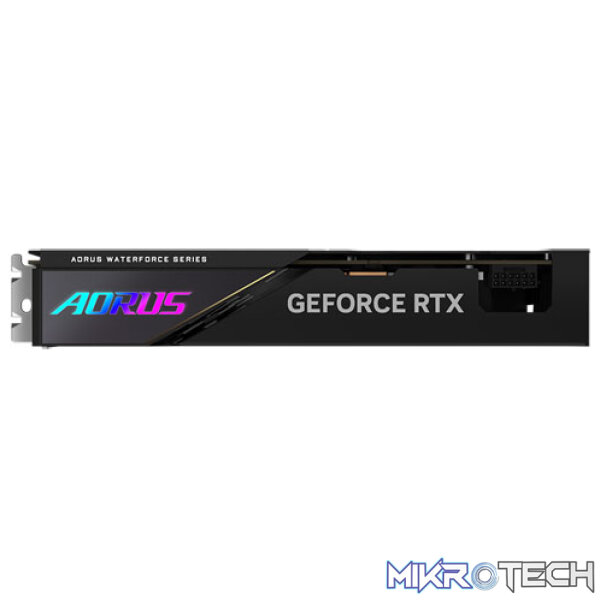

Gigabyte NVIDIA GeForce RTX 4080 XTREME WATERFORCE 16GB Graphics Card
R35,489.99 incl. VAT
NVIDIA GeForce RTX 4080
Only 2 left in stock
Gigabyte NVIDIA GeForce RTX 4080 XTREME WATERFORCE 16GB Graphics Card
GV-N4080AORUSX W-16GD
Gigabyte AORUS GeForce RTX 4080 WATERFORCE 16G
WATERFORCE COOLING SYSTEM
The ideal way for PC enthusiasts to enjoy the benifits of water cooling without complicated installations. AORUS provides an all-around cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.
- Powered by GeForce RTX 4080 16GB
- NVIDIA Ada Lovelace Streaming Multiprocessors:
Up to 2x performance and power efficiency over Last Gen GPUs
- NVIDIA Ada Lovelace Streaming Multiprocessors:
- 4th Gen Tensor Cores: Up to 4x DLSS 3 performance vs. brute-force rendering
- 3rd Gen RT Cores: Up to 2X Ray Tracing performance
- Integrated with 16GB GDDR6X 256-bit memory interface
- WATERFORCE all-in-one liquid cooling system
- 360mm radiator with 3x 120mm ARGB Fans
- Protection Metal Back Plate
- 4 Years Warranty (Online registration required for Fourth Year)
The Ultimate Platform for Gamers and Creators
GeForce RTX 4080 Series with DLSS 3
- 9,728 CUDA CORES
- 2,565 MHz OC Core Clock
- 16GB GDDR6X VRAM
- 22.4 Gbps Memory Speed
- New Streaming Multiprocessors:
Up to 2x Performance and Power Efficiency! - Fourth Generation AI Tensor Cores:
Up to 2x AI Performance! - Third Generation RT Cores:
Up to 2x Ray Tracing Performance!
Cutting Edge GPUs
NVIDIA Ada Lovelace Architecture
Realistic Immersive Graphics
Dedicated Ray Tracing Cores
AI Accelerated Performance
New NVIDIA DLSS 3
Game Winning Responsiveness
NVIDIA Reflex Low Latency Platform
Built for Live Streaming
NVIDIA Encoder
AI Enhanced Voice and Video
NVIDIA Broadcast App
Fast Track Your Creativity
NVIDIA Studio
Performance & Reliability
Game Ready and Studio Drivers
Features
WATERFORCE LIQUID COOLING SYSTEM
EASY INSTALLATION
With the pre-assembled water pipe and pump, users can easily install the graphics card without leakage concerns.
OPTIMIZED 360MM ALUMINUM RADIATOR
The triple-sized radiators and fins increase the surface area and volume for thermal, making the graphics card more stable and cooler under high overclocks.
3X 120MM ARGB FANS
The triple-fan design can generate more airflow to better heat dissipation, delivering a powerful cooling and quiet gaming experience. The ARGB fans lights also can choose various light effects via GIGABYTE CONTROL CENTER (GCC).
DOUBLE BALL BEARING
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.
COPPER BASE PLATE DIRECT TOUCH
Without any extra fan on the card, the WATERFORCE provides the best cooling solution for the GPU and VRAM. The copper plate efficiently dissipates the heat, creating a real silent environment.
SUPERIOR WATER CHANNEL DESIGN
The water channel extends to the MOSFET area, allowing the liquid to dissipate the heat more efficiently. The graphics card not only takes care of the cooling on the GPU but also other critical components for superior performance and stability.
460MM BRAIDED FEP TUBES
With nearly no moisture absorption, high thermal stability and high pressure tolerance, the sturdy FEP tubes greatly enhance product life and durability.
RGB FUSION LED LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
EXCELLENT IN ESSENTIALS
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

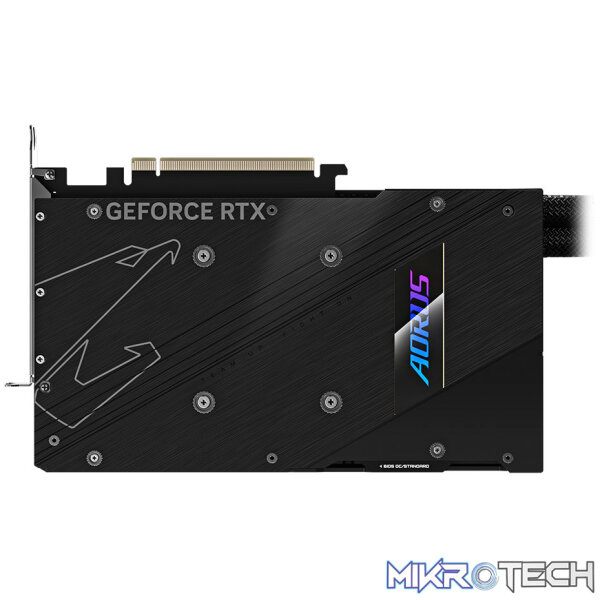

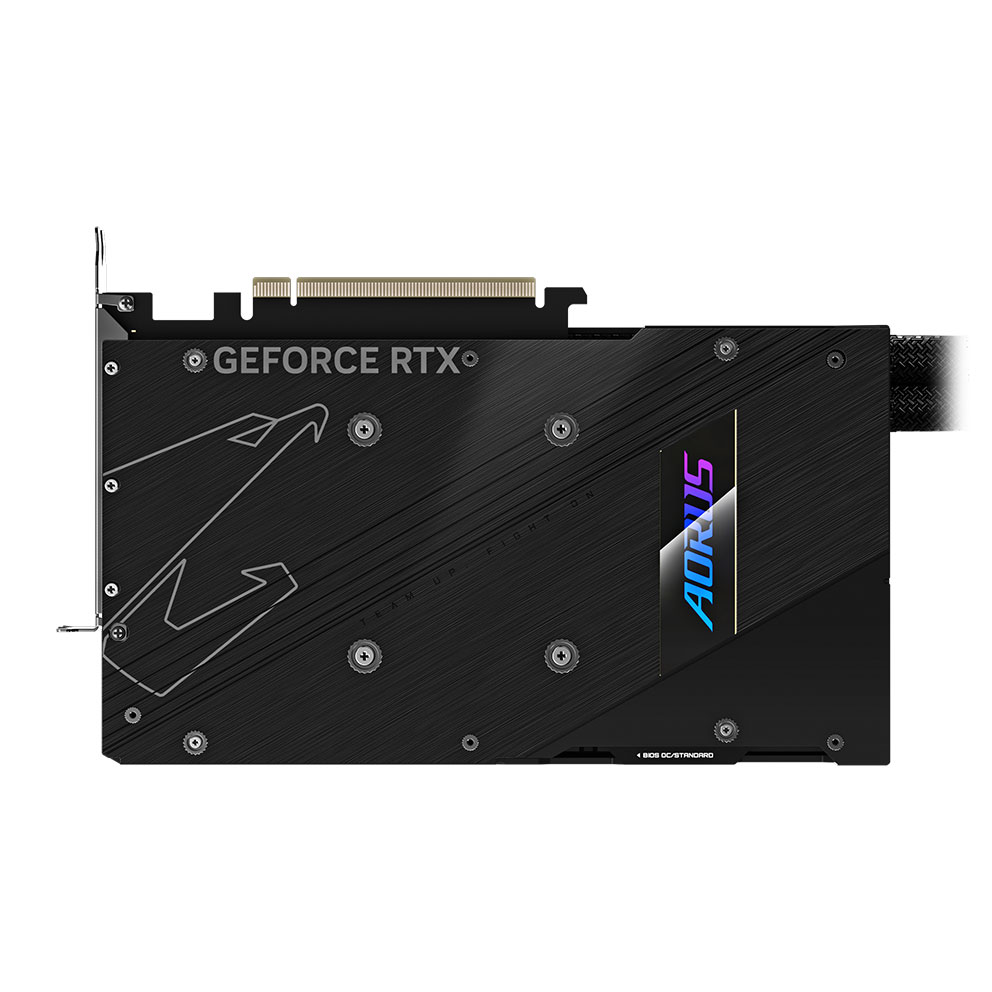

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
PCB COATING
- Dust Resistant:shields from dust, insects, dropped screws, drill shavings, and abrasion
- Moisture Resistant: prevents unwanted conduction paths and board damage
- Corrosion Resistant: protects from salt spray, humidity, and corrosion
BUILT STRONG
EXTREME OVERCLOCKING
The graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
4 YEAR WARRANTY WITH REGISTRATION
Gigabyte want you to experience the best service you have ever had. This is why, on top of Gigabytes standard 3 Year Warranty, they would like to offer you an additional 1 Year of protection to your graphics card free of charge. You can enjoy a combined 4 Year Warranty by registering on the website within 30 days of purchase.
GIGABYTE CONTROL CENTER (GCC)
GCC is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
GeForce Features
Game Ready Drivers
GeForce Game Ready Drivers deliver the best experience for your favorite games. Theyre finely tuned in collaboration with developers and extensively tested across thousands of hardware configurations for maximum performance and reliability.
GeForce Experience
Capture and share videos, screenshots, and live streams with friends. Keep your drivers up to date and optimize your game settings. GeForce Experience lets you do it all. Its the essential companion to your GeForce graphics card.
NVIDIA G-SYNC
Get smooth, tear-free gameplay at high refresh rates, plus HDR and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.
NVIDIA Ansel
Turn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
Virtual Reality
The highest performance graphics deliver the smoothest, most immersive VR experiences.
Resizable BAR
Resizing the BAR is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once, improving performance in many games in real time.
ADDITIONAL FEATURES AND BENEFITS
- PCI Express Gen 4.0
- NVIDIA® GeForce Experience
- NVIDIA Ansel
- NVIDIA FreeStyle
- NVIDIA ShadowPlay
- NVIDIA Highlights
- Game Ready Drivers
- NVIDIA Studio Drivers
- NVIDIA® GPU Boost

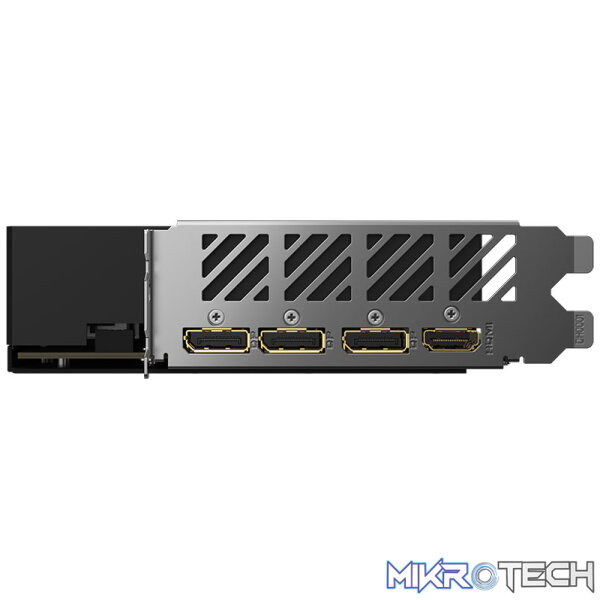

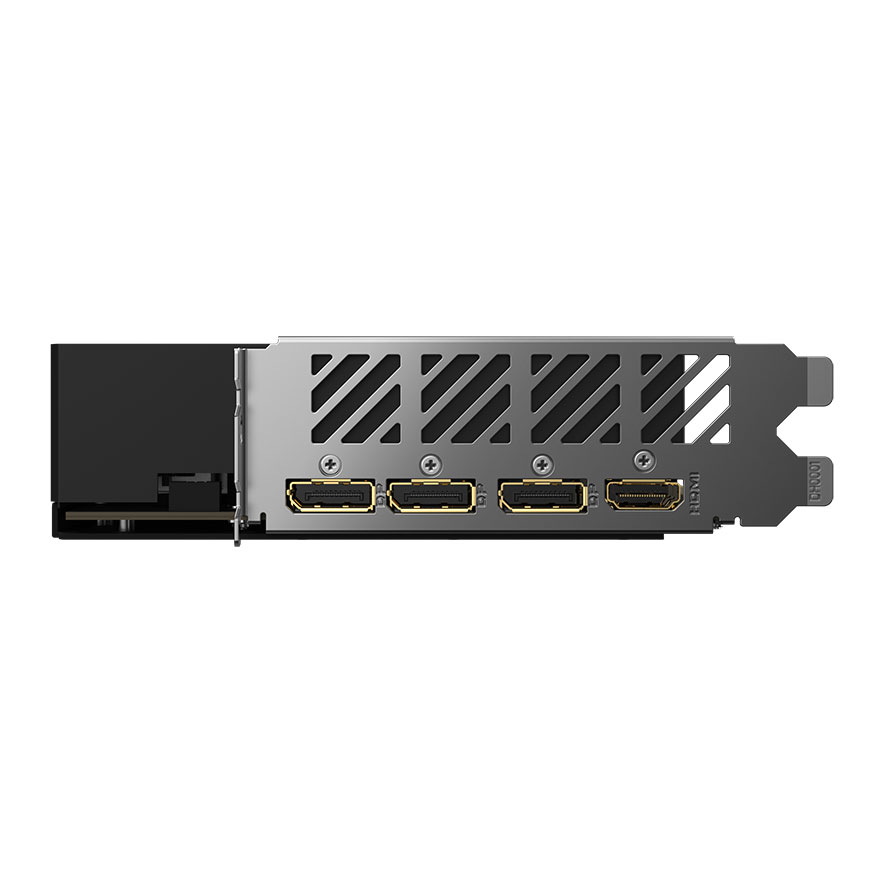

- DisplayPort 1.4a, HDMI 2.1
- Vulkan R T API, OpenGL 4.6
- HDCP 2.3
- VR Ready
Additional Information:
System Requirements
- Windows® 11, 10, 64bit
- 1x PCI Express 4.0 / 3.0 x16 Slot
- 1x 16-pin PCIe Power Connector
- 850+ Watt Power Supply
Specifications
| Make and Model | Gigabyte AORUS GeForce RTX 4080 16GB XTREME WATERFORCE Graphics Card |
|---|---|
| Part Number | GV-N4080AORUSX W-16GD |
| Chipset | NVIDIA® GeForce RTX 4080 |
| CUDA Cores | 9,728 |
| Core Clock | 2565 MHz |
| Memory | 16GB GDDR6X VRAM |
| Memory Clock | 22.4 GHz |
| Memory Interface | 256-bit |
| Resolution | Digital Maximum Resolution: 7,680 x 4,320 |
| OpenGL | OpenGL® v4.6 |
| HDCP Compliant | HDCP v2.3 |
| Bus Interface | PCI Express 4.0 Slot |
| NVlink/ Crossfire Support | None |
| Slot Width | Dual |
| Max. Display Support | 4 |
| Connectors | |
| HDMI | 1x HDMI v2.1 |
| DisplayPort | 3x DisplayPort v1.4a |
| Recommended PSU | 850W |
| Power Connectors | 1x 16-pin PCI-E Connectors |
| Dimensions | 236 x 146 x 40mm |
| Weight | N/A |
Package Contents
- Gigabyte AORUS GeForce RTX 4080 16GB XTREME WATERFORCE Graphics Card
- Quick Guide
- Warranty Registration
- AORUS Metal Sticker
- Xtreme Robot Limited Edition with AORUS flag
- 1x 16 pin to triple 8-pin PCIe Power Adaptor
