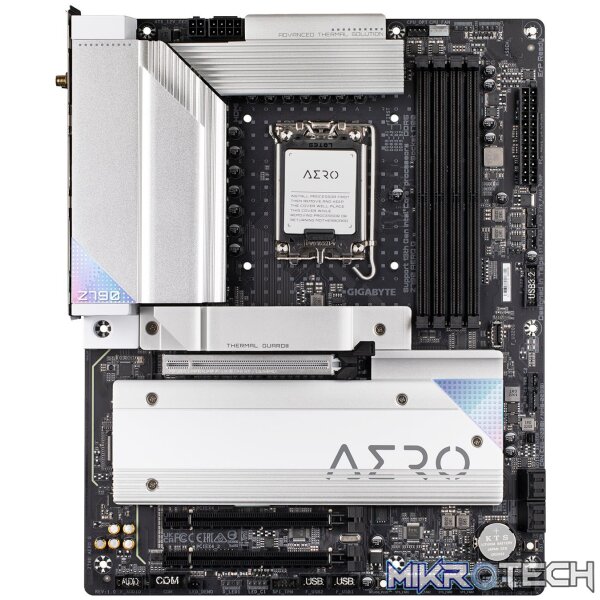

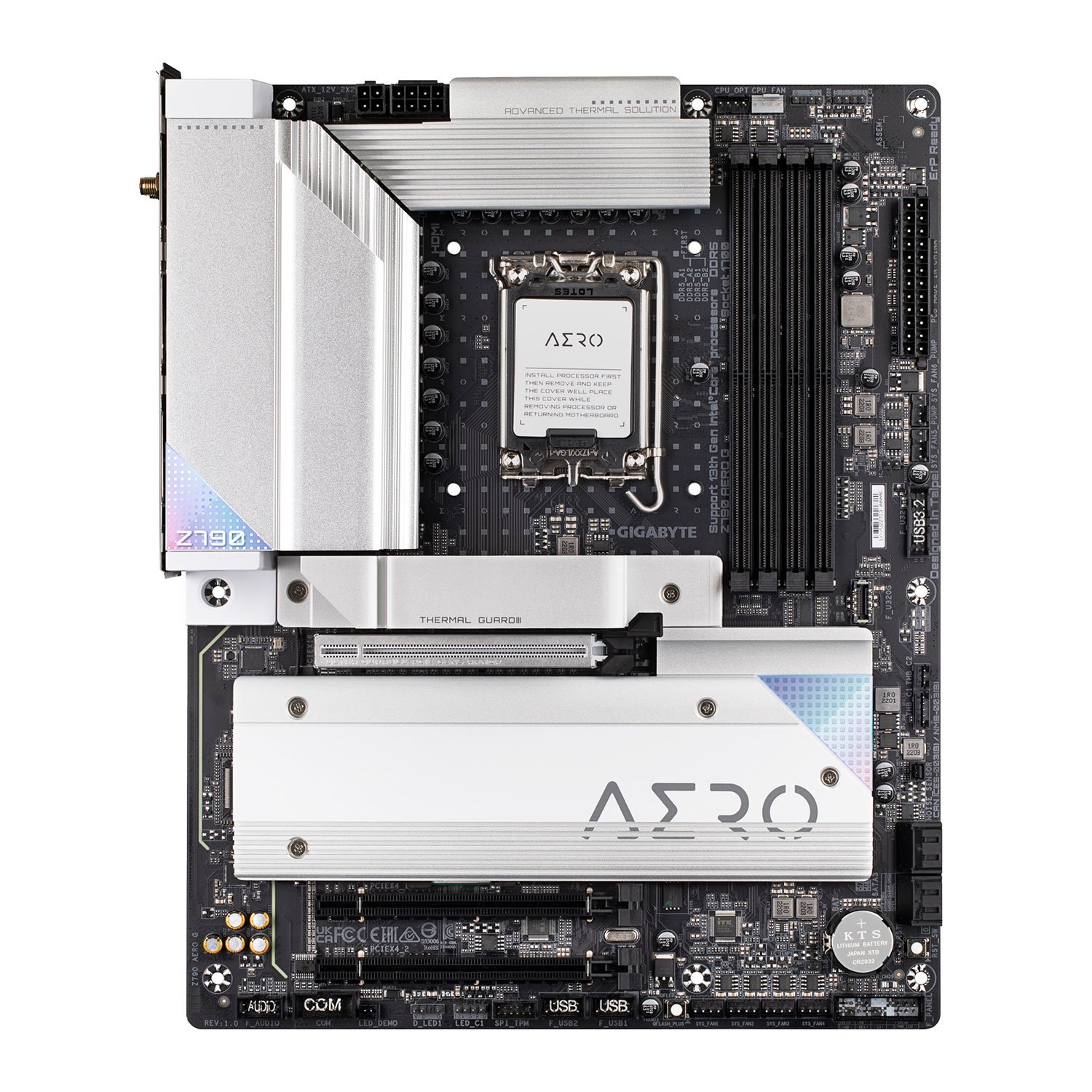

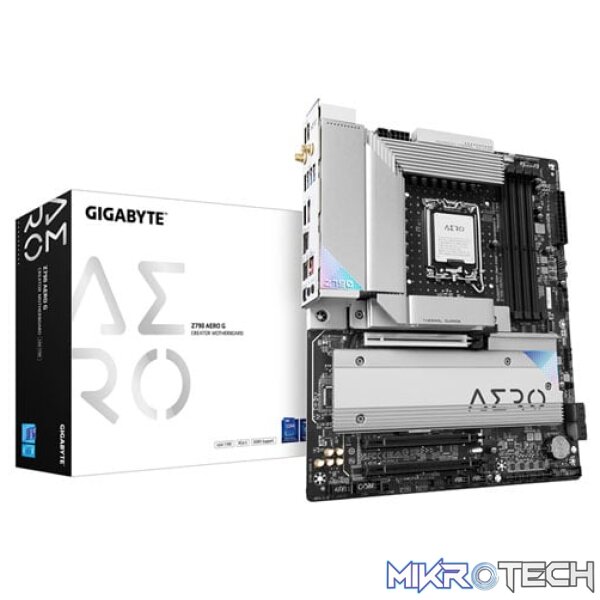

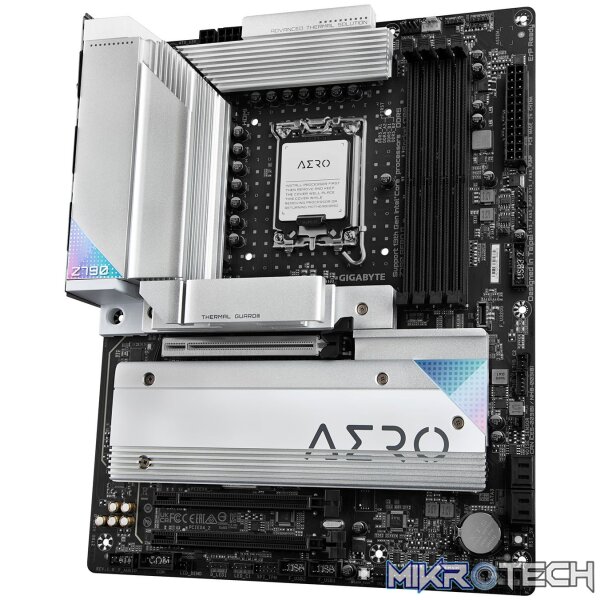

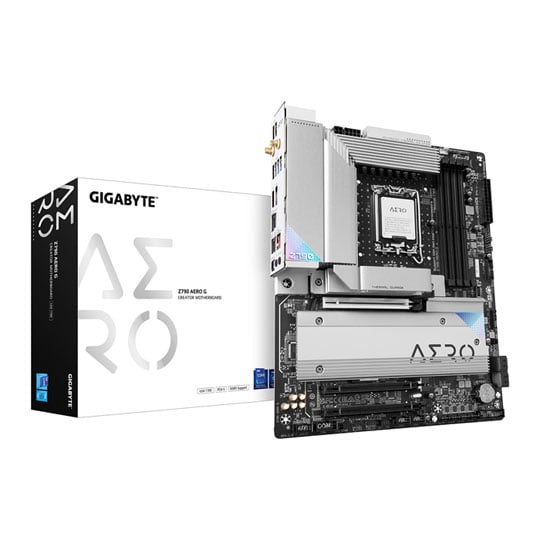

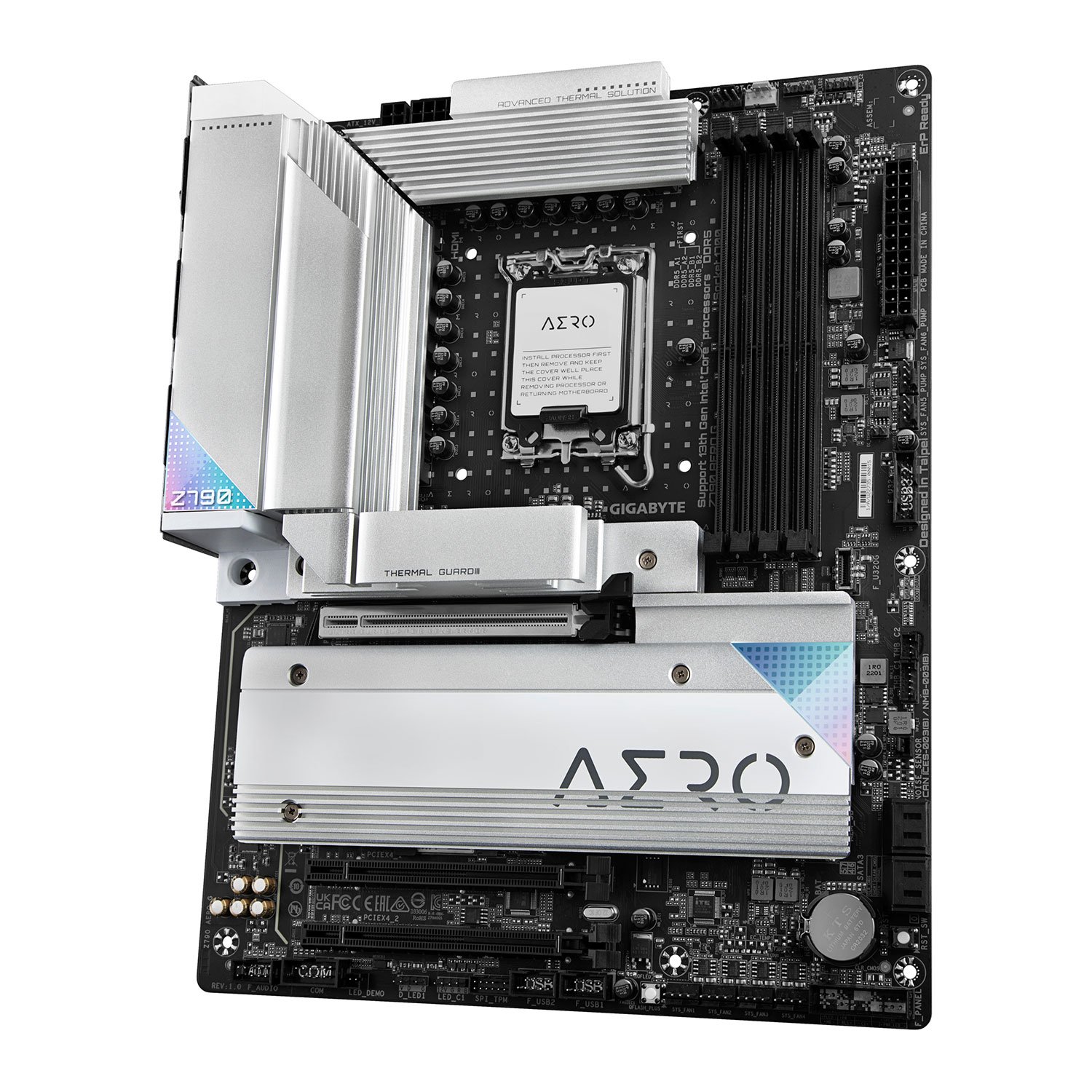

Gigabyte Intel Z790 AERO G DDR5 PCIe 5.0 ATX Motherboard
Z790 AERO G
GIGABYTE Z790 AERO G Motherboard: Creativity Start Here!
The Gigabyte AERO Series Motherboards are a fresh approach to creators that evolve with optimized features for content creation.
To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D Rendering and Feature Length Video Production.
- Supports 13thand 12thGen Intel® Core™ Series Processors
- VisionLINK:One USB-C® Port for Video, Data Transfer and Charging
- Dual Channel DDR5:4*SMD DIMMs with XMP Memory Module Support
- Next Generation Storage:1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard III:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design
- Fast Networks:Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity:DP IN, HDMI, Front USB-C® 20Gb/s Support
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Features
VisionLINK
Simplify Your Connections
Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C® cable*.
*Compatibility may vary according to system configuration and device specifications.
Connectivity
AERO series motherboards let you experience the ultimate connectivity and easy access to all your connections.
Intel® 2.5GbE LAN: Wait No More
Brings a speed network experience to life. Intel® 2.5Gb Ethernet provides an immediate boost to overall network performance, smooth video editing and fast data transfers.
Wi-Fi 6E Wireless
Wi-Fi 6E brings the ability to conduct AR/VR experiences, get creative with fewer dropped connections, and download large files at faster speeds without lag.
SuperSpeed USB 20Gbps
USB 3.2 Gen 2×2 lets you to enjoy the flexibility of connectivity, fast access and large data transfers.
DDR5: Faster Instant Reaction Speeds
Whether youÂ’re editing hundreds of audio samples, working with 4K video, or even multitasking, DDR5 will satisfy your insatiable need for speed. DDR5 delivers at least 1.5X more bandwidth than the prior generation. This will facilitate the bandwidth needed for some applications, such as Al training and content creation.
PCIe 5.0 Design: The Fastest, Most Robust Level
Equipped with the PCIe 5.0 x16 slot and M.2 socket designed to optimize multitasking and large workloads, that is also ready for a new PCIe 5.0 graphics card or storage devices.
PCIe 5.0 M.2 Slots & Next-Gen Connector Dimension Design
Supports new PCIe 5.0 SSD with up to type 25110 M.2 slot designed to provide high power M.2 PCIe 5.0 SSD solutions.
PCIe 5.0 x16 Slot
Supports new PCIe 5.0 graphics and accelerator cards
PCIe EZ-Latch
This easy, tool-less design makes it easy to release your PCIe Cards without issues.
PCIe 5.0 M.2 Storage: Fast Speed. More Space.
Equipped with a full-speed PCIe 5.0 M.2 slot
A total of five onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration.
M.2 EZ-Latch Plus
Similar to PCIe EZ-Latch in implementation, this tool-less M.2 Removal Design is easy to use.
PCIe x4 M.2: Creates Exclusive Storage Performance
All PCIe x4 M.2 slots provide NVMe® SSD RAID support for optimal enhancement, with one PCIe 5.0 M.2 slot offering up to Type 25110 support.
Aesthetic Cooling Design
GIGABYTEÂ’s advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.
Additional Information:
Compatibility
Intel® Processor Support:
This Gigabyte Motherboard supports Intel® Core™ Processors for Socket BGA-1700.
Operating System Support:
Requires Windows® 11 / 10, 64-bit
Specifications
| Make and Model | Gigabyte Z790 AERO G Motherboard |
|---|---|
| Part Number | Z790 AERO G |
| Operating System | Supports Windows® 11 / 10, 64-bit |
| Chipset | Intel® Z790 Express Chipset |
| CPU Support | Socket 1700 support for the 13thand 12thGeneration Intel® Core™, Pentium® Gold and Celeron® Processors |
| Memory | 4x DDR5 DIMM RAM Sockets support 128 GB (4x 32GB) of system memory Support for Overclocked DDR5 RAM: DDR-7600 / 7400 / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 memory modules Support for Stock Clocked DDR5 RAM: DDR-4800 / 4000 memory modules Dual Channel memory architecture |
| Expansion Slots | 1x PCI Express x16 slot*, supporting PCIe 5.0 and running at x16 (PCIEX16) 2x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) *The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector Supports AMD CrossFire™ technology on the PCIEX16 and PCIEX4 slots |
| Multi-GPU Support | Supports AMD CrossFire™ technology on the PCIEX16 and PCIEX4 slots |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1x HDMI port, supporting up to 4,096 x 2,160 @ 60Hz 1x USB Type-C port, supporting 1x DisplayPort, supporting up to 4,096 x 2,304 @ 60Hz via Alt Display Mode |
| Storage | 5x M.2 Connector Slots: 1x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | 1x USB 3.2 Gen 2×2 (20Gbps) Type-C® port 1x USB 3.2 Gen 2 (10Gbps) Type-C port 2x USB 3.2 Gen 2 (10Gbps) Type-A ports 4x USB 3.2 Gen 1 (5Gbps) ports 2x USB 2.0 (480Mbps) Type-A ports 1x USB 3.2 Gen 2×2 (20Gbps) Type-C® port, available through 1x internal USB header 2x USB 3.2 Gen 1 (5Gbps) Type-A ports, available through 1x internal USB header 4x USB 2.0 (480Mbps) Type-A ports, available through 2x internal USB headers |
| LAN | Intel® LAN Chipset: 1x RJ45 2.5Gbe LAN port |
| Wireless Communication | Intel® AX211 Wireless Chipset: WiFi 6E: IEEE 802.11 a/b/g/n/ac/ax TriBand (2.4 / 5 / 6GHz) Support for 802.11ax 160MHz Wireless, up to 2.4 Gbps |
| Bluetooth | Bluetooth v5.3 |
| Audio | Realtek® ALC1220-VB Codec: 2 / 4 / 5.1 / 7.1 Channel High Definition Audio 2x 3.5mm Audio jacks 1x S/PDIF Out port |

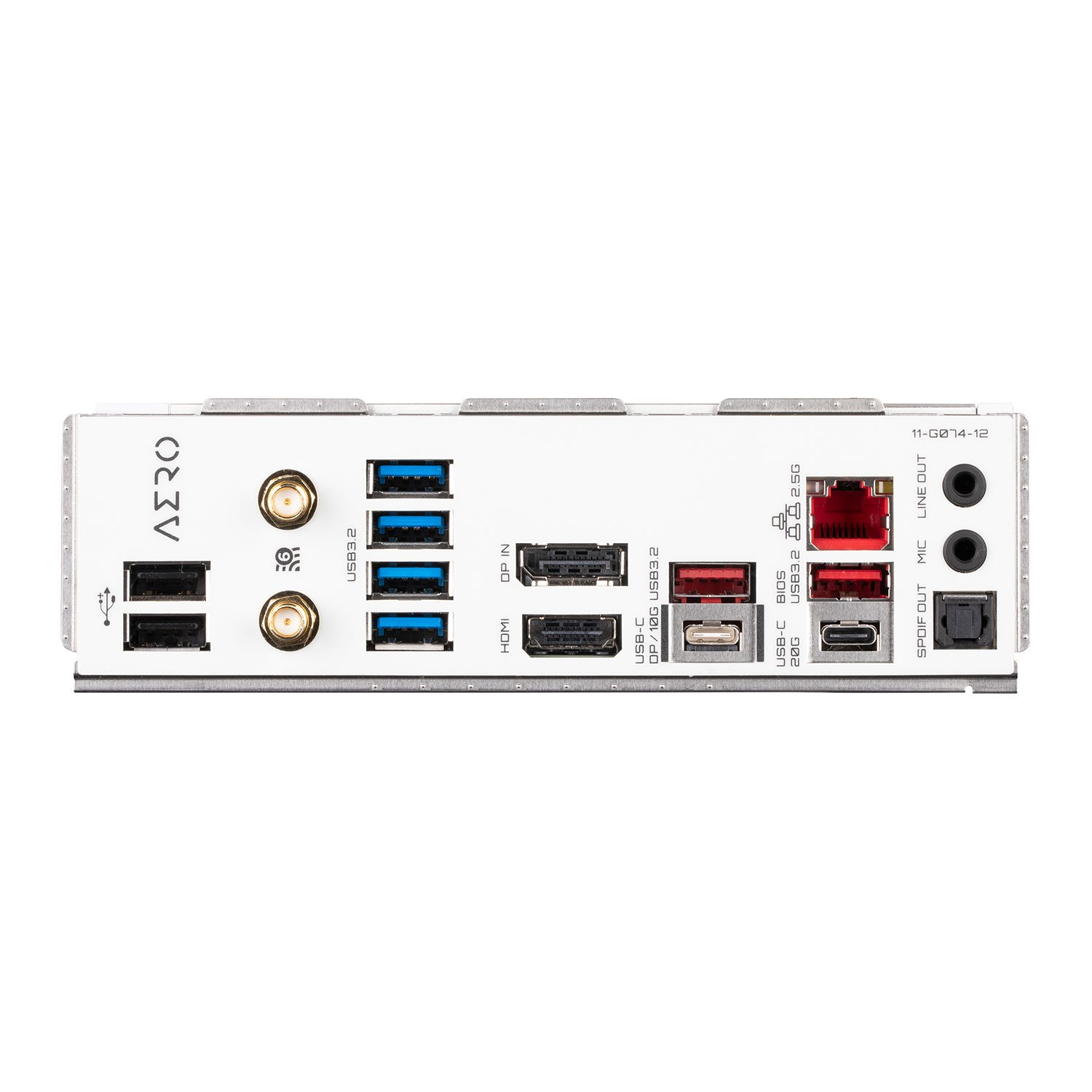

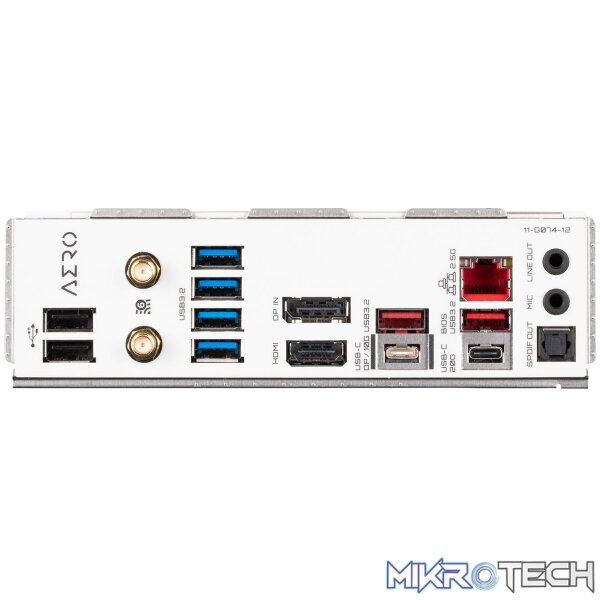

| Back Panel I/O | 1x USB 3.2 Gen 2×2 (20Gbps) Type-C® port 1x USB 3.2 Gen 2 (10Gbps) Type-C port 2x USB 3.2 Gen 2 (10Gbps) Type-A ports 4x USB 3.2 Gen 1 (5Gbps) ports 2x USB 2.0 (480Mbps) Type-A ports 1x HDMI v2.0 port 1x DisplayPort v1.4 port 1x RJ-45 2.5Gbe LAN port 2x SMA antenna connectors (2T2R) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x CPU fan header 1x water cooling CPU fan header 4x system fan headers 2x system fan/water cooling pump headers 2x addressable LED strip headers 1x front panel header 2x Thunderbolt™ add-in card connectors 1x Trusted Platform Module header (For GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module) 2x Temperature Sensor headers 1x Reset jumper |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage Detection Temperature Detection Fan speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise Detection |
| Unique Features | GIGABYTE Control Center* *Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Q-Flash Q-Flash Plus Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) LAN Bandwidth Management Software |
| BIOS | 1x 256Mb Flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor |
| Dimensions (LxW) | 305 x 244mm |
| Weight | N/A |
