Product Description

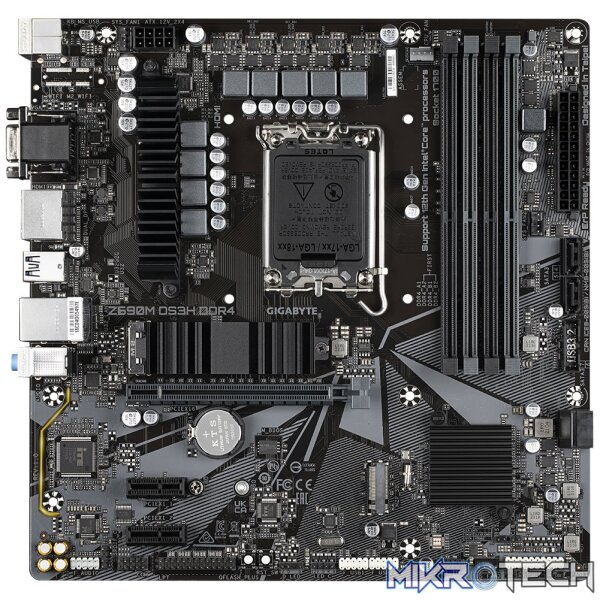

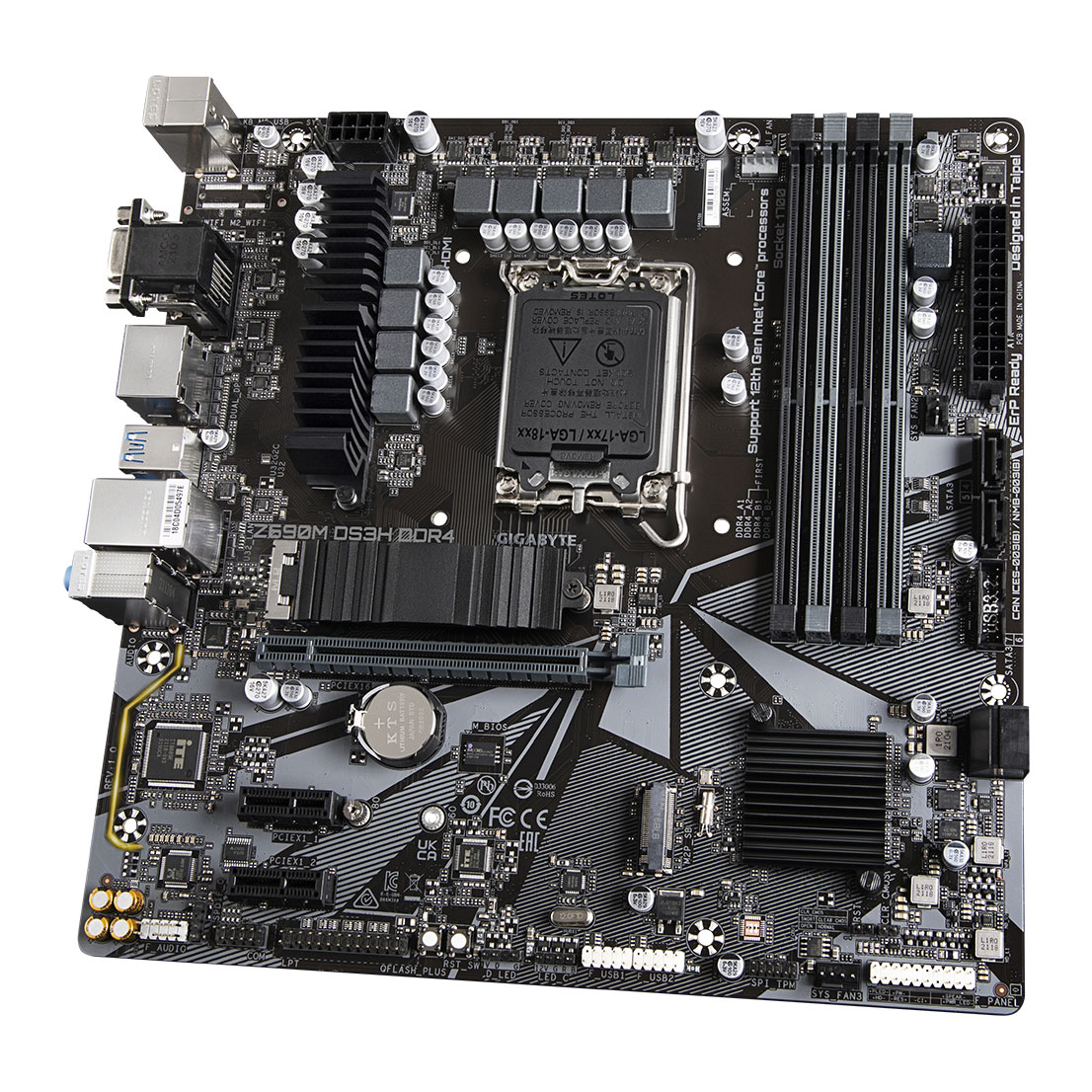

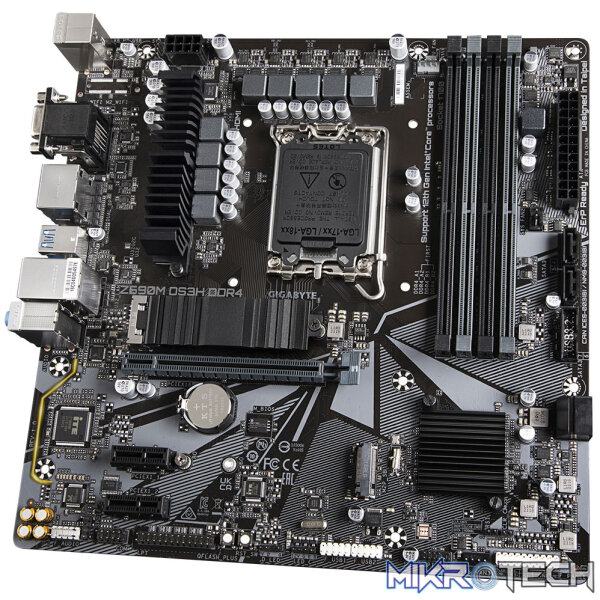

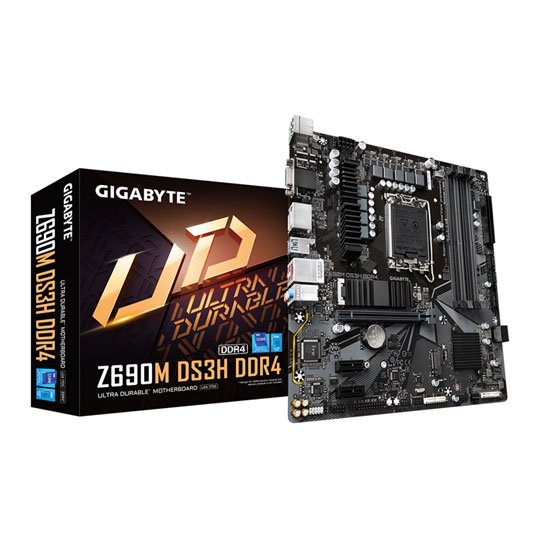

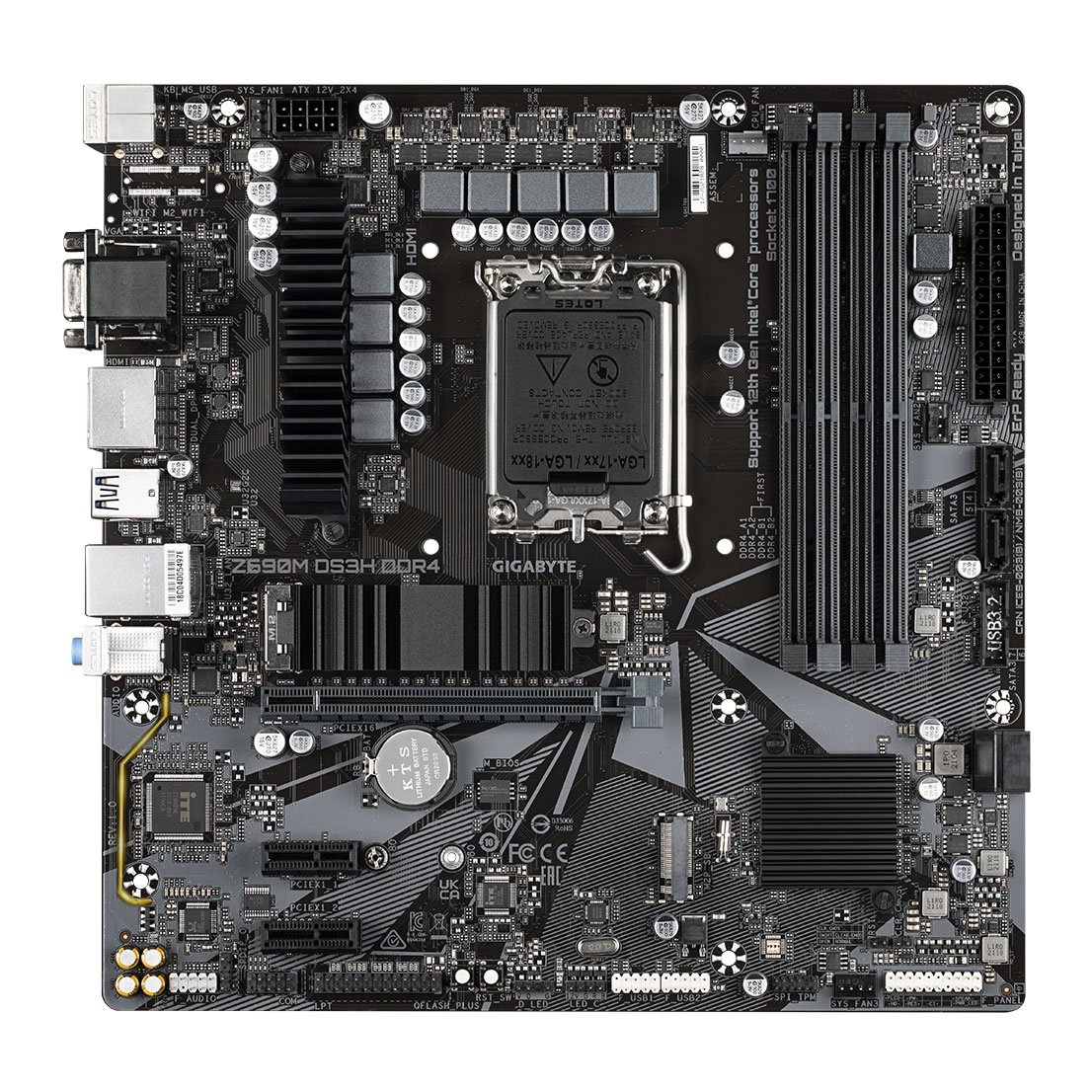

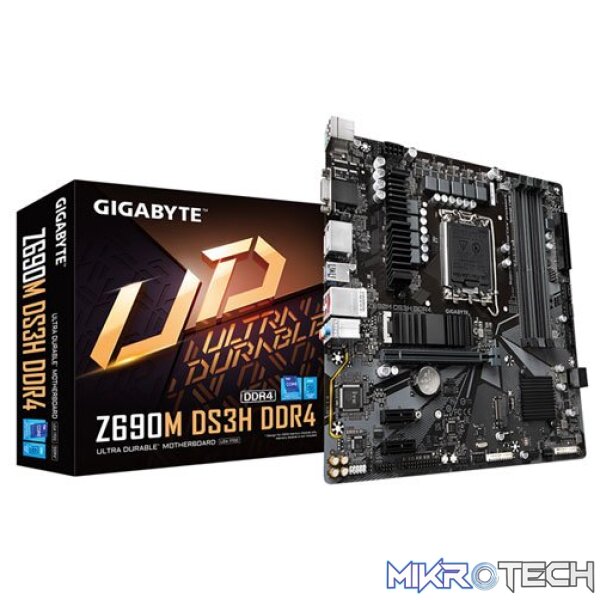

Gigabyte Intel Z690M DS3H DDR4 MicroATX Motherboard
GA-Z690M-DS3H-DDR4
IMMERSIVE VIEWING AND GAMING
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimised performance for gaming.
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimised performance for gaming.
Intel Z690 Chipset
1700 CPU Socket
MicroATX Form Factor
The Latest Memory Technology
DDR4 XMP UP TO 5333MHZ AND BEYOND
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard. ?
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard. ?
Ideal Cooling for your Memory
GIGABYTE ULTRA-EFFICIENT M.2 THERMAL GUARD
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. ?
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. ?
Is your Windows Genuine?Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.
Versatile Connectivity Options
FOR EVERY CONNECTION
GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity. ?
GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity. ?
2X FASTER THAN EVER
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
Audio you can be Truly Immersed In
HIGH-END AUDIO CAPACITORS
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. They also feature an audio noise guard that essentially separates the boardÂ’s sensitive analog audio components from potential noise pollution at the PCB level.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Z690M Series |
| Model | GA-Z690M-DS3H-DDR4 |
| CPU Support | Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Z690 Express |
| Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules |
| 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Display | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| 1x VGA D-Sub port, supporting a maximum resolution of 1920×1200 @ 60Hz | |
| 1x HDMI 2.1 port, supporting a maximum resolution of 4096×2160@ 60Hz | |
| 1x DisplayPort 1.2, supporting a maximum resolution of 4096×2304@ 60Hz and HDCP 2.3 | |
| 1x DisplayPort 1.2, supporting a maximum resolution of 4096×2304@ 60Hz | |
| NOTE: Graphics specifications may vary depending on CPU support. | |
| Support for up to 4 displays at the same time | |
| HDCP Support | Yes, HDCP 2.3 compliant |
| Audio | |
| Codec | Realtek Audio CODEC |
| Features | High Definition Audio |
| 2/4/5.1/7.1-channel | |
| NOTE: 7.1-channel Audio requires changing driver settings. Consult the motherboard manual for more information. | |
| Networking | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| WiFi | N/A |
| Bluetooth | N/A |
| Expansion | |
| PCI Express | 1x PCIe 4.0 x16 physical, x16 electrical slot |
| 2x PCIe 3.0 x1 slots | |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Intel B660 Chipset | 1x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| 4x SATA 6Gb/s connectors | |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Intel Optane Memory Ready | |
| * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. | |
| USB Connectivity | |
| Intel B660 Chipset | 1x USB Type-C port on the back panel, with USB 3.2 Gen 2 support |
| 5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| 2x USB 2.0/1.1 ports on the back panel | |
| 3rd Party Chipset | 4x USB 2.0/1.1 ports available through the internal USB headers |
| Internal Connectivity | |
| Internal I/O | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 3x System fan headers | |
| 1x Addressable LED strip header | |
| 1x RGB LED strip header | |
| 2x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x Front panel header | |
| 1x Front panel audio header | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x Serial port header | |
| 1x Parallel port header | |
| 1x S/PDIF Out header | |
| 1x Q-Flash Plus button | |
| 1x Reset button | |
| 1x Reset jumper | |
| 1x Clear CMOS jumper | |
| NOTE: All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. | |

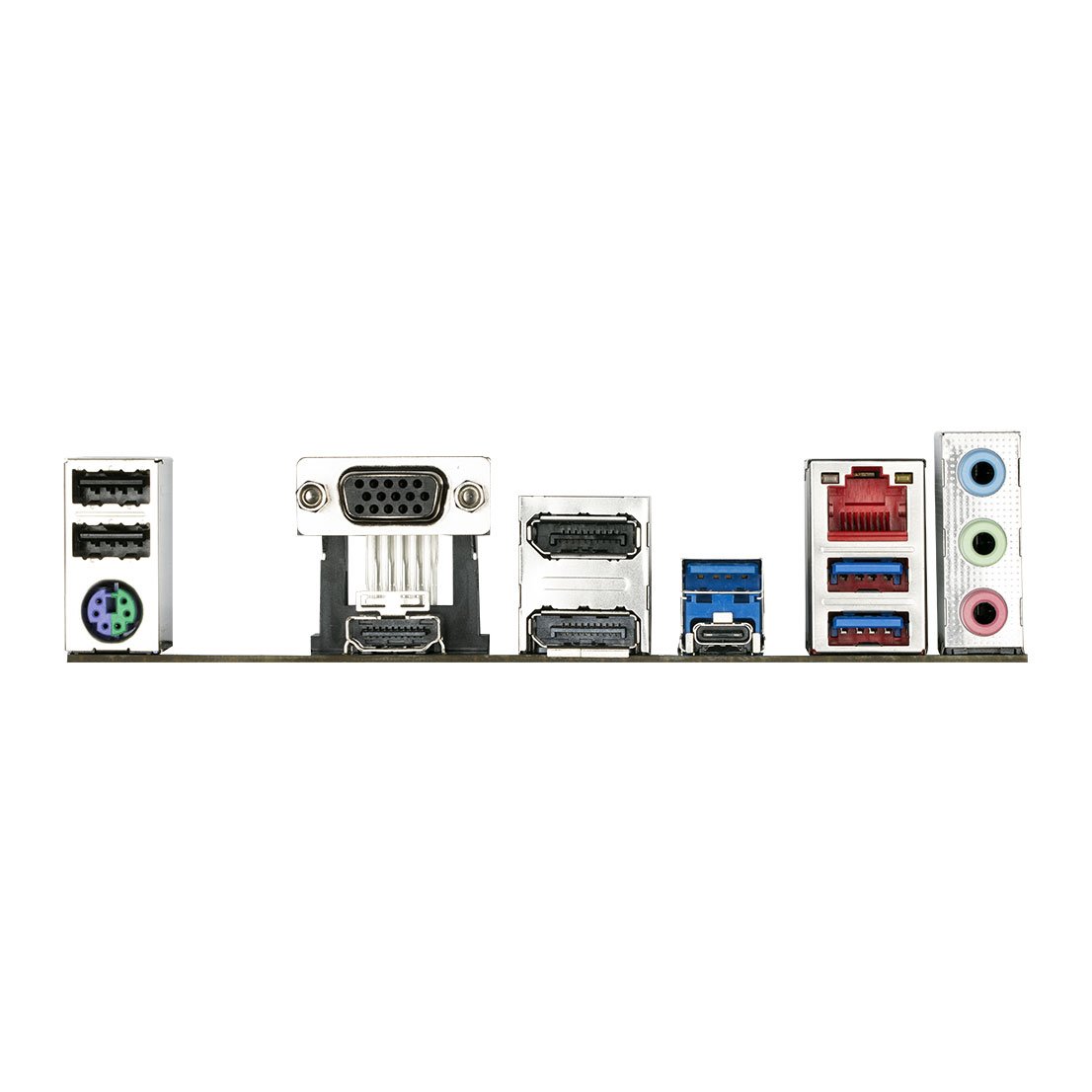

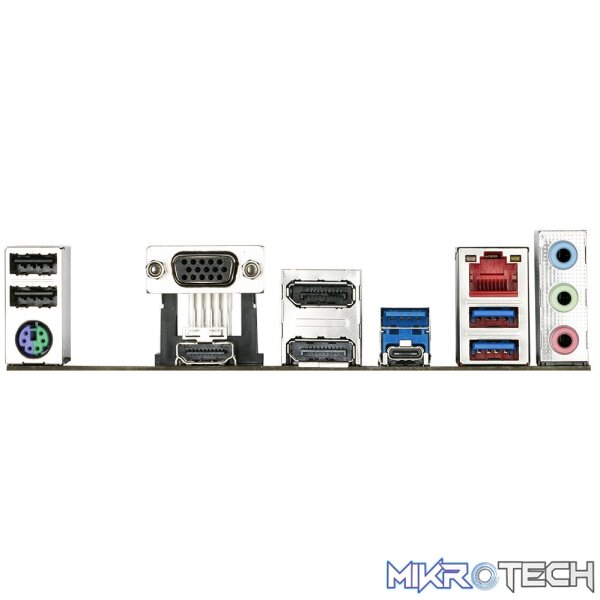

| Back Panel Connectors | 2x USB 2.0/1.1 ports |
| 1x PS/2 keyboard/mouse port | |
| 1x D-Sub port | |
| 1x HDMI 2.1 port | |
| 2x DisplayPorts | |
| 3x USB 3.2 Gen 1 ports | |
| 1x USB Type-C port, with USB 3.2 Gen 2 support | |
| 1x RJ-45 port | |
| 3x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Fan fail warning | |
| Fan speed control (4-Pin PWM) | |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | Micro ATX Form Factor |
| 244mm x 244mm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
