Product Description

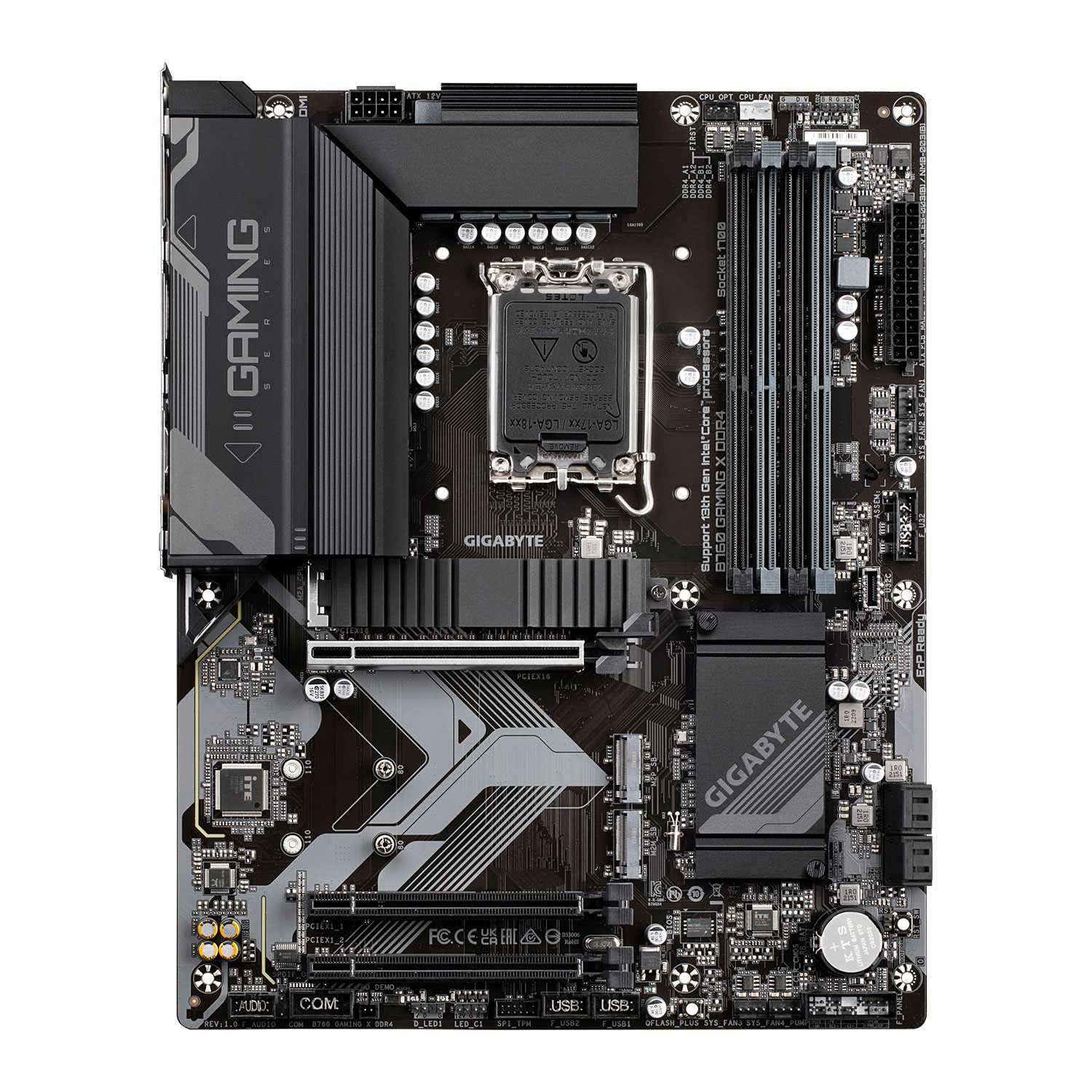

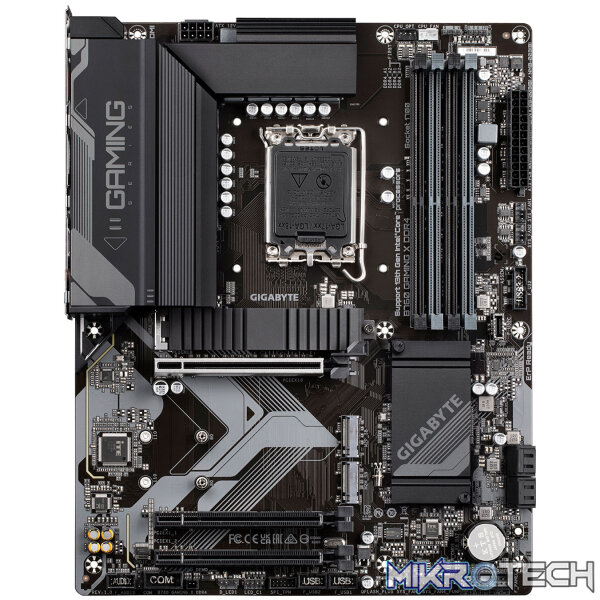

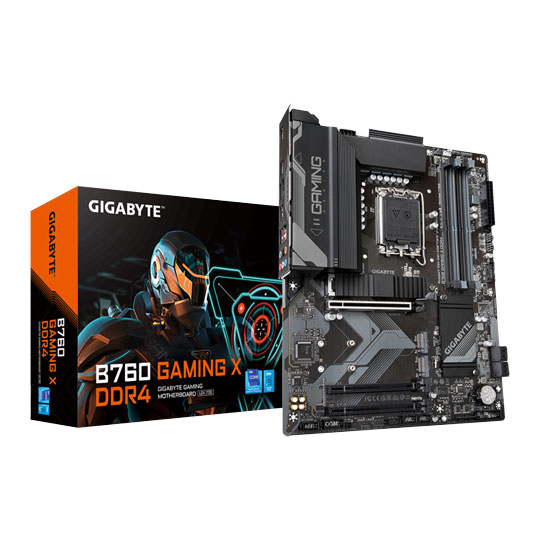

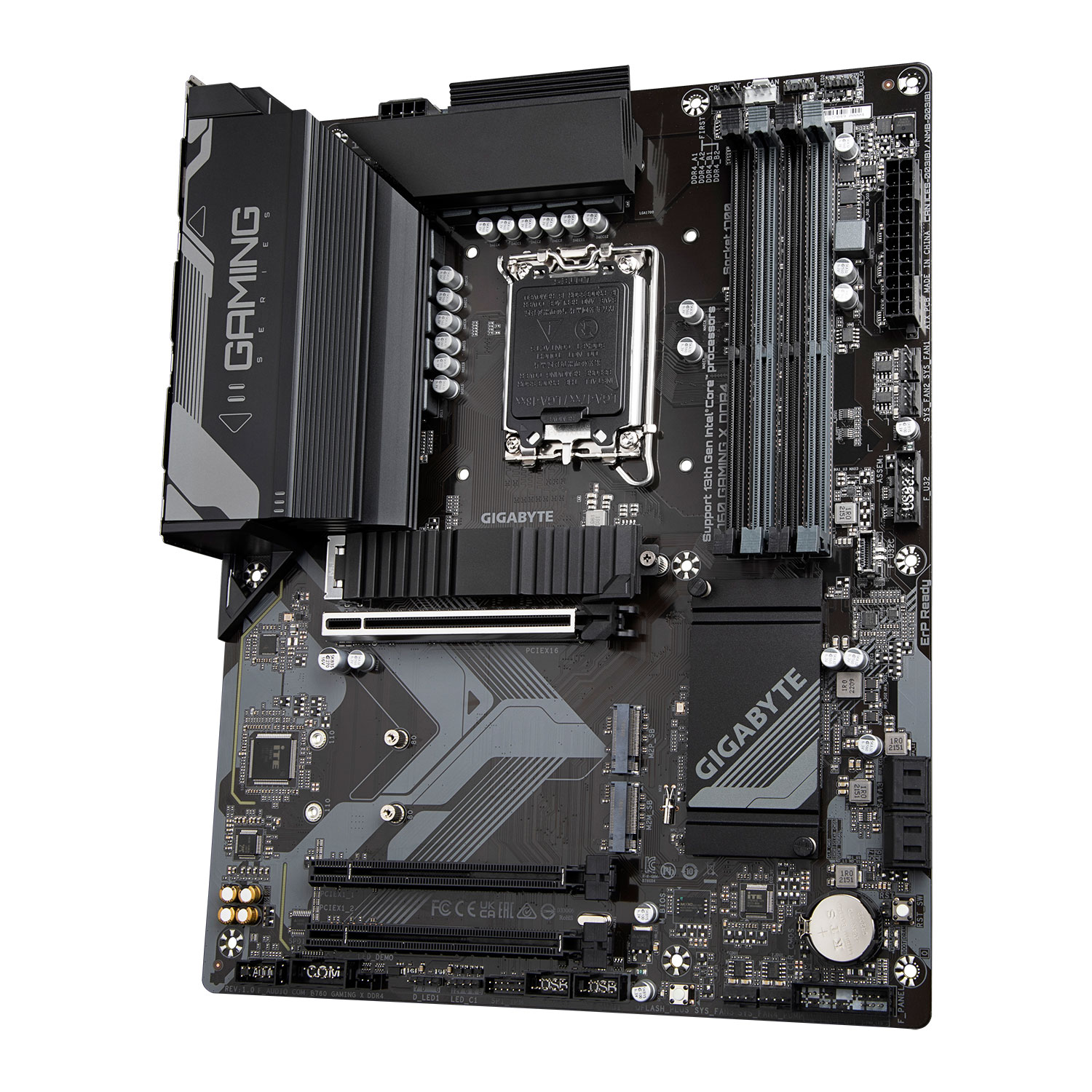

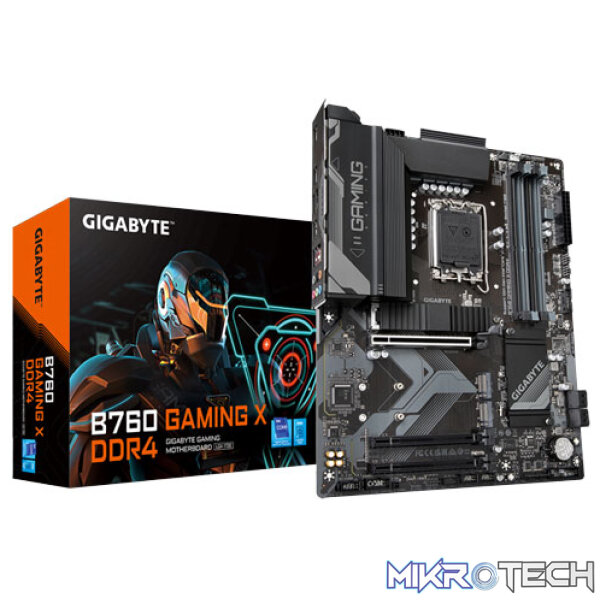

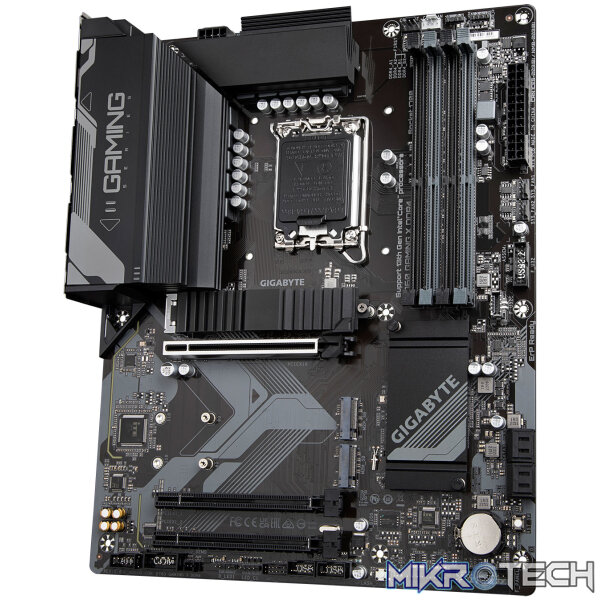

Gigabyte Intel B760 Gaming X DDR4 Raptor Lake LGA 1700 ATX Desktop Motherboard
GA-B760-GAMING-X-DDR4
A SOLID FOUNDATION FOR YOUR SYSTEM
Here to herald the arrival of the latest generation of Intel CPUs is the B760 GAMING X Motherboard, this beast is filled with the top-shelf components required to deliver top-rate performance and high-end reliability for mainstream daily users and gaming enthusiasts. Boasting a hybrid digital VRM power solution, an advanced cooling solution, Wi-Fi support and incredible PCI-e Gen 4.0 interfaces for your GPU and M.2 Slot, combine that with 2.5GbE LAN, high quality audio and a comprehensive rear I/O and you have everything you need to ensure you remain at the top of your game.
Intel B760 Chipset
LGA 1700 CPU Socket
12th & 13th Intel Processors
ATX Form Factor
Here to herald the arrival of the latest generation of Intel CPUs is the B760 GAMING X Motherboard, this beast is filled with the top-shelf components required to deliver top-rate performance and high-end reliability for mainstream daily users and gaming enthusiasts. Boasting a hybrid digital VRM power solution, an advanced cooling solution, Wi-Fi support and incredible PCI-e Gen 4.0 interfaces for your GPU and M.2 Slot, combine that with 2.5GbE LAN, high quality audio and a comprehensive rear I/O and you have everything you need to ensure you remain at the top of your game.
Intel B760 Chipset
LGA 1700 CPU Socket
12th & 13th Intel Processors
ATX Form Factor
Unparalleled Performance
HYBRID DIGITAL VRM DESIGN?|?PCIE 4.0 DESIGN?|?DDR4 XMP
3 X PCIE 4.0 X4 M.2?|?HYBRID CORES OPTIMISATION
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides you with advanced features and all the latest technologies. GIGABYTE motherboards are equipped with an upgraded power solution, the latest storage standards and outstanding connectivity to enable optimised performance for gaming.
3 X PCIE 4.0 X4 M.2?|?HYBRID CORES OPTIMISATION
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides you with advanced features and all the latest technologies. GIGABYTE motherboards are equipped with an upgraded power solution, the latest storage standards and outstanding connectivity to enable optimised performance for gaming.
Outstanding Thermal Design
FULLY COVERED MOSFET HEATSINK?|?M.2 THERMAL GUARD?|?SMART FAN 6
Unparalleled performance is guaranteed by innovative and optimised thermal design to ensure the best CPU, Chipset & SSD stability and low temperatures under full load and heavy gaming performance.
Unparalleled performance is guaranteed by innovative and optimised thermal design to ensure the best CPU, Chipset & SSD stability and low temperatures under full load and heavy gaming performance.
Versatile Connectivity
2.5GBE LAN?|?FRONT USB-C 10GB/S?|?HI-FI AUDIO
GIGABYTE Motherboards enable the ultimate connection experience with blazing fast data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
GIGABYTE Motherboards enable the ultimate connection experience with blazing fast data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
Make it Your Own
RGB FUSION?|?UEFI BIOS?|?GIGABYTE CONTROL CENTER?|?MULTI-KEY
Enjoy impressive aesthetics with several useful and intuitive Gigabyte softwares. These allow you to control every aspect of your motherboard, with customisable lighting effects via RGB Fusion that will match your setup and sync colours together.
Enjoy impressive aesthetics with several useful and intuitive Gigabyte softwares. These allow you to control every aspect of your motherboard, with customisable lighting effects via RGB Fusion that will match your setup and sync colours together.
Built to Last
DIY FRIENDLY?|?Q-FLASH PLUS
The Ultra Durable™ design provides impressive durability, with the motherboard being built with a high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce each of the slots to make each solid and durable for years to come.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Gaming X Series |
| Model | B760 GAMING X DDR4 V1.0 (GA-B760M-GAMING-X-DDR4) |
| CPU Support | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| LGA1700 socket: Support for 13th Generation Intel Core, Pentium Gold and Celeron Processors | |
| Chipset | Intel B760 Express |
| Memory Support | |
| Intel 12th & 13th Gen Series | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules |
| 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Video | |
| DisplayPort | 1x DisplayPort, supporting a maximum resolution of 4096×2304 @ 60 Hz, Support for DisplayPort 1.2 and HDCP 2.3 |
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096×2160 @ 60 Hz, Support for HDMI 2.0 and HDCP 2.3 |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| Intel B760 Chipset | 2x PCIe 3.0 x1 Physical, x1 Electrical Slots |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) |
| Intel B760 Chipset | 2x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) |
| 4x SATA 6Gb/s connectors | |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek High-Definition Audio Codec |
| Support for S/PDIF Out | |
| 2/4/5.1/7.1-channel Surround Support with Front-Panel Jack retasking | |
| Connectivity | |

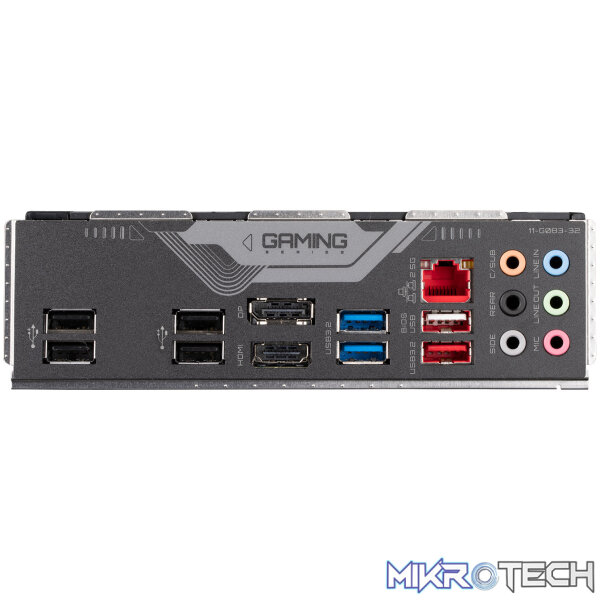

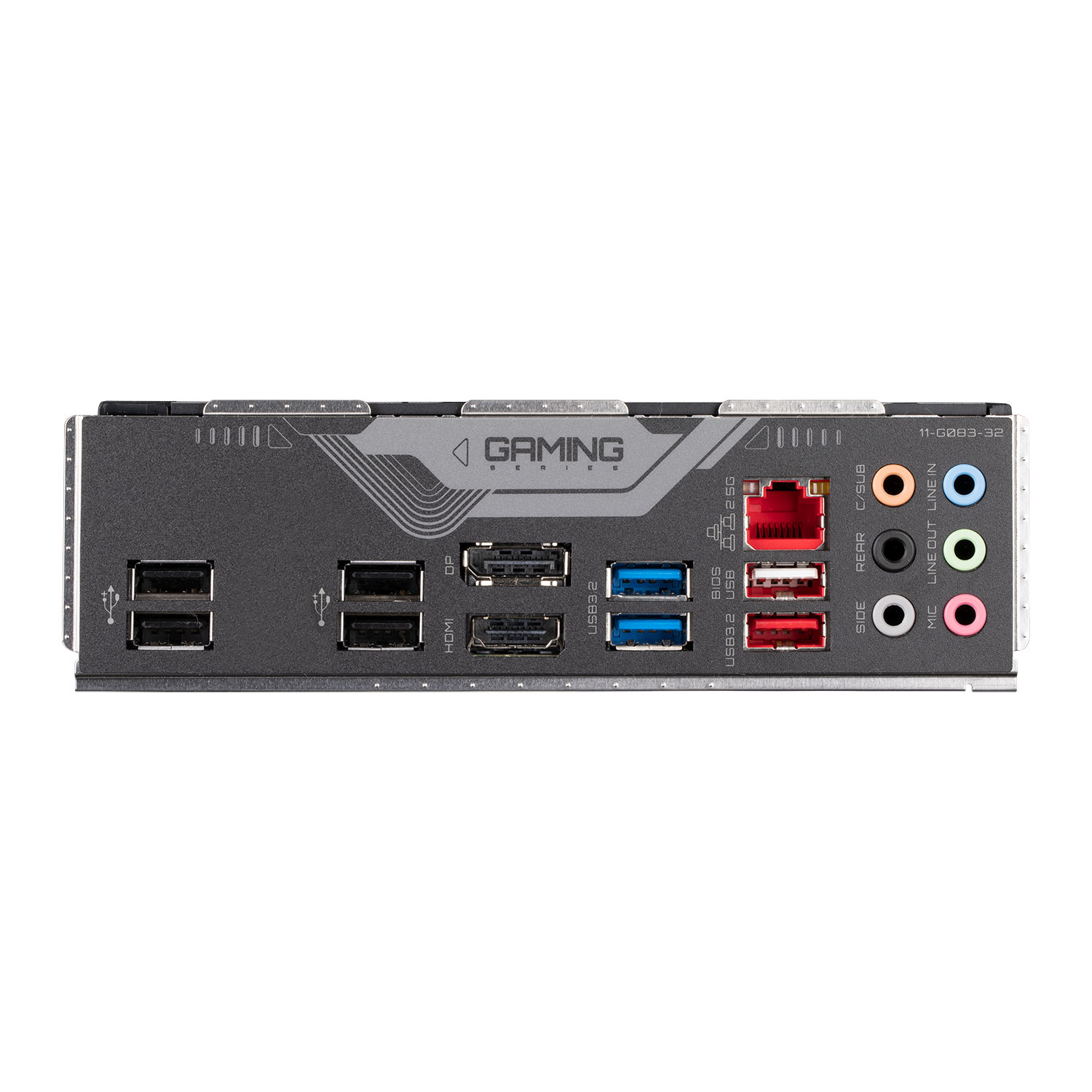

| Ports | 1x USB 3.2 Gen 2 Type-A port (red) |
| 2x USB 3.2 Gen 1 ports | |
| 5x USB 2.0/1.1 ports | |
| 1x DisplayPort | |
| 1x HDMI port | |
| 1x RJ-45 port | |
| 6x audio jacks | |
| Buttons | 1x Q-Flash Plus button |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 3x system fan headers | |
| 1x system fan/water cooling pump header | |
| 2x addressable LED strip headers | |
| 2x RGB LED strip headers | |
| 3x M.2 Socket 3 connectors | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x S/PDIF Out header | |
| 1x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1x USB 3.2 Gen 1 header | |
| 2x USB 2.0/1.1 headers | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x serial port header | |
| 1x Q-Flash Plus button | |
| 1x reset button | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| I/O Controller | iTE I/O Controller Chip |
| LED Displays | N/A |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro-ATX Form Factor, 305 x 240mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
