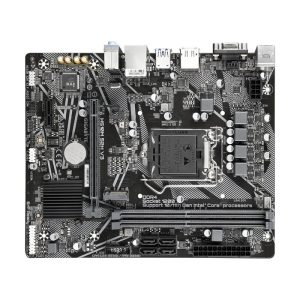

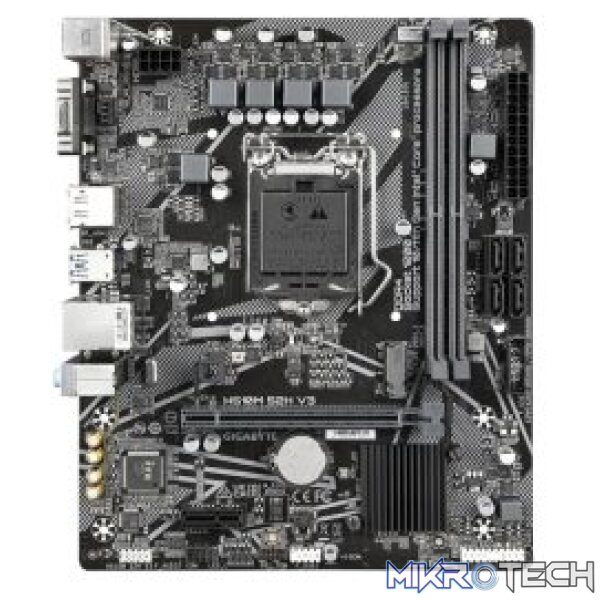

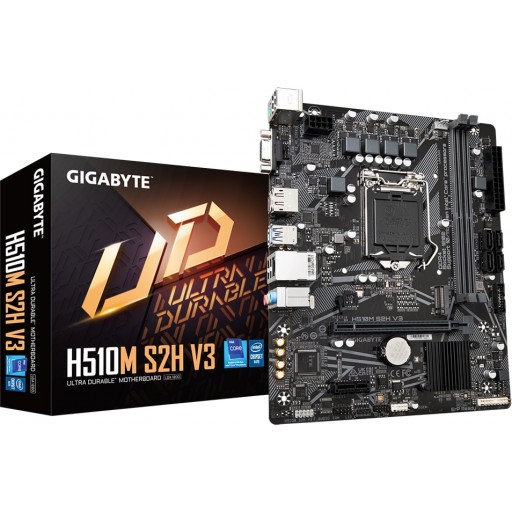

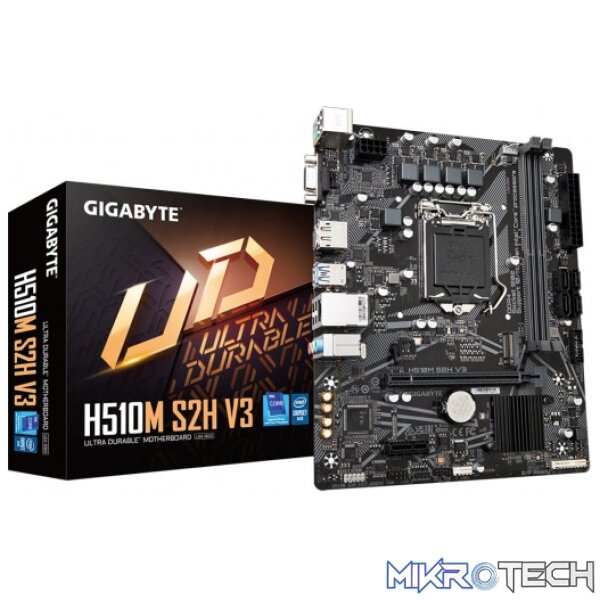

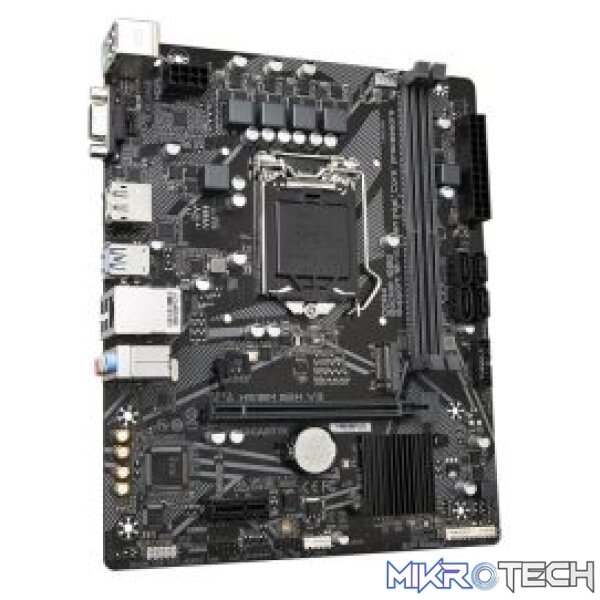

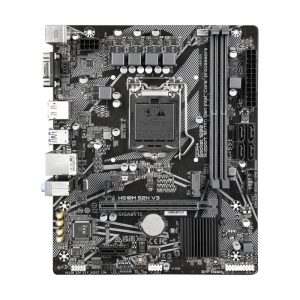

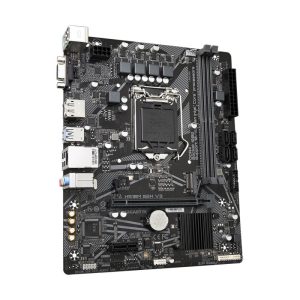

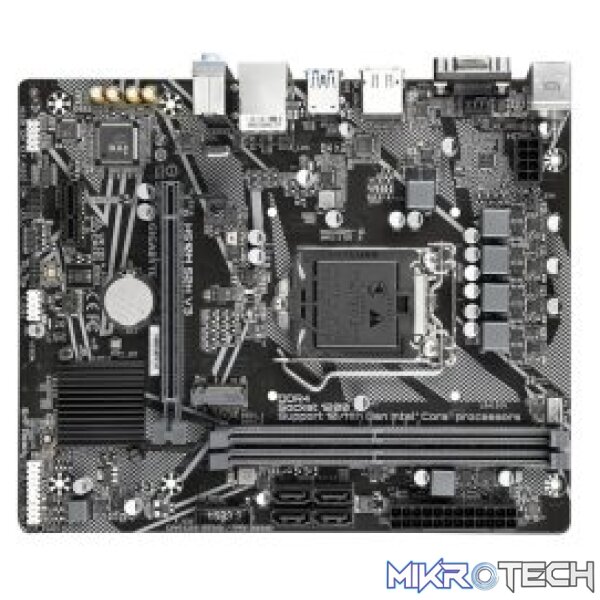

Gigabyte H510M S2H V3 Intel H510 Comet Lake LGA 1200 Micro-ATX Motherboard
R2,149.99 incl. VAT
Micro-ATX Form Factor Motherboard
Intel H510 Chipset
LGA 1200 Socket Supports 10th & 11th Gen Core Processors
2x DDR4 DIMM Slots, Up to 64GB (2x32GB)
Supports Up to DDR4-3200 (JEDEC)
1x PCIe 3.0 x16 Slot (x16 Physical)
1x PCIe 3.0 x1 Slot (x1 Physical)
1x M.2 2280 PCIe 3.0 x4 NVMe SSD Slot
4x SATA 3.0 Ports

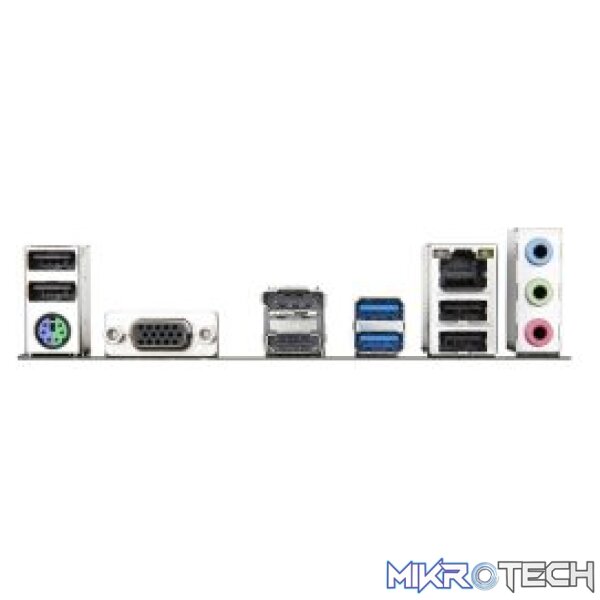

2x USB 5Gb/s Type-A Ports
4x USB 2.0 Type-A Ports
1x PS/2 Combo Port
1x HDMI 1.4 Port,1x DisplayPort 1.2 Port, 1x VGA D-Sub Port
3x 3.5mm Audio Jacks (Line Out, Line In, Microphone)
Realtek RTL8111H Gigabit Ethernet RJ-45 LAN
Realtek High-Definition Audio Codec
Gigabyte M.2 Latch Slot Design
Gigabyte RGB Fusion Sync
Gigabyte APP Center
Supports Windows 10, Windows 11 64-bit
3 Year Warranty
Out of stock
Gigabyte H510M S2H V3 Intel H510 Comet Lake LGA 1200 Micro-ATX Motherboard
GA-H510M-S2H-V3
Features
- Supports 11th/10th Gen Intel®Core Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 8-Channel HD Audio with High Quality Audio Capacitors
- NVMe PCIe Gen3 x4 2280 M.2 Connector
- GbE LAN with Bandwidth Management
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Motherboard Series |
| Model | H510M S2H V3 (H510M-S2H-V3-rev-10) |
| CPU Support | LGA1200 socket: Support for 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors |
| LGA1200 socket: Support for 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors | |
| Chipset | Intel H510 Express |
| Memory Support | |
| Intel 10th & 11th Gen Series | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules |
| 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules | |
| 2x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Video | |
| VGA | 1x VGA D-Sub, maximum resolution of 1920×1200 60Hz |
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096×2160 @ 30 Hz, Support for HDMI 1.4 and HDCP 2.3 |
| DisplayPort | 1x DisplayPort port, supporting a maximum resolution of 4096×2160 @ 60 Hz, Support for DisplayPort 1.2 and HDCP 2.3 |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 3.0 x16 Physical, x16 Electrical Slot |
| Intel H510 Chipset | 1x PCIe 3.0 x1 Physical, x1 Electrical Slot |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| Intel H510 Chipset | 4x SATA 6Gb/s connectors |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Networking | |
| LAN | Realtek RTL8111H Gigabit LAN 10/100/1000Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC897 High-Definition Audio Codec |
| 7.1-Channel USB High Performance Audio with front-panel jack retasking | |
| Connectivity | |
| Ports | 2x USB 2Gb/s Type-A Ports |
| 4x USB 2.0 Type-A Ports | |
| 1x VGA D-Sub Port | |
| 1x HDMI 1.4 Port | |
| 1x DisplayPort 1.4 Port | |
| 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone) | |
| 1x PS/2 Combo Port | |
| 1x Realtek RTL8111H Gigabit LAN RJ-45 Port | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x system fan header | |
| 1x RGB LED strip header | |
| 1x M.2 Socket 3 connector | |
| 4x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x USB 3.2 Gen 1 header | |
| 1x USB 2.0/1.1 header | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1x serial port header | |
| 1x Clear CMOS jumper | |
| I/O Controller | iTE I/O Controller Chip |
| LED Displays | N/A |
| BIOS | 1x 128 Mb flash |
| UEFI AMI BIOS | |
| ACPI 6.4, SMBIOS 3.5 | |
| Multi-language | |
| Form Factor | Micro-ATX Form Factor, 226 x 185mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
