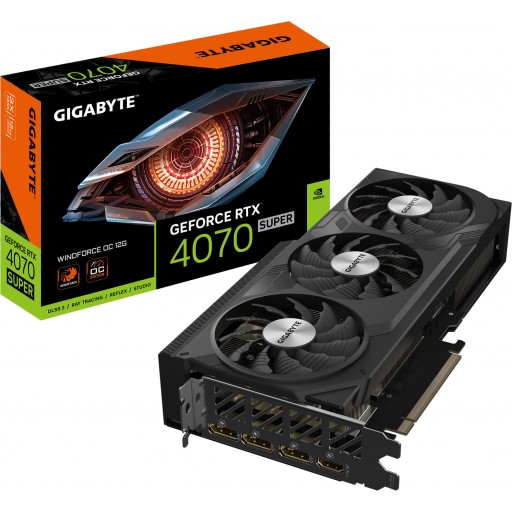

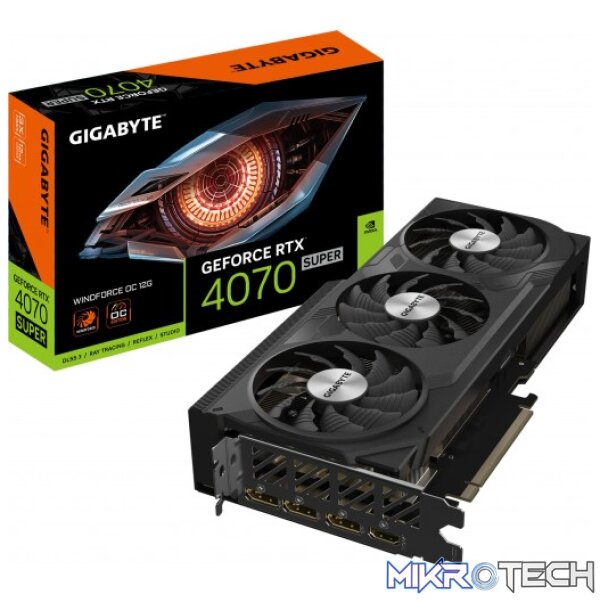

Gigabyte GeForce RTX 4070 SUPER WINDFORCE OC 12GB GDDR6X 192-bit PCIe 4.0 Graphics Card
R16,509.99 incl. VAT
NVIDIA GeForce RTX 4070 SUPER
Base Clock:1980 MHz
Boost Clock:Up To 2505 MHz
CUDA Cores:7168
3rd Gen Ray Tracing Cores:56
4th Gen Tensor Cores:224
Memory:12GB GDDR6X
Effective Memory Clock:21,000 MHz
Real Time Ray Tracing
DLSS 3.5 AI Rendering Technology

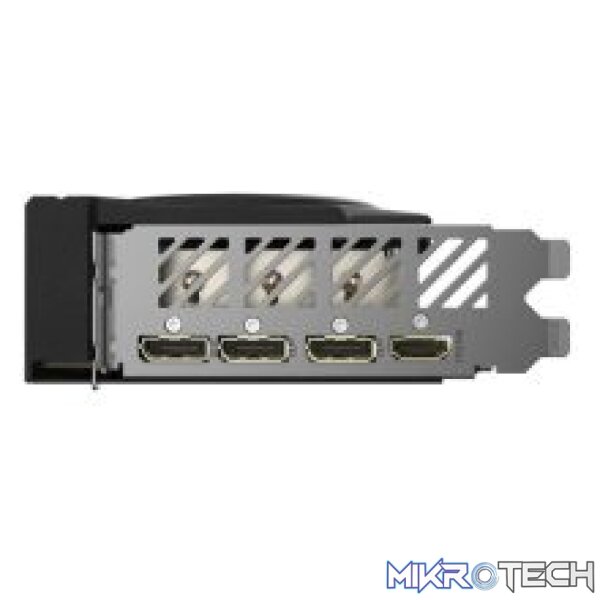

3 x DisplayPort 1.4, 1 x HDMI 2.1a
PCIe 5.0 12VHPWR Connector
3 Year Warranty
Out of stock
Gigabyte GeForce RTX 4070 SUPER WINDFORCE OC 12GB GDDR6X 192-bit PCIe 4.0 Graphics Card
GV-N407SWF3OC-12GD
Gigabyte GeForce RTX 4070 SUPER WINDFORCE OC 12G
KEY FEATURE
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX 4070 SUPER
- Integrated with 12GB GDDR6X 192bit memory interface
- WINDFORCE Cooling System
- Protection metal back plate
Features
NVIDIA Ada Lovelace Architecture
Designed to Give You Superpowers
New Streaming Multiprocessors
Up to 2x performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3 vs. brute-force rendering
Third-Gen RT Cores
Up to 2x ray tracing performance
Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture
Realistic and Immersive Graphics
Dedicated Ray Tracing Cores
AI-Accelerated Performance
NVIDIA DLSS 3
Game-Winning Responsiveness
NVIDIA Reflex low-latency platform
Built for Live Streaming
NVIDIA Encoder
AI-Enhanced Voice and Video
RTX Video Super Resolution and NVIDIA Broadcast
Fast-Track Your Creativity
NVIDIA Studio
Performance and Reliability
Game Ready and Studio Drivers
Ray Tracing
Hyperrealistic. Hyperfast.
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
NVIDIA DLSS 3
Max FPS. Max Quality. Powered by AI.
DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.
NVIDIA Reflex
Victory measured in milliseconds.
NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.
NVIDIA Studio
Your ideas, accelerated by NVIDIA Studio.
Take your creative projects to the next level with NVIDIA Studio. Powered by new dedicated hardware, RTX 40 Series unlocks unmatched performance in 3D rendering, video editing, and graphic design. Experience feature-rich RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

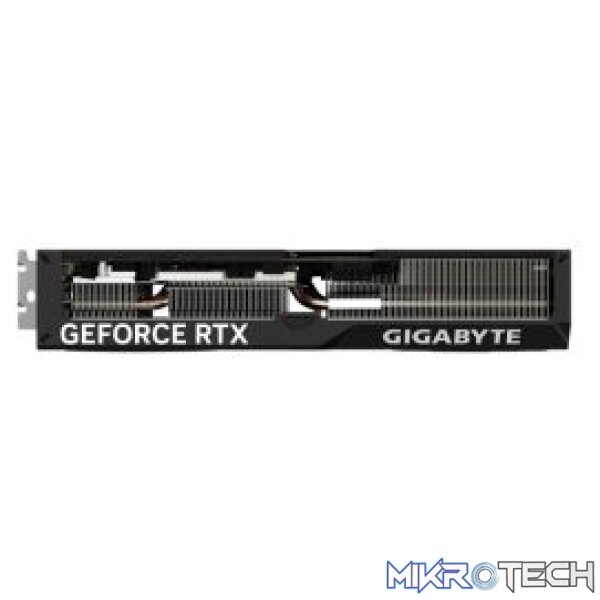

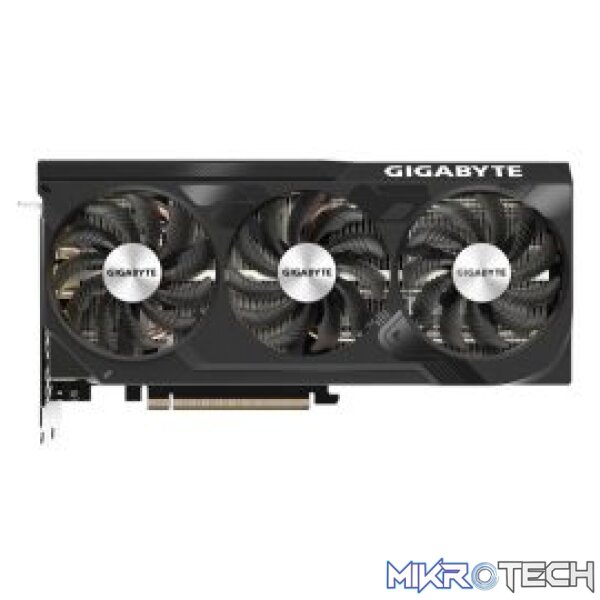

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
EXCELLENT IN ESSENTIAL

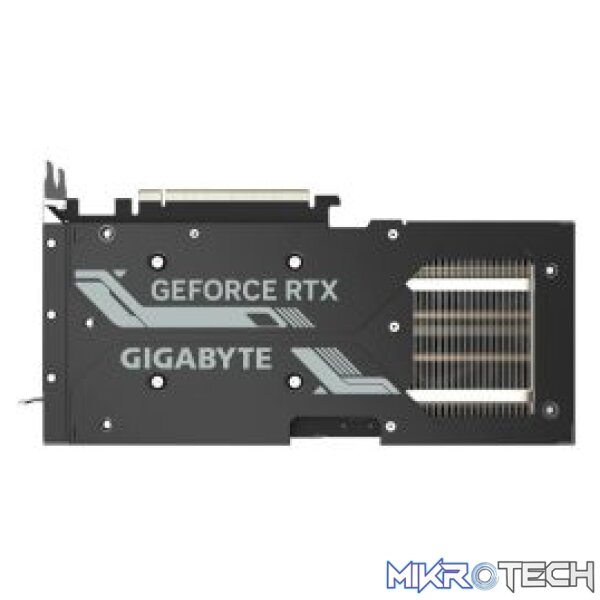

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
BUILD STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications
| Make and Model | Gigabyte GeForce RTX 4070 SUPER WINDFORCE OC 12G |
|---|---|
| Part Number | GV-N407SWF3OC-12GD |
| Chipset | NVIDIA® GeForce RTX 4070 SUPER |
| CUDA Cores | 7168 |
| Engine Clock | 2505 MHz (Reference card: 2475 MHz) |
| Memory | 12GB GDDR6X |
| Memory Clock | 21 Gbps |
| Memory Interface | 192-bit |
| Memory Bandwidth | N/A |
| Bus Interface | PCI Express 4.0 |
| SLI Capable | N/A |
| OpenGL | 4.6 |
| DirectX Version Support | 12 Ultimate |
| Lighting | None |
| Cooler | N/A |
| Resolution | Digital: 7680 x 4320 |
| Max. Display Support | 4 |
| G-SYNC Technology | Yes |
| Connectors | |
| HDMI | 1 x HDMI 2.1a |
| DisplayPort | 3 x DisplayPort 1.4a |
| USB | None |
| Video Out | HDMI |
| HDCP Support | Yes |
| Video In | No |
| Power Consumption | 285W |
| Power Connectors | 1 x 16-pin |
| Slot | N/A |
| Dimensions (L x W x H) | 261 x 126 x 50 mm |
| Weight | N/A |
Package Contents
- 1 x Gigabyte GeForce RTX 4070 SUPER WINDFORCE OC 12G
- 1 x Quick Guide
