Images & Specifications Are For Illustrative Purposes Only & May Differ From The Actual Product. E&OE

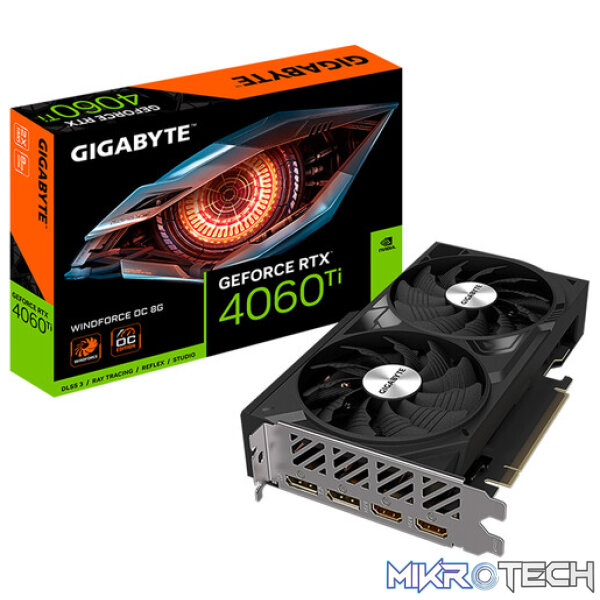

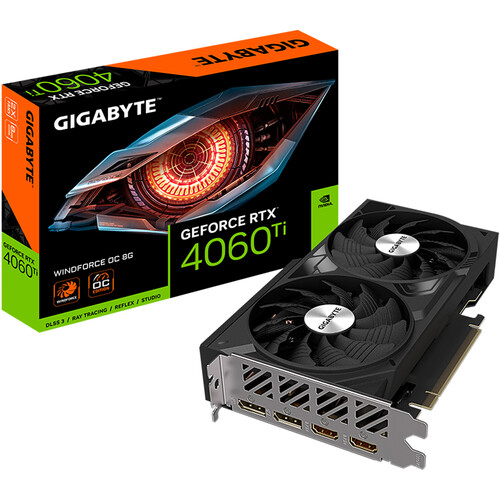

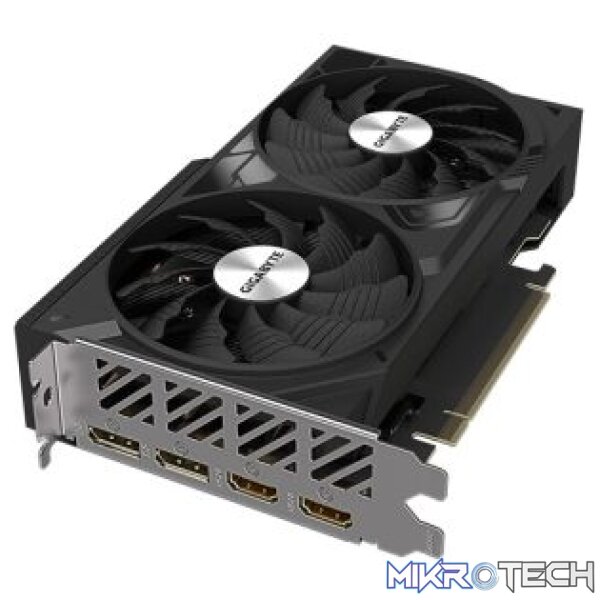

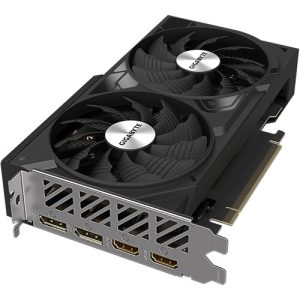

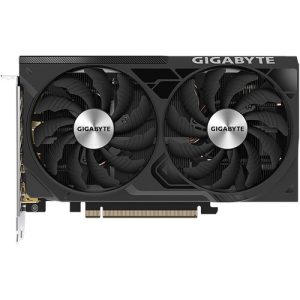

Gigabyte GeForce RTX 4060 Ti WINDFORCE OC 8GB GDDR6 128-Bit PCIe 4.0 Graphics Card
R11,439.99 incl. VAT
Base Clock:2310 MHz
Boost Clock:Up to 2550 MHz
CUDA Cores:4352
3rd Gen Ray Tracing Cores
4th Gen Tensor Cores
AV1 Decode / Encode Engines
Video Memory:8GB GDDR6
Memory Clock:18 Gbps
Memory Bus Width:128-bit

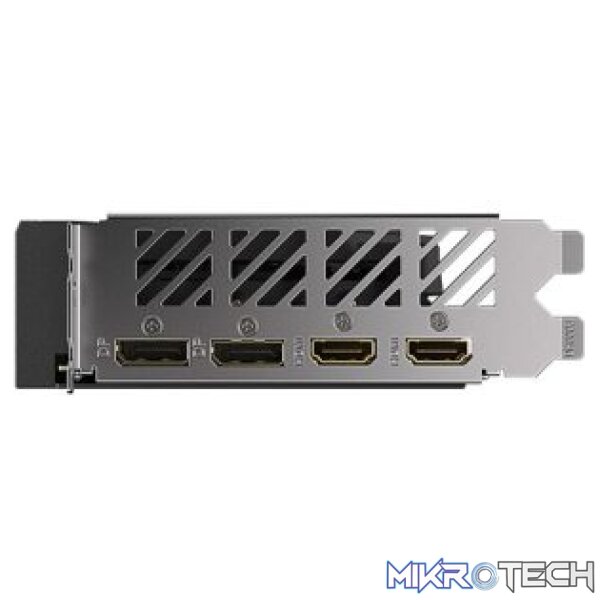

2x DisplayPort 1.4a, 2x HDMI 2.1 Ports
Multi-Display Capability:4x Displays
Maximum Digital Resolution:Up to 7680×4320

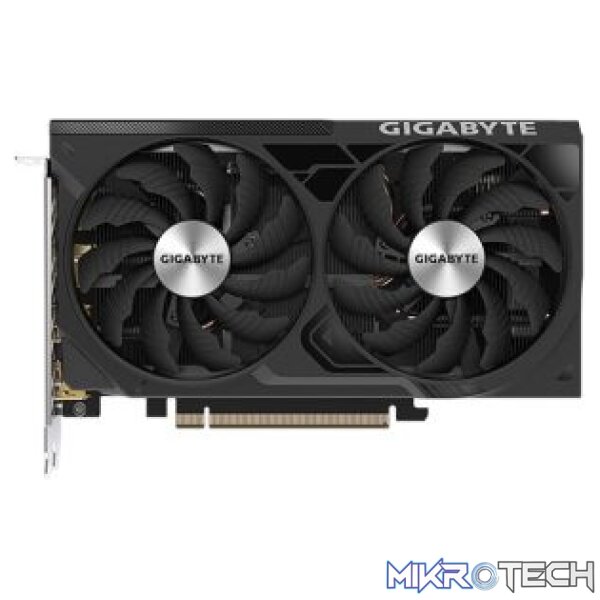

Gigabyte WINDFORCE 2X Cooling System with Alternate Spinning Fans
Gigabyte 3D Active Fan Design
Ventilated Metal Back Plate
Gigabyte AORUS Engine Software
3 Year Warranty
Out of stock
Gigabyte GeForce RTX 4060 Ti WINDFORCE OC 8GB GDDR6 128-Bit PCIe 4.0 Graphics Card
GV-N406TWF2OC-8GD
Gigabyte GeForce RTX 4060 TI WINDFORCE OC 8GB Graphics Card
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX 4060
- Integrated with 8GB GDDR6 126bit memory interface
- WINDFORCE Cooling System
- Protection back plate
Features
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 6 composite copper heat pipes, a vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
- ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure. - SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. - UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. - GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter. - 3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
OPTIMIZED THERMAL MODULE
The pure copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.
- SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
EXCELLENT IN ESSENTIAL

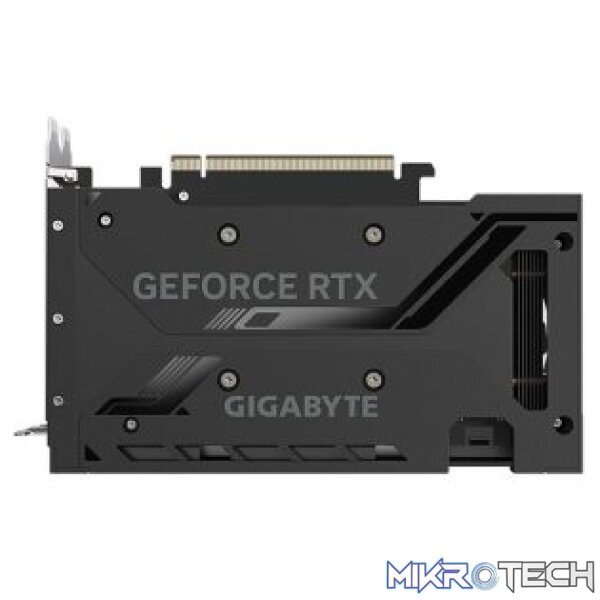

- PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection
BUILT STRONG
- ULTRA DURABLE
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature. - FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.Learn More
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.Learn More
GeForce RTX 40 Series Features
Ray Tracing
Hyperrealistic. Hyperfast.
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
NVIDIA DLSS 3
The performance multiplier, powered by AI.
DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.
NVIDIA Reflex
Victory measured in milliseconds.
NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.
Top tools for the creative trade.
NVIDIA Studio
Your ideas, accelerated by NVIDIA Studio.
Take your creative projects to the next level with NVIDIA Studio. Powered by new dedicated hardware, RTX 40 Series unlocks unmatched performance in 3D rendering, video editing, and graphic design. Experience feature-rich RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
NVIDIA Encoder
The dream stream.
Steal the show with incredible graphics and high-quality, stutter-free live streaming. Powered by the 8th generation NVIDIA Encoder (NVENC), GeForce RTX 40 Series ushers in a new era of high-quality broadcasting with next-generation AV1 encoding support, engineered to deliver greater efficiency than H.264, unlocking glorious streams at higher resolutions. Plus, exclusive optimizations in your favorite live streaming apps give your audience your bestevery time.
NVIDIA Broadcast
Your AI-powered home studio.
The NVIDIA Broadcast app transforms any room into a home studiotaking your live streams, voice chats, and video calls to the next level with powerful AI effects like noise and room echo removal, virtual background, and more.
NVIDIA Omniverse
Connect your creative worlds to a universe of possibility.
NVIDIA Omniverse is a 3D design collaboration platform within the NVIDIA Studio suite of tools for creators. Built to accelerate workflows and unite apps and assets to bring your ideas to lifefast.
NVIDIA Canvas
The app that puts the AI in painting.
Use AI to turn simple brushstrokes into realistic landscape images. Create backgrounds quickly, or speed up your concept exploration so you can spend more time visualizing ideas.
Additional Features and Benefits
Game Ready Drivers
GeForce Game Ready Drivers deliver the best experience for your favorite games. Theyre finely tuned in collaboration with developers and extensively tested across thousands of hardware configurations for maximum performance and reliability.
GeForce Experience
Capture and share videos, screenshots, and live streams with friends. Keep your drivers up to date and optimize your game settings. GeForce Experience lets you do it all. Its the essential companion to your GeForce graphics card.
NVIDIA G-SYNC
Get smooth, tear-free gameplay at high refresh rates, plus HDR and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.
NVIDIA Ansel
Turn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
Virtual Reality
The highest performance graphics deliver the smoothest, most immersive experiences in VR.
Resizable BAR
Resizable BAR is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once, improving performance in many games.
System Requirements
- Supported OS: Windows® 7 64-bit, Windows® 10 64-bit, Linux 64-bit
- PCI Express x16 Slot
- 500W Power Supply with 1 x 8-pin PCI-E power connector
Additional Information:
Specifications
| Make and Model | Gigabyte GeForce RTX 4060 Ti WINDFORCE OC 8G Graphics Card |
|---|---|
| Part Number | GV-N406TWF2OC-8GD G10 |
| Colour | Black |
| Chipset | GeForce® RTX® 4060 Ti |
| CUDA Cores | 4,352 |
| Core Clock | 2550 MHz (Reference Card: 2535 MHz) |
| Memory | 8GB GDDR6 |
| Memory Speed | 18 Gbps |
| Memory Interface | 128 bit |
| Bus Interface | PCI Express® v4.0 |
| SLI Capable | No |
| Cooler | WindForce Cooling System w/ 2x Cooling Fans |
| Lighting | None |
| Resolution & Refresh Rate | 7680 x 4320 (max.) |
| Maximum Displays | 4 |
| HDCP Support | Yes |
| G-SYNC® Technology | Yes |
| Connectors | |
| HDMI | 2 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 1.4a |
| Power Connector | 1x 8-pin |
| Recommended Power Supply | 500W |
| Dimensions (LxWxH) | L=201 W=120 H=41 mm |
| Weight | N/A |
