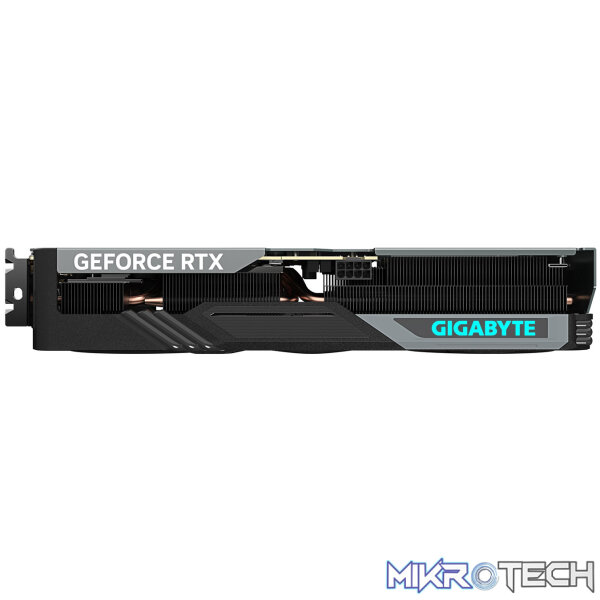

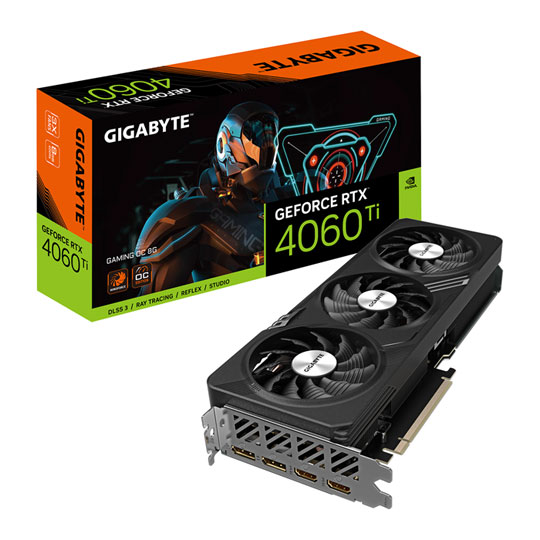

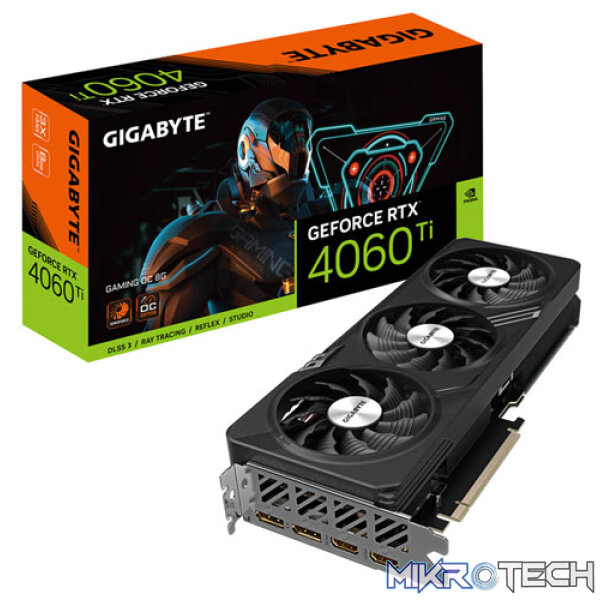

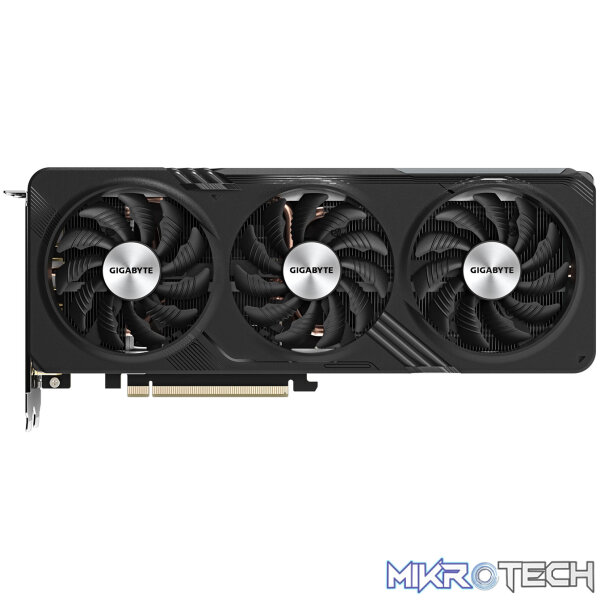

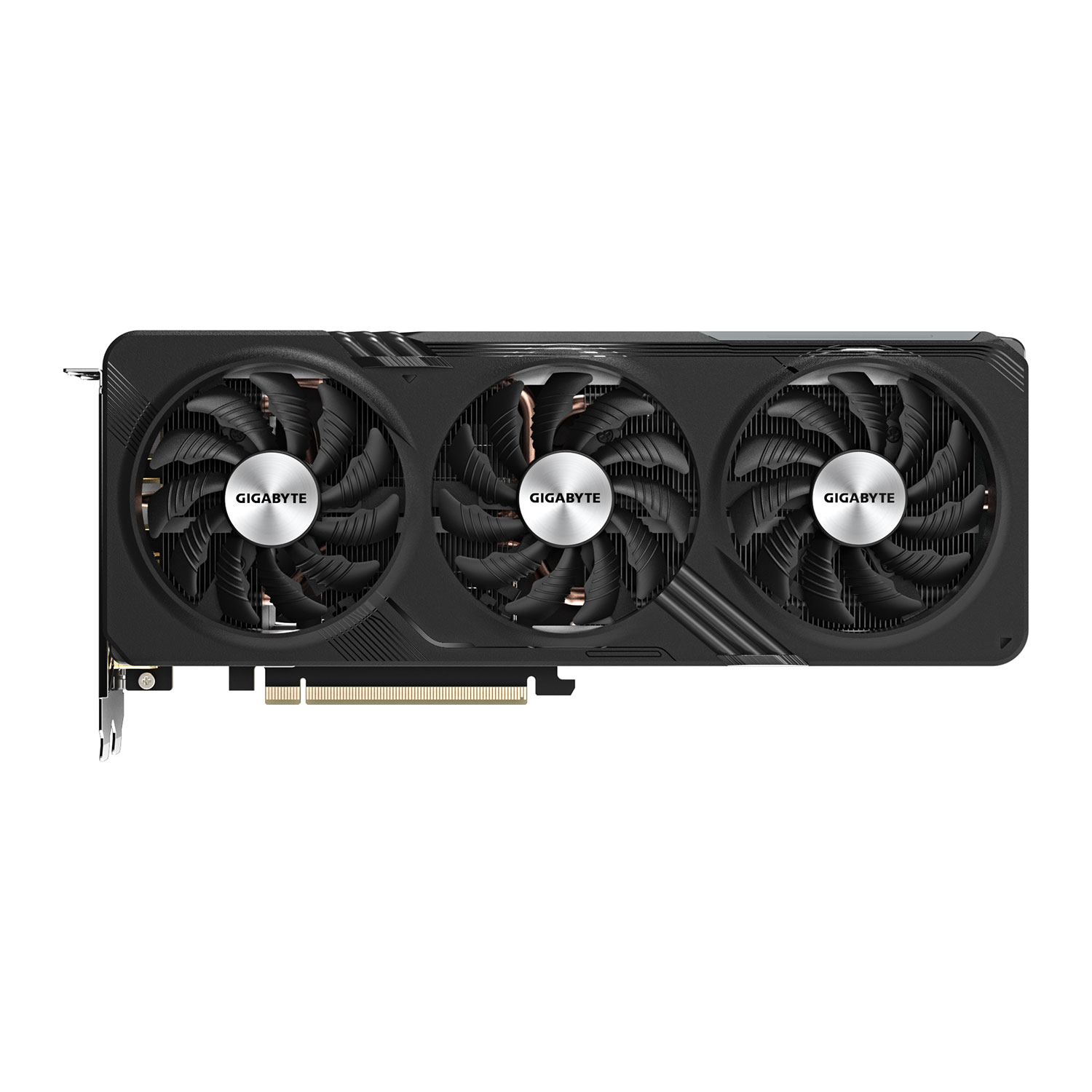

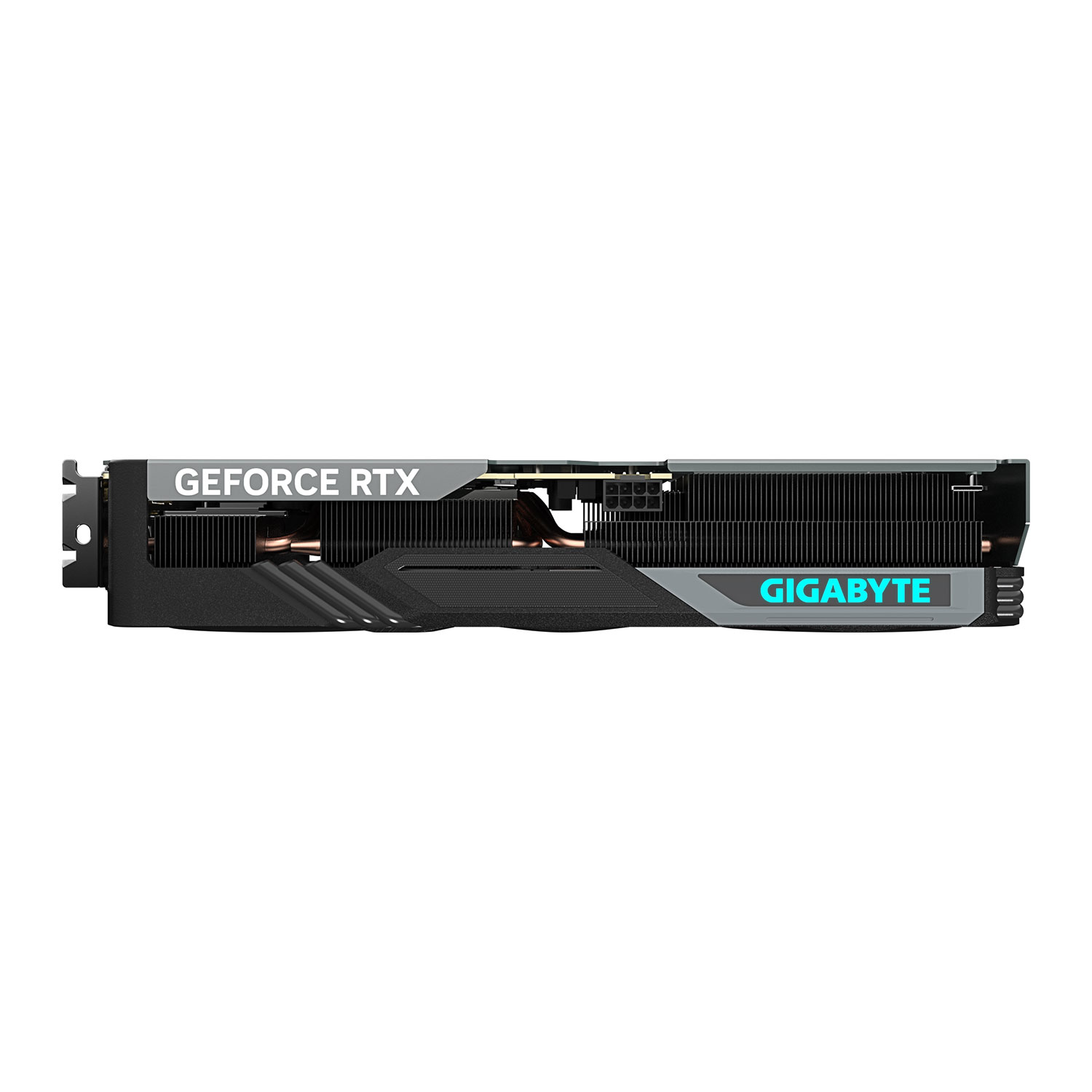

Gigabyte GeForce RTX 4060 Ti GAMING OC 8GB GDDR6 128-Bit PCIe 4.0 Desktop Graphics Card
GV-N406TGAMING OC-8GD
Gigabyte GeForce RTX™ 4060 Ti GAMING OC 8G
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060 Ti
- Integrated with 8GB GDDR6 126bit memory interface
- WINDFORCE Cooling System
- RGB Fusion
- Dual BIOS
- Protection metal back plate
Features
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER

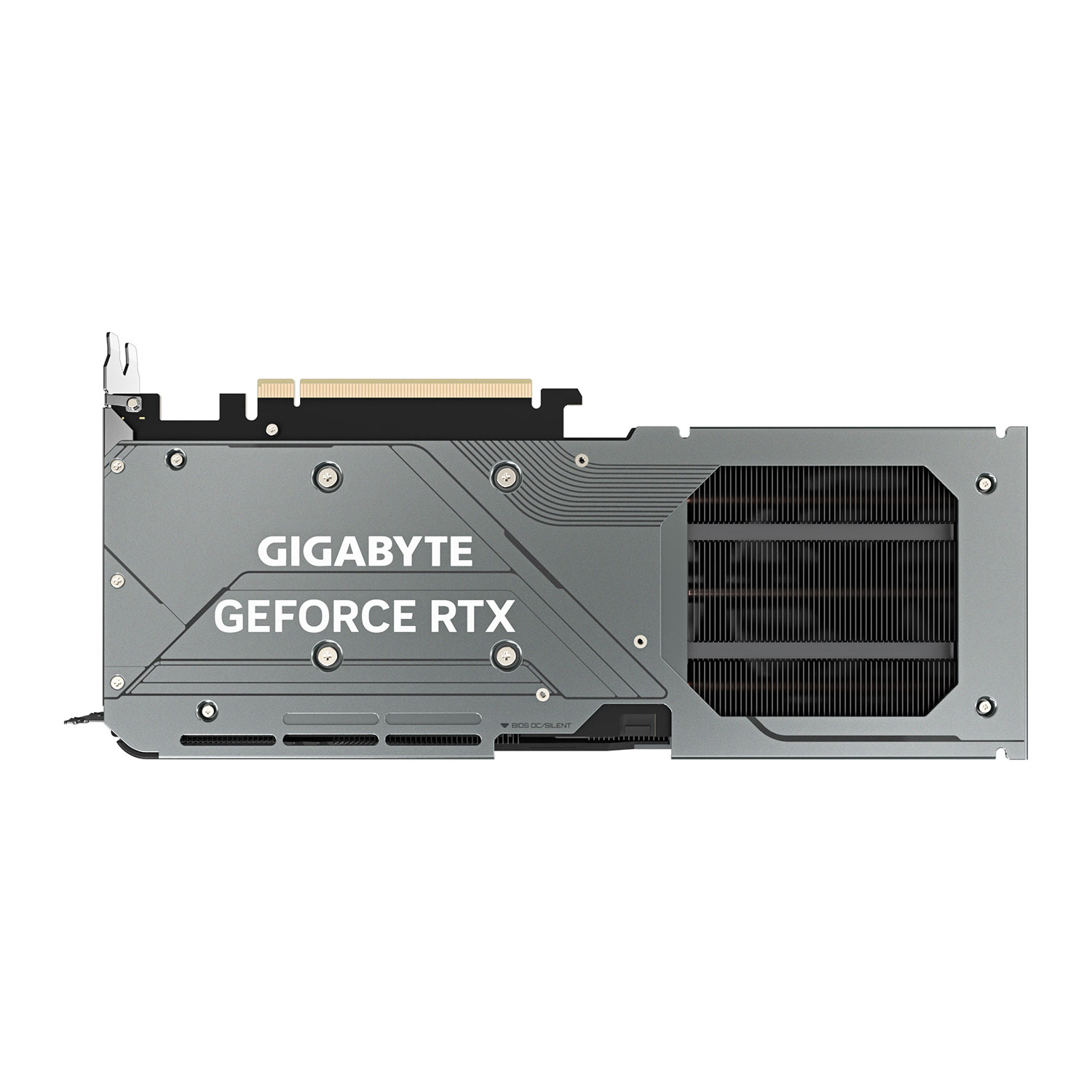

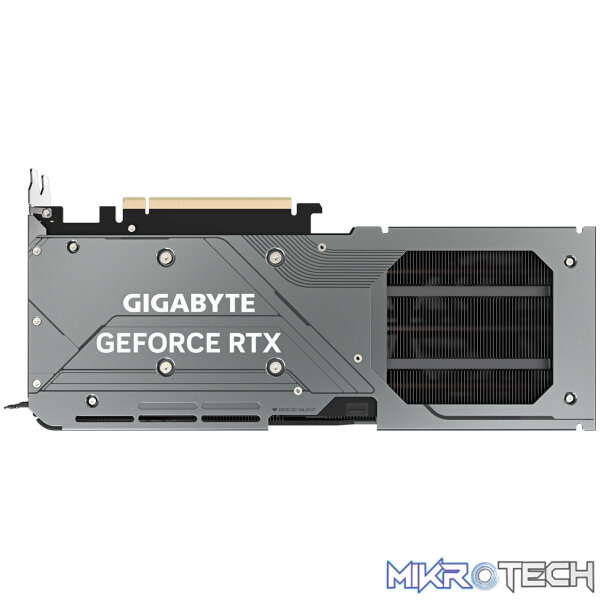

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protectio
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
BUILT STRONG
- ULTRA DURABLE
nUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
- ULTRA DURABLE
- FRIENDLY PCB DESIGN
nFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
- FRIENDLY PCB DESIGN
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time. Learn More
GeForce RTX 40 Series Features
Ray Tracing
Hyperrealistic. Hyperfast.
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
NVIDIA DLSS 3
The performance multiplier, powered by AI.
DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.
NVIDIA Reflex
Victory measured in milliseconds.
NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.
Top tools for the creative trade.
NVIDIA Studio
Your ideas, accelerated by NVIDIA Studio.
Take your creative projects to the next level with NVIDIA Studio. Powered by new dedicated hardware, RTX 40 Series unlocks unmatched performance in 3D rendering, video editing, and graphic design. Experience feature-rich RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
NVIDIA Encoder
The dream stream.
Steal the show with incredible graphics and high-quality, stutter-free live streaming. Powered by the 8th generation NVIDIA Encoder (NVENC), GeForce RTX 40 Series ushers in a new era of high-quality broadcasting with next-generation AV1 encoding support, engineered to deliver greater efficiency than H.264, unlocking glorious streams at higher resolutions. Plus, exclusive optimizations in your favorite live streaming apps give your audience your best—every time.
NVIDIA Broadcast
Your AI-powered home studio.
The NVIDIA Broadcast app transforms any room into a home studio—taking your live streams, voice chats, and video calls to the next level with powerful AI effects like noise and room echo removal, virtual background, and more.
NVIDIA Omniverse
Connect your creative worlds to a universe of possibility.
NVIDIA Omniverse™ is a 3D design collaboration platform within the NVIDIA Studio suite of tools for creators. Built to accelerate workflows and unite apps and assets to bring your ideas to life—fast.
NVIDIA Canvas
The app that puts the AI in painting.
Use AI to turn simple brushstrokes into realistic landscape images. Create backgrounds quickly, or speed up your concept exploration so you can spend more time visualizing ideas.
Additional Features and Benefits
Game Ready Drivers
GeForce Game Ready Drivers deliver the best experience for your favorite games. TheyÂ’re finely tuned in collaboration with developers and extensively tested across thousands of hardware configurations for maximum performance and reliability.
GeForce Experience™
Capture and share videos, screenshots, and live streams with friends. Keep your drivers up to date and optimize your game settings. GeForce Experience lets you do it all. ItÂ’s the essential companion to your GeForce graphics card.
NVIDIA G-SYNC
Get smooth, tear-free gameplay at high refresh rates, plus HDR and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.
NVIDIA Ansel
Turn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
Virtual Reality
The highest performance graphics deliver the smoothest, most immersive experiences in VR.
Resizable BAR
Resizable BAR is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once, improving performance in many games.
System Requirements
- Supported OS: Windows® 7 64-bit, Windows® 10 64-bit, Linux 64-bit
- PCI Express x16 Slot
- 450W Power Supply with 1 x 8-pin PCI-E power connector
Specifications
| Make and Model | Gigabyte GeForce RTX™ 4060 Ti GAMING OC 8G Graphics Card |
|---|---|
| Part Number | GV-N406TGAMING OC-8GD |
| Colour | Black |
| Chipset | GeForce® RTX® 4060 Ti |
| CUDA Cores | 4,352 |
| Core Clock | TBA |
| Memory | 8GB GDDR6 |
| Memory Speed | 18 Gbps |
| Memory Interface | 128 bit |
| Bus Interface | PCI Express® v4.0 |
| SLI Capable | No |
| Cooler | WindForce Cooling System w/ 3x Cooling Fans |
| Lighting | RGB |
| Resolution & Refresh Rate | 7680 x 4320 (max.) |
| Maximum Displays | 4 |
| HDCP Support | Yes |
| G-SYNC® Technology | Yes |
| Connectors | |
| HDMI | 2 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 1.4a |
| Power Connector | 1x 8-pin |
| Recommended Power Supply | 450W |
| Dimensions (LxWxH) | N/A |
| Weight | N/A |
