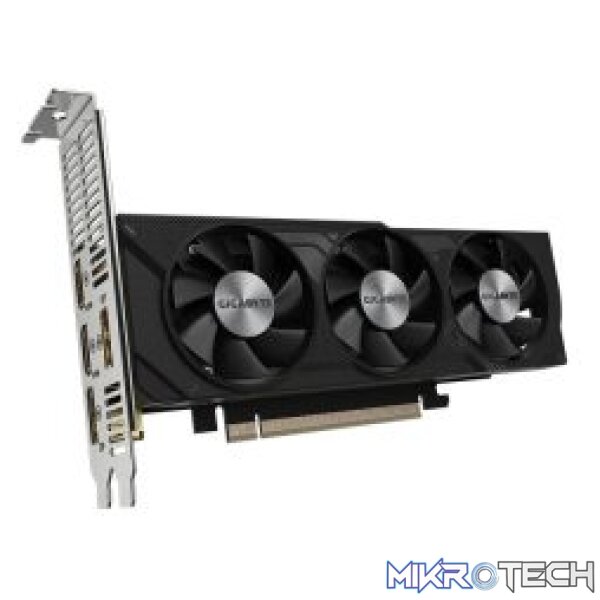

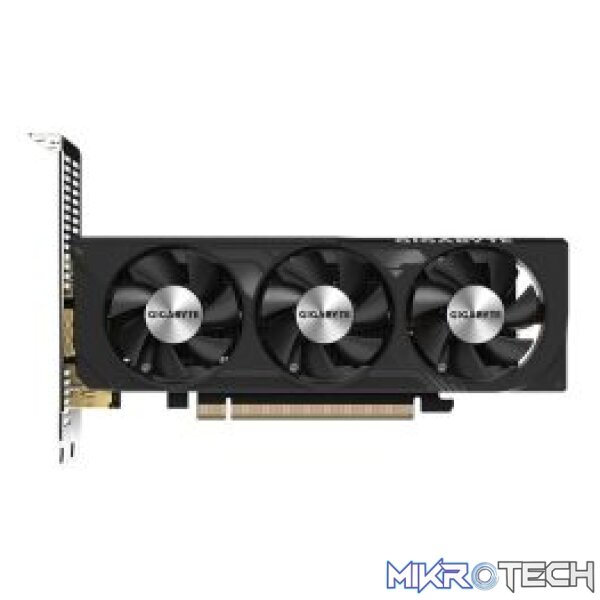

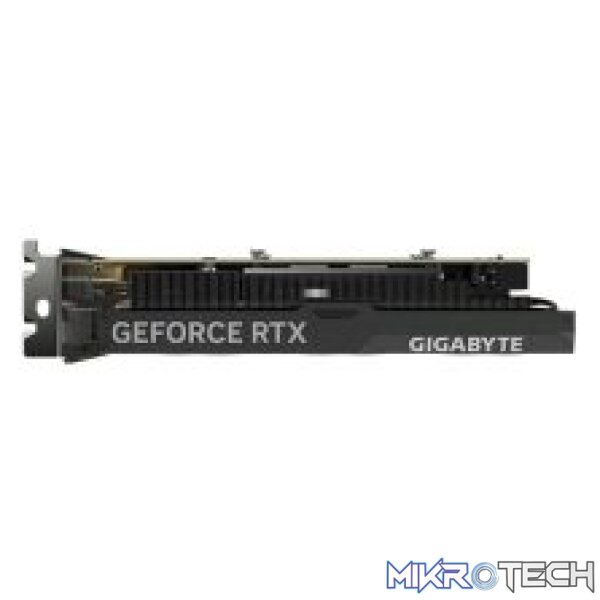

Gigabyte GeForce RTX 4060 OC Low Profile 8GB GDDR6 128-Bit PCIe 4.0 Graphics Card
R8,129.99 incl. VAT
Base Clock:1830 MHz
Boost Clock:Up to 2475 MHz
CUDA Cores:3072
3rd Gen Ray Tracing Cores
4th Gen Tensor Cores
AV1 Decode / Encode Engines
Video Memory:8GB GDDR6
Memory Clock:17 Gbps
Memory Bus Width:128-bit

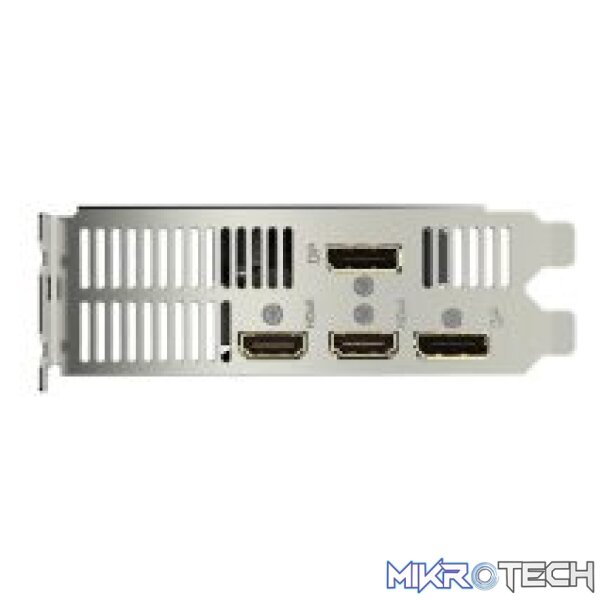

2x DisplayPort 1.4a, 2x HDMI 2.1 Ports
Multi-Display Capability:4x Displays
Maximum Digital Resolution:Up to 7680×4320
Gigabyte Low-Profile Cooling System
Gigabyte Ultra Durable Design
Gigabyte AORUS Engine Software
Includes Low-Profile Bracket
3 Year Warranty
Out of stock
Gigabyte GeForce RTX 4060 OC Low Profile 8GB GDDR6 128-Bit PCIe 4.0 Graphics Card
GV-N4060OC-8GL
Gigabyte GeForce RTX 4060 OC Low Profile 8GB Graphics Card
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX 4060
- Integrated with 8GB GDDR6 128bit memory interface
- Low Profile Design with 182mm card length
- Supports up to 4 displays
- First launched low profile graphics card for GeForce RTX 40 Series
CORE CLOCK
2475 MHz (Reference card: 2460 MHz)
Features
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTEs custom-designed cooling system delivers effective heat dissipation capacity, featuring pure copper heat pipes that make direct contact with the GPU. This facilitates enhanced heat transfer to the heatsink, allowing for higher performance at lower temperatures.
LOW PROFILE DESIGN
At just 182mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.
ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Additional Information:
Specifications
| Make and Model | Gigabyte GeForce RTX 4060 OC Low Profile 8G Graphics Card |
|---|---|
| Part Number | GV-N4060OC-8GL |
| Colour | Black |
| Chipset | GeForce® RTX® 4060 |
| CUDA Cores | 3072 |
| Core Clock | 2475 MHz (Reference card: 2460 MHz) |
| Memory | 8GB GDDR6 |
| Memory Speed | 17 Gbps |
| Memory Interface | 128 bit |
| Bus Interface | PCI Express® v4.0 |
| SLI Capable | No |
| Cooler | 3x Cooling Fans |
| Lighting | N/A |
| Resolution & Refresh Rate | 7680 x 4320 (max.) |
| Maximum Displays | 4 |
| HDCP Support | Yes |
| G-SYNC® Technology | Yes |
| Connectors | |
| HDMI | 2 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 1.4a |
| Power Connector | 1x 8-pin |
| Recommended Power Supply | 450W |
| Dimensions (LxWxH) | 182 W=69 H=40 mm |
| Weight | N/A |

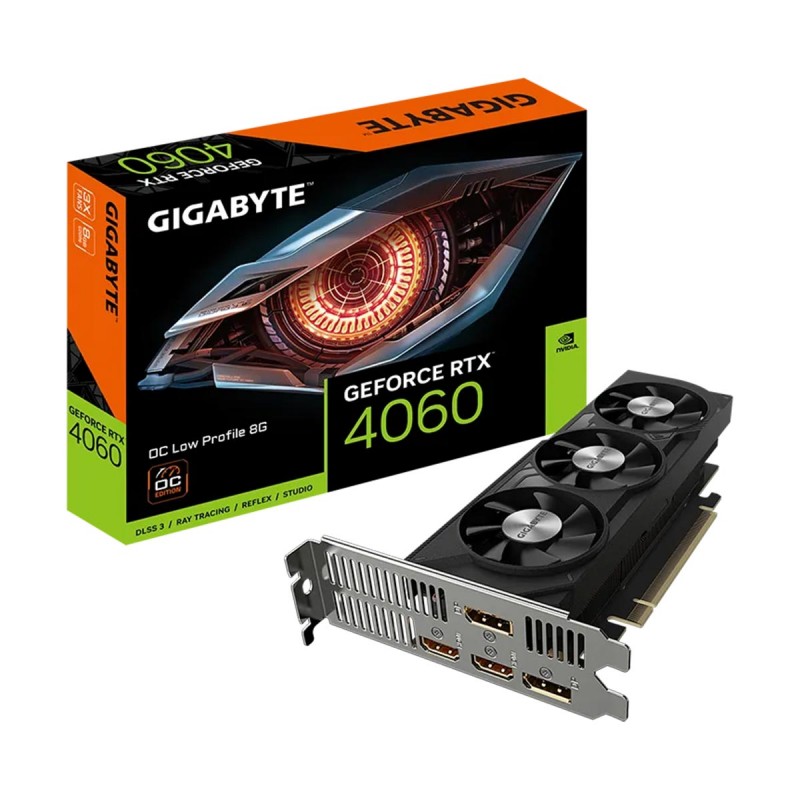

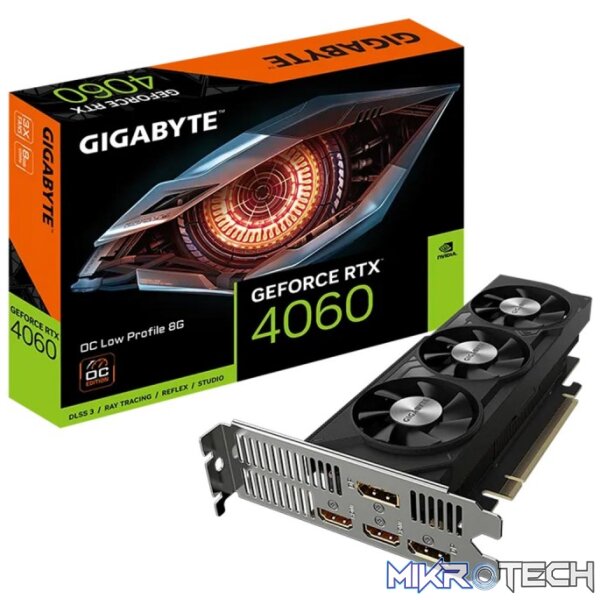

Package Contents
- Gigabyte Graphics Card
- Quick guide
- Low Profile Bracket
