Features:
GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE 300 series motherboards support the latest 8th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
Connecting the Future – USB Type-C™:
The USB Type-C™ port with USB 3.0 support is a robust and slim connector for all of your devices with reversible plug orientation.
Dual M.2 Technology for SSD Drive and WIFI Card
GIGABYTE H310MSTX-HD3 motherboard features Dual M.2 technology which for SATA/PCIe mode SSD devices connectivity and also for 11ac WIFI & Bluetooth 4.0 card usage. GIGABYTEÂ’s stacked design optimizes the PCB real-estate usage, allowing more components to be efficiently added without compromising any space.
High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on todayÂ’s HD displays and TVs.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today’s standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
HDMI™-The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
Display Port Support
Selected GIGABYTE motherboards feature DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
Intel® GbE LAN with WOL and PXE Support
Intel® Gigabit LAN with WOL and PXE support, deliver better network responsiveness and conveniently user experience in crowded LAN environments, to offer hassle free and high speed network connectivity.
USB 3.0 Ports Onboard
With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.
| CPU | 1. Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package (up to 65W) 2. L3 cache varies with CPU |
|---|---|
| Chipset | 1. Intel H310 Express Chipset |
| Memory | 1. 2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory 2. Dual channel memory architecture 3. Support for DDR4 2666/2400/2133 MHz memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 2. 1 x DisplayPorts, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. 3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 1 GB |
| Audio | 1. Realtek ALC255 codec 2. High Definition Audio 3. 2-channel |
| LAN | 1. Intel GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) |
| Storage Interface | Chipset: 1. 2 x SATA 6Gb/s connectors 2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe SSD support) |
| USB | Chipset: 1. 1 x USB Type-C port, with USB 3.1 Gen 1 support 2. 3 x USB 3.0/2.0 ports (2 ports on the back panel, 1 port onboard) 3. 2 x USB 2.0/1.1 ports available through the internal USB header |
| Internal I/O Connectors | 1. 1 x CPU fan header 2. 1 x system fan header 3. 2 x SATA 6Gb/s connectors 4. 1 x M.2 Socket 3 connector 5. 1 x SATA power connector 6. 1 x front panel header 7. 1 x battery power cable connector 8. 1 x USB 2.0/1.1 header 9. 2 x serial port headers 10. 1 x speaker header 11. 1 x buzzer header 12. 1 x Clear CMOS jumper 13. 1 x chassis intrusion header 14. 1 x USB 3.0/2.0 header 15. 1 x USB Type-C port, with USB 3.1 Gen 1 support 16. 1 x microphone jack 17. 1 x headphone and microphone combo jack |

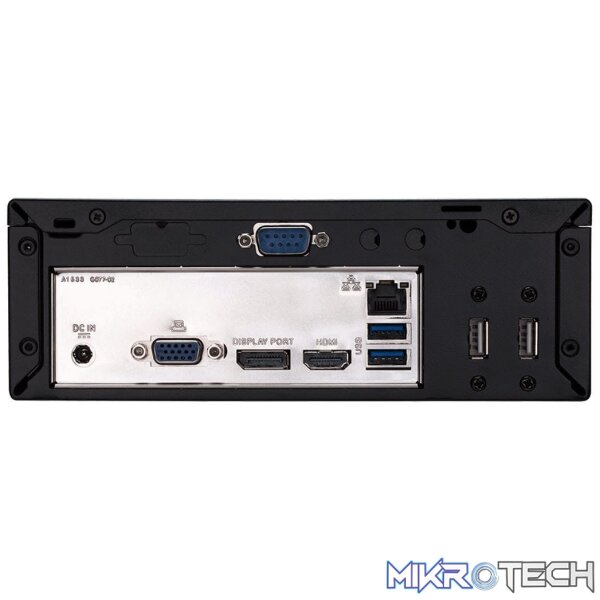

| Back Panel Connectors | 1. 1 x DC-In power connector 2. 1 x D-Sub port 3. 1 x HDMI port 4. 1 x DisplayPort 5. 2 x USB 3.0/2.0 ports 6. 1 x RJ-45 port |
| I/O Controller | 1. iTE I/O Controller Chip |
| H/W Monitoring | 1. System voltage detection 2. CPU/System temperature detection 3. CPU/System fan speed detection 4. CPU/System overheating warning 5. CPU/System fan fail warning 6. CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 1. 1 x 128 Mbit flash 2. Use of licensed AMI UEFI BIOS 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | 1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 2. Support for Q-Flash |
| Bundled Software | 1. Norton Internet Security (OEM version) |
| Operating System | 1. Support for Windows 10 64-bit |
| Form Factor | 1. Mini-STX Form Factor; 14.0cm x 14.7cm |
| Dimension | 193(L) mm x 153(W) mm x 67(H) mm |
| VESA | VESA Screws : included Supports 100 x 100 mm |
| HDMI Resolution (Max.) | 1920 x 1080 @60 Hz |
| Storage | Supports 2 x 2.5″ thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3) |
| VGA Resolution (Max.) | 1920 x 1200 @60 Hz |
| Wifi Card | Optional( Via M.2 Interface) |
| Support OS | System Environment Operating Temperature: 0°C to +50°C System Storage Temperature: -20°C to +60°C |
| Environment | 90W/19V/4.74A Power Adapter Note : Suggest select 90~120W Power adapter for DC in 12~19/24V |
| Power Adapter | 4096 x 2160 @60 Hz |
