KEY FEATURES:

– Micro-ATX Form Factor
– Intel B860 Chipset, Socket LGA 1851
– Supports Intel Core Ultra Series 2 Processors
– 4x DDR5 DIMM Slots, Supports Up To 256GB (4x64GB)
– Supports Up to DDR5-9066 (OC)
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 2x PCIe 4.0 x1 Slots (x16 Physical)
– 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
– 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
– 4x SATA 3.0 Ports
– Supports Front-Panel USB 5Gbps Type-C Port
– 1x USB 10Gbps Type-A Ports
– 2x USB 5Gbps Type-A Ports
– 3x USB 2.0 Type-A Ports
– 1x HDMI 2.1 (TMDS), 2x DisplayPort 2.1 Ports
– 3x 3.5mm Audio Jacks
– 1x PS/2 Combo Port (Keyboard, Mouse)
– 2x Antenna Connectors
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN
– WiFi 6E Tri-Band Adapter, Bluetooth 5.3
– Realtek High Definition Audio CODEC
– 8+1+2 Twin Hybrid VRM Solution
– Supports Windows 11 64-Bit
– 3 Year Warranty

Description

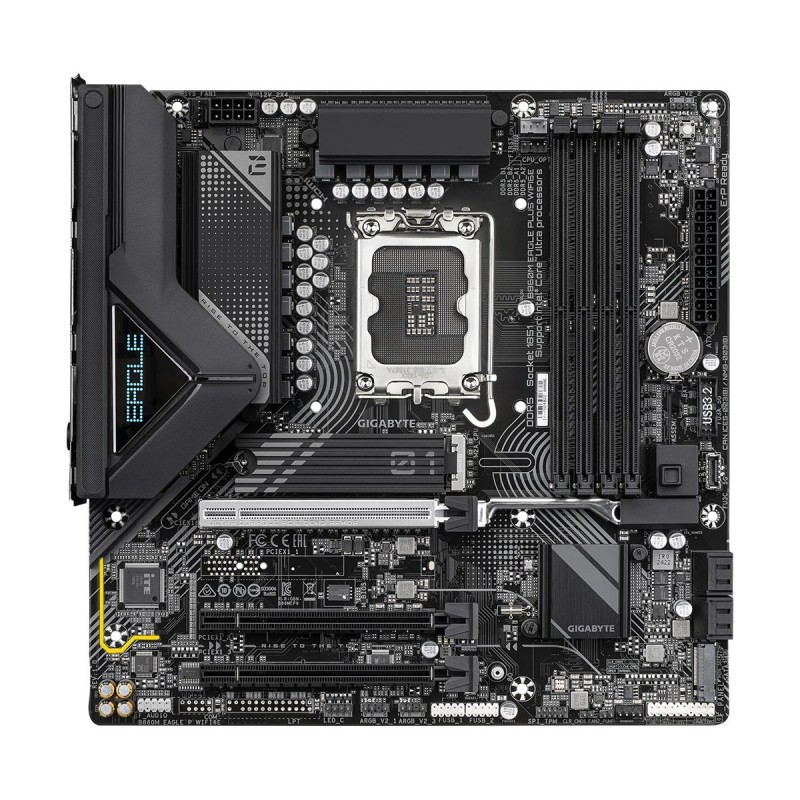

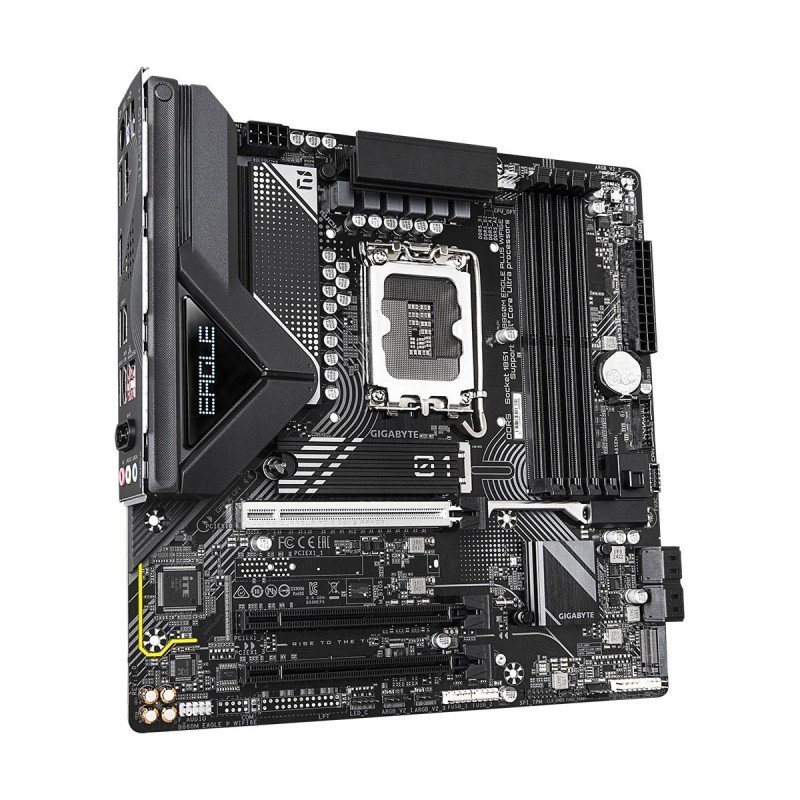

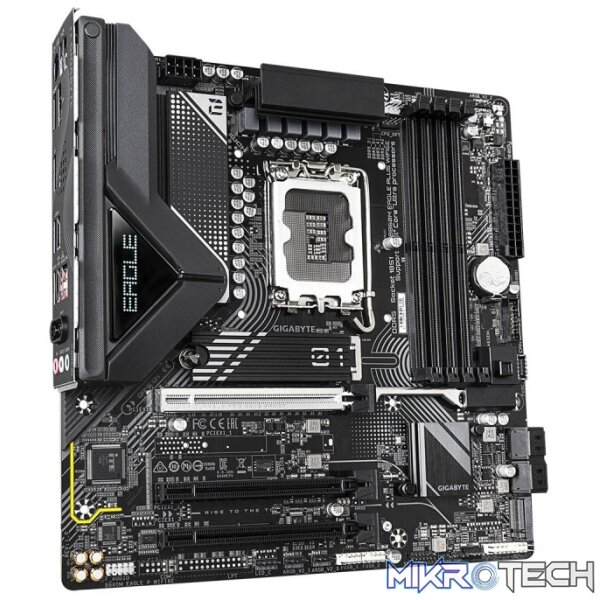

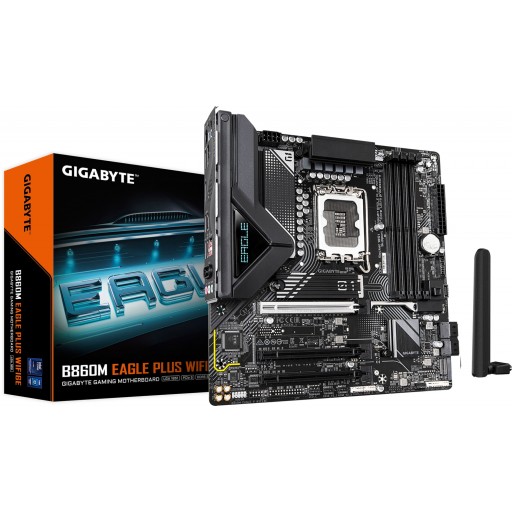

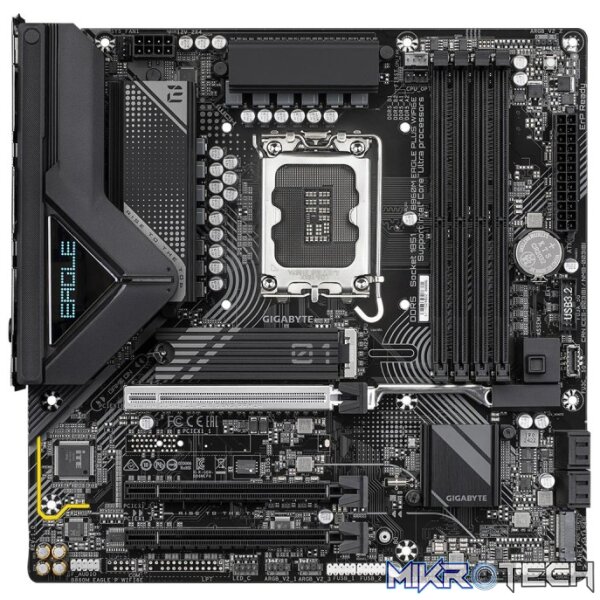

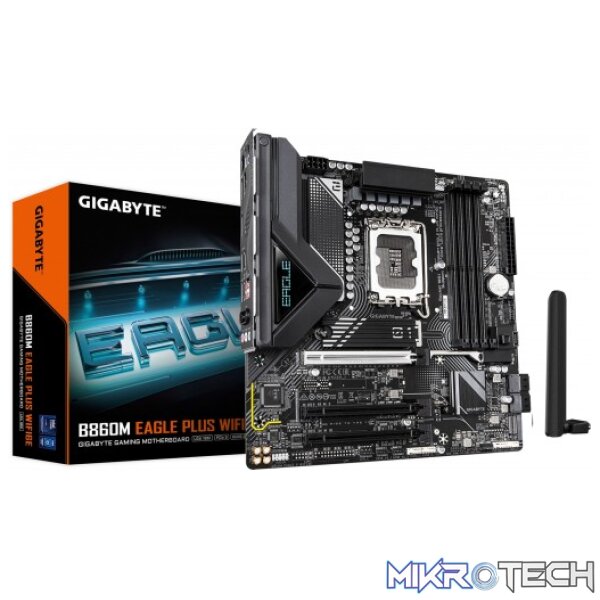

Gigabyte B860M EAGLE PLUS WIFI6E LGA 1851 mATX DDR5 Motherboard

GA-B860M-EAGLE-P-WIFI6E

The Gigabyte?B860M EAGLE PLUS WIFI6E (rev.?1.0) is a micro?ATX (mATX) motherboard built around the Intel?B860 chipset. It supports Intel Core Ultra (Series?2) processors with LGA?1851 socket and DDR5 memory, offering high-speed networking—Wi?Fi?6E and 2.5?GbE—and modern connectivity in a compact yet feature-packed design.

Key Features

• CPU & VRM
  Supports Intel?Core?Ultra (Series?2) CPUs with a robust 8+1+2?phase digital VRM design for stable power delivery.

• Memory Performance
  Dual-channel DDR5 support via 4 DIMM slots, compatible with overclocked memory (up to DDR5?9066 OC), plus XMP support.

• Storage & Expansion
  Features two M.2 slots—with one PCIe?5.0 ×4 and one PCIe?4.0 ×4 option—and SATA support for versatile storage setups.

• Thermals & Cooling
  Includes Gigabyte’s VRM Thermal Armor Advanced and M.2 Thermal Guard to manage heat and maintain performance under load.

• Connectivity & Networking
  Wi?Fi?6E with Intel AX211 module, Bluetooth 5.3 support via PCB rev.?1.0, and a 2.5?GbE LAN port for fast, reliable connections.

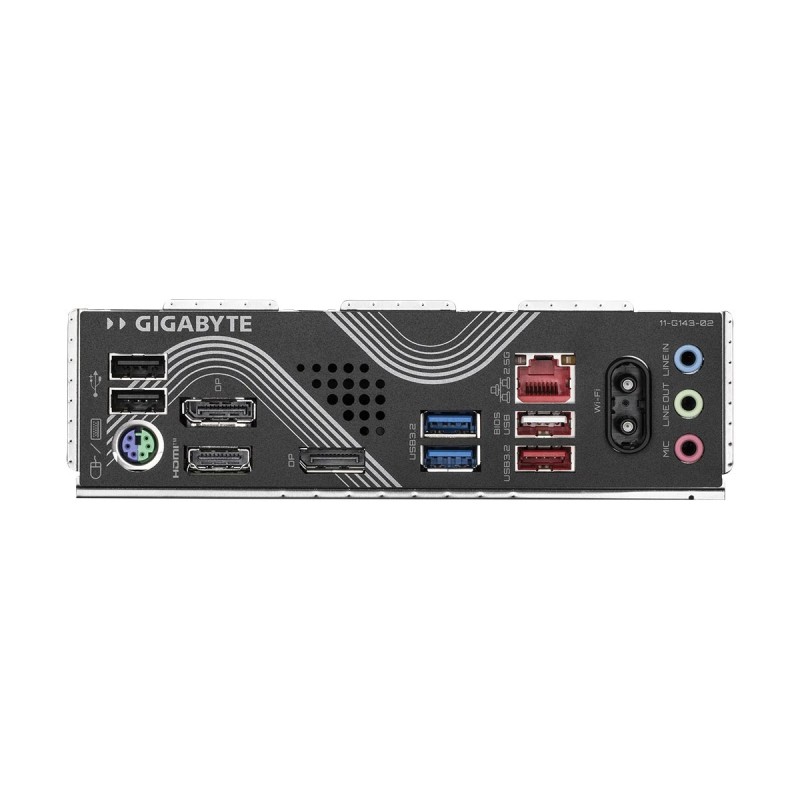

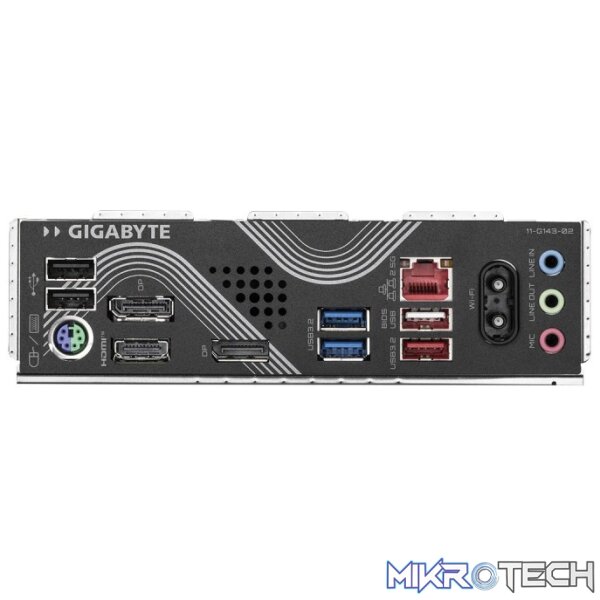

• Other Ports & I/O

• DIY & Firmware Tools
  User-friendly features like EZ?Latch (screwless, quick-release for PCIe/M.2), Q?Flash Plus BIOS update, and EZ?Debug Zone simplify assembly and maintenance.

The Gigabyte B860M EAGLE PLUS WIFI6E (rev. 1.0) delivers a compelling blend of high-speed computing, modern connectivity, and builder-centered design—all within a compact micro-ATX footprint. It’s an ideal choice for DIY builders seeking advanced DDR5 support, next-gen networking, and efficient thermals for mid-range gaming or productivity setups.
