KEY FEATURES:

– Micro-ATX Form Factor
– Intel B860 Chipset, Socket LGA 1851
– Supports Intel Core Ultra Series 2 Processors
– 4x DDR5 DIMM Slots, Supports Up To 256GB (4x64GB)
– Supports Up to DDR5-9200 (OC)
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 1x PCIe 4.0 x4 Slot (x16 Physical)
– 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
– 1x M.2 2580/2280 PCIe 4.0 x4 NVMe SSD Slot
– 1x M.2 25110/2580 PCIe 4.0 x4 NVMe SSD Slots
– 4x SATA 3.0 Ports
– Supports Front-Panel USB 10Gbps Type-C Port
– 1x USB 40Gbps Type-C Port with DisplayPort Alt Mode
– 2x USB 10Gbps Type-A Ports
– 4x USB 5Gbps Type-A Ports
– 4x USB 2.0 Type-A Ports
– 1x HDMI 2.1 (TMDS), 1x DisplayPort 2.1 Port
– 2x 3.5mm Audio Jacks, 1x Optical S/PDIF Audio Port
– 2x Antenna Connectors
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN
– WiFi 6E Tri-Band Adapter, Bluetooth 5.3
– Realtek High Definition Audio CODEC
– 12+1+2 Twin Hybrid VRM Solution
– Supports Windows 11 64-Bit
– 3 Year Warranty

Description

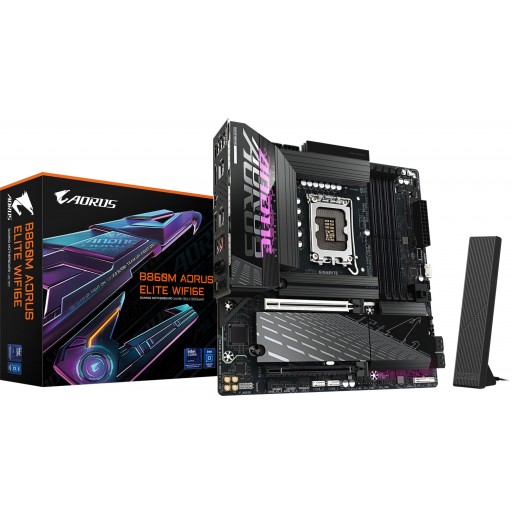

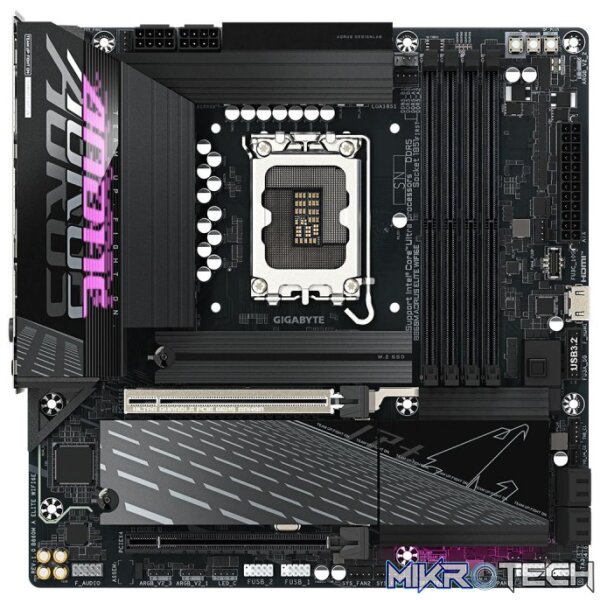

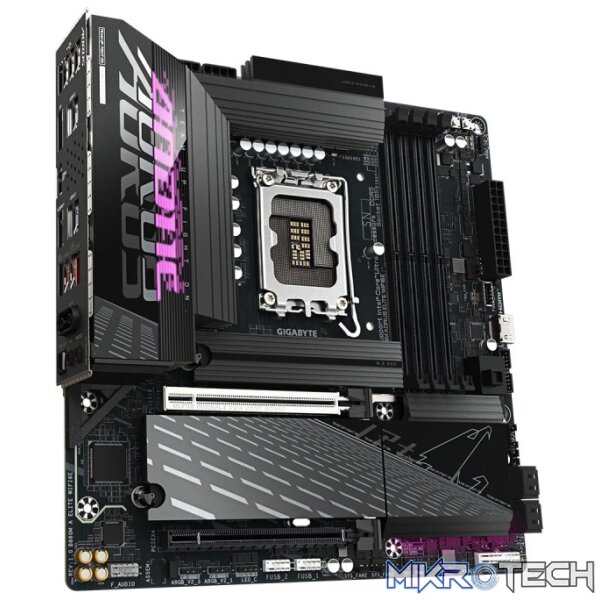

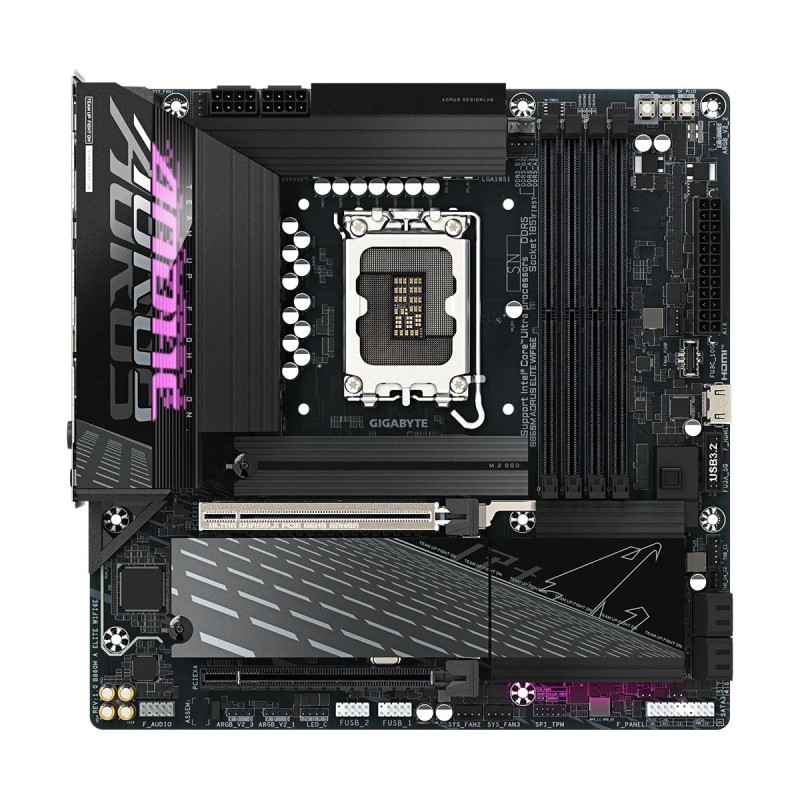

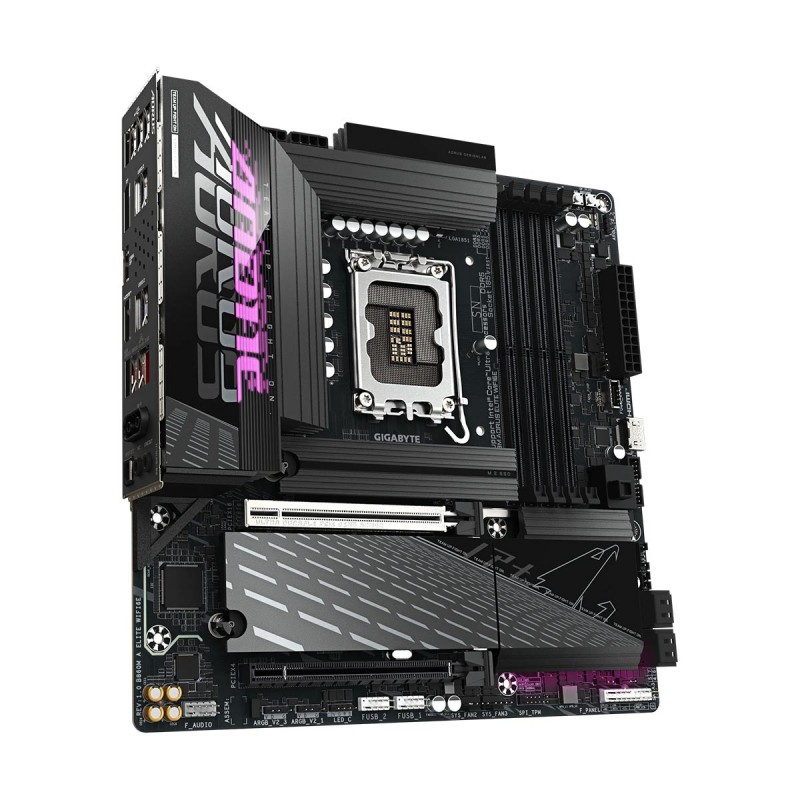

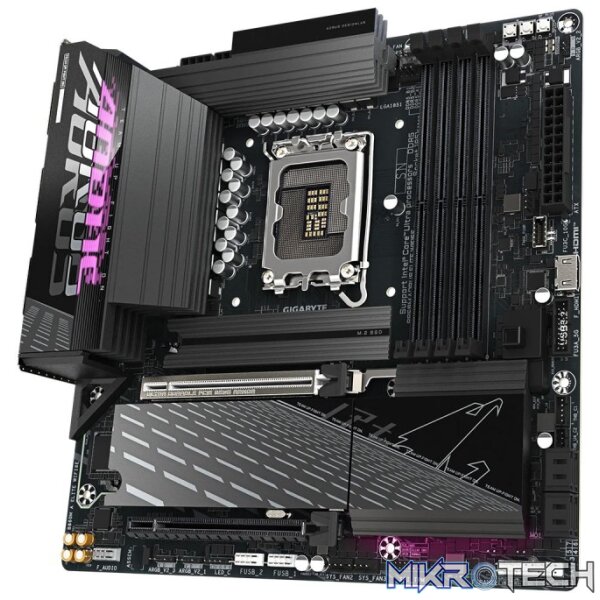

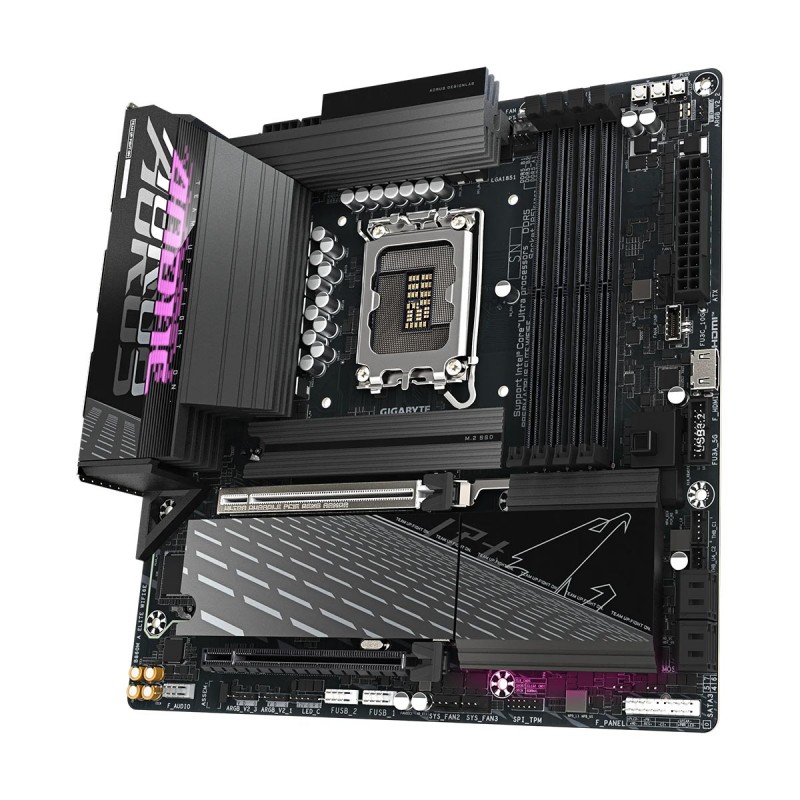

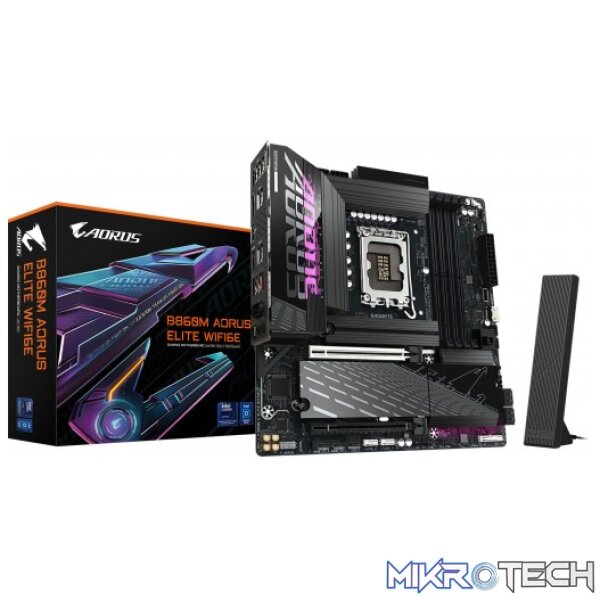

Gigabyte B860M AORUS ELITE WIFI6E LGA 1851 micro-ATX DDR5 Motherboard

GA-B860M-A-ELITE-WIFI6E

The Gigabyte?B860M AORUS ELITE WIFI6E is a compact mATX motherboard based on the Intel B860 chipset, designed for Intel Core Ultra (Series?2) processors using the LGA?1851 platform. It delivers DDR5 memory, blazing-fast storage, immersive audio, and modern networking including Wi?Fi?6E and 2.5?GbE LAN—perfectly balanced for powerful yet space-efficient builds.

Key Features

Power & Memory

• 12+1+2-phase digital VRM (Twin Digital design) with 6-layer, 2× Copper PCB for stable power delivery

• Supports DDR5 memory across four DIMM slots with XMP support and AI-enhanced “D5?Bionic?Corsa” for optimized overclocking

Storage & Expansion

• Three M.2 SSD slots (1 × PCIe 5.0 x4, 2 × PCIe 4.0) plus full-length PCIe 5.0 x16 and a PCIe 4.0 x4 slot for maximum flexibility

Thermal & Cooling

• VRM Thermal Armor Advanced with integrated I/O shield and high-conductivity thermal pads (5?W/mK).

• M.2 Thermal Guard Ext. for effective SSD cooling.

• Smart Fan?6 with four PWM/DC headers and dual fan curve modes ensures dynamic cooling

Connectivity

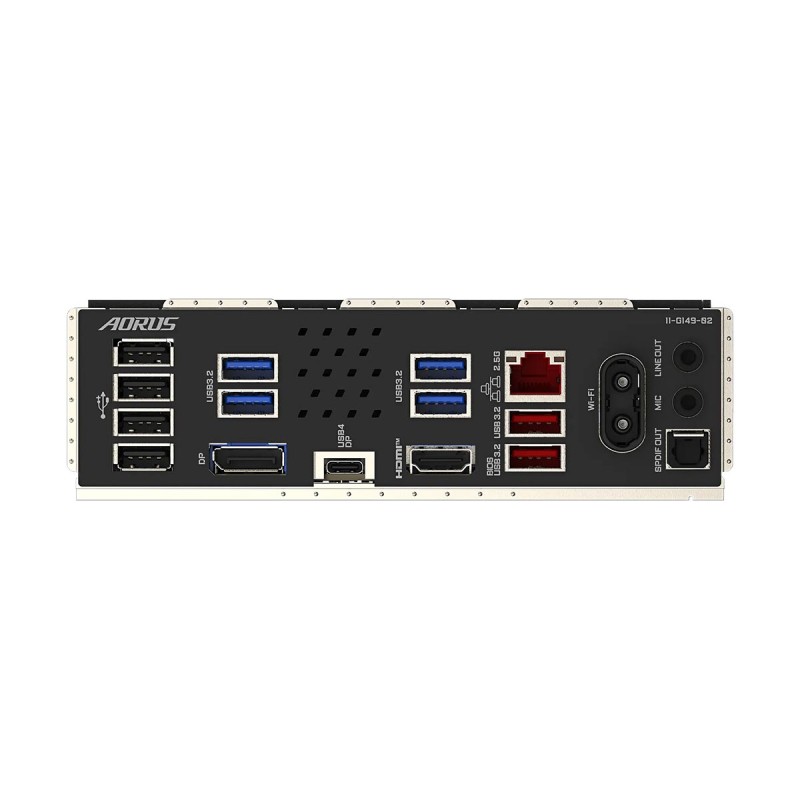

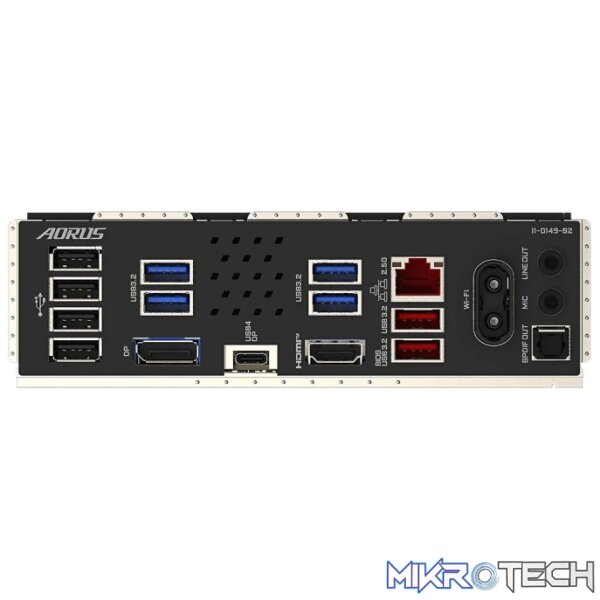

• USB4 Type?C with DisplayPort Alt-Mode, HDMI, DisplayPort, front-panel USB?C (10?Gb/s), USB 3.2 Gen?2 & Gen?1, and USB 2.0.

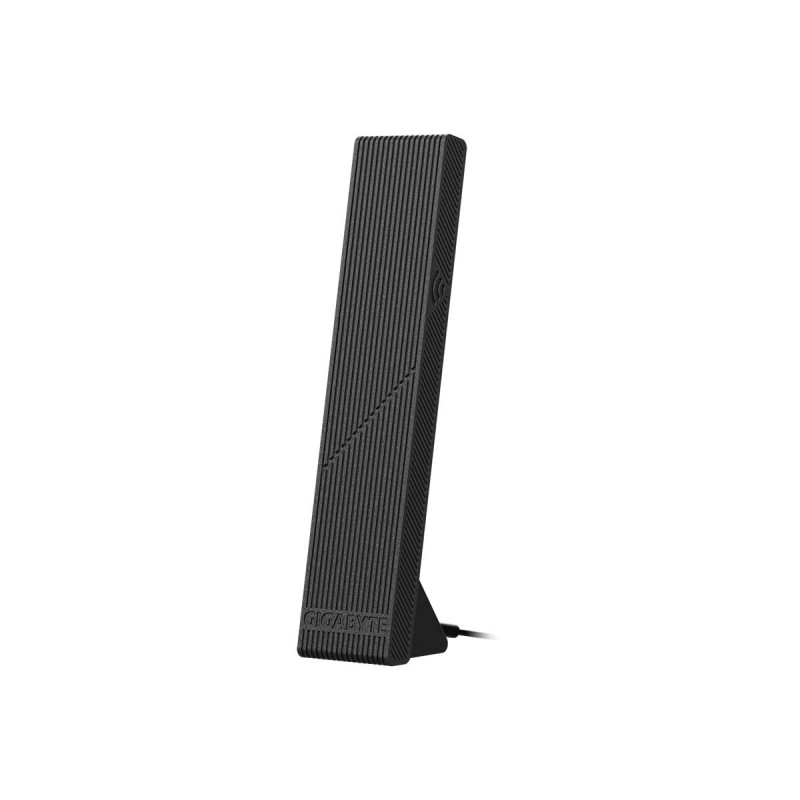

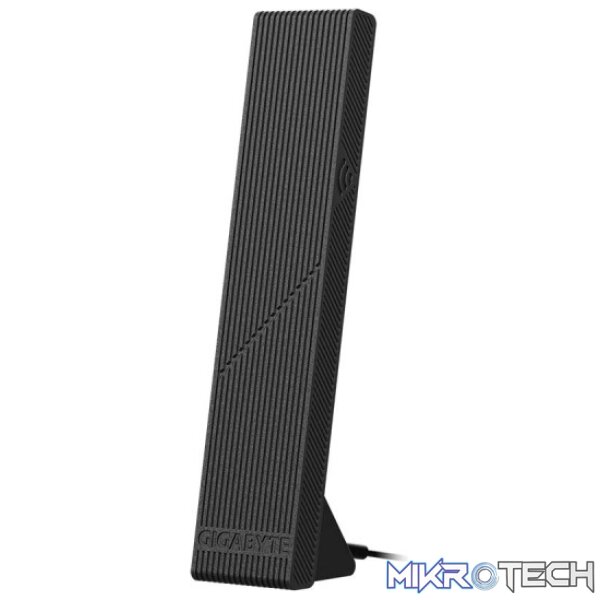

• 2.5?GbE LAN and Wi?Fi?6E with high-gain directional antenna for fast, versatile networking

Audio & Aesthetics

• High-fidelity 8?channel HD audio featuring premium capacitors.

• RGB?Fusion lighting with 1 × RGB and 3 × ARGB headers for aesthetic customization

DIY & Usability Features

• EZ-Latch Plus for tool-free PCIe slot access, M.2 EZ-Latch Click for screwless SSD installs.

• EZ-Debug Zone with multi-key, debug LEDs, power button, and Q?Flash Plus for BIOS recovery.

• Sensor Panel Link for convenient front-panel video.

• AI?PerfDrive, multi-theme UI, AIO fan control, and Q?Flash Auto-Scan enhance firmware usability

The Gigabyte B860M AORUS ELITE WIFI6E marries future-ready features—like PCIe 5.0, USB4, Wi-Fi 6E, and DDR5—with builder-focused conveniences, all in a compact micro-ATX frame. It’s a standout option for mainstream users who demand speed, versatility, and ease-of-use without breaking the bank.
