Gigabyte B850 GAMING X WIFI6E AMD B850 Ryzen Socket AM5 ATX Motherboard
R4,749.99 incl. VAT
Only 6 left in stock
KEY FEATURES:
– ATX Form Factor
– AMD B850 Chipset
– Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
– 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
– Supports Up to DDR5-8200 (OC)
– Supports AMD EXPO & Intel XMP 3.0 Modules
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 2x PCIe 3.0 x1 Slots (x16 Physical)
– 1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot
– 2x M.2 25110 / 2580 PCIe 4.0 x4 NVMe SSD Slots
– 4x SATA 3.0 Ports
– 1x USB 10Gbps Type-C Port
– 3x USB 5Gbps Type-A Ports
– 3x USB 2.0 Type-A Ports
– 1x HDMI 2.1 Port (TMDS), 1x DisplayPort 1.4 Port
– 1x PS/2 Combo Port (Keyboard/Mouse)
– 3x 3.5mm Audio Jacks (Headphone, Microphone), 2x SMA Connectors
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
– Realtek WiFi 6E Tri-Band Adapter, Bluetooth 5.3
– Realtek High-Definition Audio Codec
– PCIe x16 EZ-Latch Plus Quick-Release Mechanism
– Twin Digital 12+2+2 Phase VRM Solution
– Gigabyte Q-Flash Plus Button
– Gigabyte RGB Fusion
– Supports Windows 11
– 3 Year Warranty
Description
Gigabyte B850 GAMING X WIFI6E AMD B850 Ryzen Socket AM5 ATX Motherboard
GA-B850-GAMING-X-WIFI6E
GIGABYTE B850 GAMING X WIFI 6E
The B850 GAMING X WIFI 6E supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5 : 4x DIMMs with AMD EXPO™ Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 3x M.2 slots, including PCIe 5.0×4 slot
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Displayport
Features
- AMD Socket AM5: Supports AMD Ryzen™ 9000, 8000 & 7000 Series Processors
- DDR5 RAM: 4x DDR5 DIMM Slots
- Enhanced Power Design: 12+2+2 Power Design
- Thermals: Fully covered MOSFET heatsinks
- Connectivity: PCIe 5.0, 3x M.2 Slots, USB-C
- DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, Wi-Fi EZ-Plug
- Networking: 2.5Gb Ethernet LAN, Wi-Fi 6E, Bluetooth
- 3 Year Gigabyte Limited Warranty
Brand New Gaming Experience
X3D Turbo Mode
X3D Turbo Mode’s unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE’s BIOS innovation- X3D Turbo Mode.
Memory
Infinite Memory Performance
Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Sturdy VRM Design
Steady Power
Better Play GAMING Series, steady power keeps your gaming smooth.
Cooling
Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
- Level Up Epic VRM heatsinks for non-stop gaming – 4X massive cooling surface
- M.2 Thermal Guard Ext. – 3 X M.2 slots coverage
- Small vents, Big cooling power – Up to 7°C lower temperature
- Smart Fan 6 – Cool, quiet, customized
Easy & Friendly
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
- WiFi EZ-Plug – The WiFi EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
- EZ-Latch Designs – User-friendly designs simplifying the assembly process.
- Fast-Access Controls – Handy, revert, refresh.
Connectivity
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
- 2.5GbE LAN
- Wi-Fi 6E
- Directional ultra-high gain antenna
Ultra Durable™
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform thatÂ’s not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.
Tailored Computing
Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.
Additional Information:
Compatibility
Supports AMD Ryzen™ 9000, 8000, 7000 Series Desktop Processors for Socket AM5.
Operating System Support:
Support for Windows® 11 64-bit
Support for Windows® 10 64-bit
Specifications
| Make and Model | GIGABYTE B850 GAMING X WIFI 6E Motherboard |
|---|---|
| Part Number | B850 GAMING X WIFI 6E |
| CPU Socket | AMD Socket AM5 LGA-1718 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* (Go to GIGABYTE’s website for the latest CPU support list.) |
| Chipset | AMD® B850 Chipset |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2) |
| Multi-GPU Support | N/A |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/25110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: – 3 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps): 1x RJ45 2.5Gb Ethernet LAN port |
| Wi-Fi | Realtek® Wi-Fi 6E RTL8852CE Wi-Fi 7 use requires Windows® 24H2 Update or later Earlier Windows® 11 w/ 21H2 / 22H2 or 23H2 updates only supports Wi-Fi 6E. |
| Bluetooth | Wi-Fi 6E Chipset: – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |

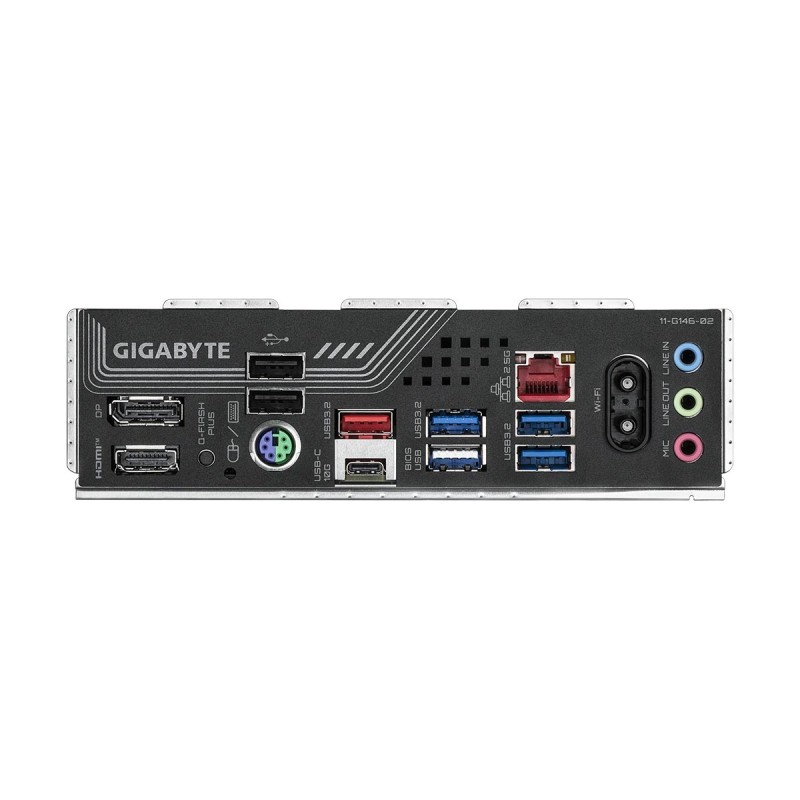

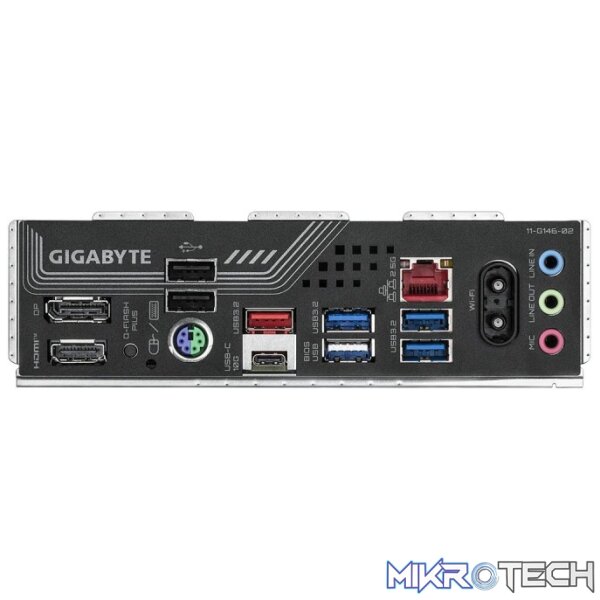

| Back Panel I/O | 1 x DisplayPort* 1 x HDMI port* 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks * Actual support may vary by CPU. |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper |
| Operating System | Support for Windows® 11 64-bit Support for Windows® 10 64-bit |
| I/O Controller | iTE® I/O Controller Chip |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor |
| Dimensions (WxL) | 30.5 x 24.4 cm |
| Weight | N/A |
