KEY FEATURES:

– ATX Form Factor, Socket AM5, AMD B850 Chipset
– Supports Ryzen 7000 / 8000 / 9000 Series Processors
– 4 x DDR5 DIMM Slots, up to 256GB, DDR5-8200
– 1 x PCIe 5.0 x16 Slot
– 1 x PCIe 4.0 x16 Slot (x4 Electrical)
– 2 x PCIe 3.0 x16 Slots (x1 Electrical)
– 1 x M.2 PCIe 5.0 NVMe Slot
– 2 x M.2 PCIe 4.0 NVMe Slots
– 4 x SATA 3.0 Ports, Supports RAID 0 / 1 / 10
– 2.5Gbps LAN, Wi-Fi 7 & Bluetooth 5.4

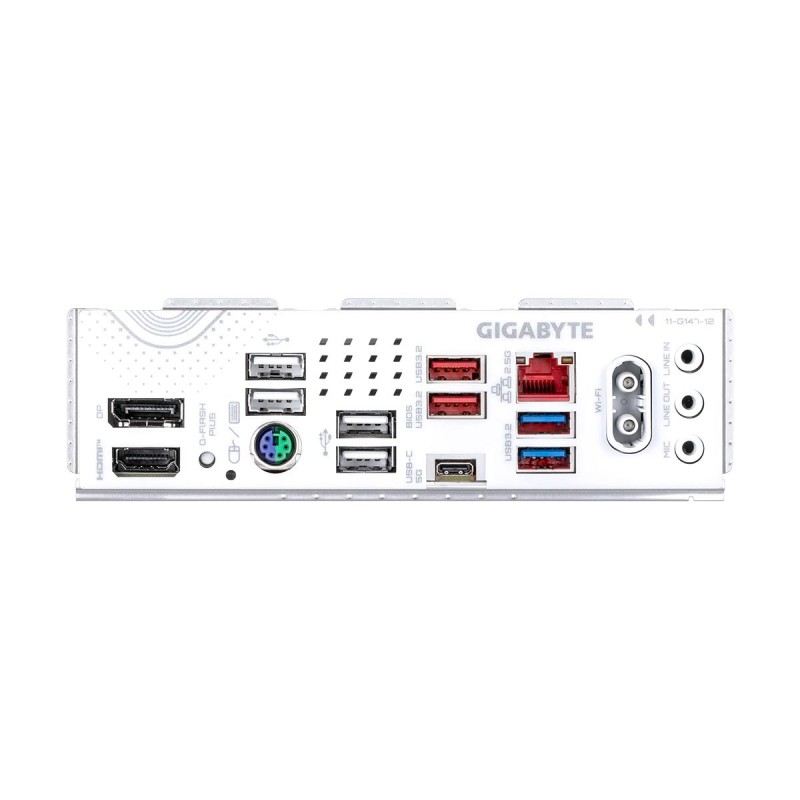

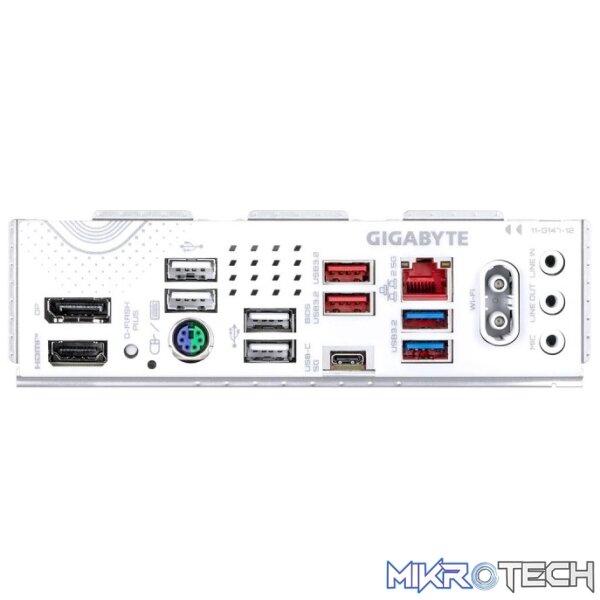

– 1 x HDMI 2.1, 1 x DisplayPort 1.4
– 1 x Rear USB Type-C 5Gb/s
– 2 x Rear USB Type-A 10Gb/s, 2 x Rear USB Type-A 5Gb/s
– 4 x Rear USB 2.0/1.1 Ports
– 1 x PS/2 Keyboard/Mouse Port
– 3 x Rear Audio Jacks
– M.2 EZ-Latch Click & M.2 EZ-Latch Plus
– M.2 Thermal Guard
– PCIe EZ-Latch & Wi-Fi EZ-Plug
– Q-Flash Plus – Update BIOS without CPU / RAM / GPU
– EZ Debug Zone
– 3 x ARGB Gen2 Headers
– 3 Year Warranty

Description

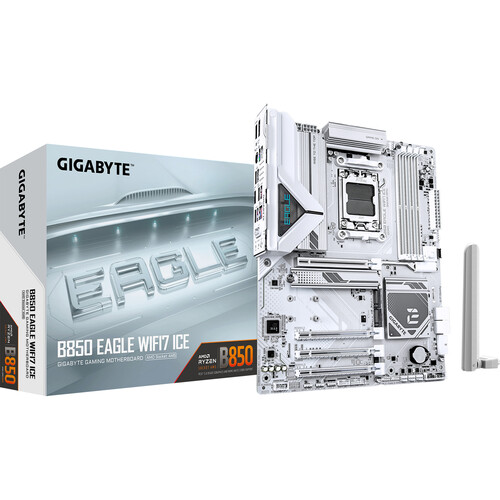

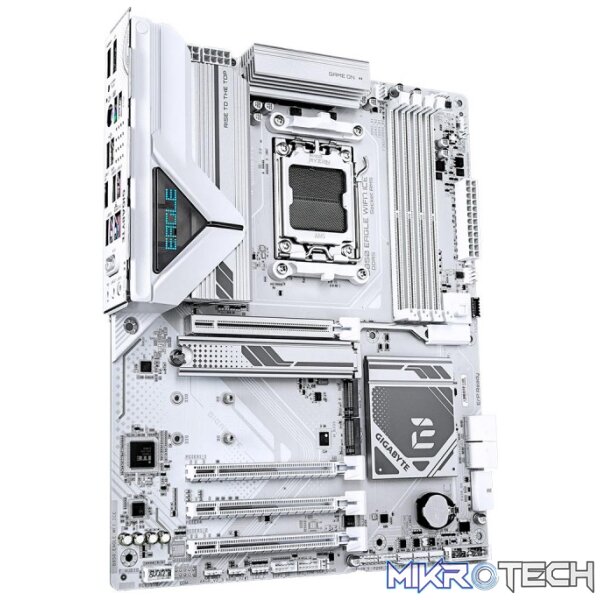

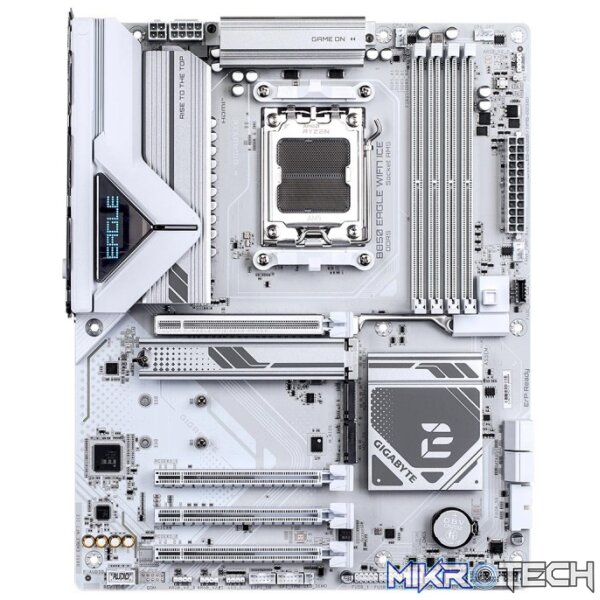

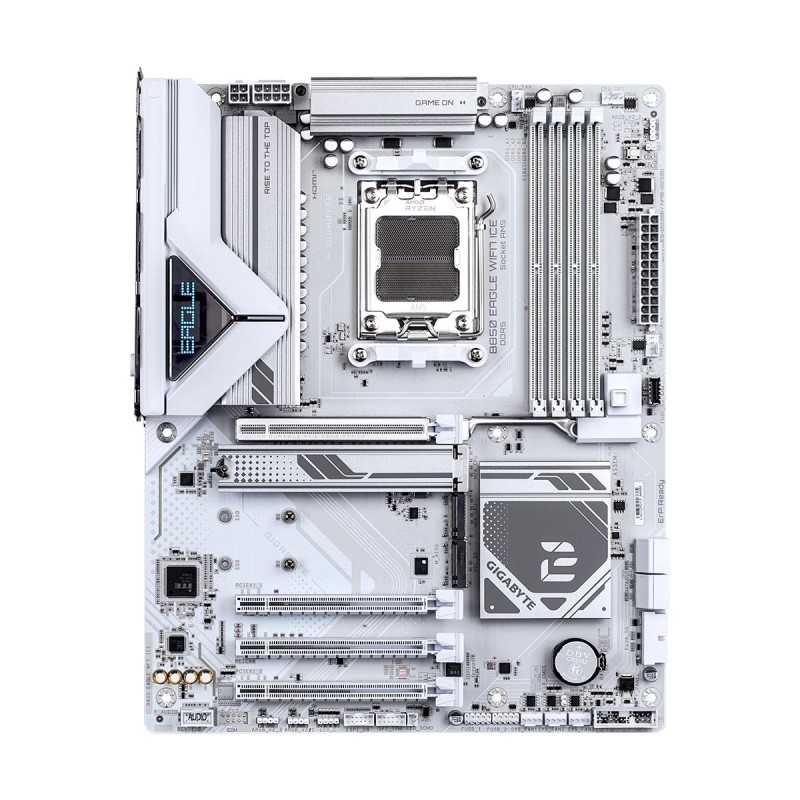

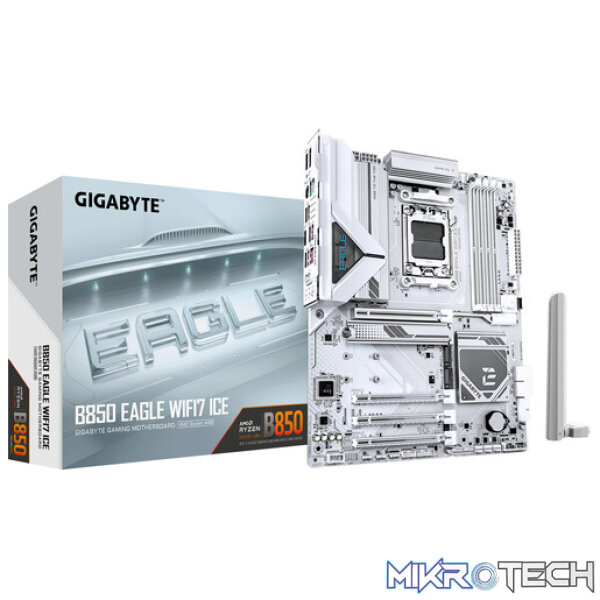

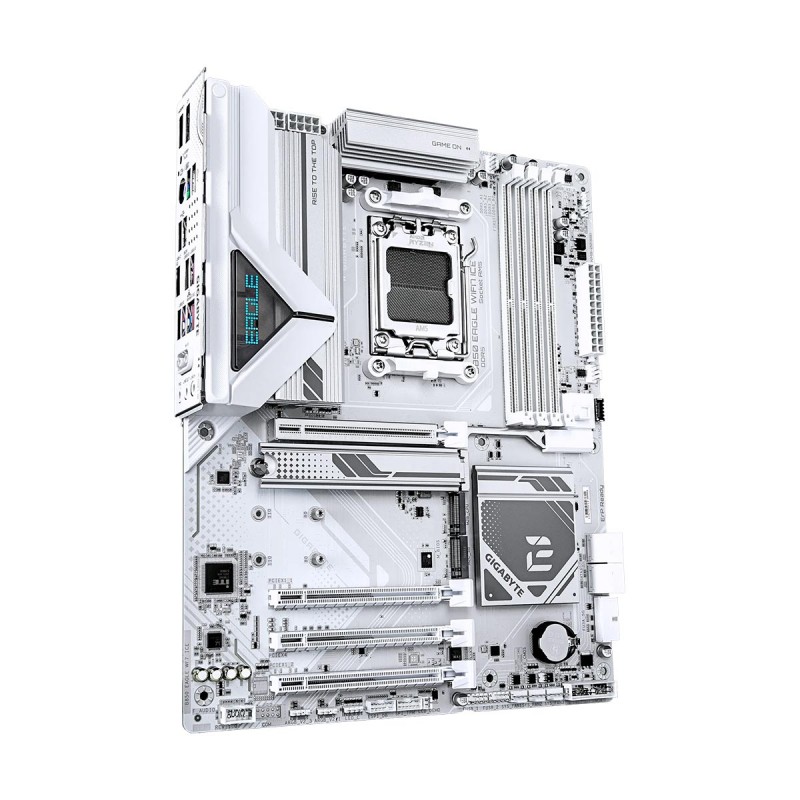

Gigabyte B850 EAGLE WIFI7 ICE AMD AM5 ATX Motherboard

GA-B850-EAGLE-WF7-ICE

The Gigabyte B850 EAGLE ICE delivers premium next?gen PC performance with a clean all?white Project Ice aesthetic. Built for AMD Ryzen™ 9000, 8000, and 7000 series CPUs, it features a robust 8+2+2 digital VRM, support for DDR5 memory up to 8200?MT/s OC, and three M.2 SSD slots (including PCIe 5.0). With Wi?Fi?7 and 2.5GbE LAN, X3D Turbo Mode, advanced overclocking tools, and streamlined installation features like EZ?Latch, Thermal Armor and M.2 pressurized thermal pads, it’s ideal for stylish high-performance systems.

Key Features

• 8+2+2 digital VRM on 6?layer mid?loss PCB

• Socket AM5 support for Ryzen 7000 / 8000 / 9000 series

• DDR5 memory OC support up to 8200?MT/s with EXPO™

• X3D Turbo Mode optimizes FPS via BIOS with one?click

• PCIe?5.0 x16 UD slot and triple M.2 (1× Gen5 + 2× Gen4)

• Pressurized M.2 Thermal Guard with EZ?Flex backplate for SSD cooling

• Smart Fan 6 with hybrid headers and dual?curve control

• Built?in Wi?Fi?7 with directional EZ?Plug antenna and 2.5?GbE LAN

• Q?Flash Plus, PCIe / M.2 EZ?Latch, EZ?Debug Zone and Multi?Key controls

• RGB Fusion ARGB + RGB headers for customizable lighting

Specifications:
