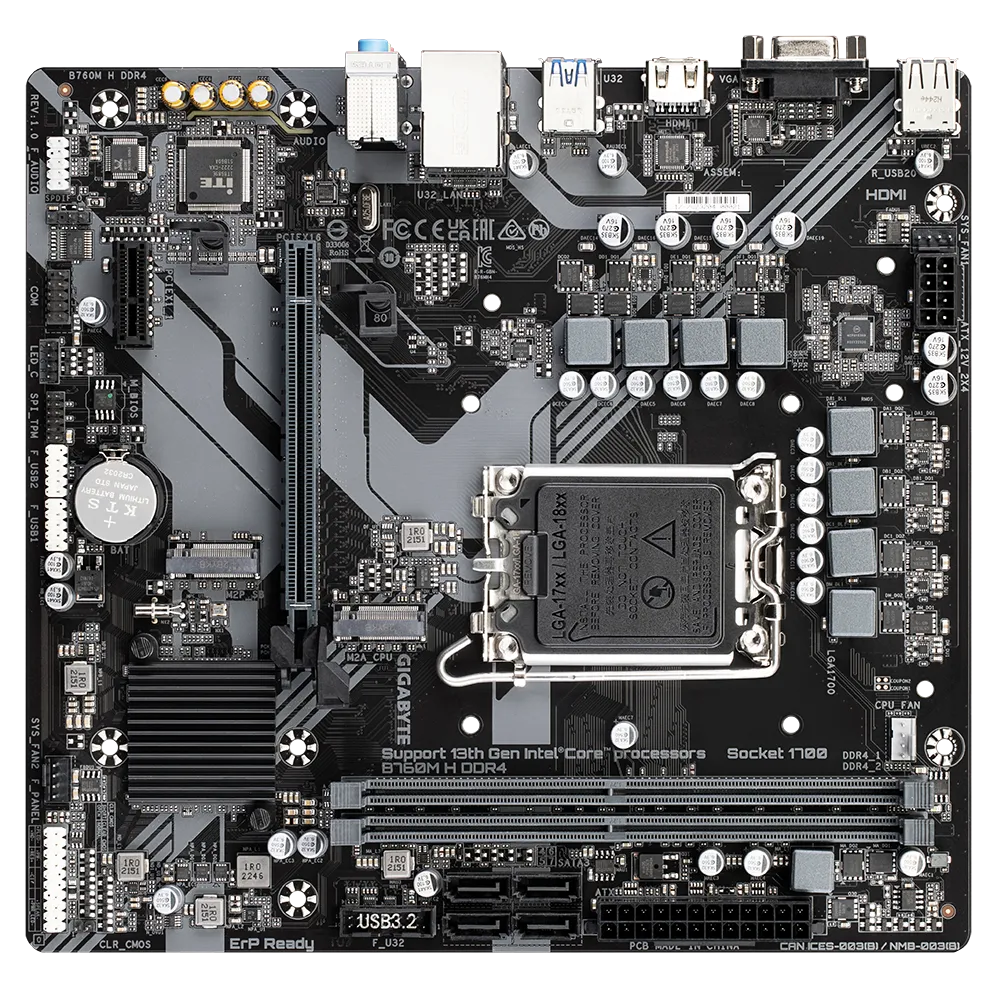

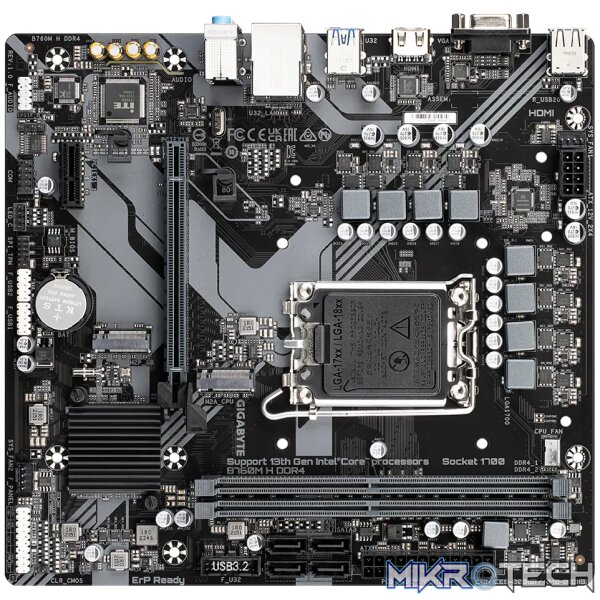

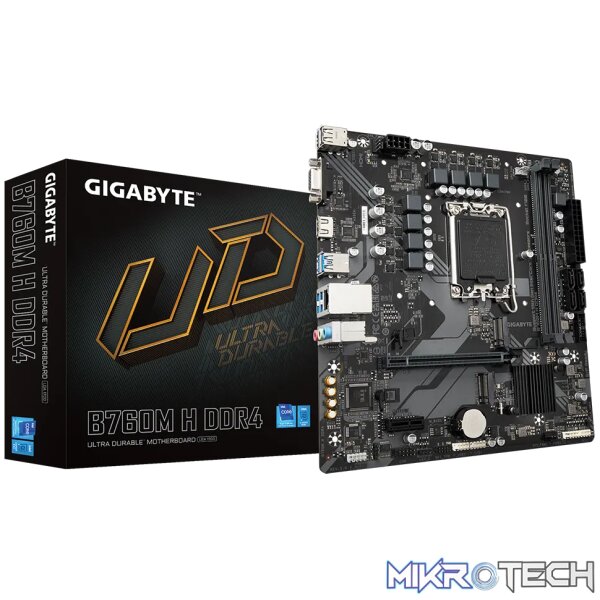

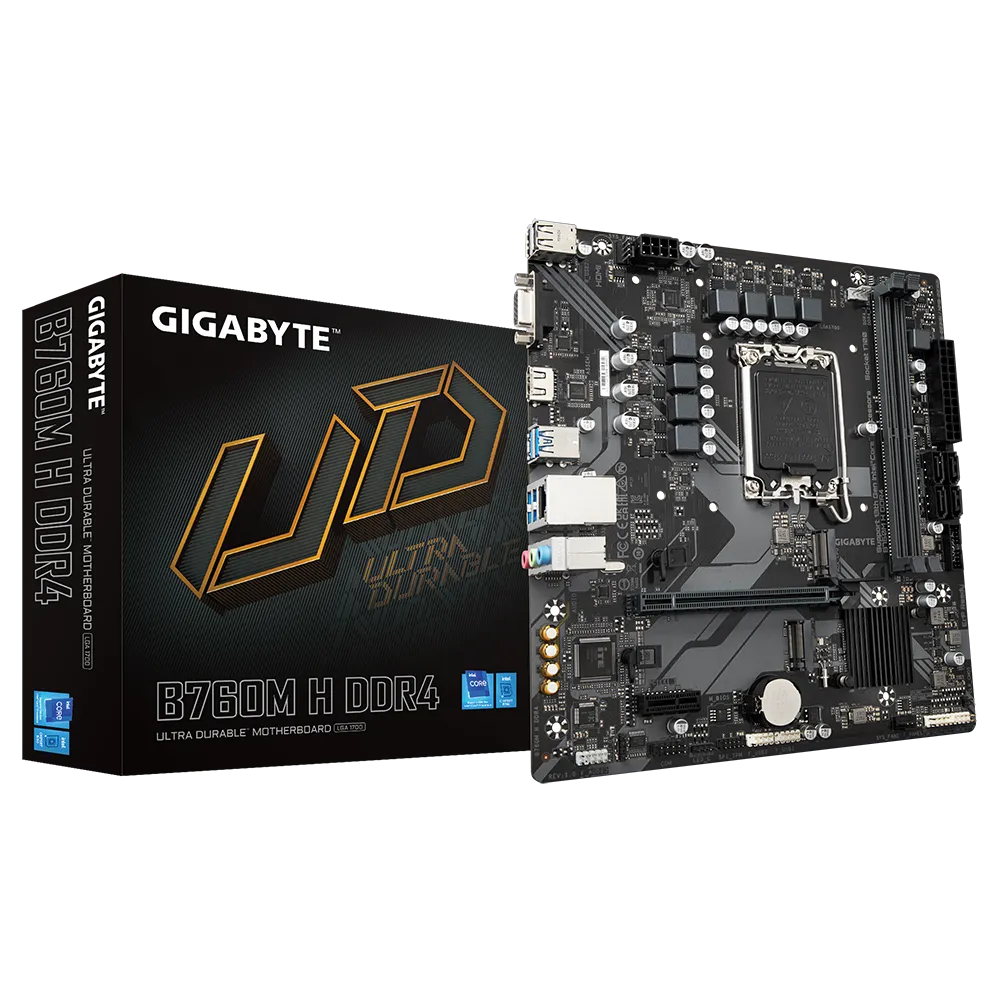

Gigabyte B760M H DDR4 Motherboard

6+1+1 Phases Hybrid Digital VRM Design

• 6+1+1 Phases Low RDS(on) MOSFETs
• Premium Choke and Capacitors to improve transient response and minimize oscillation

CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage.

PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

Specifications

• CPU Support: 12th and 13th Generation Series Processors
• CPU Socket: LGA1700
• Chipset: Intel B760 Express Chipset
• Graphics
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@ 60Hz
  • 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
• Expansion Slots
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 x16
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 x1
• Memory
  • 2x DDR4 slots
  • Maximum Memory Capacity 64GB
  • 2133 – 3200MT/s (OC)
• Storage
  • 2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4)
  • 4 x SATA 6Gb/s connectors

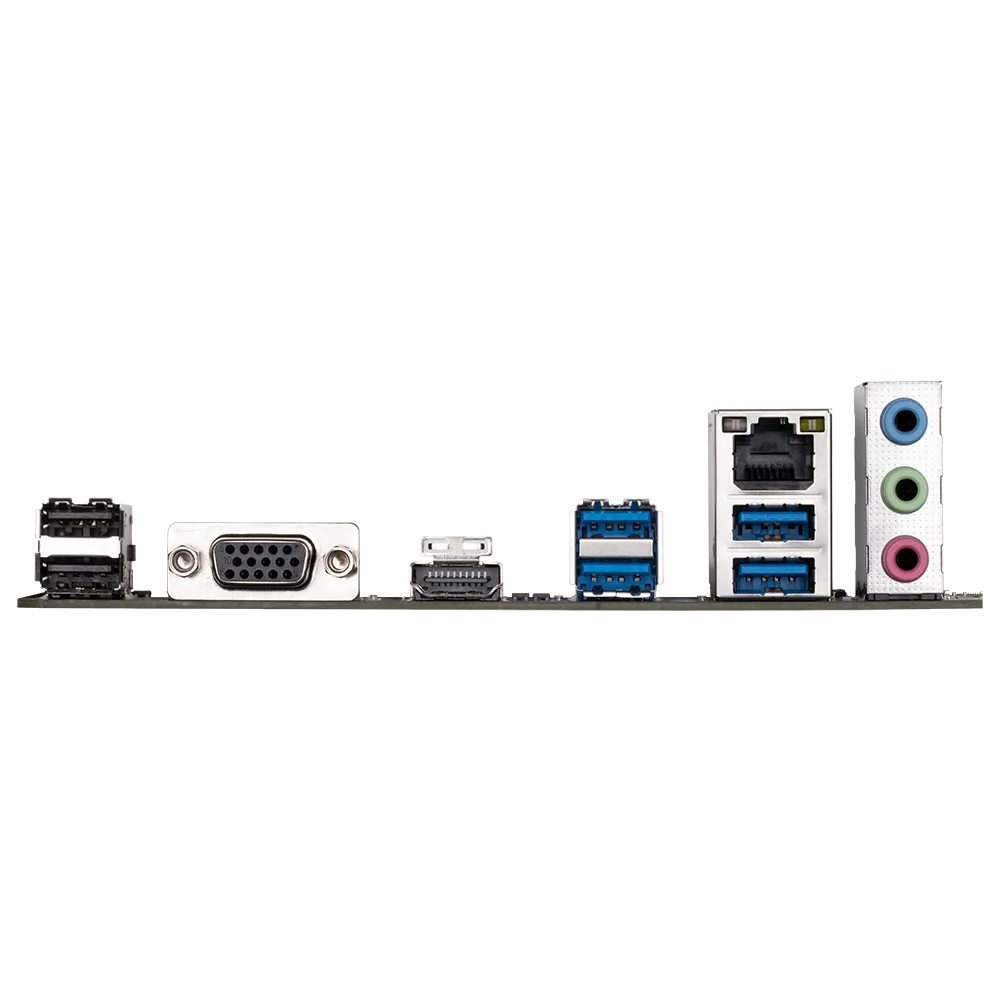

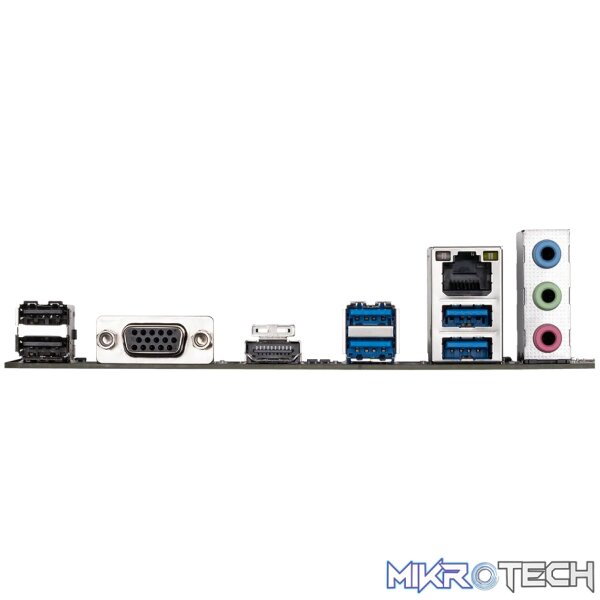

• USB ports
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps)
• Audio: Realtek Audio CODEC
• Form Factor: Micro ATX Form Factor; 23.0cm x 21.5cm
• Warranty: 3 Years
• Note: Please refer to full motherboard specifications on the Manufacturer’s page.
