KEY FEATURES:

– Form Factor: Micro-ATX

– Chipset: Intel® B760 Express

– Socket: LGA 1700

– CPU Support: 12th / 13th / 14th Gen Intel® Core™, Pentium® Gold, Celeron®

– Memory: 4× DDR5 DIMM, up to 192GB, 7600+ MT/s (OC), Dual Channel, XMP 3.0

– Graphics: HDMI 2.1, DisplayPort 1.4, VGA (CPU dependent)

– Expansion Slots: 1× PCIe 4.0 x16, 1× PCIe 3.0 x16 (x4), 1× PCIe 3.0 x1

– Storage: 2× M.2 PCIe 4.0 / SATA, 4× SATA 6Gb/s, RAID 0/1/5/10

– Networking: Gigabit LAN, Intel® Wi-Fi 6, Bluetooth® 5.2

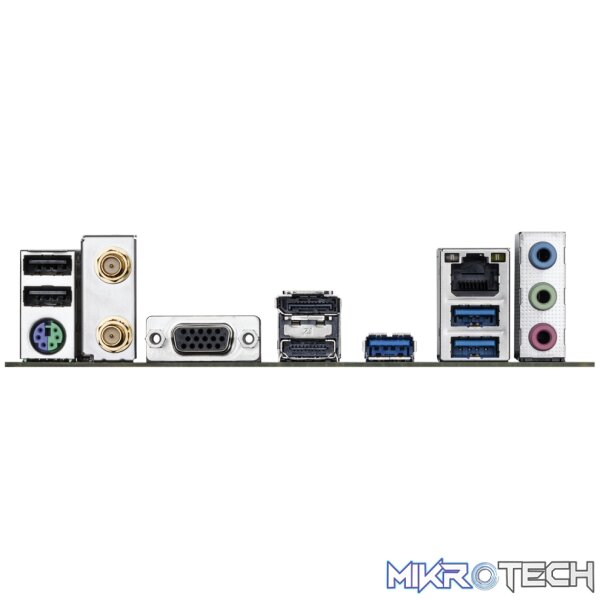

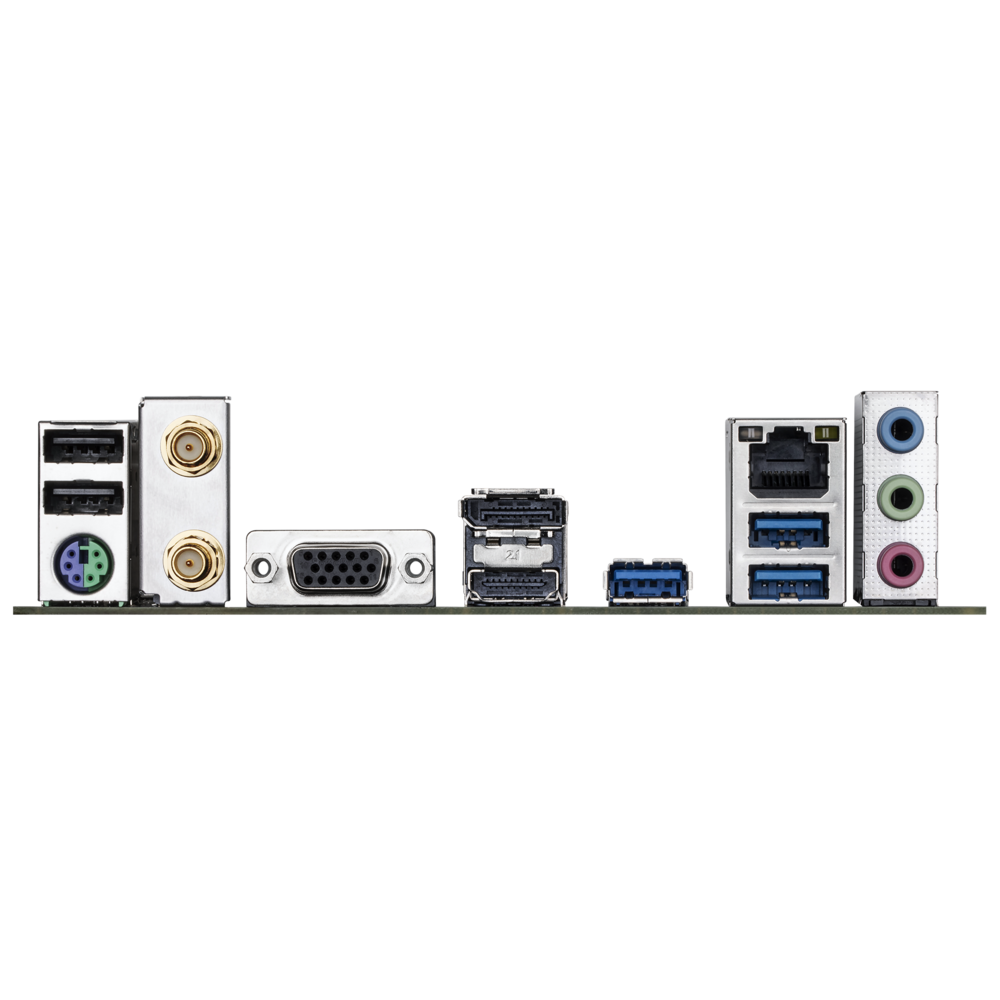

– USB Ports: Rear – USB-C 3.2 Gen 2, USB-A 3.2 Gen 2, USB-A 3.2 Gen 1, USB 2.0

– Audio: 8-Channel HD Audio, Realtek® CODEC

– Cooling: Enlarged heatsinks, multiple fan headers, Smart Fan 6

– RGB: RGB Fusion, Addressable & RGB LED headers

– Extra Features: Q-Flash Plus, PCIe EZ-Latch, Ultra Durable components

– Warranty: 3 Years

Description

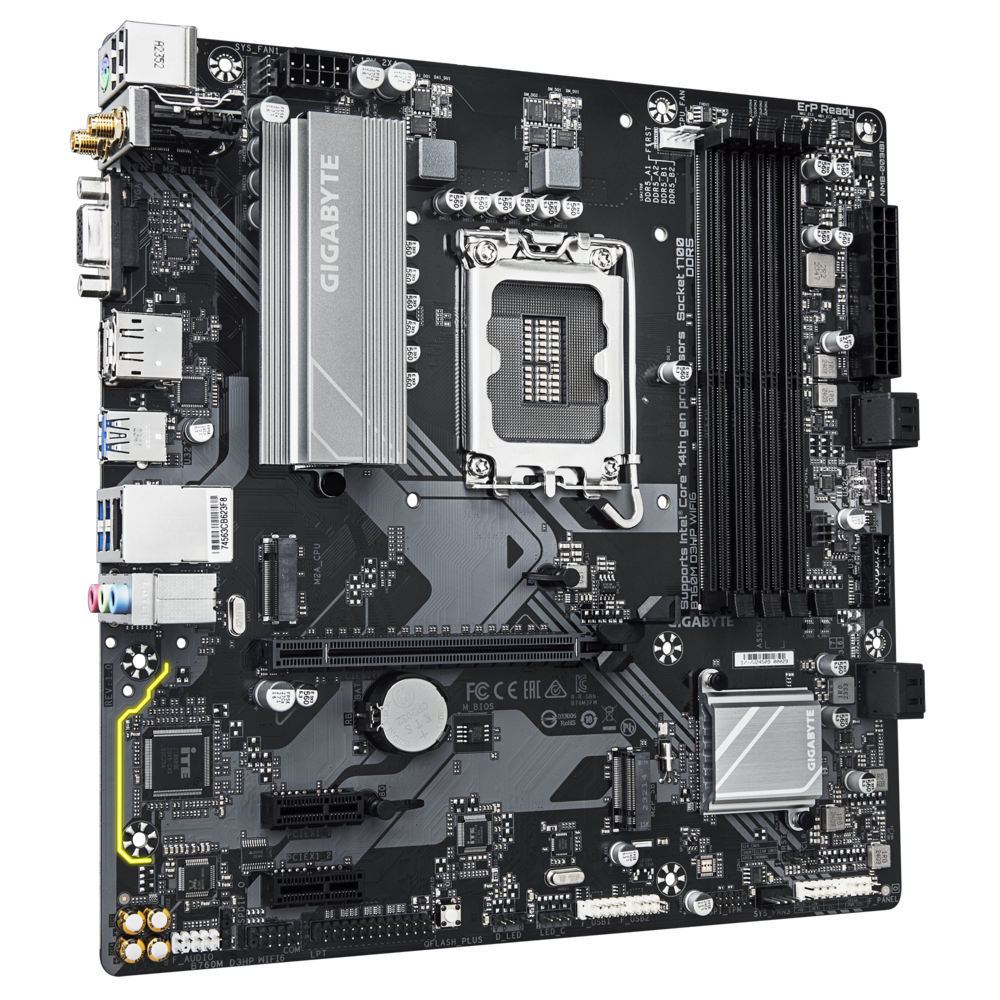

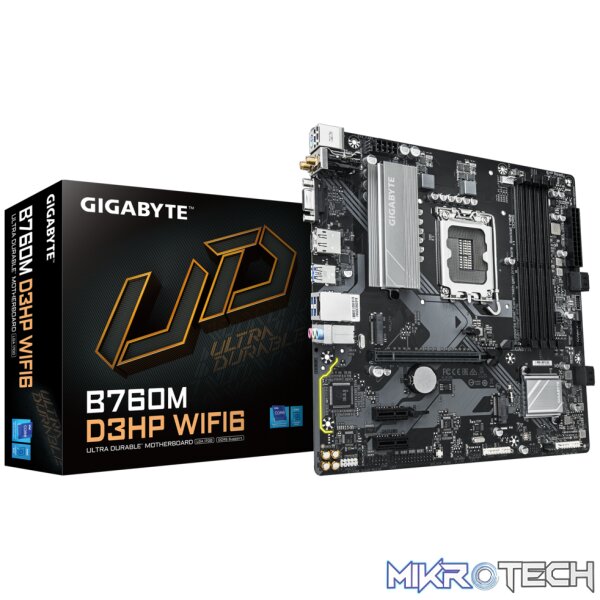

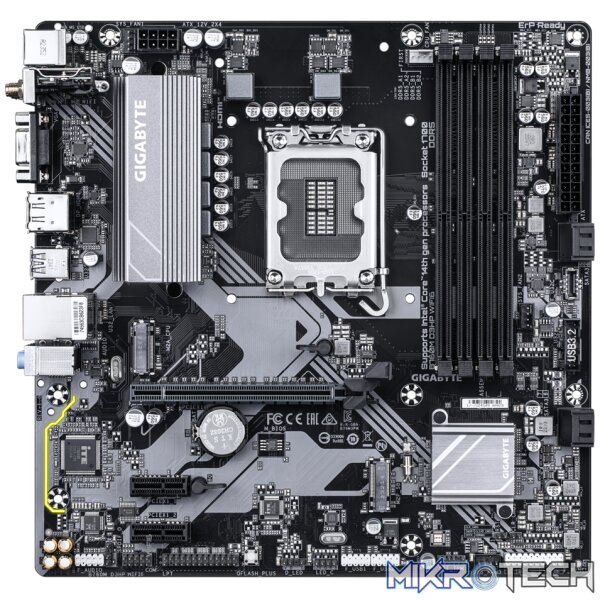

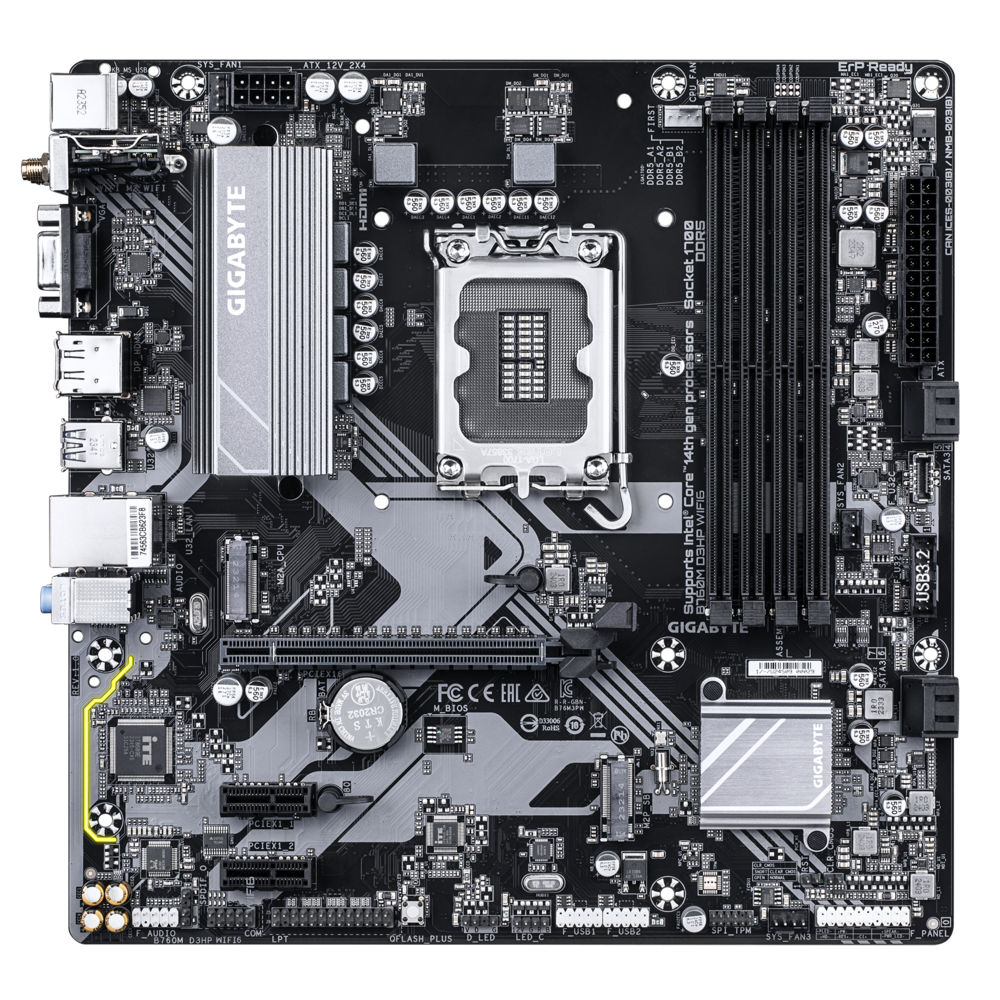

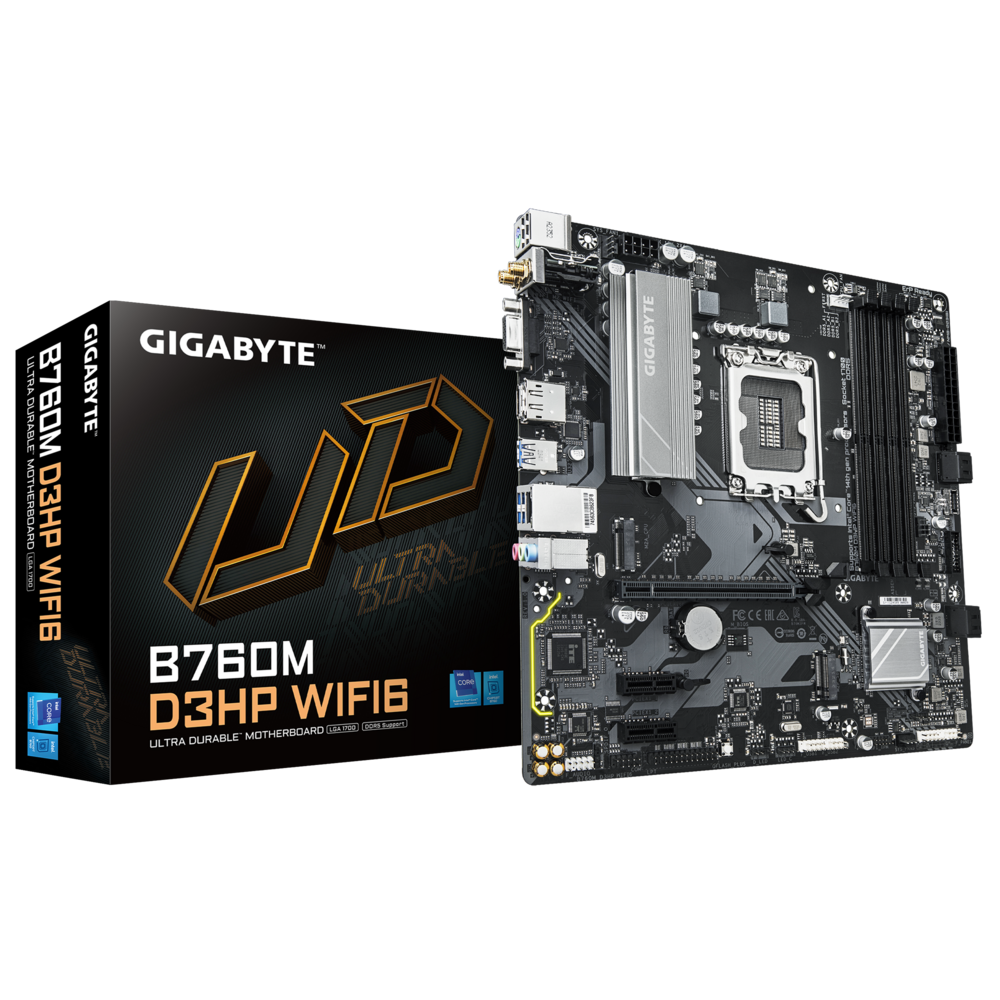

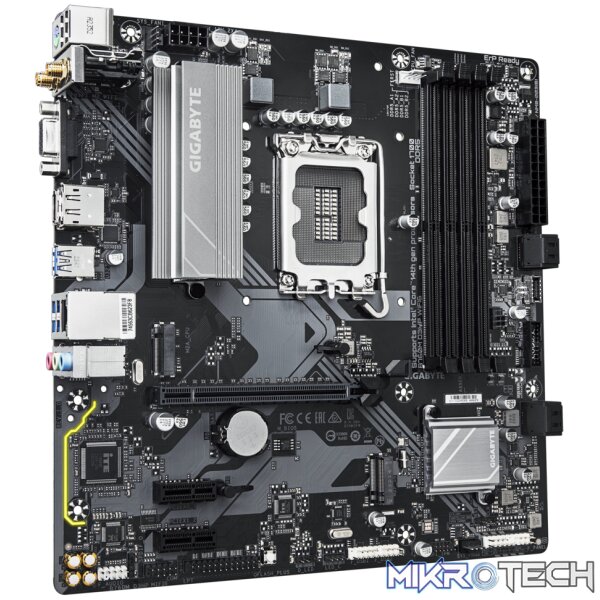

Gigabyte B760M D3HP WIFI6 LGA1700 Micro-ATX DDR5 Motherboard

B760M D3HP WIFI6

Compact Powerhouse for Modern Builds

The Gigabyte B760M D3HP WIFI6 brings high-performance features into a budget-friendly micro?ATX form factor. Designed for LGA?1700 socket, it accommodates Intel 12th–14th Gen CPUs. With DDR5 memory support, PCIe 4.0 storage expandability, and fast Wi?Fi 6 networking, it’s an ideal foundation for value-focused gamers and creators.

Why It Stands Out

• Efficient Power Delivery – A robust hybrid 4+1+1 phase digital VRM ensures stable and efficient CPU performance.

• High-Speed Memory – Four DDR5 DIMM slots supporting XMP-enabled RAM for faster, modern memory performance.

• Fast Storage Options – Dual PCIe 4.0 x4 M.2 slots offer ultra-fast SSD capability for game load speeds and data transfer.

• Connectivity Unlocked – Built-in Wi?Fi 6 (802.11ax) and Gigabit Ethernet deliver reliable, high-speed networking.

• Versatile I/O – Includes front USB-C, HDMI, DisplayPort, VGA (D?Sub), enabling broad display and accessory compatibility.

• Smart Cooling Controls – Smart Fan 6 offers multiple temp sensors, hybrid fan headers, and fan-stop for silent, adaptive cooling.

• Q?Flash Plus – Update BIOS easily via USB without a CPU or graphics card—great for quick upgrades.

With its efficient VRM design, modern DDR5 support, solid storage expansion, and built-in Wi-Fi 6, the Gigabyte B760M D3HP WIFI6 is a smart choice for compact, high-value builds. Ready for today and future-ready upgrades.

SPECIFICATIONS:
