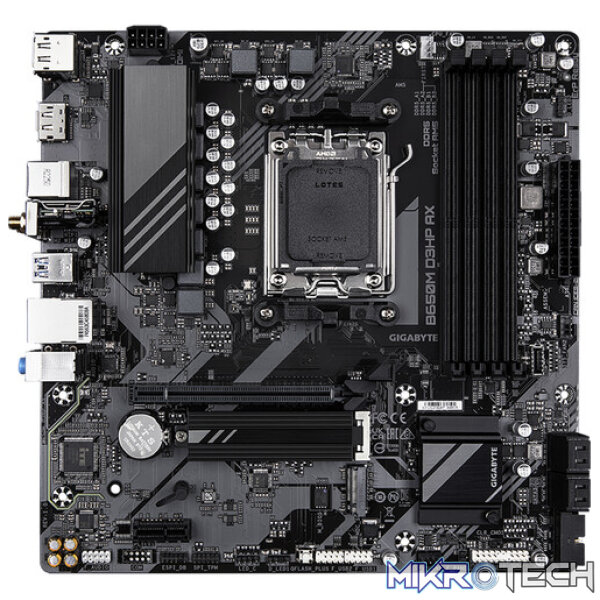

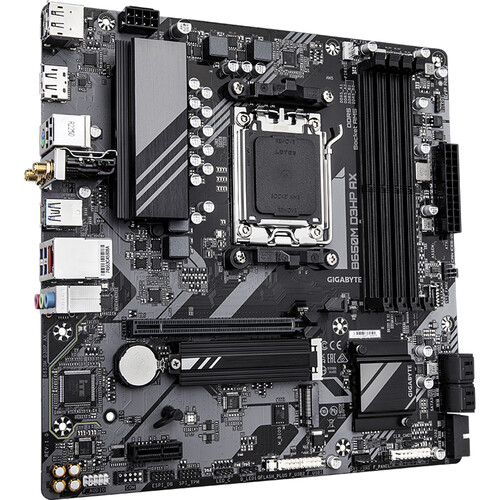

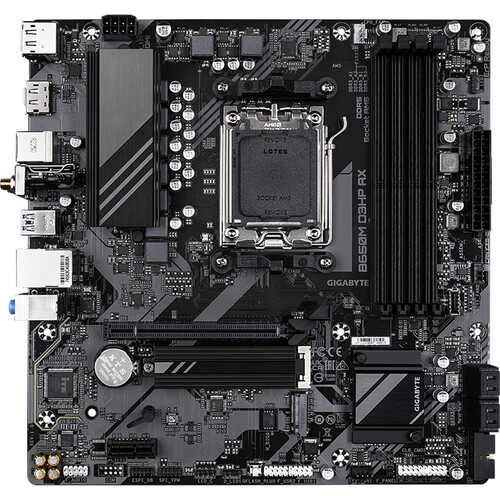

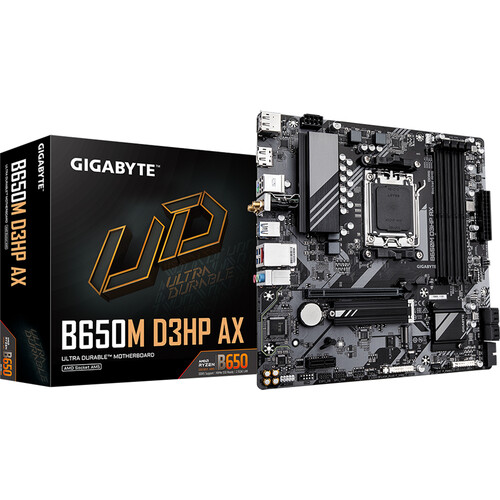

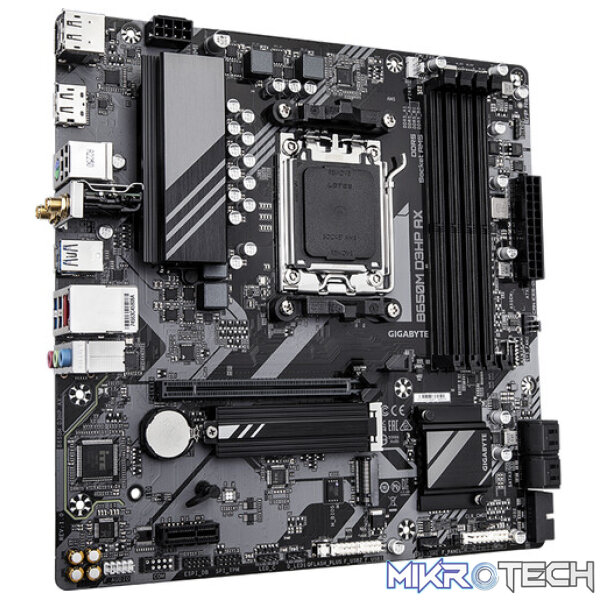

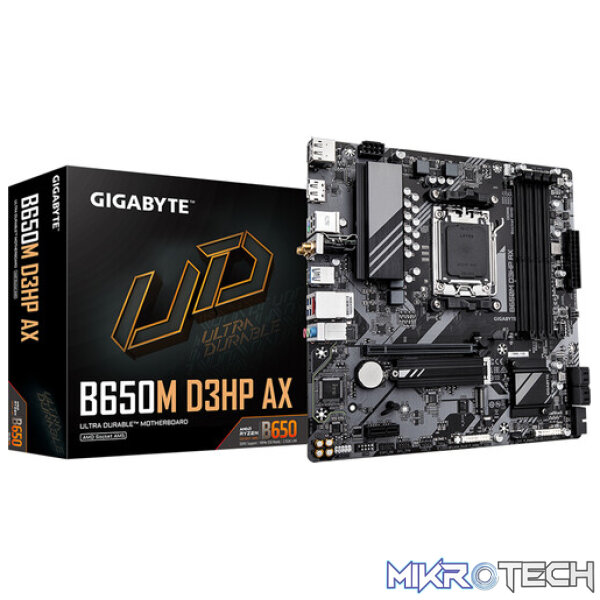

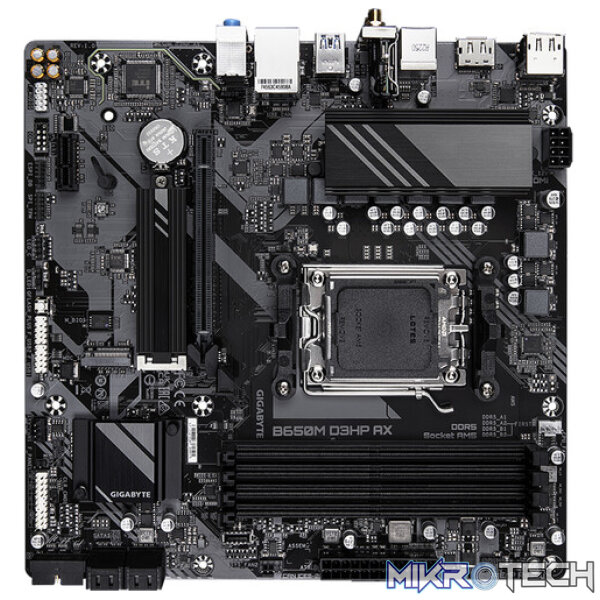

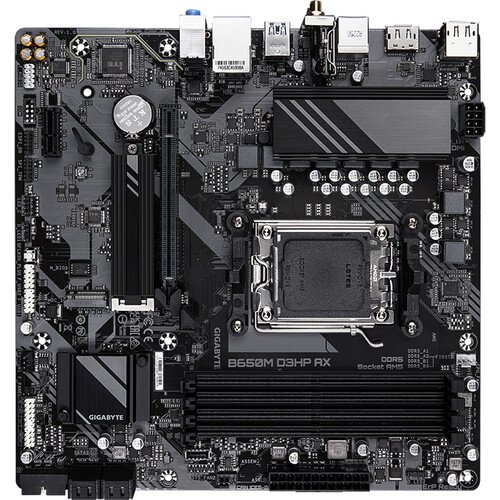

Gigabyte B650M D3HP AX AM5 Micro-ATX DDR5 Motherboard
R3,059.99 incl. VAT
Only 5 left in stock
KEY FEATURES:
– Supports AMD Ryzen?7000?/?8000?/?9000 series CPUs
– Stable 5+2+2 phase digital VRM design
– DDR5 memory support up to 192?GB with EXPO™ & XMP
– PCIe 4.0 x4 M.2 slot and x16 slot with EZ-Latch design
– Dual USB-C Gen2 connectivity
– Built-in Wi?Fi?6E (802.11ax) and 2.5GbE LAN
– Smart Fan?6 temperature-sensing cooling support
– Q?Flash Plus for BIOS updates without CPU or RAM
– HDMI and DisplayPort video output ports
– Compact Micro?ATX form factor for small builds
– 3 Year Warranty
Description
Gigabyte B650M D3HP AX AM5 Micro?ATX DDR5 Motherboard
B650M D3HP AX
The Gigabyte B650M D3HP AX is a compact Micro?ATX motherboard built on the AMD B650 chipset and Socket AM5, supporting the latest Ryzen 7000, 8000, and 9000 series CPUs. It offers a reliable 5+2+2 digital VRM design, dual?channel DDR5 memory support, integrated Wi?Fi 6E, and 2.5GbE LAN connectivity. Ideal for budget-friendly Ryzen builds, it delivers modern features in a space-saving format without compromising on performance or value.
Key Features
Supports AMD Ryzen?7000?/?8000?/?9000 series CPUs
Stable 5+2+2 phase digital VRM design
DDR5 memory support up to 192?GB with EXPO™ & XMP
PCIe 4.0 x4 M.2 slot and x16 slot with EZ-Latch design
Dual USB-C Gen2 connectivity
Built-in Wi?Fi?6E (802.11ax) and 2.5GbE LAN
Smart Fan?6 temperature-sensing cooling support
Q?Flash Plus for BIOS updates without CPU or RAM
HDMI and DisplayPort video output ports
Compact Micro?ATX form factor for small builds
Full Specifications Table
| Specification | Details |
|---|---|
| Model | Gigabyte B650M D3HP AX (Rev?1.0 / 1.2) |
| Form Factor | Micro?ATX |
| Socket / Chipset | AM5 / AMD B650 |
| CPU Support | AMD Ryzen 7000 / 8000 / 9000 series |
| VRM Design | 5+2+2 digital VRM with low?RDS MOSFETs |
| Memory Slots | 4× DDR5 SMD DIMMs (up to 192?GB) |
| Memory OC | EXPO™ & XMP support |
| PCIe Slots | 1× PCIe 4.0 x16 with EZ?Latch, plus additional PCIe 4.0 lanes |
| M.2 Slots | 1× PCIe 4.0 x4 M.2 slot |
| SATA Ports | 4× SATA 6Gb/s |
| LAN | 1× 2.5GbE LAN (Realtek) |
| Wi?Fi / Bluetooth | Wi?Fi?6E (802.11ax), Bluetooth via antenna |

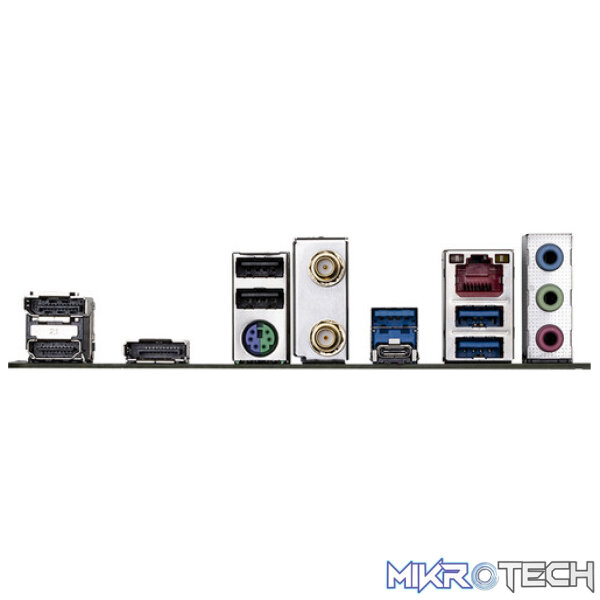

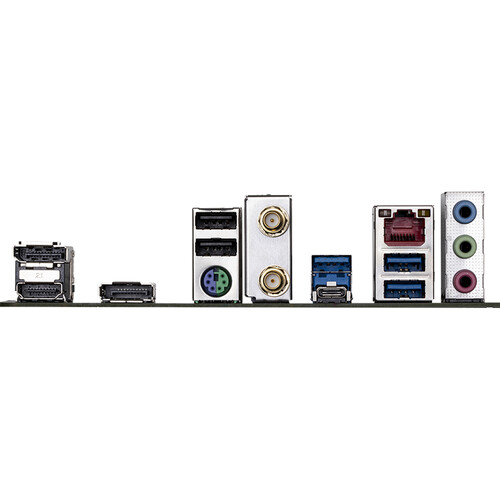

| Rear USB Ports | 1× USB?C Gen2, 2× USB 3.2 Gen1, 4× USB 2.0 |
| Display Outputs | HDMI and 2× DisplayPort |
| Audio | 8?channel HD audio with audio noise guard and quality capacitors |
| Cooling Support | Smart Fan?6 with hybrid fan headers and temperature sensors |
| BIOS Features | Q?Flash Plus, PCIe EZ?Latch |
| Form Factor Dimensions | Standard Micro?ATX (244×244?mm) |
| Warranty | 5 Year Warranty |
| Ideal Use | Budget Ryzen AM5 gaming or productivity build |
