Gigabyte B450 Aorus PRO AMD B450 Ryzen Socket AM4 ATX Desktop Motherboard

R3,019.99

In stock

ATX Form Factor
– AMD AM4 Chipset
Socket AM4
– 4x DDR4 DIMM Slots, Supports Up to 64GB
– 3x PCIe x16, 1x PCIe x1 Slots
6x SATA 6Gb/s Ports, 2x M.2 Slots
– 1x USB 3.1 Type-A Gen 2, 4x USB 3.1 Gen 1, 1x USB Type-C
– 1x HDMI, 1x DVI-D, 5x Audio Jacks
– Realtek ALC1220-VB Codec
– Intel GbE LAN Chip (10/100/1000 Mbit)
– Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire
3 Year Warranty

Compare
SKU: MB-GB450AP Categories: ,
SPECIFICATIONS
Brand Gigabyte
Series Socket AM4
Model B450 AORUS PRO
CPU AM4 Socket:
AMD Ryzen 2nd Generation processors
AMD Ryzen with Radeon Vega Graphics Processors
AMD Ryzen 1st Generation Processors
(Please Refer to “CPU Support List” for More Information.)
Chipset AMD B450
Memory 4x DDR4 DIMM Sockets Supporting up to 64 GB of System Memory
Dual Channel Memory Architecture
Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz Memory Modules
Support for ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate in Non-ECC Mode)
Support for Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
Support for Extreme Memory Profile (XMP) Memory Modules
On-Board Graphics Integrated Graphics Processor:
1x DVI-D Port, Supporting a Maximum Resolution of 1920 x 1200 @ 60 Hz
1x HDMI Port, Supporting a Maximum Resolution of 4096 x 2160 @ 60 Hz
Maximum Shared Memory of 16 GB
Audio Realtek ALC1220-VB Codec
High Definition Audio
2/4/5.1/7.1-Channel
Support for S/PDIF Out
LAN Intel GbE LAN Chip (10/100/1000 Mbit)
Expansion Slots 1x PCI Express x16 Slot, Running at x16 (PCIEX16) *3
(The PCIEX16 Slot Conforms to PCI Express 3.0 Standard.)
1x PCI Express x16 Slot, Running at x4 (PCIEX4)
1x PCI Express x16 Slot, Running at x1 (PCIEX1_2)
1x PCI Express x1 Slot (PCIEX1_1)
(The PCIEX4 and PCIEX1 Slots Conform to PCI Express 2.0 Standard.)
Storage Interface 1x M.2 Connector (Socket 3, M Key, Type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD Support) (M2A_SOCKET) *6
1x M.2 Connector (Socket 3, M Key, Type 2242/2260/2280 PCIe 3.0 x2 SSD Support)(M2B_SOCKET) *6
6x SATA 6Gb/s Connectors
Support for RAID 0, RAID 1, and RAID 10
Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire Technologies
USB Chipset:
1x USB Type-C Port on the Back Panel, with USB 3.1 Gen 2 Support
1x USB 3.1 Gen 2 Type-A Port (Red) on the Back Panel
2x USB 3.1 Gen 1 Ports Available Through the Internal USB Header
4x USB 2.0/1.1 Ports Available Through the Internal USB Headers
CPU:
4x USB 3.1 Gen 1 Ports on the Back Panel
Internal I/O Connectors 1x 24-pin ATX Main Power Connector
1x 8-pin ATX 12V Power Connector
2x M.2 Socket 3 Connectors
6x SATA 6Gb/s Connectors
1x CPU Fan Header
1x Water Cooling CPU Fan Header
2x System Fan Headers
1x System Fan/Water Cooling Pump Header
1x CPU Cooler LED Strip/RGB LED Strip Header
2x Digital LED Strip Headers
2x Digital LED Strip Power Select Jumpers
1x RGB (RGBW) LED Strip Header
1x Front Panel Header
1x Front Panel Audio Header
1x S/PDIF Out Header
1x USB 3.1 Gen 1 Header
2x USB 2.0/1.1 Headers
1x Trusted Platform Module (TPM) Header (2×10 pin, for the GC-TPM2.0 Module Only)
1x Clear CMOS Jumper

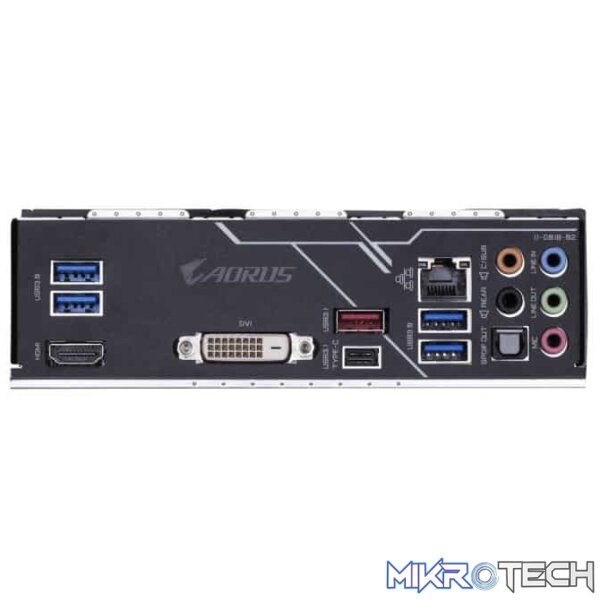

Back Panel Connectors 1x HDMI Port
1x DVI-D Port
4x USB 3.1 Gen 1 Ports
1x USB Type-C Port, with USB 3.1 Gen 2 Support
1x USB 3.1 Gen 2 Type-A Port (Red)
1x RJ-45 Port
1x Optical S/PDIF Out Connector
5x Audio Jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage Detection
Temperature Detection
Fan Speed Detection
Water Cooling Flow Rate Detection
Overheating Warning
Fan Fail Warning
Fan Speed Control *7
BIOS 2x 128 Mbit Flash
Use of Licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System Support for Windows 10, 7 64-bit *8
Form Factor ATX Form Factor; 30.5 x 24.4 cm
Notes *1 The DVI-D port does not support D-Sub connection by adapter.
*2 Support for HDMI 2.0 version and HDCP 2.2.
*3 Actual support may vary by CPU.
*4 For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
*5 The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty.
*6 Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
*7 Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
*8 To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
*9 Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Warranty Information
Warranty 3 Year Warranty
