KEY FEATURES:

Socket AM5, AMD B650 Chipset
Supports AMD Ryzen 7000 and 8000 Series Processors
4 x DDR5 DIMM Slots, Up To 192GB DDR5-7600 (OC)
1 x PCIe 4.0 x16 Slot
3 x PCIe 3.0 x16 Slot (x1 Electrical)
1 x M.2 PCIe 5.0 NVMe Slots
2 x M.2 PCIe 4.0 NVMe Slot
4 x SATA Ports with RAID 0/1/5/10
Gbe LAN & Wi-Fi 6E
1 x Rear USB Type-C 5Gb/s
2 x Rear USB Type-A 10Gb/s
3 Year Warranty

Description

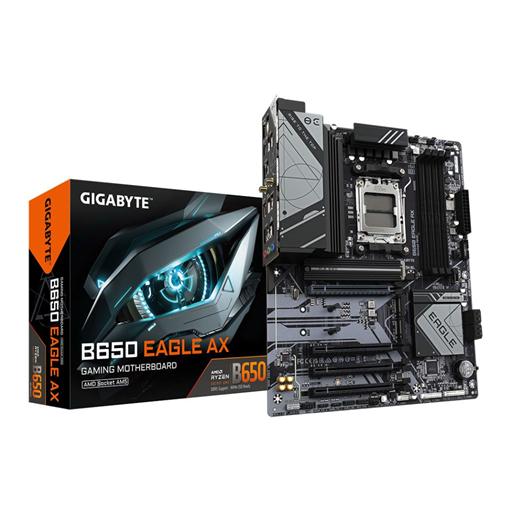

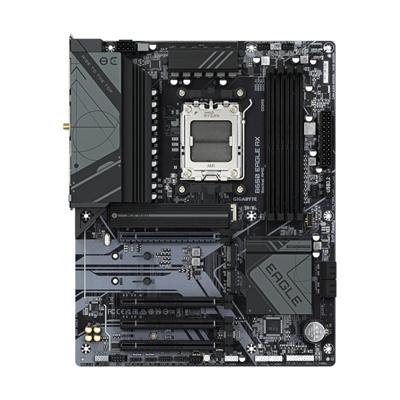

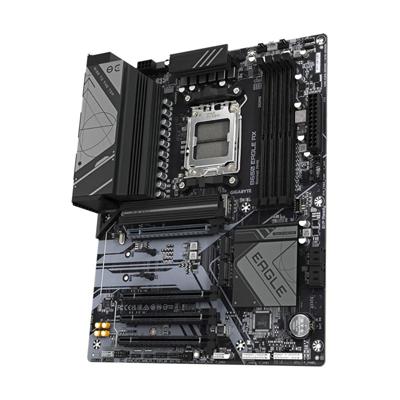

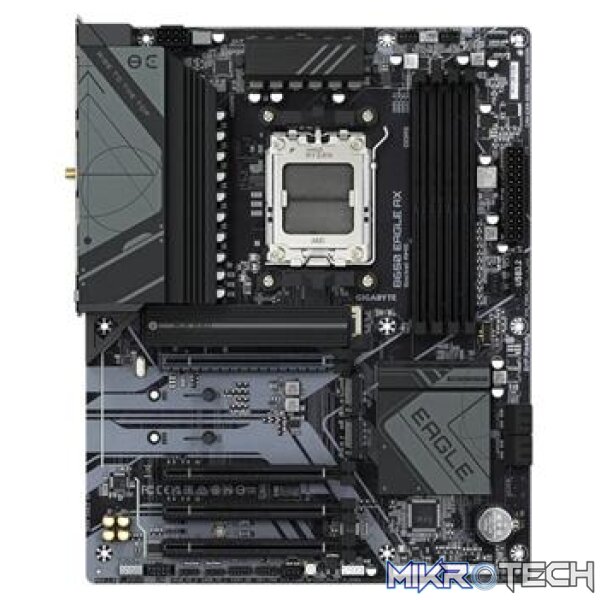

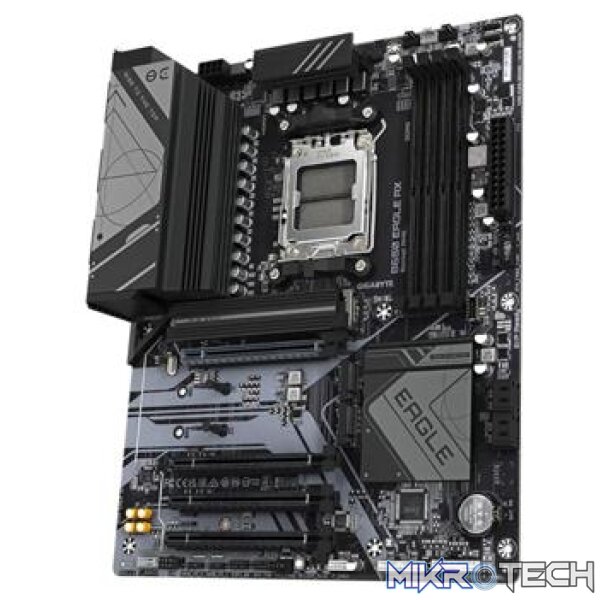

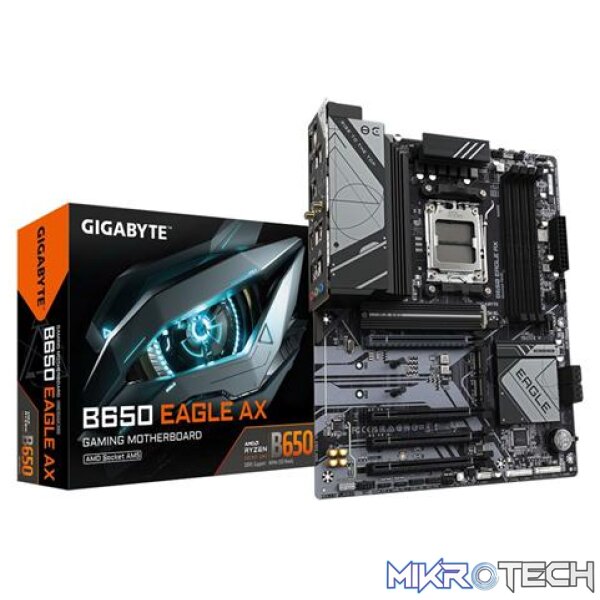

Gigabyte AMD B650 EAGLE AX ATX Motherboard

Name: Gigabyte AMD B650 EAGLE AX ATX Motherboard - MikroTech
SKU: MB-GB650E+W
Price: 3189.99 ZAR
Availability: InStock

GA-B650-EAGLE-AX

Durable Performance

GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design

The best VRM design ever built with the highest quality components.

DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond

GIGABYTE is offering a tested and proven platform with extreme memory performance boost.

Unlock DDR5 Voltage

GIGABYTE Exclusive DDR5 Circuit Design Increases DDR5 memory overclocking performance and capability by transforming Native DDR5 memory module to Overclocked DDR5 memory.

EXPO & XMP Support

Maximum Compatibility for Memory O.C.

AMD EXPO and Intel® XMP 3.0 User Profile

Easily create overclocked memory performance by defining and creating your own SPD profile into Native and XMP 3.0 memory modules, or applying the pre-tuned profiles to XMP 3.0 User Profile.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

GbE LAN with Bandwidth Management

Helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

PCIe 4.0 Hardware Design

Featuring one or multiple PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

High-End Audio Capacitors

These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise Guard

Essentially separates the boards sensitive analog audio components from potential noise pollution at the PCB level.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory, and graphics card.

Smart Fan 6

Ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customisable settings, and intuitive temperature monitoring.

Redesigned UI and UX

An intuitive operation interface with an aesthetically pleasing design.

Quick Access

9 customisable option slots for effortless access in Easy Mode.

PerfDrive

Exclusive BIOS settings that optimise the performance based on the cooling configuration.

CPU	AMD Socket AM5, support for AMD Ryzen 7000 / Ryzen 8000 Series Processors (Please refer CPU Support List for more information.)
Chipset	AMD B650
Memory	Support for 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek GbE LAN chip 1 Gbps/100 Mbps/ 10Mbps
Wireless Communication Module	TBA TBA
Expansion Slots	CPU: 1 x PCI Express x16 slot AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used.
Storage Interface	CPU: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x serial port header 1 x Clear CMOS jumper

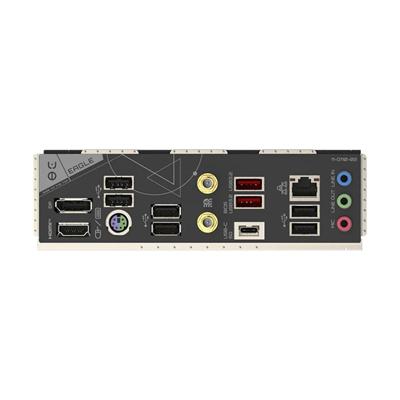

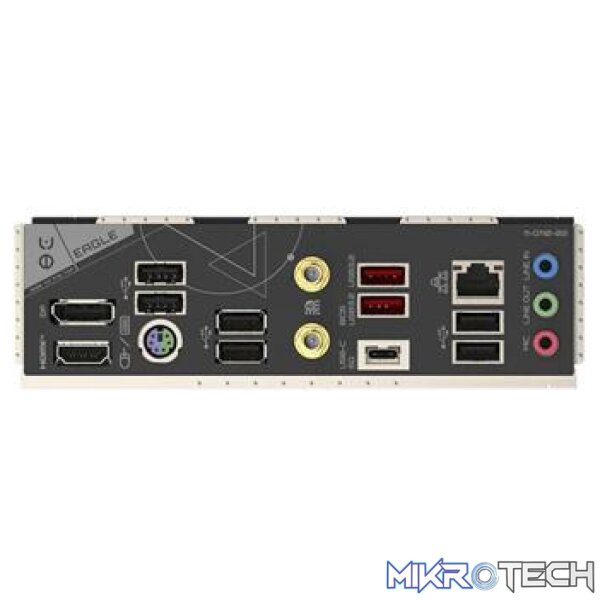

Back Panel Connectors	1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor	ATX Form Factor, 30.5cm x 24.4cm
