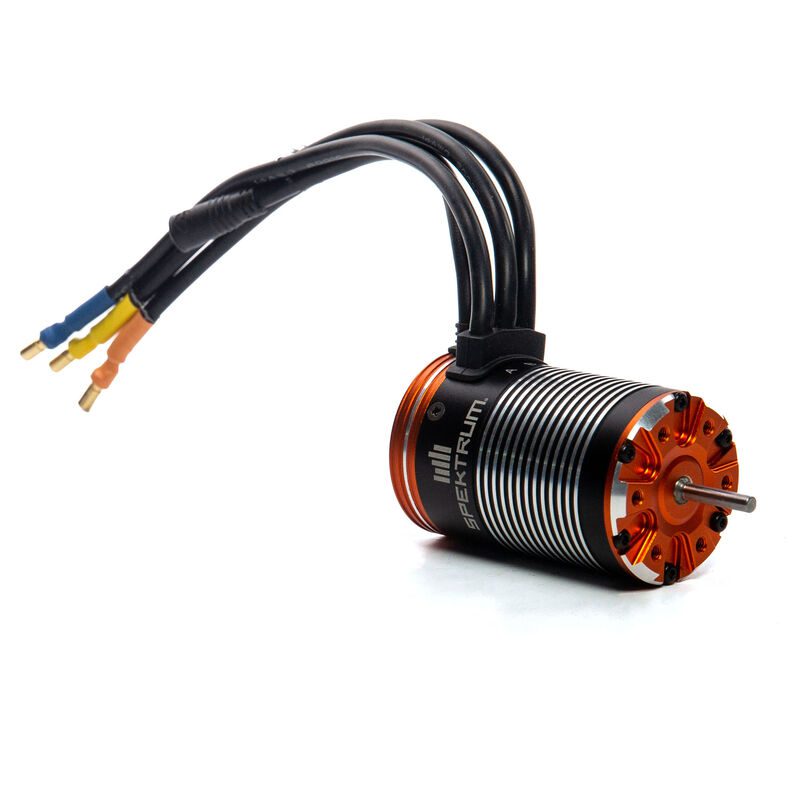

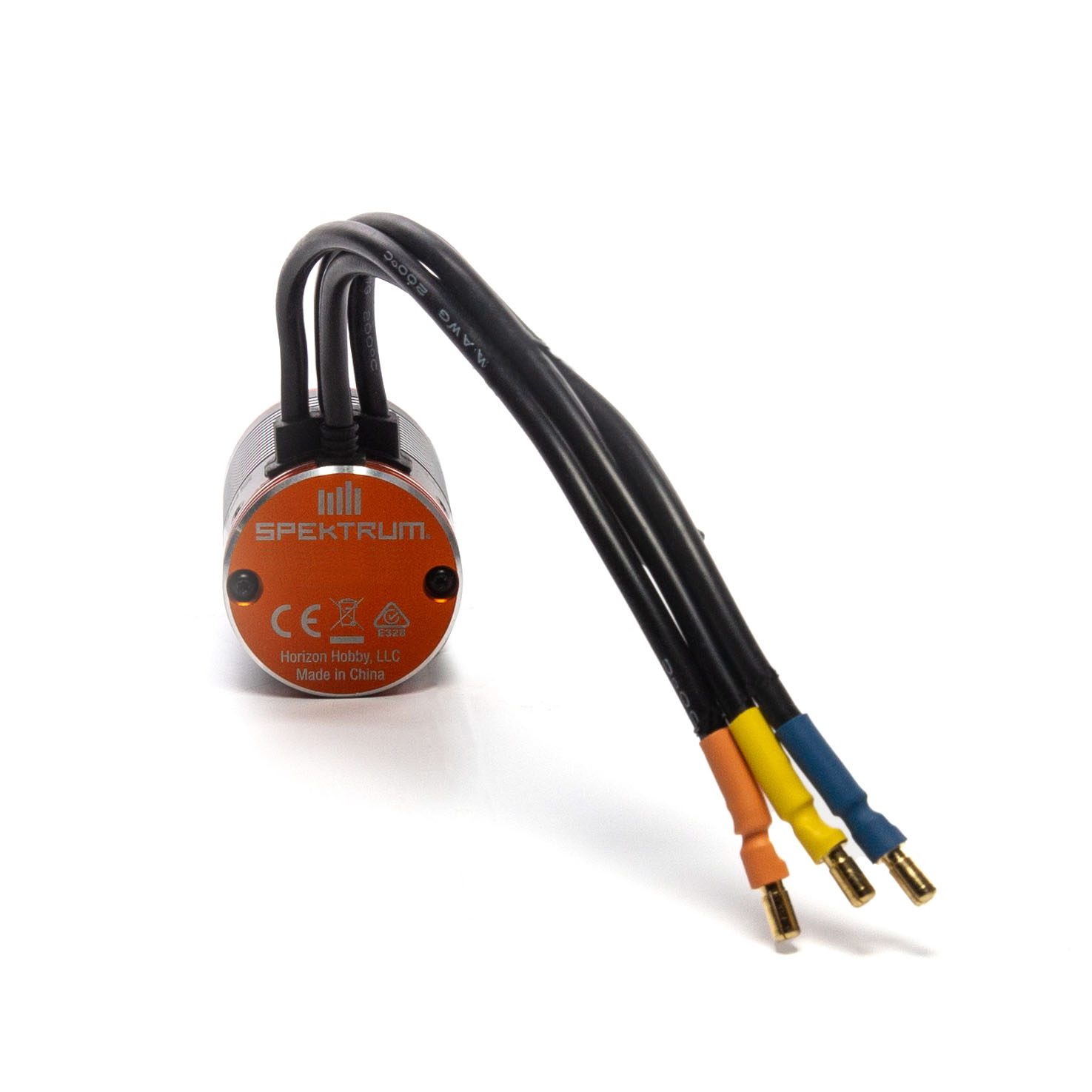

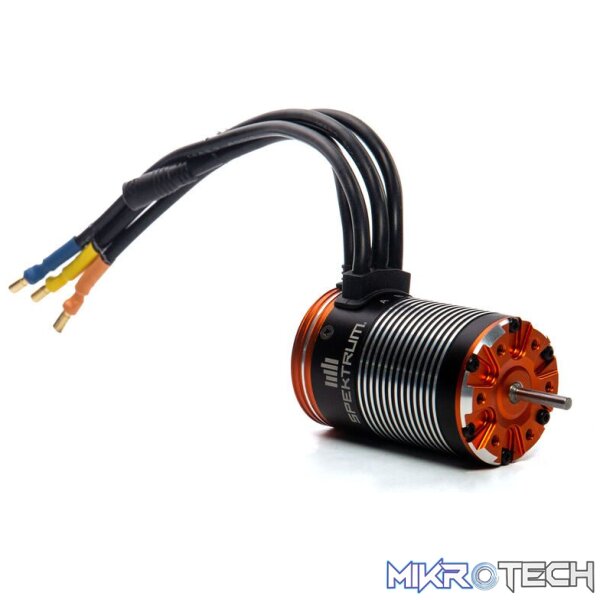

Firma 2800kv BL Sensored Crawler Motor
R3,179.00 incl. VAT
Only 1 left in stock
Product Description
Key Features
- Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8″ mm bore)
- Perfect for high speed off-road applications such as rock bouncers and rock racers
- High-quality 4-pole sintered rotor
- Polarity protection – magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position.
- 4mm gold plated bullet connectors
Overview
The Firma 2800Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8″) output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation. The
Features
- Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8″ mm bore)
- Perfect for high speed off-road applications such as rock bouncers and rock racers
- High-quality 4-pole sintered rotor
- Polarity protection – magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
- 4mm gold plated bullet connectors
- Waterproof sensor wire with locking plug and gasket
- High-quality construction with precision ball bearings and hardened steel 1/8″ shaft
Product Specifications
| Application | 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power |
| Bushing Or Bearing | Bearing |
| Connector Type | 4mm Bullet |
| Forward | Yes |
| Input Voltage | 7.4 – 11.1V |
| Maximum Continuous Current | 50A |
| Motor Type | Brushless – Sensored |
| Number of Poles | 4 |
| Outer Diameter | 1.42″ (36 mm) |
| Product Length | 2.27″ (58 mm) |
| Recommended Speed Control | Spektrum Firma 60A Sensored Brushless Smart Crawler ESC |
| Reverse | Yes |
| RPM/Volt (Kv) | 2800Kv |
| Shaft Diameter | 0.125″ (3 mm) |
| Water-Resistant | Yes |
