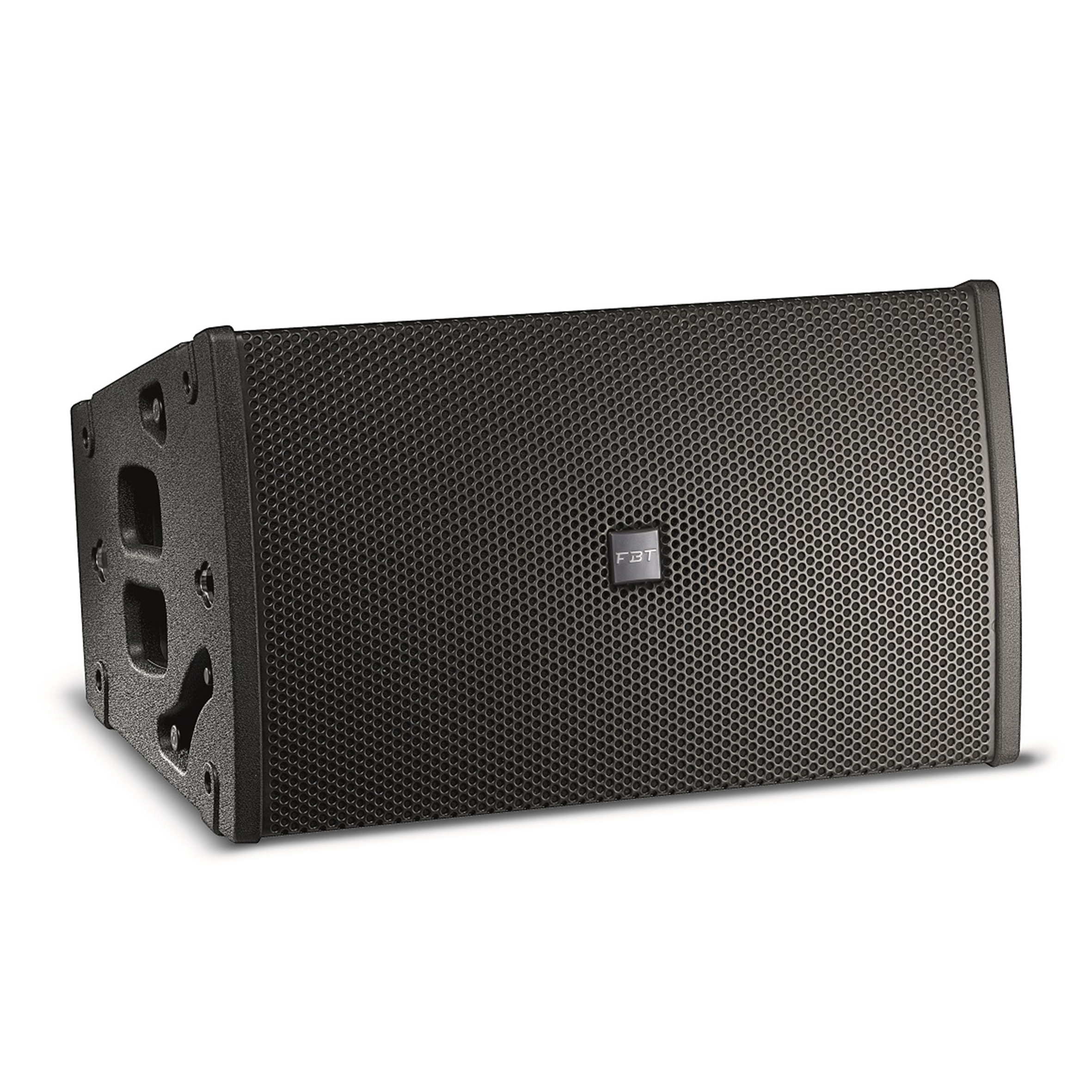

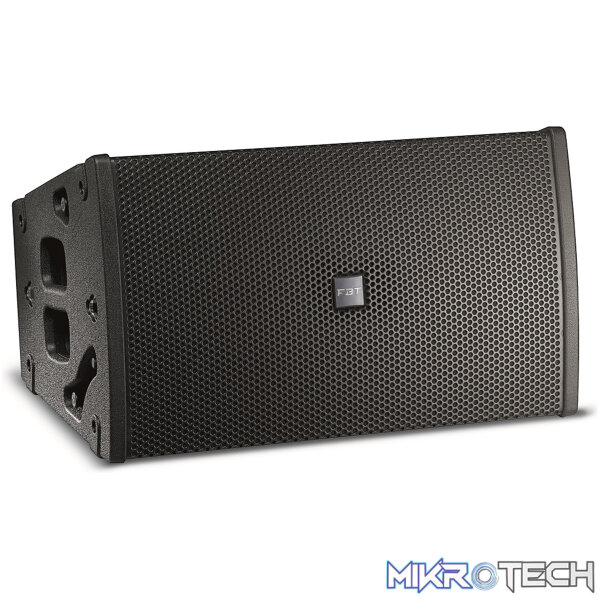

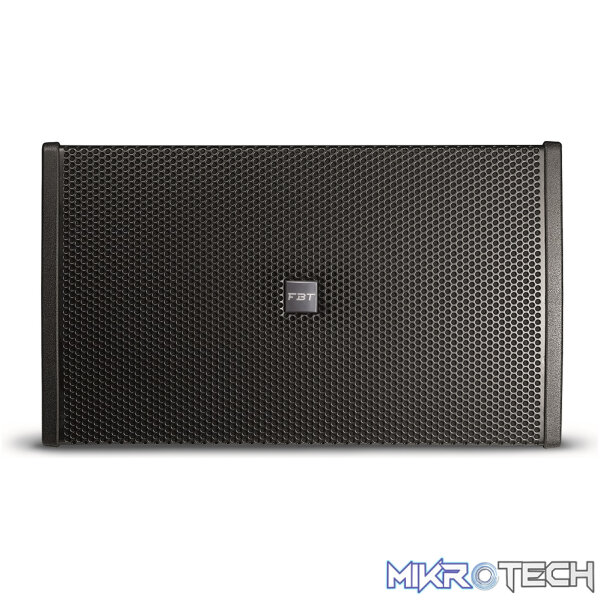

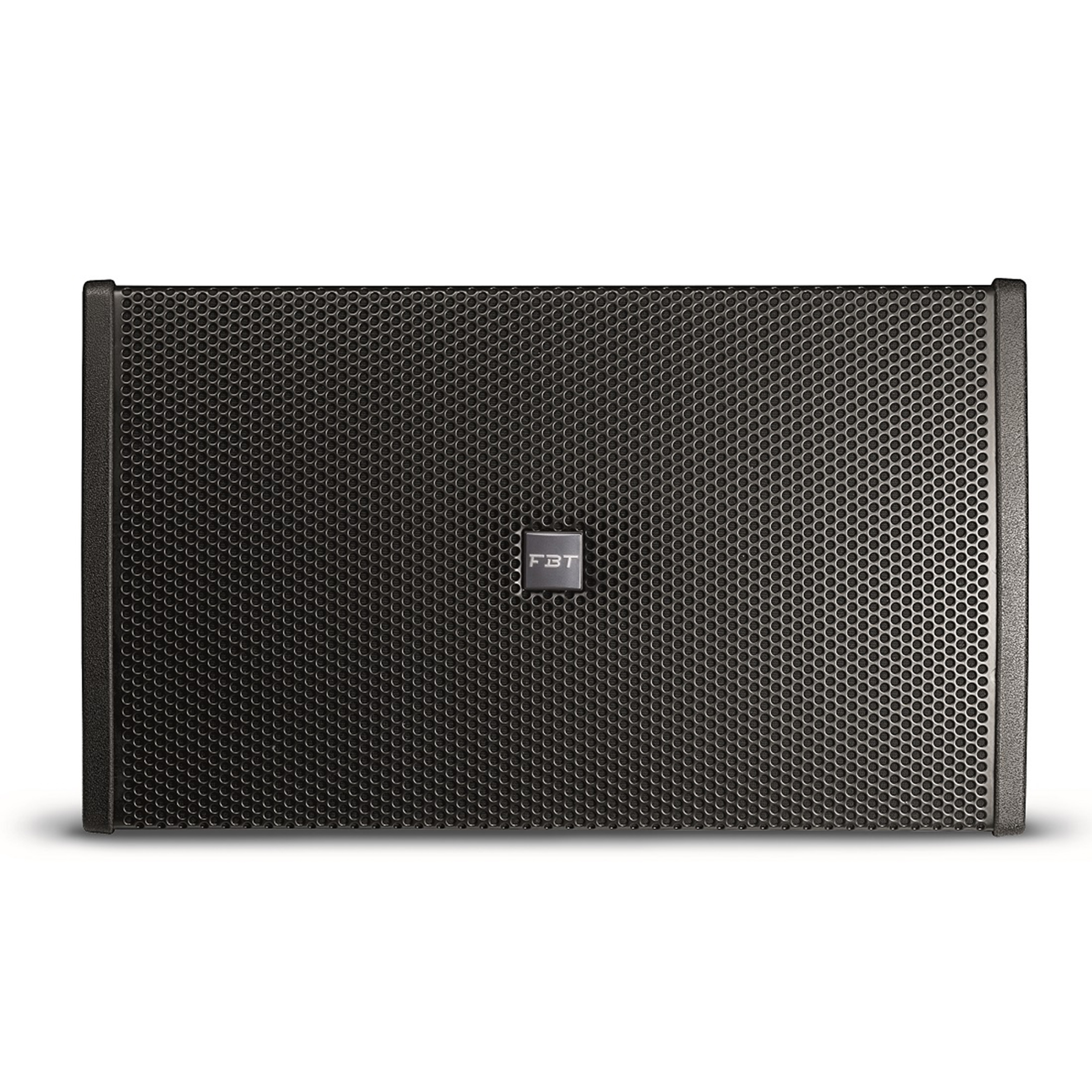

Fbt – Vha112Sa Horizon Active Array Sub 12In 1200W Rms

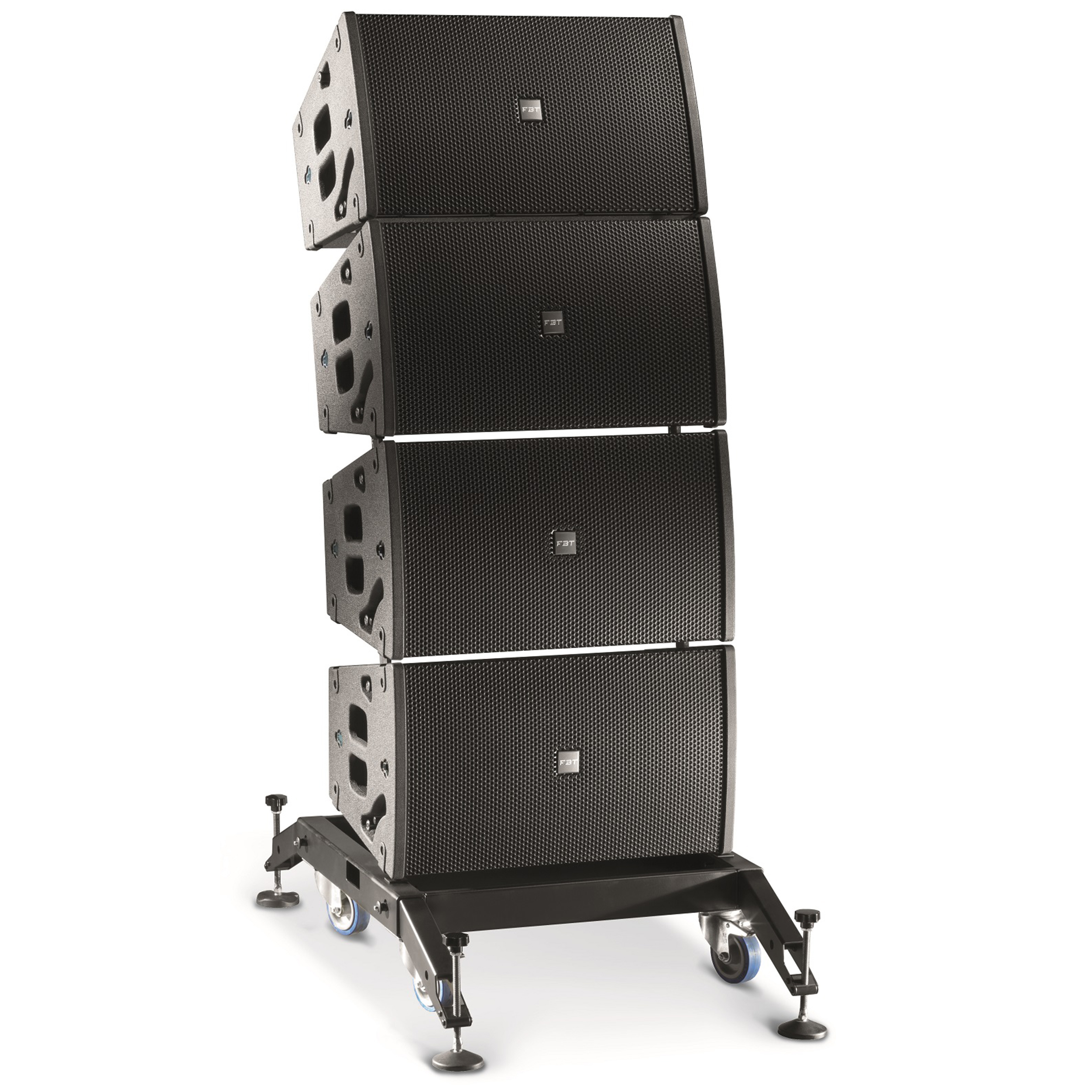

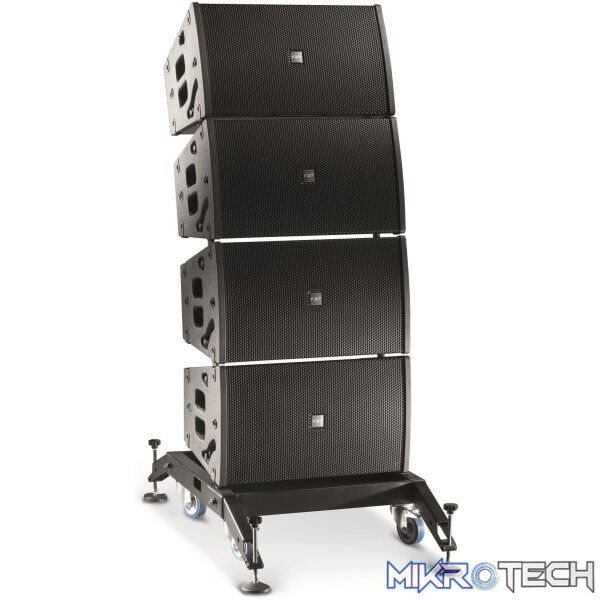

Delivering optimal audience coverage with the ability to adapt to the requirements of the project at hand, HORIZON VHA represents a step forward in flexible sound reinforcement technology with exceptional sound quality. Crafted in Italy with the no-compromises manufacturing excellence for which FBT is known, the HORIZON VHA series comprises the full range VHA406A, plus two options for low-end extension in the shape of the 12” VHA112SA and 18” VHA118SA.

FEATURES:

• Bass-reflex amplified subwoofer
• 320 High-excursion 320mm (12in) Woofer B&C
• Frequency response from 45Hz to 120Hz
• 1200Wrms class D amplifier with switching mode power supply
• DSP processor with 8 presets, delay

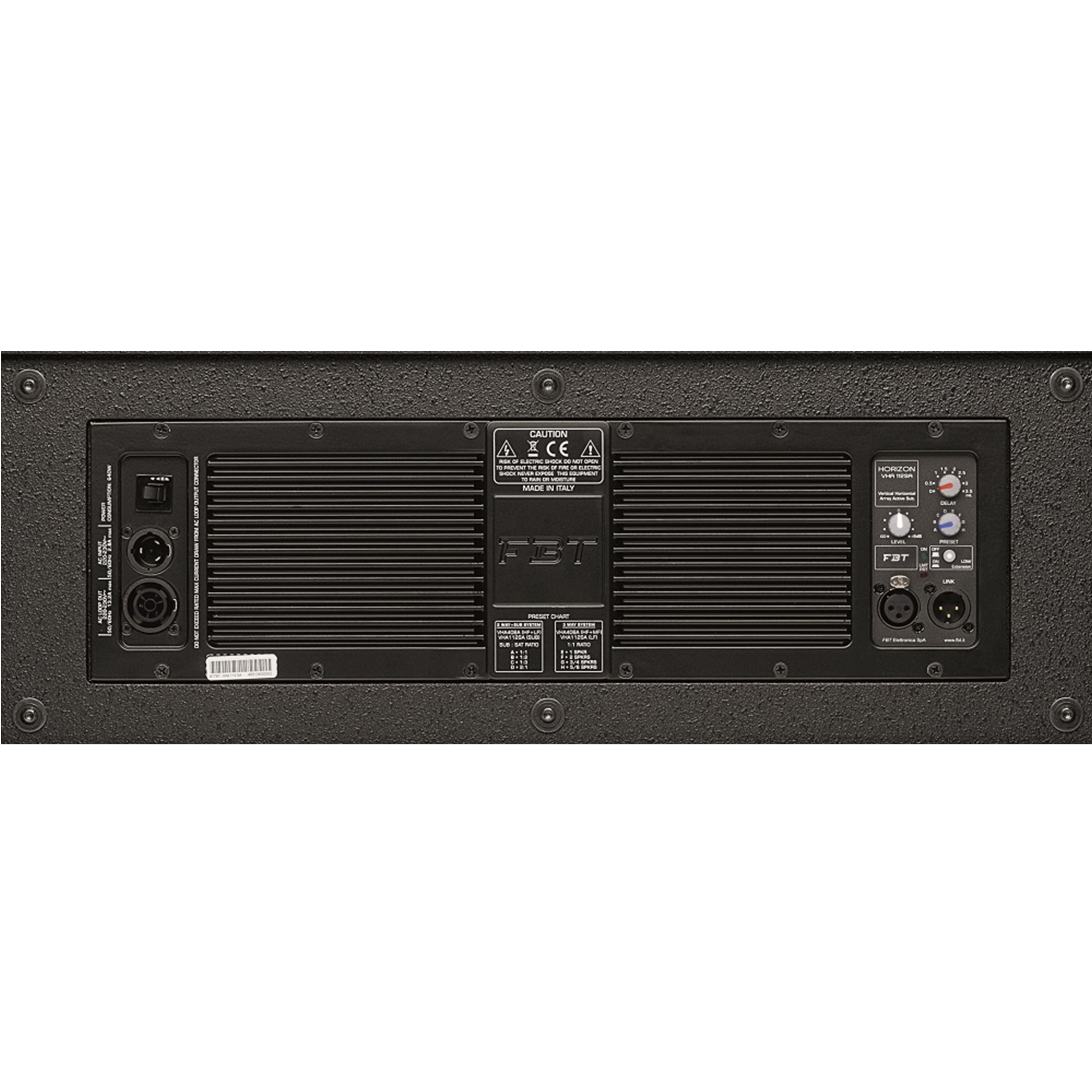

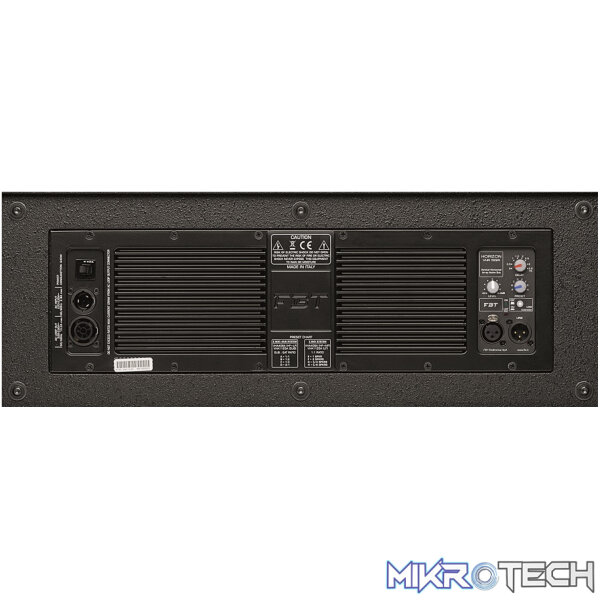

• Control panel with XLR input and link, volume, presets, delay, ground-lift
• Neutrik PowerCON TRUE1 IN and LINK power connectors
• Cabinet in 12mm (0.5″) birch plywood with anti-scratch varnish. Handles with rubber inserts and rubber-coated sides to protect the cabinet from bumps and scratches
• Ideal for reinforcing and extending the low range of the VHA406A line array in the 45Hz – 120Hz range

SPECIFICATIONS:

• Configuration:
  1 REFLEX way
•
  Built-in amplifier LF/HF:
  1200 W RMS
•
  Built-in amplifier peak LF/HF:
  2400 W
•
  Frequency response:
  45Hz – 120Hz -6dB
•
  Low Frequency woofer:
  1×12 – 3/4 coil inch
•
  Maximum SPL cont/peak:
  131.5/135 half-space dB
•
  Dispersion:
  omnidirectional HxV
•
  Input impedance:
  22 Kohm
•
  Crossover Frequency:
  preset dependant KHz
•
  AC Power requirements:
  640 VA
•
  Input connector:
  XLR with loop
•
  Power cord:
  5 m
•
  Net Dimension (WxHxD):
  612x360x397 mm
•
  Net Weight:
  25kg
  Transport Dimension (WxHxD)
•
  Transport Weight:
  28Kg
